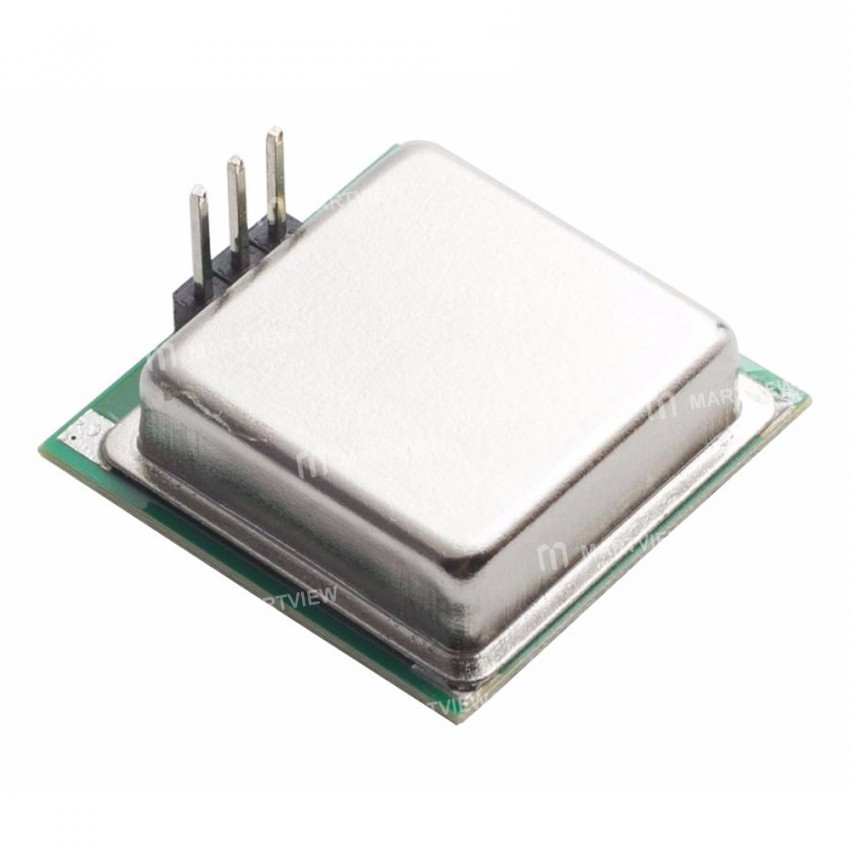

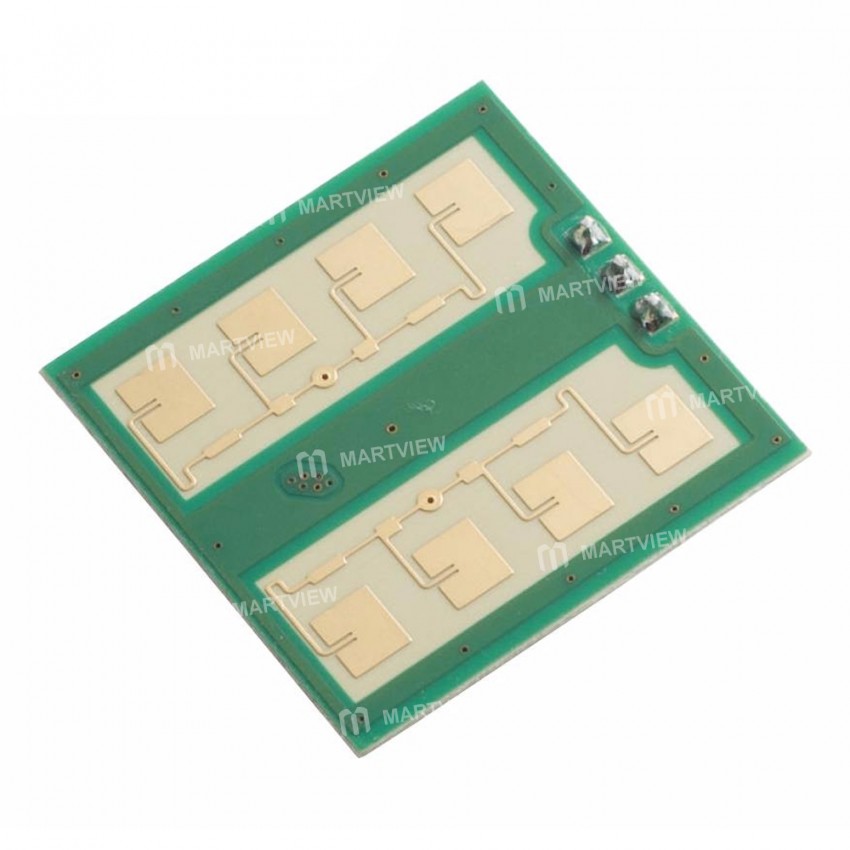

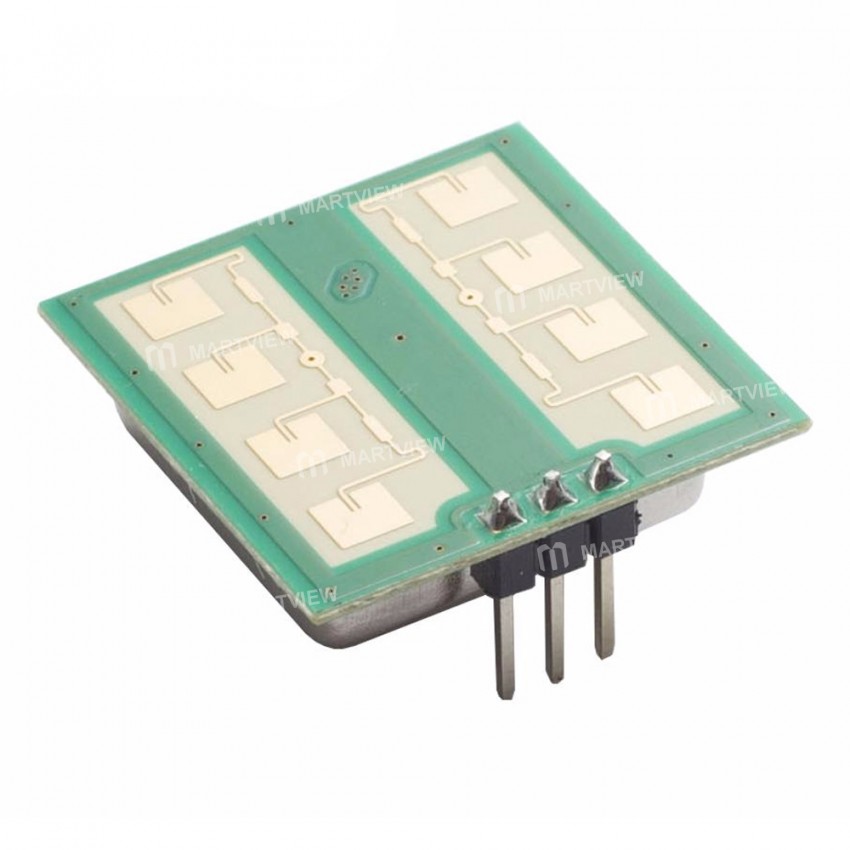

CDM324 24Ghz Radar Inductive Switch Sensor Microwave Body Induction Module

CDM324 24Ghz Radar Inductive Switch Sensor Microwave Body Induction Module

Features:

• Noncontact detection; moving target detection

• The module's transmitting frequency is 24GHZ, which can be widely applied in the fields of Commerce, industry, word control, etc

• Can provide different frequency range standards: -the UK, -F. advanced low power PHEMT oscillator

• Independent transmit and receive path, maximum gain and single-channel operation can be obtained

• High sensitivity/High flexibility/Low cost

• It is not affected by temperature, humidity, noise, airflow, dust, and light, and is suitable for harsh environment

• Anti RF interference ability, stable performance, quick response, and high sensitivity

• The output power is only 5mW, which is not harmful to the human body.

• The distance detection range is 15 meters

• Small size, easy installation

• Radar waves can penetrate non-metallic objects, such as wood, glass, plastic, fiber fabrics, etc. unless there are concrete walls and metal plates to intercept

• The best detection effect is when people or objects move to the sensor

Specification:

• Transmitting Frequrency: Typ:24.125GHz; Min:24GHz; Max:24.25GHz

• Output Power:16dbm (Tpy)

• Operating Temperature:-20--60℃

• Operating Current: Tpy:30MA, Max:40MA

• Operating Voltage: Tpy:5.5V

• Pulse Width: Tpy:10US

• IF Output:-300--300MV

• Appearance Size:25*25*7mm

Notes:

• Don't operate during the power on in case of maloperation, wrong circuit, or electric shock

• Avoid installing the product in an exposed place to prevent damage or affecting using longevity

• It is best to install away from the magnetic field in order to avoid any malfunction

• It is best to install away from the conductor movement (like fans) to avoid misoperation
