ChargerLAB POWER-Z P240 Bidirectional Multi-protocol Digital Programmable Power Supply

ChargerLAB POWER-Z P240 Bidirectional Multi-protocol Digital Programmable Power Supply

Features:

• 4.3 inch HD screen, LCD capacitive touch screen, easy to operate

• Quiet to enjoy, fan noise 39.9dB

• Super heat dissipation, CNC metal case, 4000 RPM powerful fan

• Support for multiple protocols: AFC, FCP, SCP, SSCP, VOOC, PD3.1, UFCS, etc.

• Fully functional, can test the output voltage, current, power, ripple of mobile power supply or USB, adaptor PCBA, and finished products

• High measurement accuracy, 16Bit, voltage 1mV, current 1mA

• Power supply, load dual function: Multi-protocol trigger regulation; Maximum 240W power adjustment; Maximum 10A current regulation

• Adopting metal material to make the shell, the body is cold and easy to dissipate heat; at the same time, the frosted metal texture is not easy to residual fingerprints

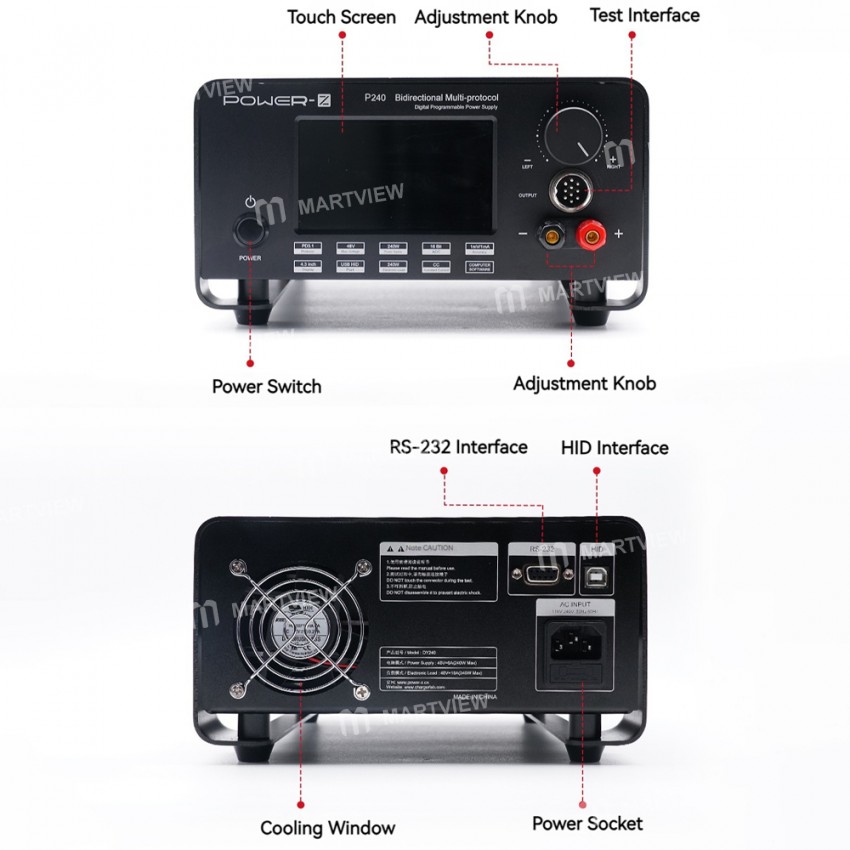

• With LCD, operation knobs, and various ports, such as a power switch, touch screen, GX20-10 aviation socket, adjustment knobs, etc

• Equipped with AC power socket, RS232 communication interface (DB9 female socket), USB-B communication interface, and cooling fan outlet

• In the power state, it can provide a maximum of 48V10A 240W power supply and supports a variety of fast charging protocols

• Standard mode (DC output) and support for QC2.0, QC3.0, PD3.1, PD3.0, and UFCS fast charging protocols can be selected

• Standard mode (DC load) and support for QC2.0, QC3.0, PD3.1, FCP, SCP, SSCP, AFC, VOOC, SVOOC, UFCS and other fast-charging protocol modes can be selected

• In the mode option column, constant current and voltage, voltage and current limitation, capacity test, and other test methods can be selected according to the test requirements to test different functions

Package includes:

• 1 x Host

• 1 x Power Cord

• 1 x GX20-10 Aviation Plug to Type-C (Female) Test Cable

• 1 x A to C Cable

• 1 x C to C Cable

• 1 x C to Micro Cable

• 1 x Alligator Clip Connection Cable
