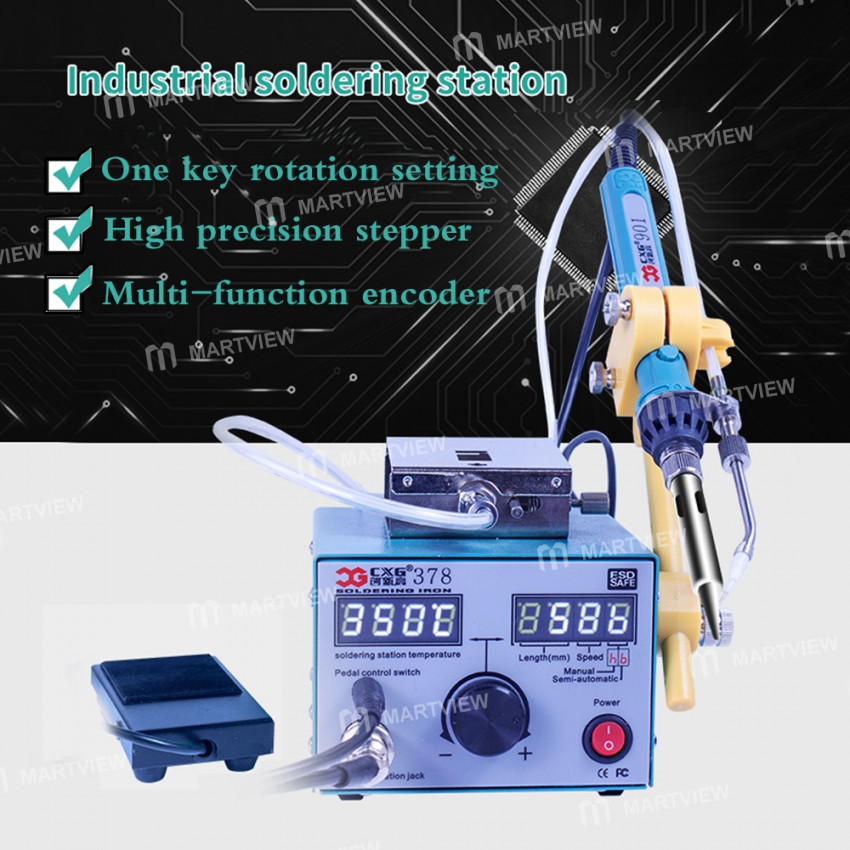

CXG 378 80W Foot-operated Semi-automatic Digital Display Soldering Tin Machine

CXG 378 80W Foot-operated Semi-automatic Digital Display Soldering Tin Machine

Features:

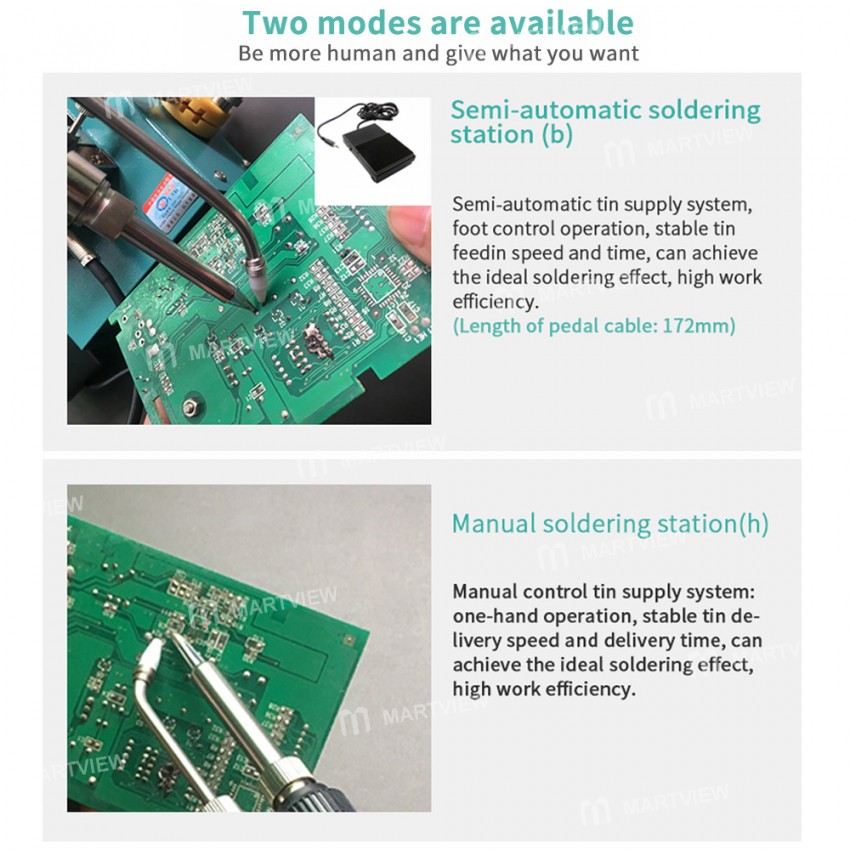

• CXG 378 automatic tin-feeding and welding machine is convenient for continuous welding work. It can adjust the tin-feeding speed and tin-feeding length according to different welding needs and can achieve a semi-automatic welding effect and high work efficiency

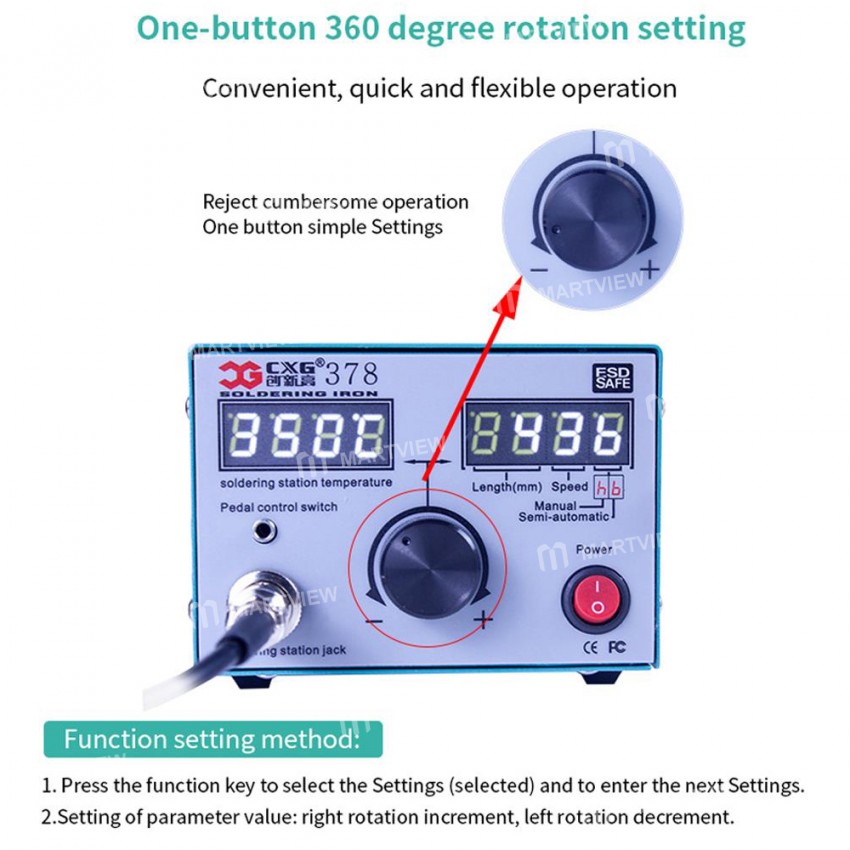

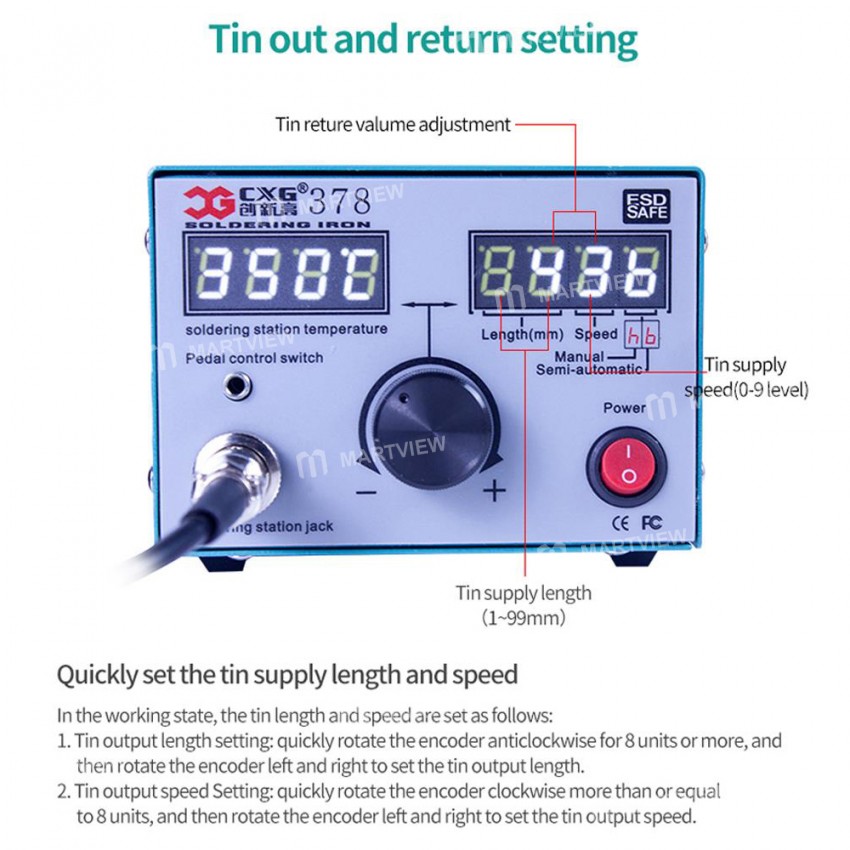

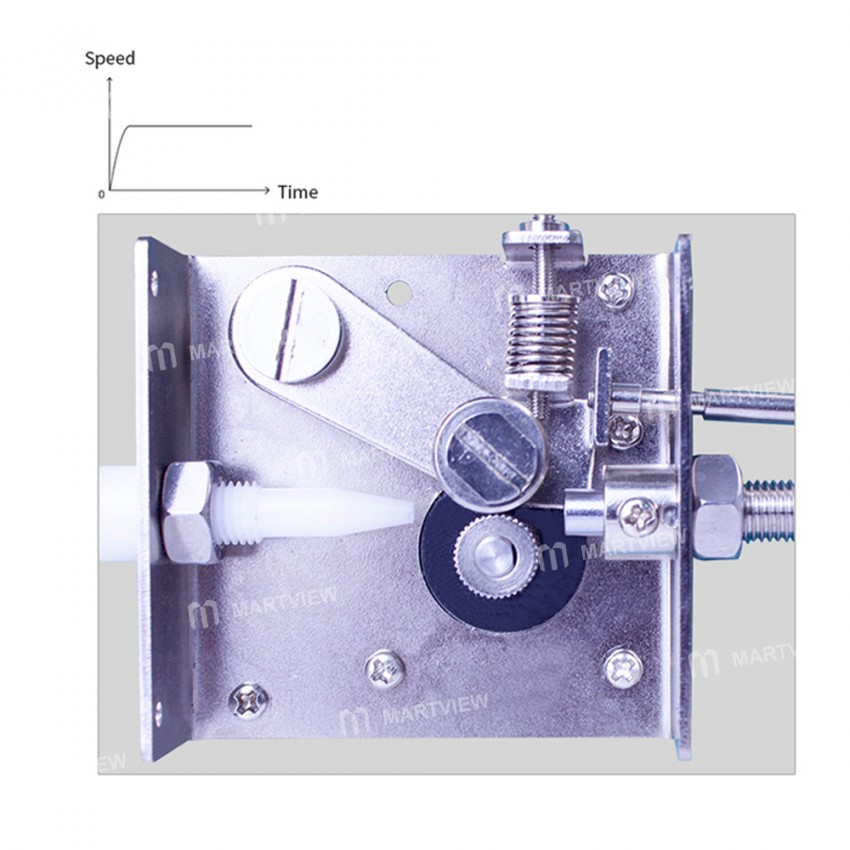

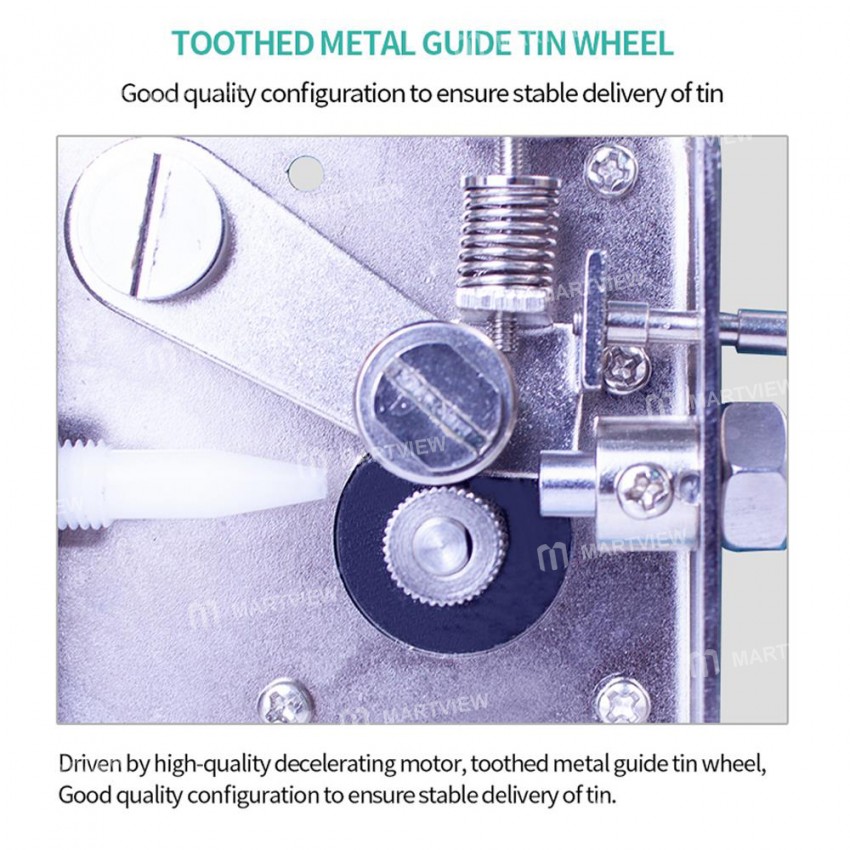

• Adopting high-precision stepping motor, large torque and no blocking of tin, adjustable tin-feeding length 1～99mm, multi-function encoder one-touch 360-degree rotation setting method, multi-angle welding adjustment, small size, and lightweight

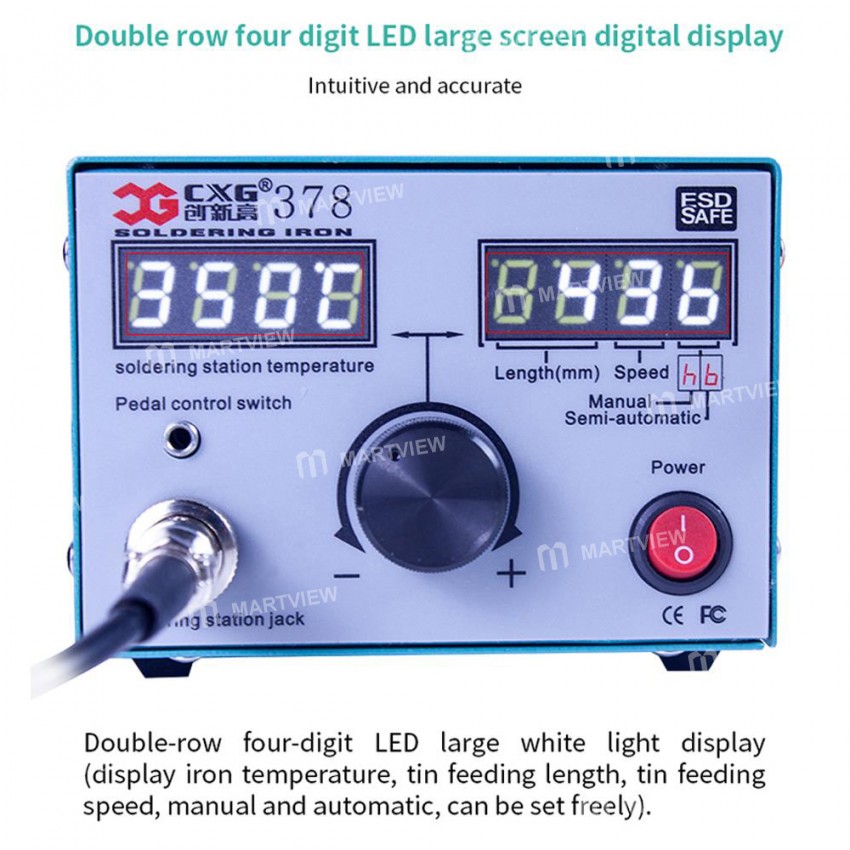

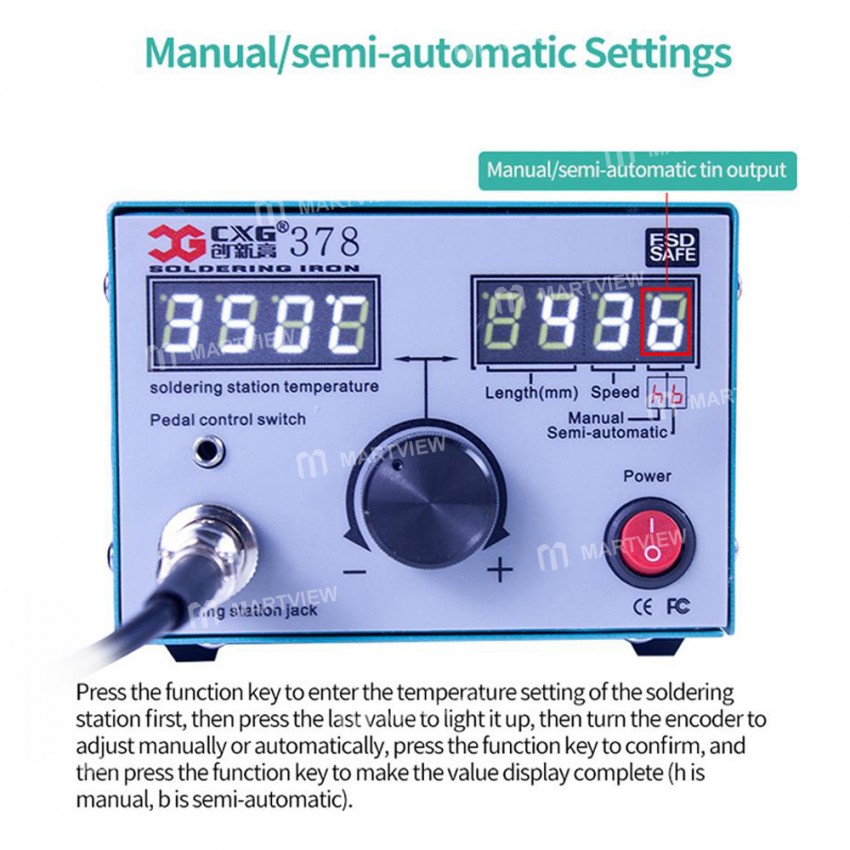

• Double-row four-digit LED large screen white light display (showing soldering iron temperature, tin feeding length, tin feeding speed, manual and automatic, can be freely set), 8-digit LED display, setting parameters at a glance

• Precisely control the length and speed of tin delivery, ensure the same solder joint size, reduce the waste of tin wire, and save 17% tin wire compared to manual

• The highly reliable metal anti-static design makes welding sensitive components safer. It is safer, quicker, and more convenient to enter the setting parameters. The machine replaces manual work with higher efficiency, lightness, and flexibility

• Particularly suitable for various types of electronic connectors, LED string lights, video and audio cable plugs, headphone cables, computer data cables, small circuit boards, and small electronic components

• Manual internal heating type soldering iron, easy to operate and simple, can effectively improve the efficiency of the work, saving resources

•

Specification:

• Soldering station:

• Model: CXG 378

• Power: 80W

• Temperature mode: ℃/°F

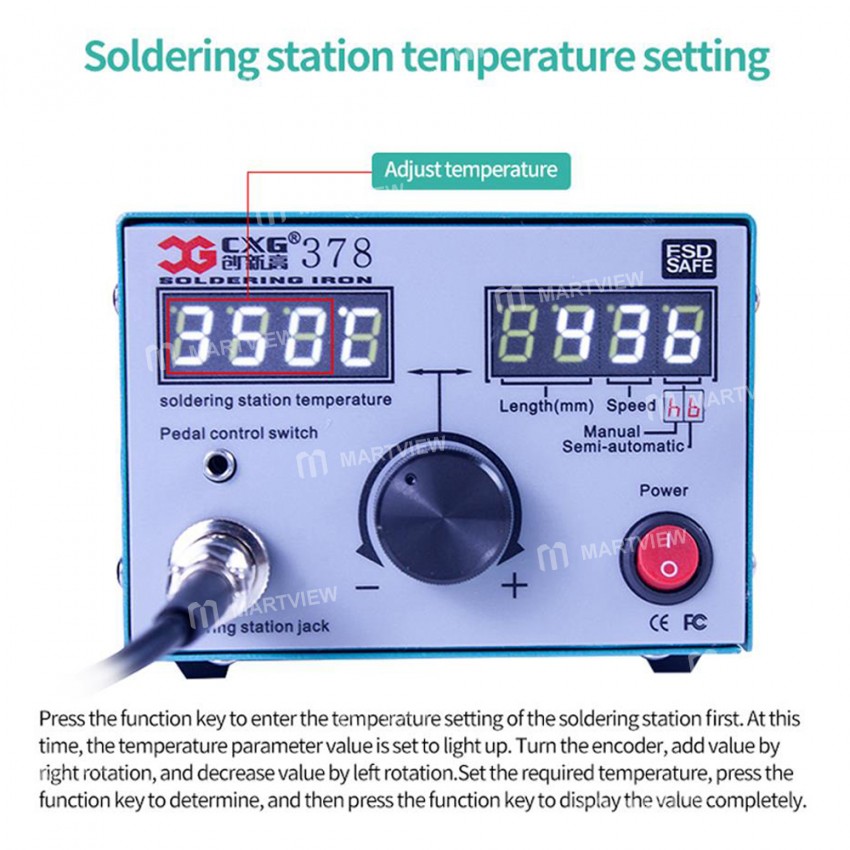

• Temperature range: 80~500℃/176~932°F

• Input voltage: AC100V/220V

• Suitable for tin wire diameter: 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 (mm)

• Product size: 128*116*80mm

• Power cable length: 1.2M

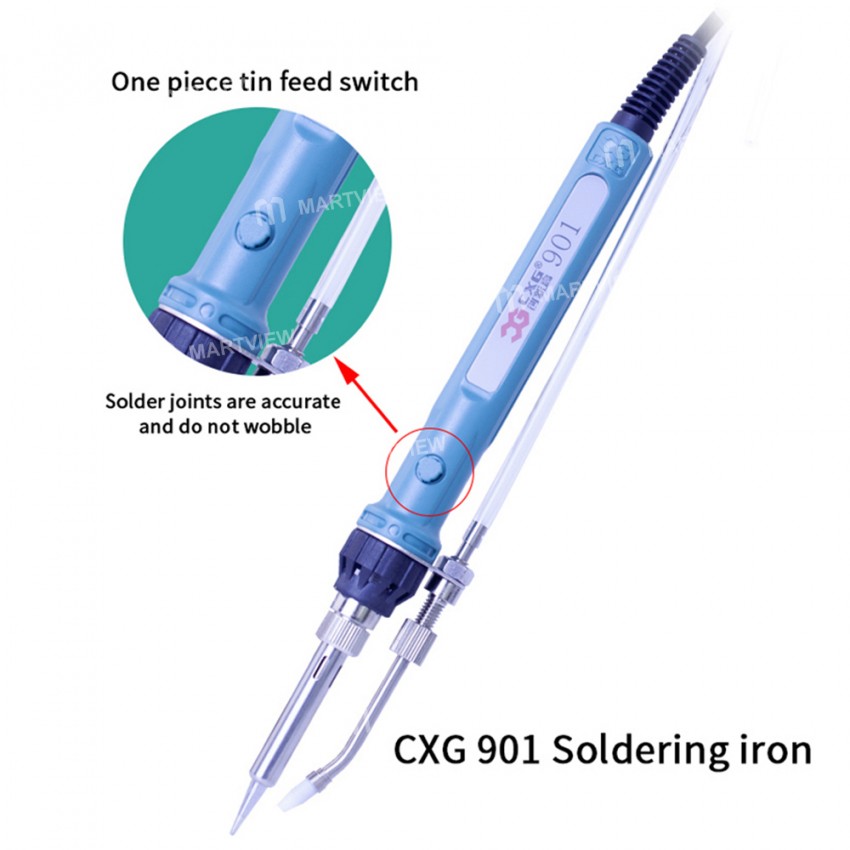

Soldering iron:

• Model: CXG 901

• Soldering tips: 900M Series

• Resistance of soldering tip to the ground: ≦2Ω

• The voltage of soldering into the ground: ≦2mv

• Soldering iron cable length: 1.2M

• Soldering iron handle length: 220mm

Package includes:

• 1 x Host

• 1 x Soldering Iron Handle

• 1 x Spring Soldering Iron Holder

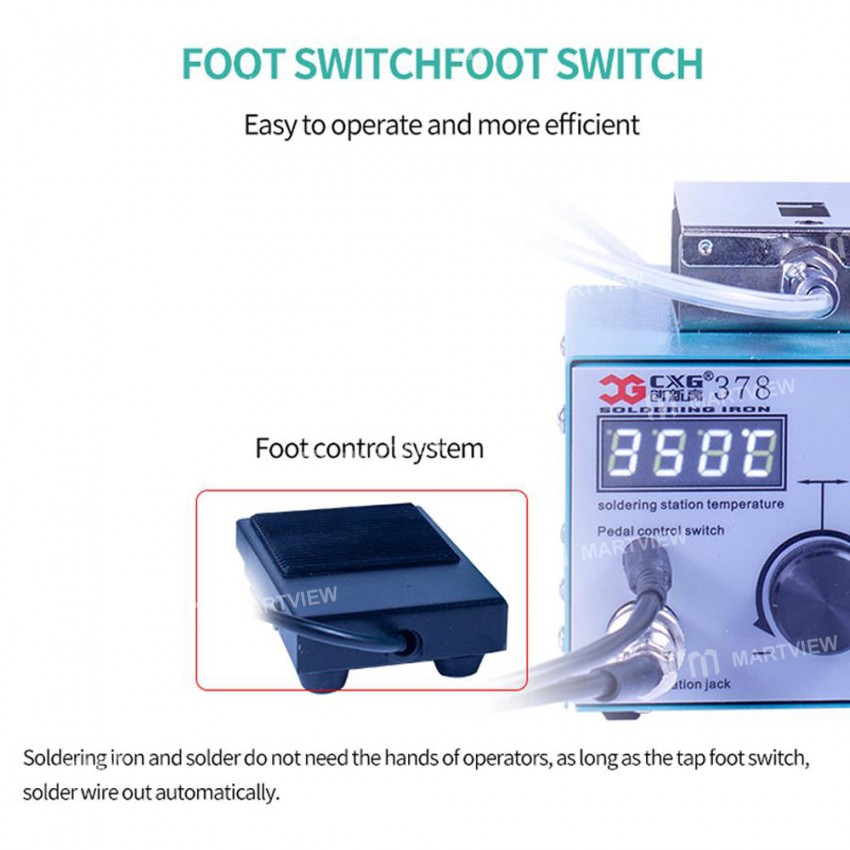

• 1 x Foot Switch

• 1 x Universal Bracket

• 1 x Tin Feed Tube

• 1 x Tin Feed Spindle

• 1 x Power Cord
