CXG 861 / 862 2-in-1 Hot Air Gun Soldering Iron Eddy Current Programming Desoldering Station

CXG 861/862 2-in-1 Hot Air Gun Soldering Iron Eddy Current Programming Desoldering Station

Features:

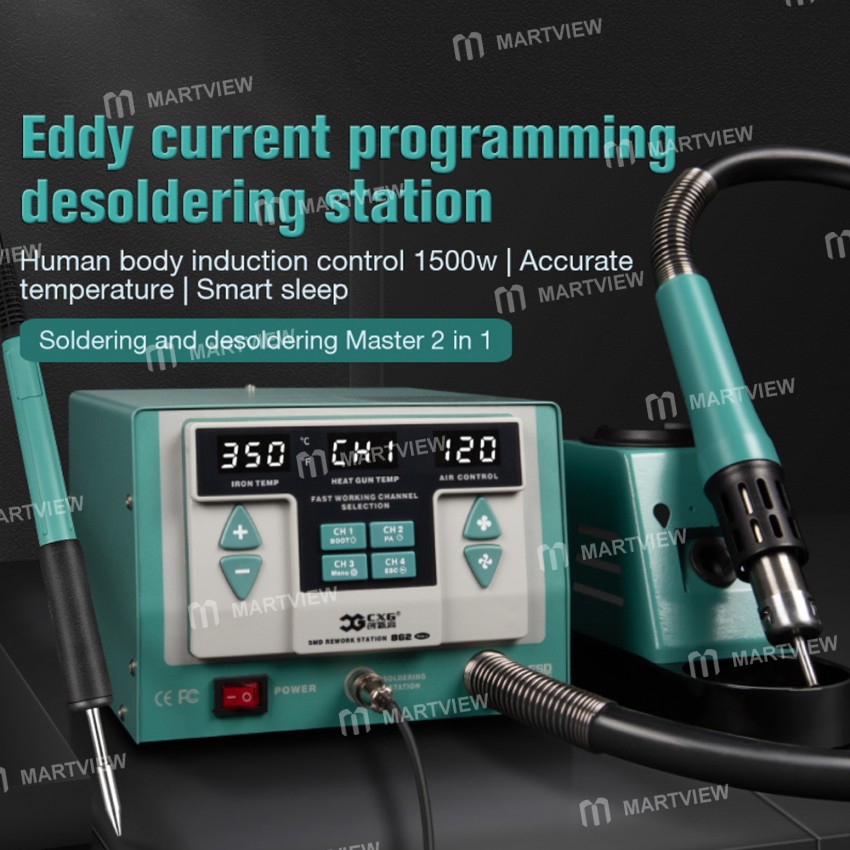

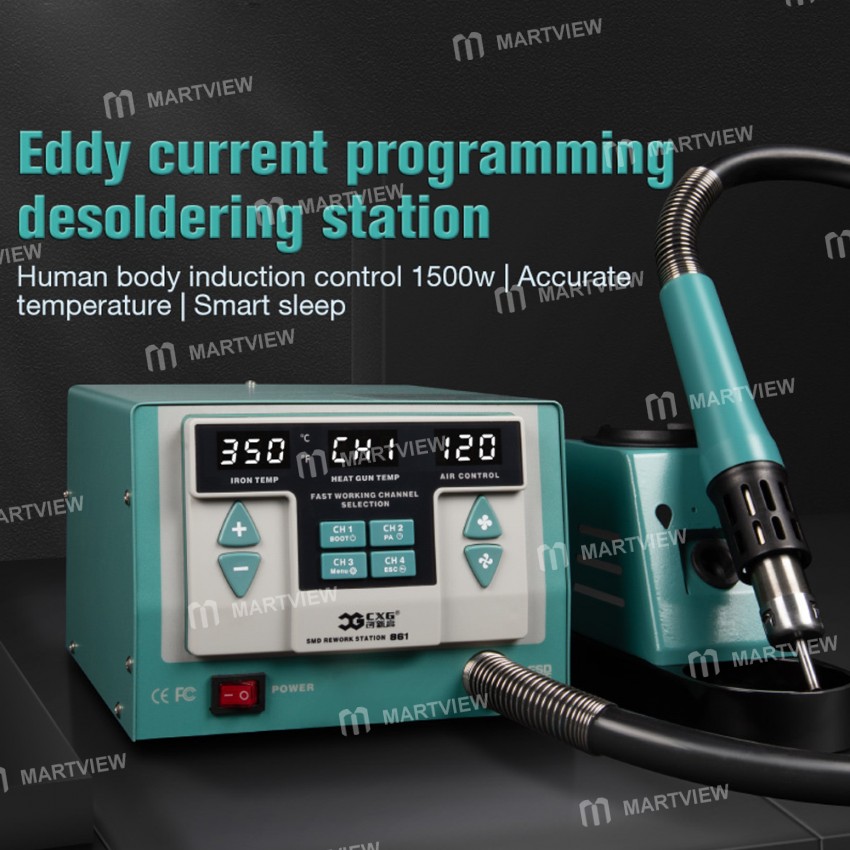

• CXG 862 2-in-1 soldering and desoldering master, eddy current programming desoldering station, human body induction control 1500w, accurate temperature, smart sleep

• Two models, free to choose from: 861 eddy's current programming desoldering station and 862 two-in-one eddy'sBuilt-in temperature sensor, stable air supply temperature, and higher efficiency current programming desoldering station

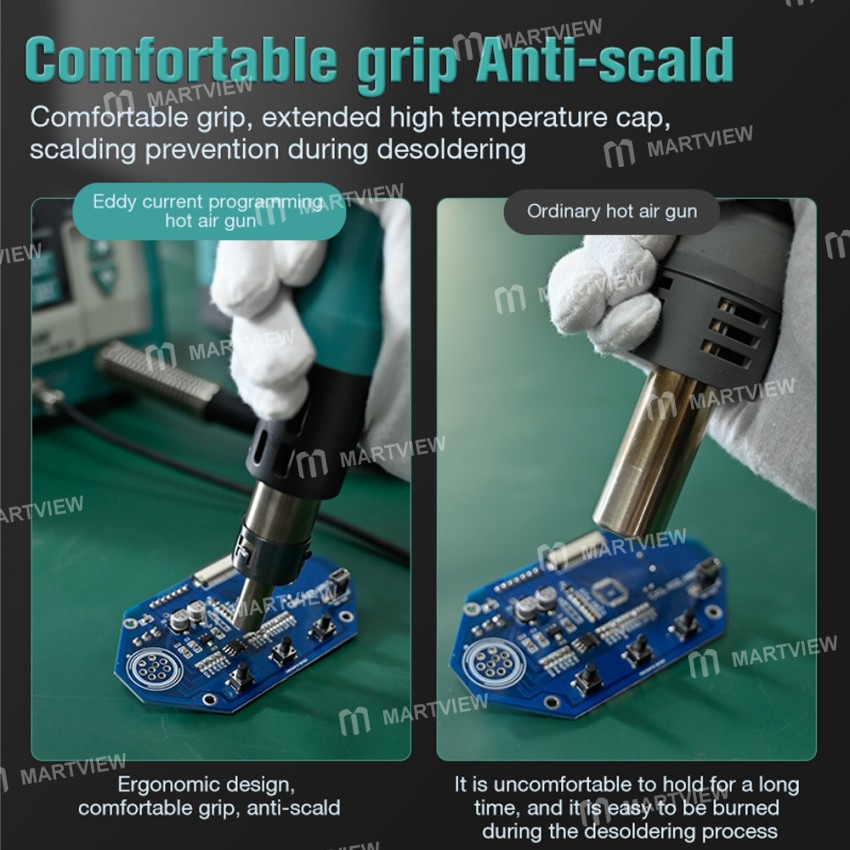

• Comfortable grip, extended high-temperature cap, scalding prevention during desoldering

• Choose nozzles of different specifications for precise desoldering without damaging components

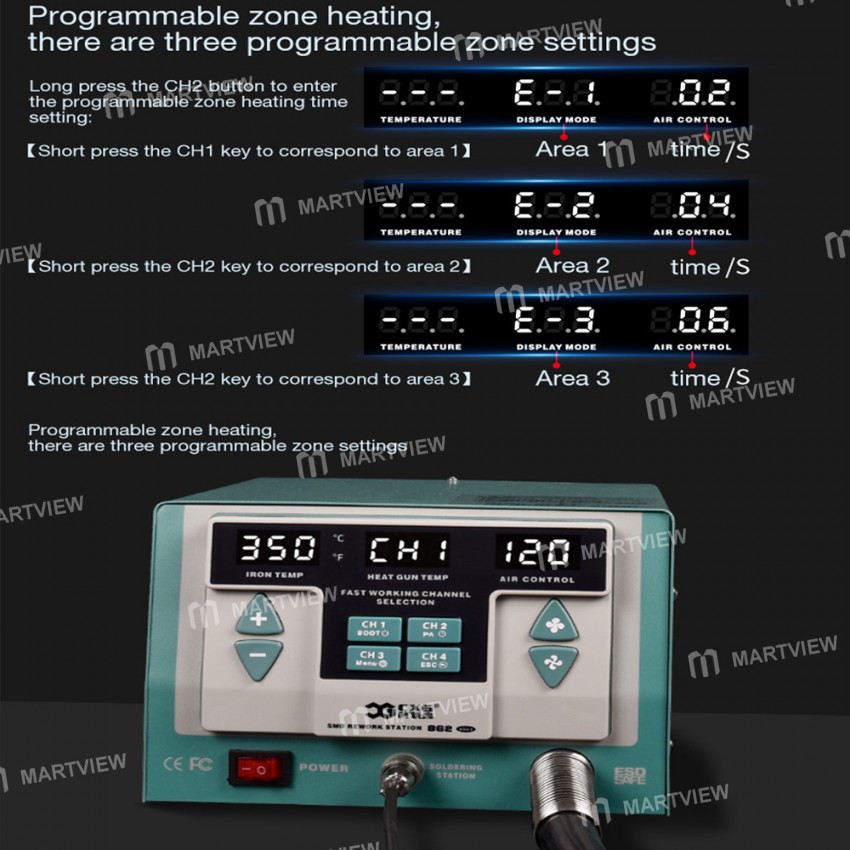

• Programmable zone heating, there are three programmable zone settings

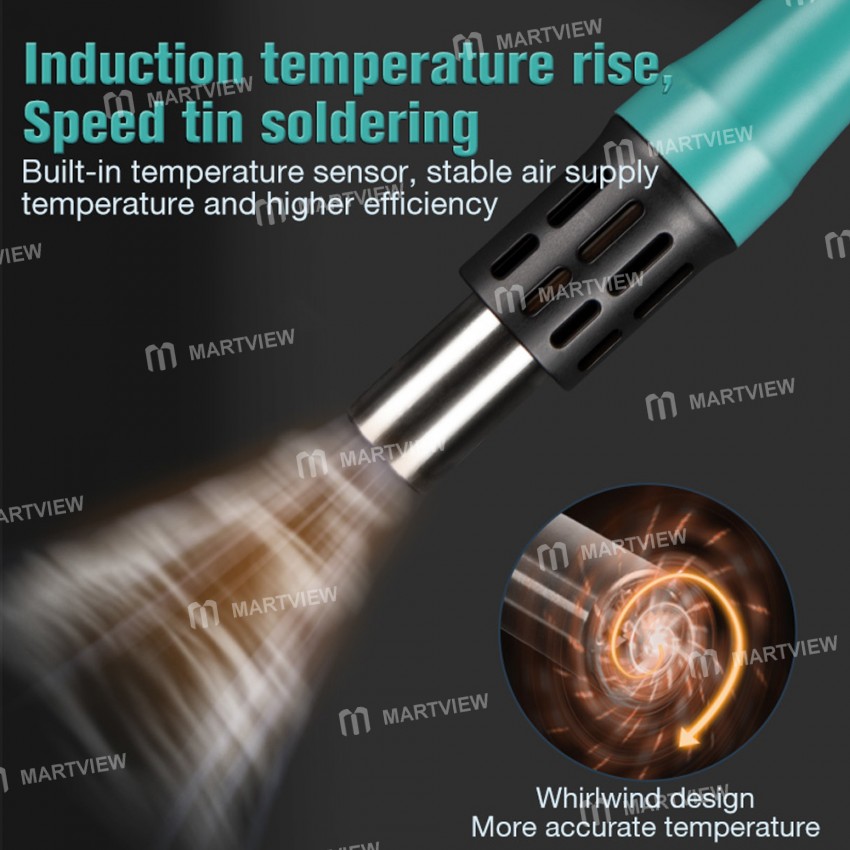

• LED Induction temperature rise, speed tin soldering, digital display, digital control, precise temperature control, clear at a glance

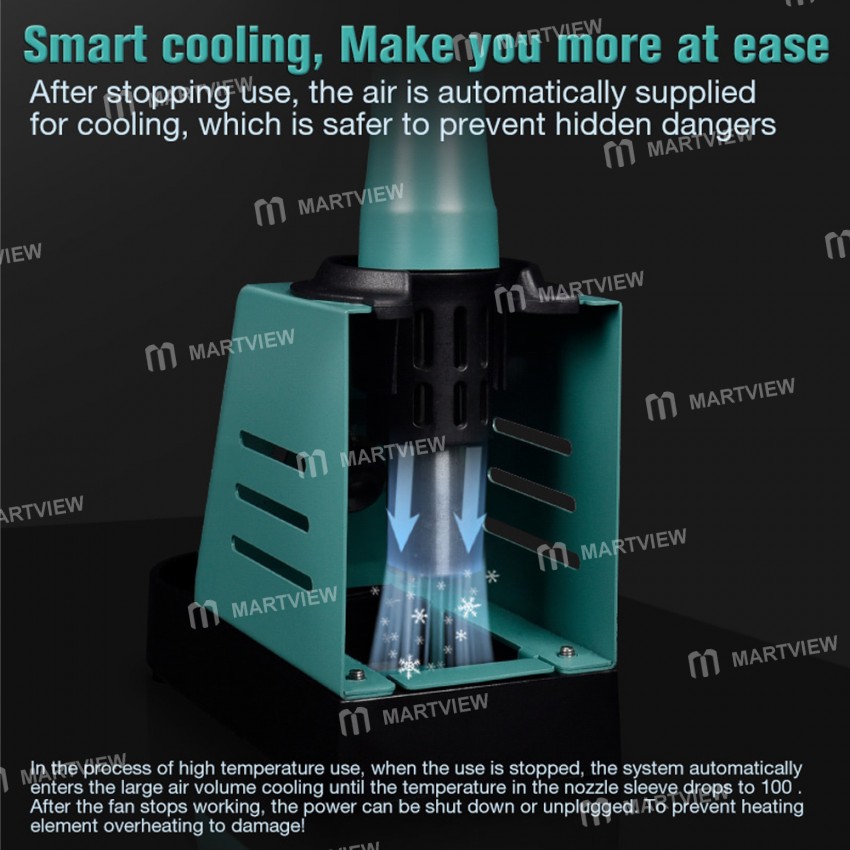

• After stopping use, the air is automatically supplied for cooling, which is safer to prevent hidden dangers

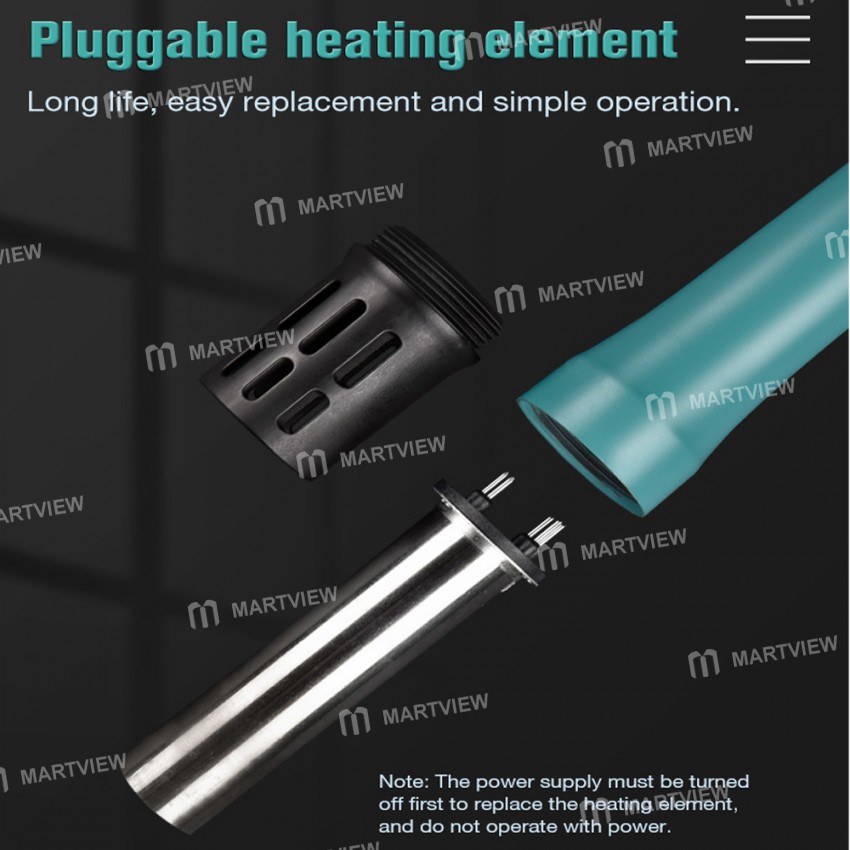

• Pluggable heating element, long life, easy replacement, and simple operation

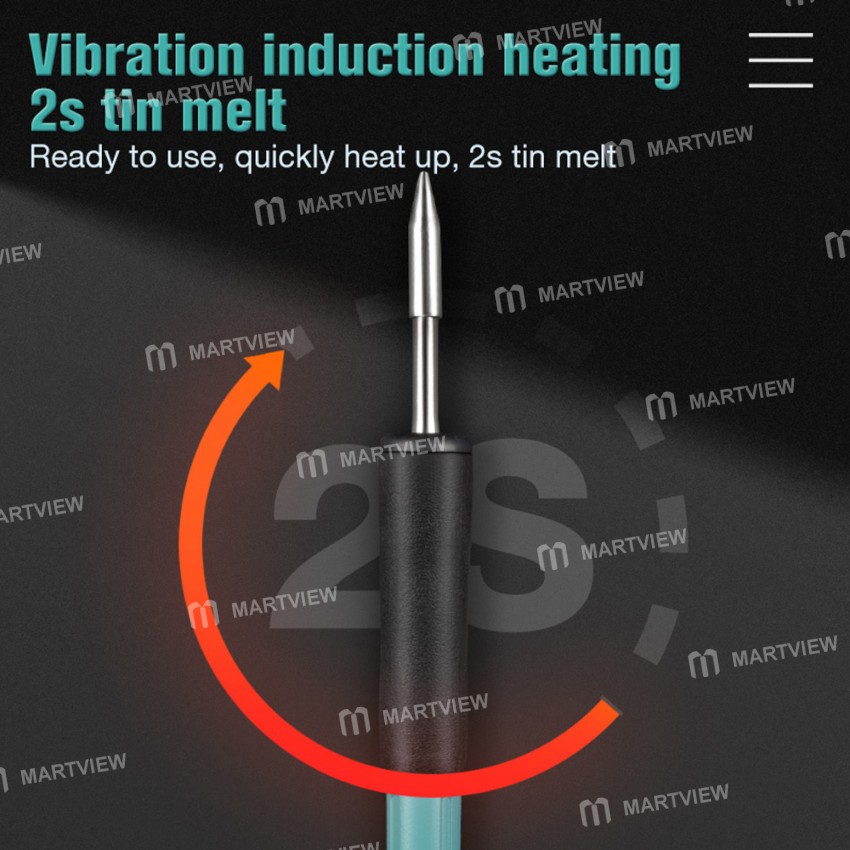

• Vibration induction heating, ready to use, quickly heat up, 2s tin melt

• High-precision soldering iron tip, precise maintenance, no damage to components

• The plug-in soldering iron tip, using plug-in integrated soldering iron tip, easy and quick to replace

• When the handle is idle for 30 seconds, it will automatically enter the dormant state. After picking it up, the operating temperature will be quickly restored. The automatic shutdown time can be set at will for 1-90 minutes

• Intelligent temperature control chip, 100-500℃ precise temperature control

• Small and precise design, uniform air supply, strong desoldering, saving working time

• The airflow is adjustable, the air is softly discharged, and the heat is evenly distributed

• Intuitive and simple operation instructions, quick to master, more comfortable to use

• Demolition and elimination of static electricity design, especially safe for sensitive components

• Humanized soldering iron holder, better and more convenient

Specification:
861/862 Eddy Current Programming Desoldering Station:

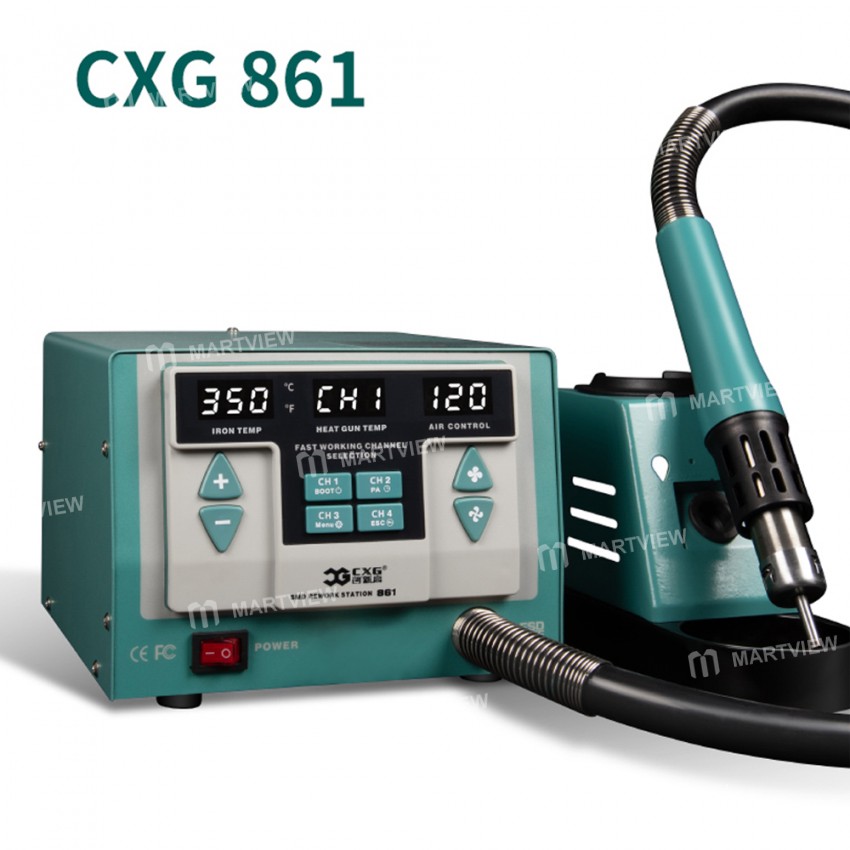

• Model: CXG 861/862

• Display: LED Display Screen

• Power: 1620W

• Temperature control range: 100-500℃/212-932°F

• Temperature stability: ±1℃

• Voltage: AC 220V

• Range of air volume: 1~120 Level

• Maximum air volume: 128L/min

• Host size: 180(L)*195(W)*128(H)mm

• Body weight: 2.1Kg

Touch-sensitive Heat Gun:

• Model: CXG 860

• Power: 1500W

• Heating element: 220V/A1158

• High-temperature cap: GP10

• Handle line length: 850mm

• Weight: 0.3Kg

Standard Soldering Iron Handle(only 862):

• Model: CXG 245

• Power consumption: 120W

• Integrated soldering tip: CXG T7 series

• Impedance to the ground: ≤2Ω

• Voltage to the ground: ≤2mv

• Voltage: 24V

• Wire length: 1.5M

• Weight: 70g

Soldering Iron Handle:

• Model: CXG 210

• Power consumption: 40W

• Integrated soldering tip: CXG T6 series

• Impedance to the ground: ≤2Ω

• Voltage to the ground: ≤2mv

• Voltage: 12V

• Wire length: 1.5M

• Weight: 65g

Package includes:

• 1 x Host

• 1 x Heat Gun Handle

• 1 x Soldering Iron Handle(only 862)

• 1 x Nozzle

• 1 x Soldering Iron Holder

• 1 x Power Cable
