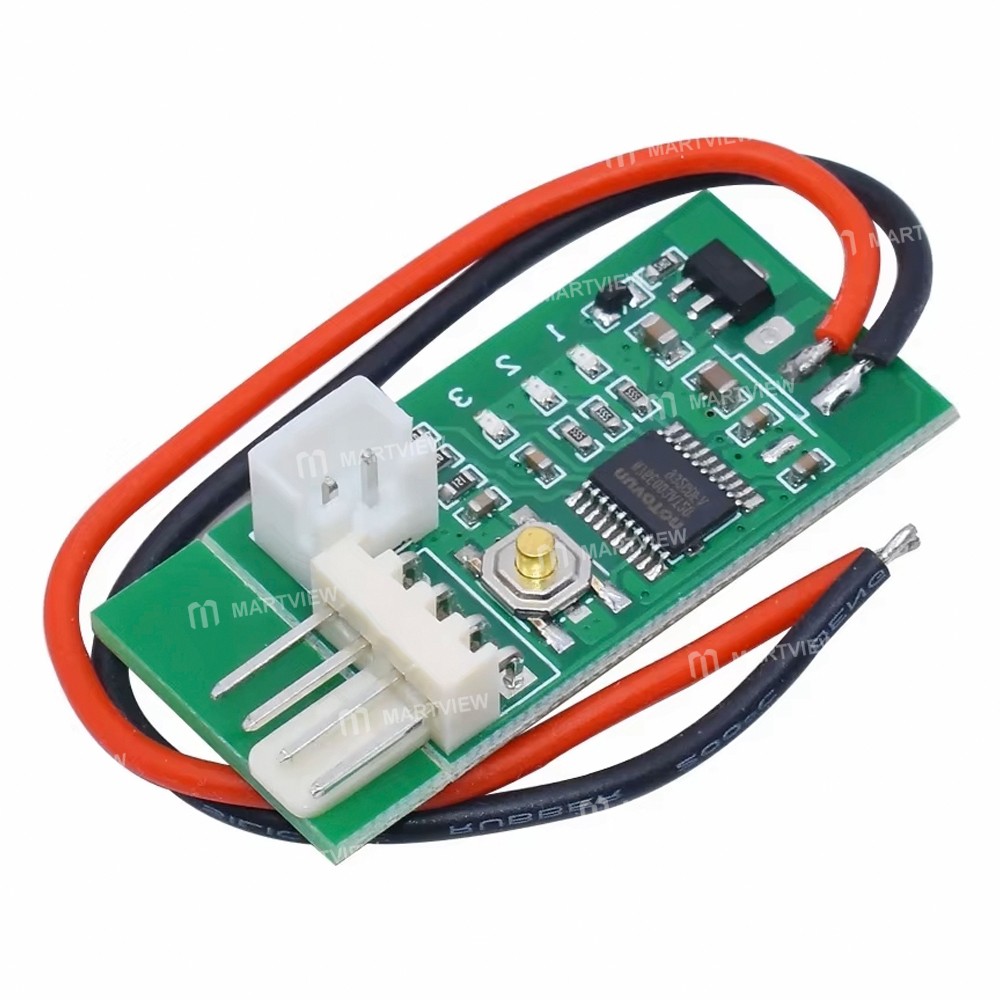

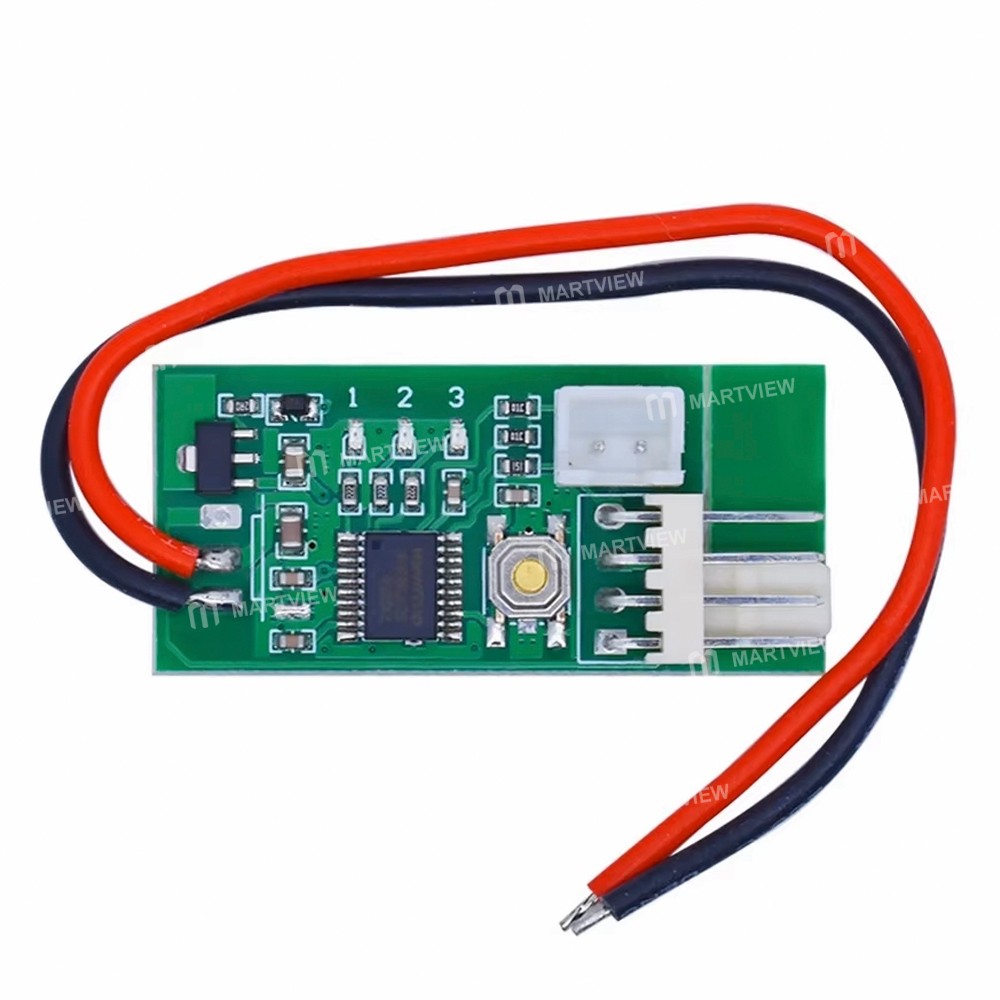

DC 12V 4-Wire PWM Fan Speed Controller Module for Computer Case Fan Temperature Control

DC 12V 4-Wire PWM Fan Speed Controller Module for Computer Case Fan Temperature Control

Instructions:

• Input line: red and black power cord is only welded 12V positive and negative power cord head, as a general use

• The three-wire connector is equipped with a 2510-3P plug for some motherboard three-wire fan port speed detection

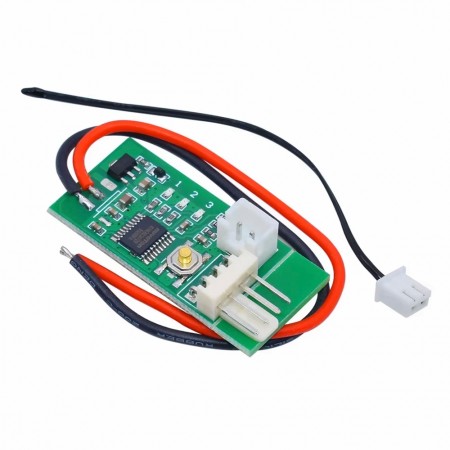

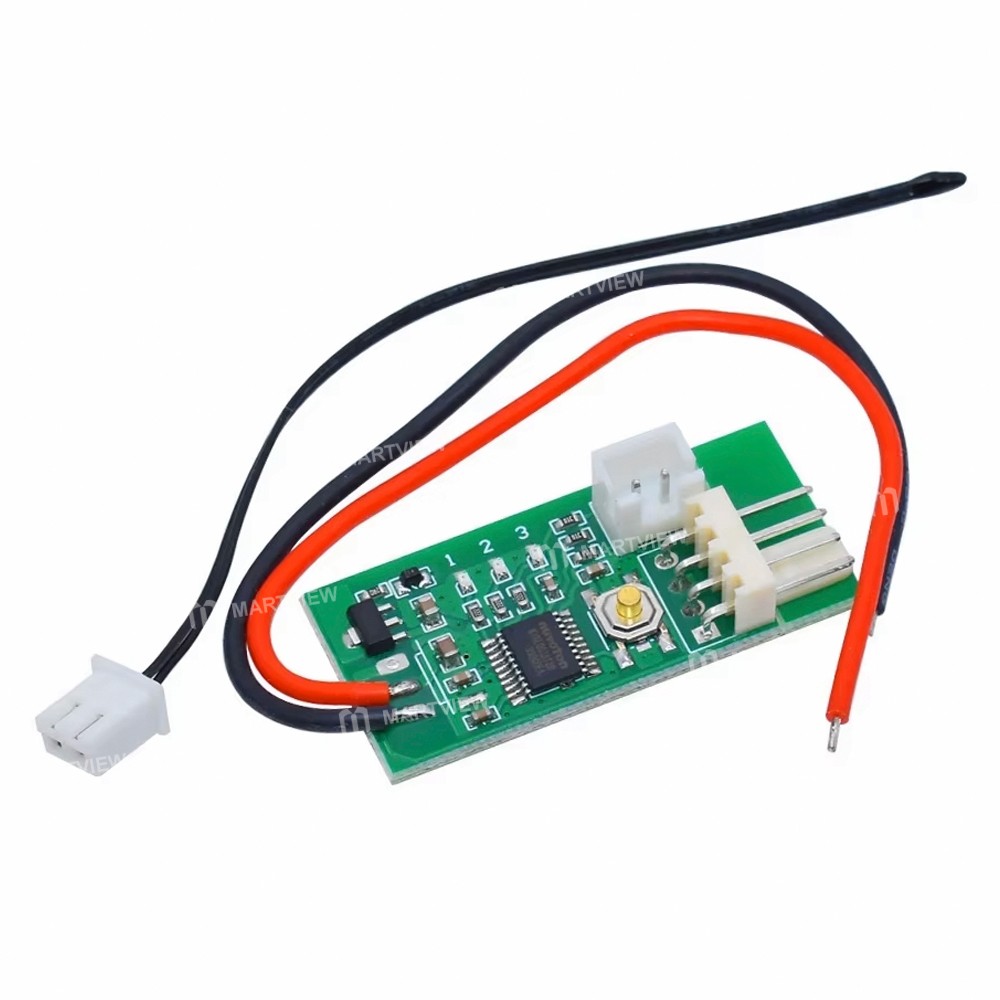

• Temperature probe: small black headline short head, low heat capacity, suitable for testing narrow space and air temperature, the response is relatively fast

• The ring probe is enclosed in a metal ring head with a diameter of 4.2mm, suitable for screw mounting to radiators or other hot surfaces

Specification:

• Working voltage: DC 12V (Can work in the range of 8~18, please pay attention to the fan voltage)

• Consumption current: Not more than 20mA

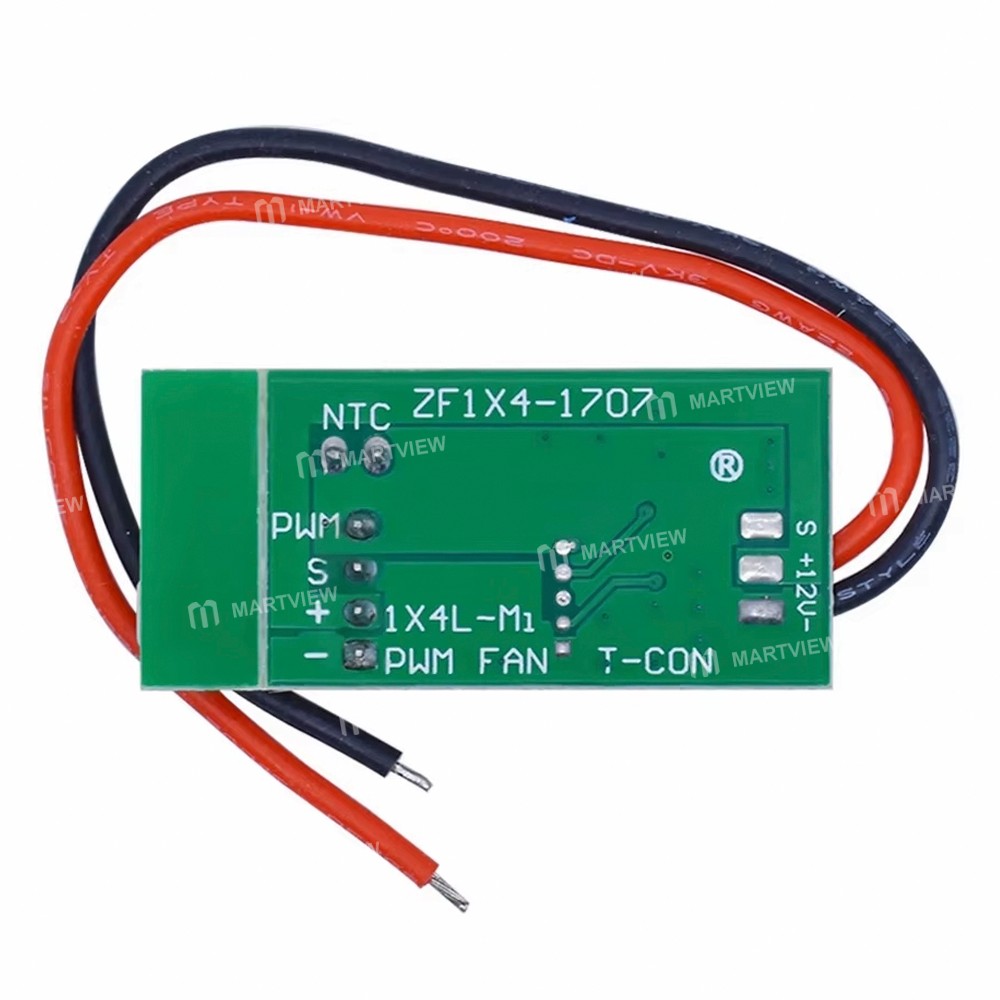

• Fan interface: 2510-4P lack 1 bend (Computer 4P fan special interface)

• Fan current: The interface can withstand 3A if you need to control the fan with

• more current, please use the fan power cord separately

• PWM output range: 10% - 100%

• Operating temperature: -10℃ to 60℃

• Temperature probe parameters: NTC 50K B=3950

• Probe temperature resistance: Small black head 120C, ring probe 110C

• Board size: 34*19*11mm (Not including the extension interface), fan inter face extension 8mm

• Factory default values of setting parameters: Low speed 20%, acceleration temperature 30℃, acceleration width 5℃

Package includes:

• 1 x Module
