DC 150V 20A CNC Electronic Load Tester with Color Screen

DC 150V 20A CNC Electronic Load Tester with Color Screen

Features:

• 2.4-inch color screen, clear vision: 2.4-inch high-definition color screen, the data display is vivid and intuitive, clearly visible

• Accurate temperature control: with an NTC sensor, real-time temperature monitoring, to ensure reliable test results, prevent temperature difference error detection

• Bilingual interface: Chinese and English switch freely to meet the needs of global users, convenient and efficient operation

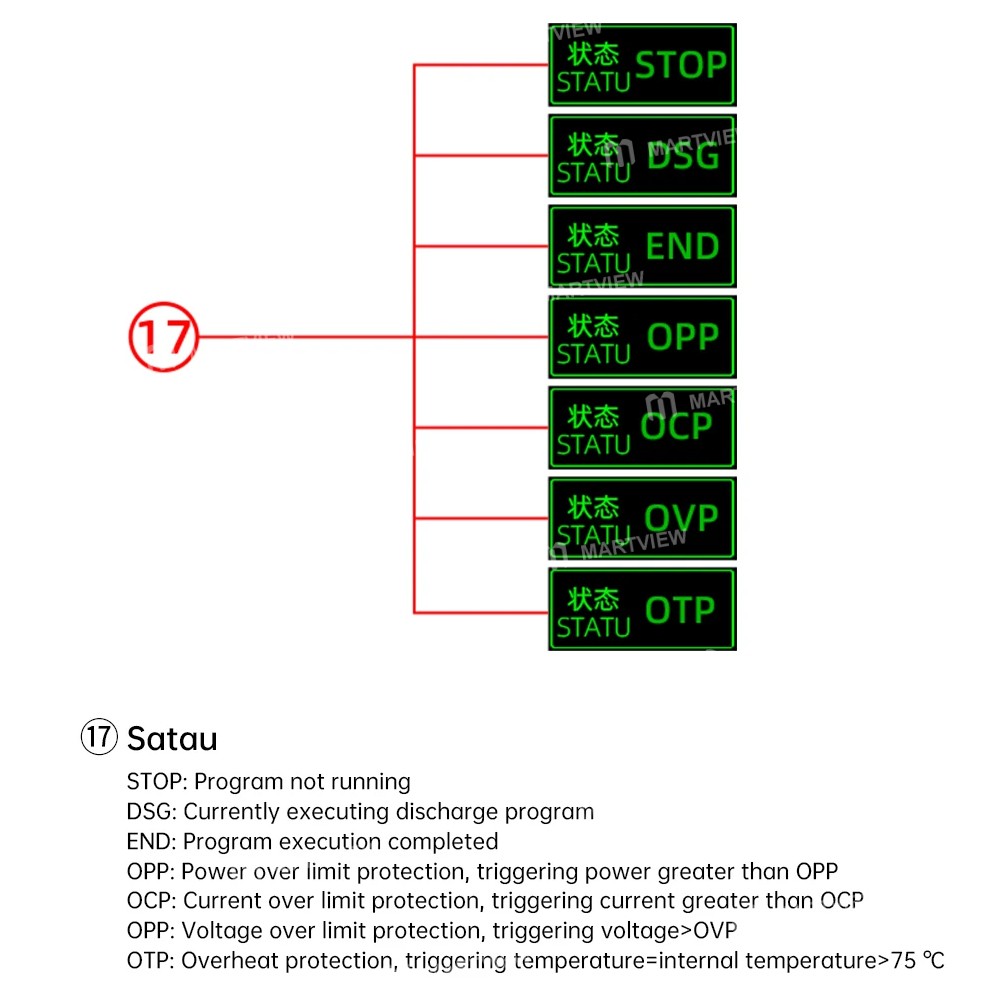

• Four safety protection: over-voltage, over-current, over-temperature, over-power automatic protection, to ensure safe and worry-free use

• One key to zero: simplify data management, one key to quickly zero the accumulated data, improve work efficiency

Specification:

• Working voltage: DC12V Equipped with 12V 1A power adapter

• Load voltage (U): DC0~150V

• Load current (I): DC0~20A

• Load power (P): 0~150W (Maximum load 60W above 120V)

• P=U×I≤150W

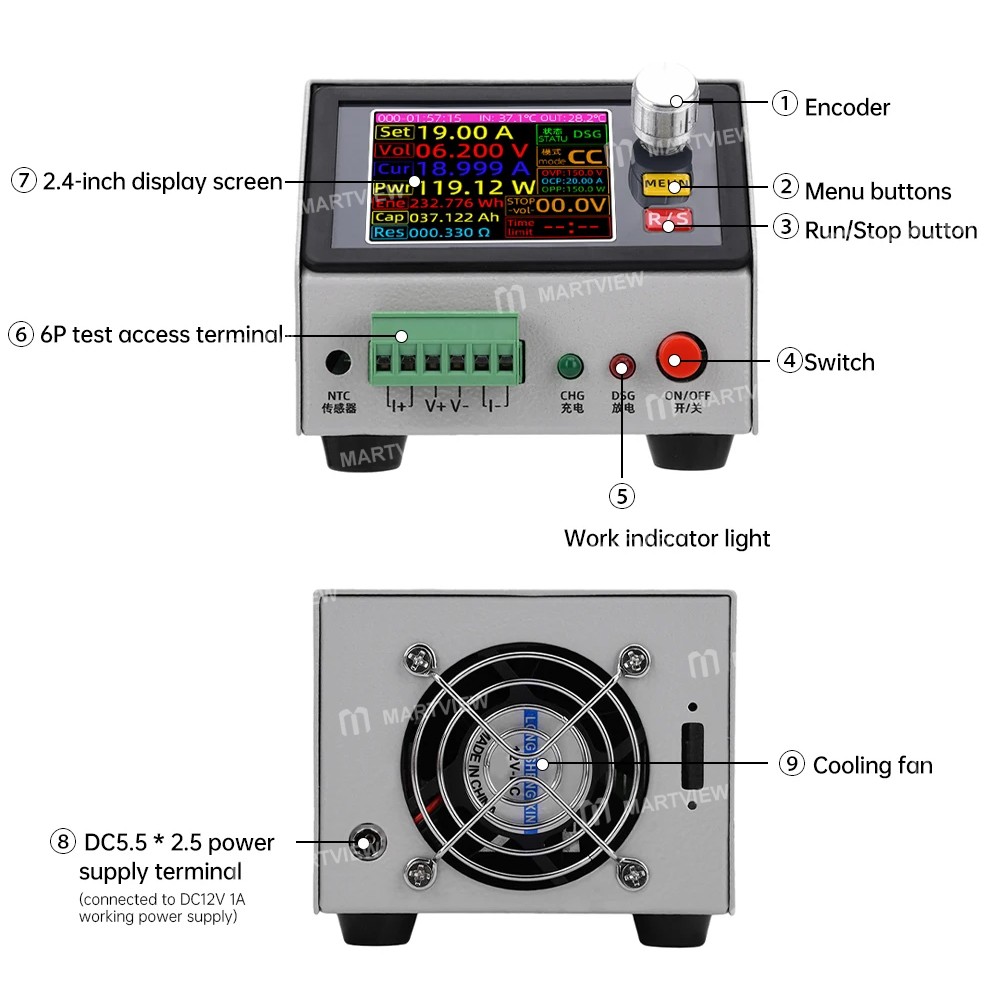

• Wiring: A+ V+ V- A- four-wire system, downward compatible with the two-wire system

• Electricity metering limit: 999999.9Wh

• Capacity metering upper limit: 999999.9Ah

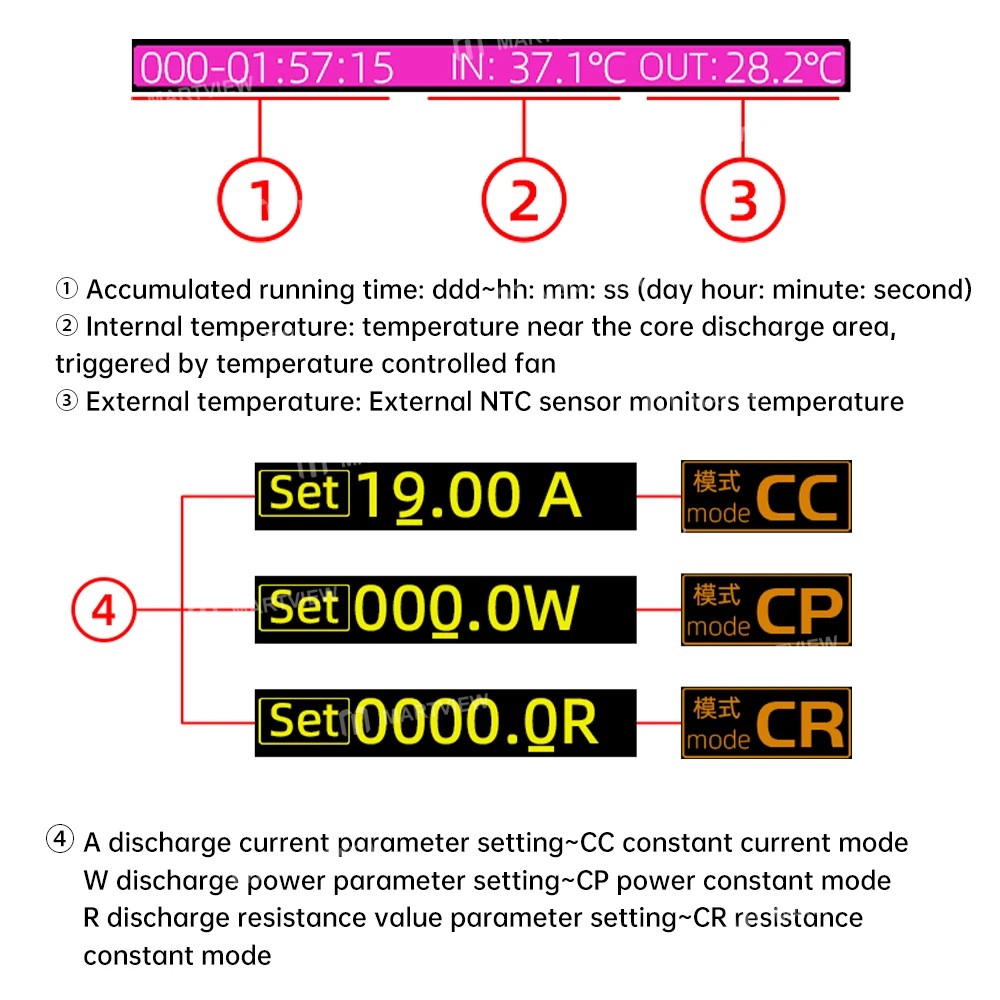

• Accumulative timing range: ddd:hh:mm:ss (days:hours:minutes:seconds)

• Operating modes: Three modes

• CC-constant current mode CP-constant power mode CR-constant resistance mode

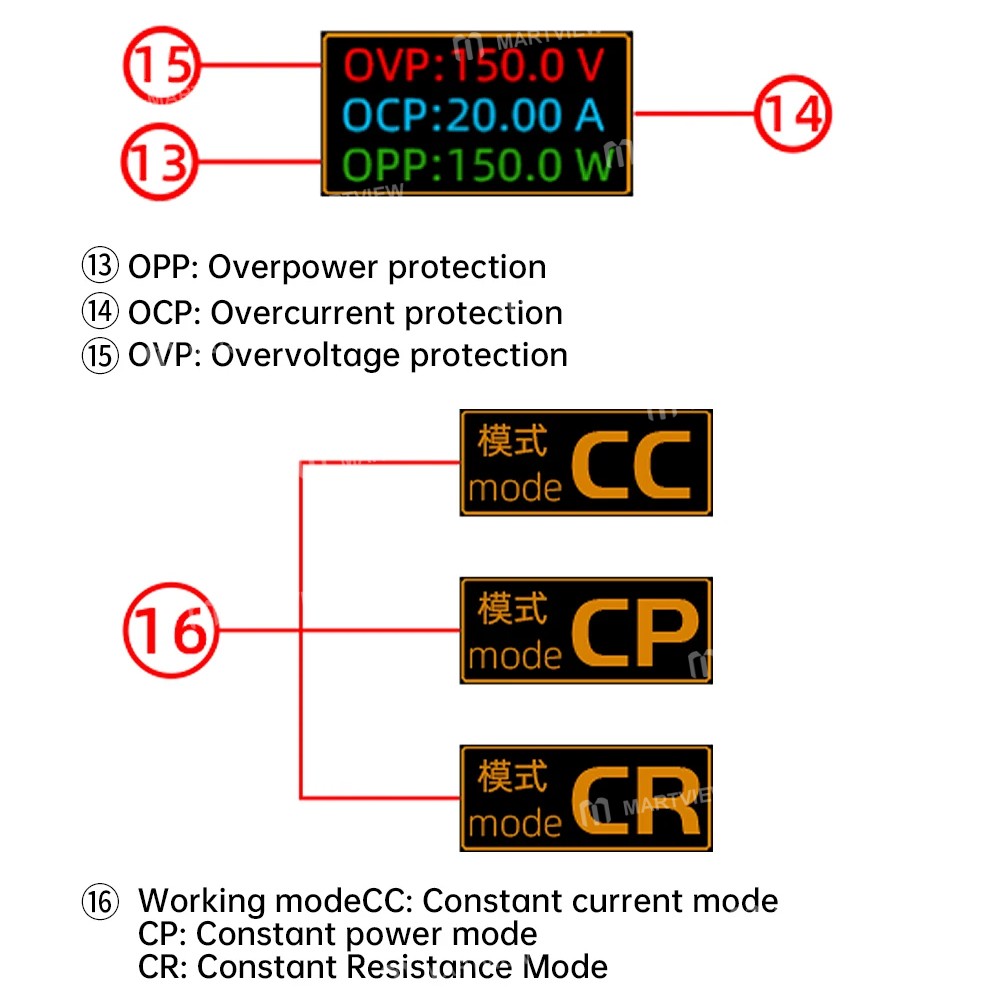

• Over-voltage protection: Support maximum 150V adjustable over-voltage protection

• Over-current protection: Support for maximum 20A adjustable over-current protection

• Over-power protection: Support maximum 150W adjustable over-power protection

• Over-temperature protection: Internal temperature >75℃, trigger over-temperature protection

• Voltage limit discharge: Also called low voltage protection, support, the default is not limited to voltage discharge, according to the demand for their own settings

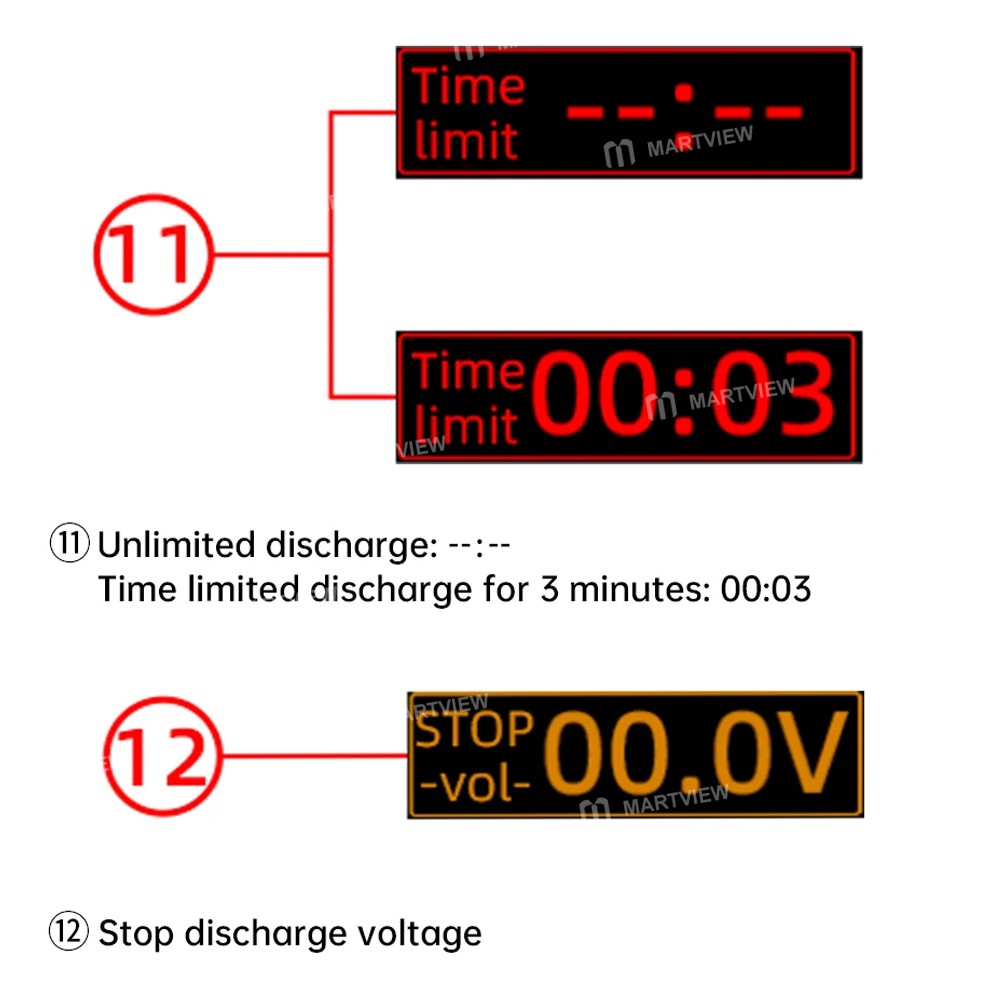

• Time-limited discharge: support up to 99 hours: 59 minutes time-limited discharge

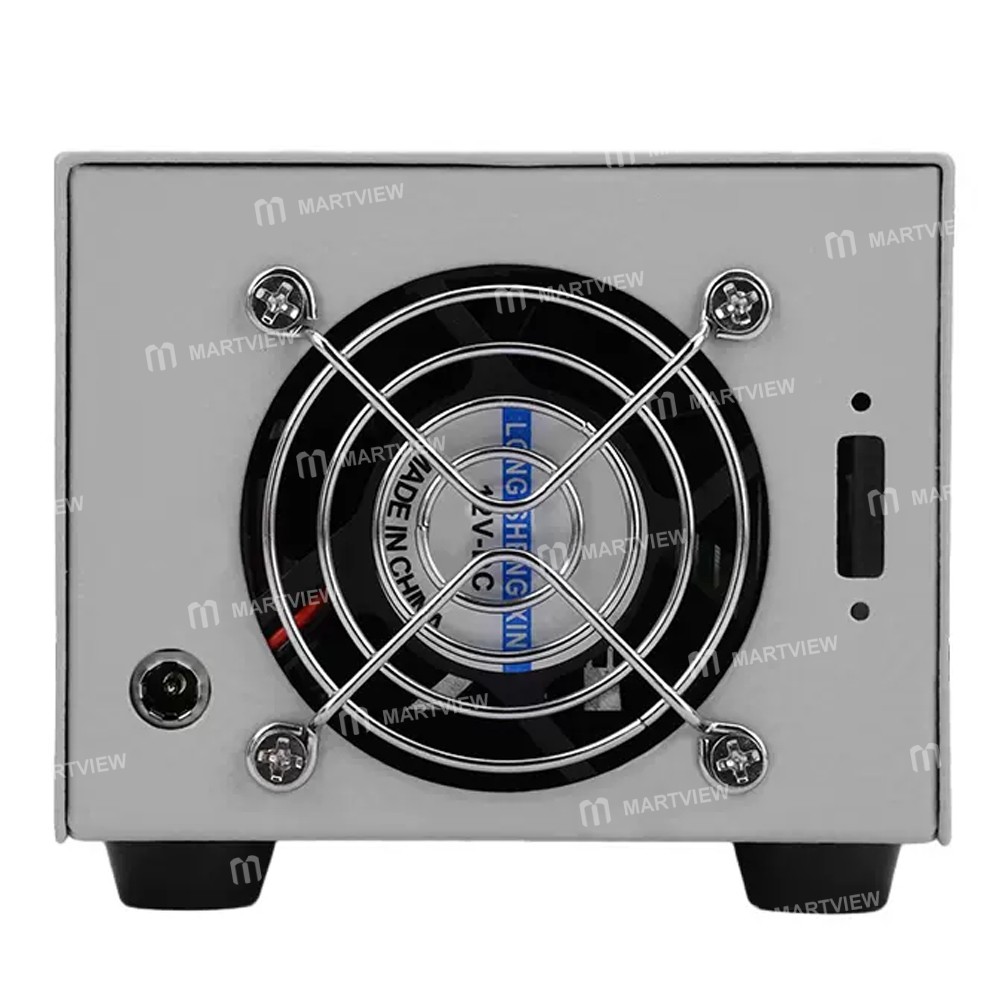

• Heat dissipation mode: Programmable fan, automatic operation when internal temperature ≥40℃ or current >3A

• External Temperature Measurement: Connect the NTC 3950 10K 1% temperature sensor to measure and display the temperature of 0~100℃

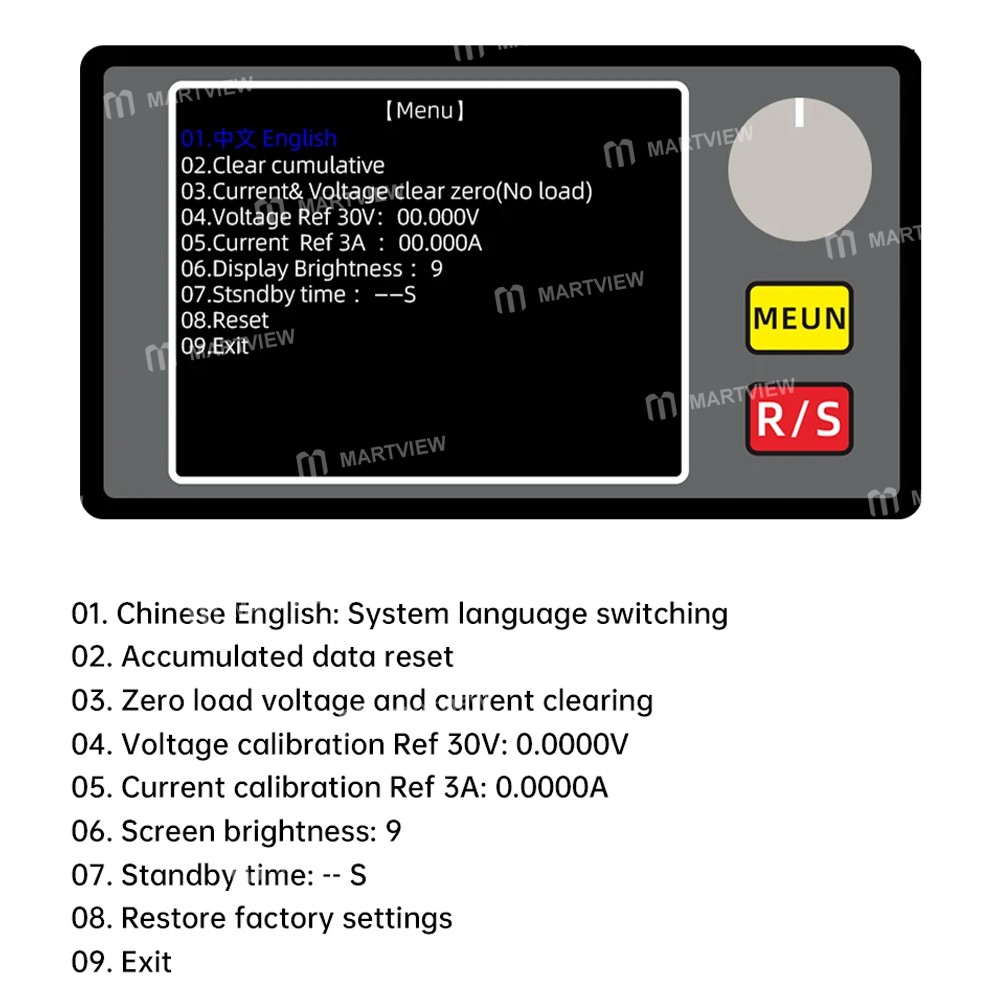

• Chinese and English interface switching: Support

• Zeroing accumulated data: Support

• Voltage and current no-load zeroing: Support

• Voltage open calibration: Support

• Current Open Calibration: Support

• Screen Brightness Adjustment: Support

• Screen sleep standby setting: Support

• PC software online: Not support

• Restore factory settings: Support

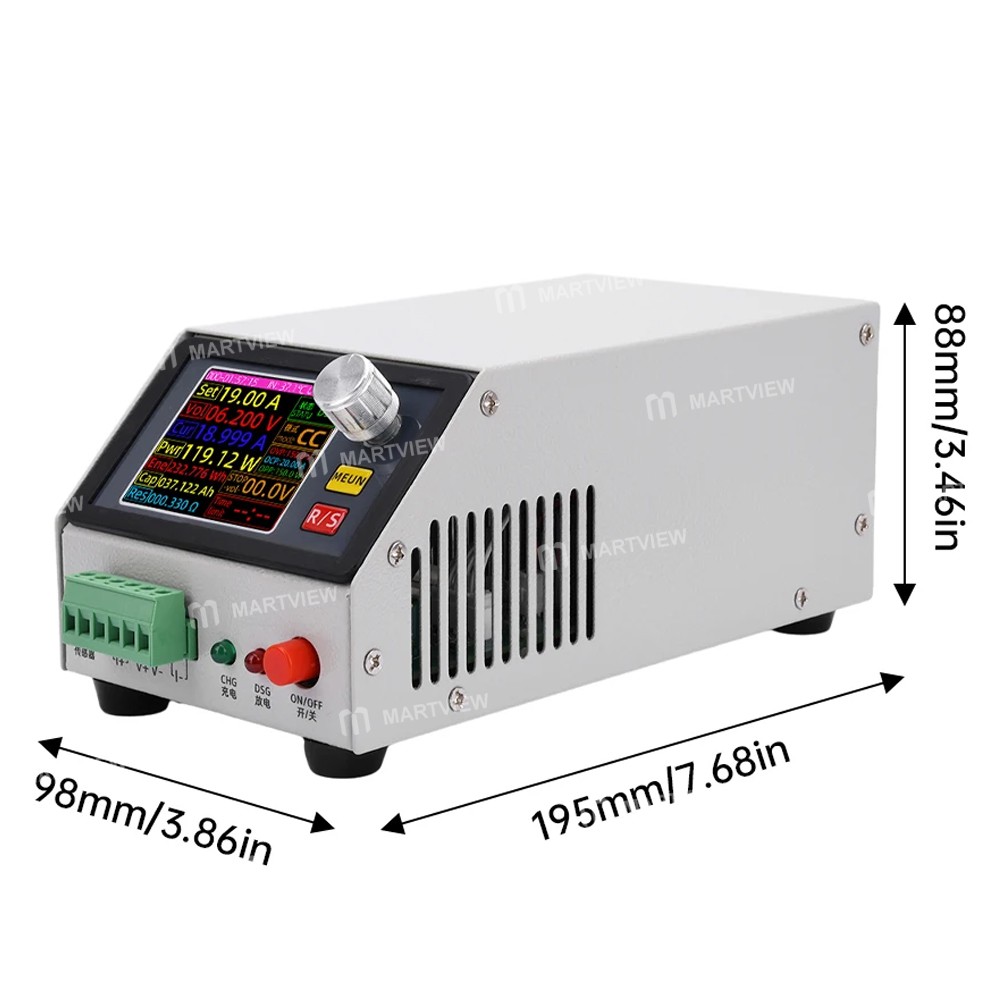

• Product size: 195*98*88mm

Package includes:

• 1 x Electronic Load Tester

• 1 x Power Cable
