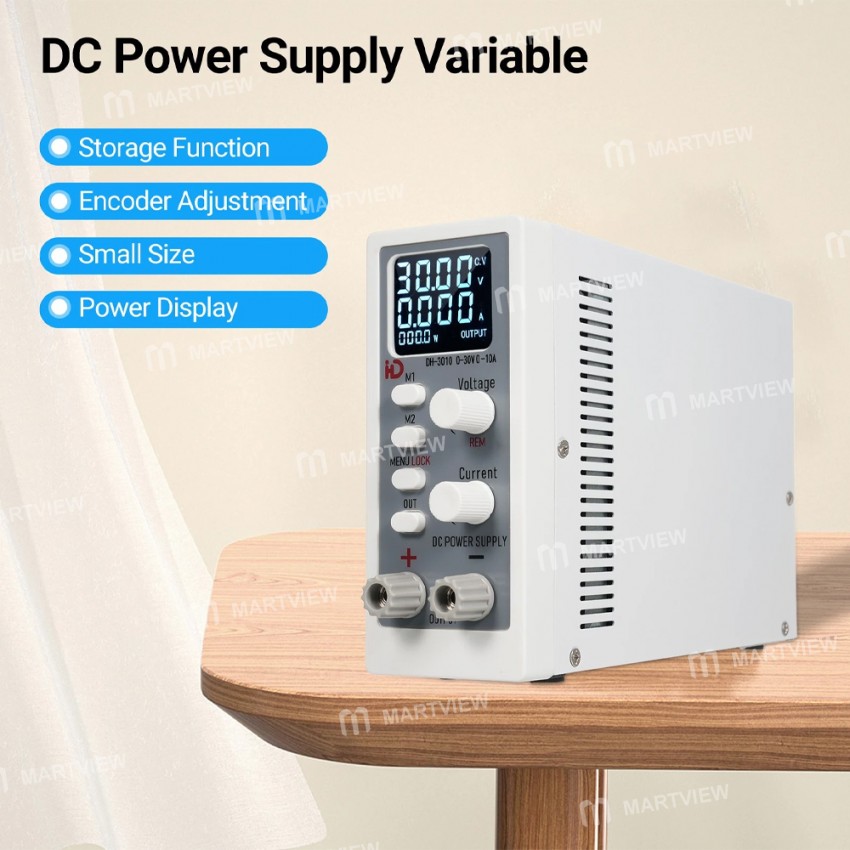

DH-3010 30V / 10A 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

DH-3010 30V / 10A 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

Features:

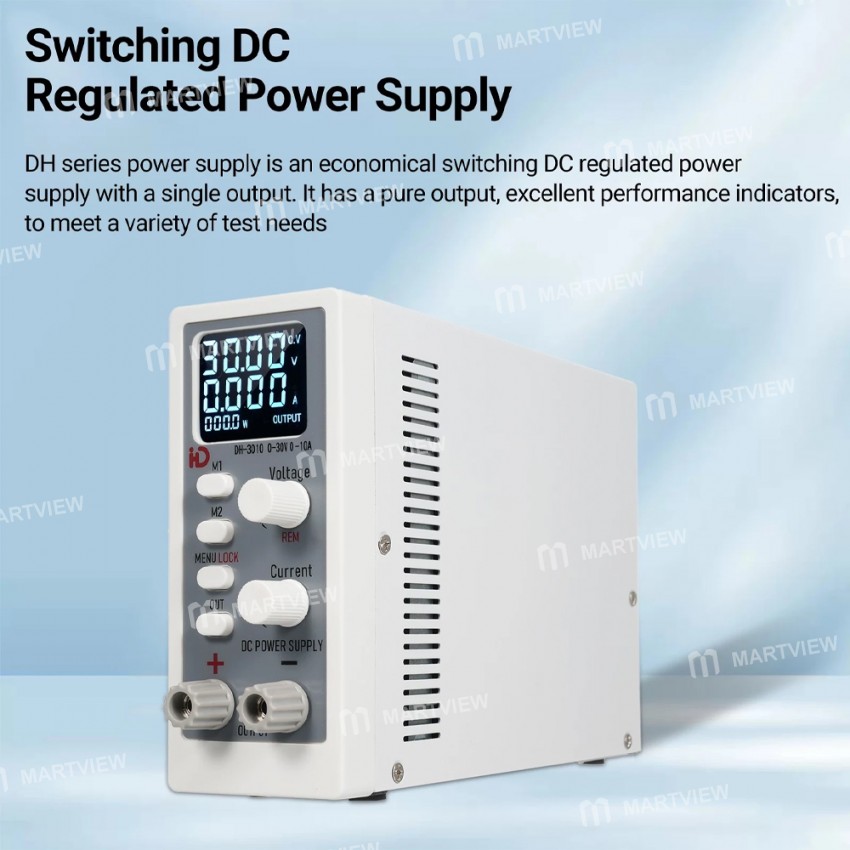

• DH series is a single-output CNC DC switch power supply

• It is characterized by high output power and compact size. In addition, the DH series can be equipped with an RS232 communication interface and supports SCPI communication protocol and Modbus communication protocol

• Enabling the DH series to connect with other devices and support users in conducting secondary development

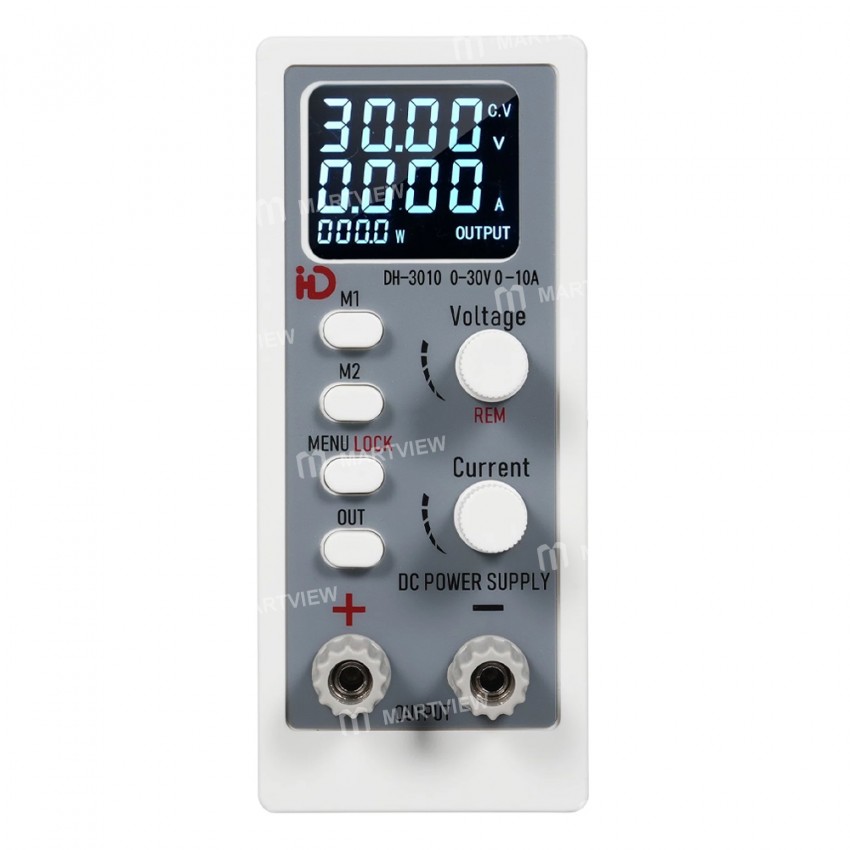

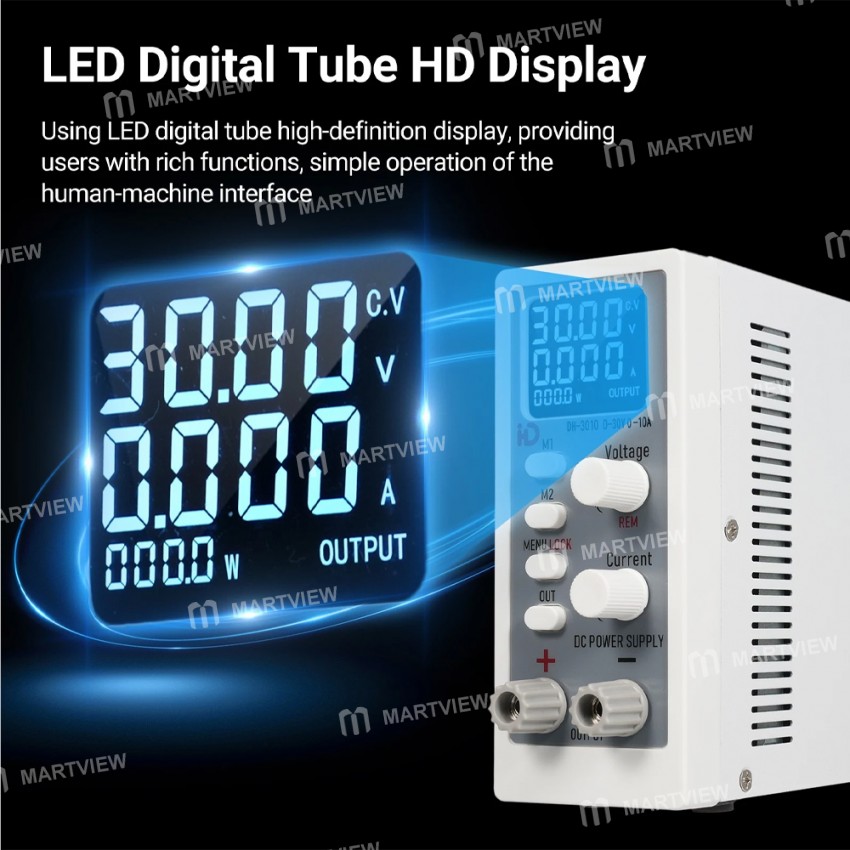

• LED Digital Tube HD Display: Using LED digital tube high-definition display, providing users with rich functions, simple operation of the human-machine interface

• 2 Groups of Data Storage Function: With two groups of data storage function, "M1-M2" a key storage call, easy to operate

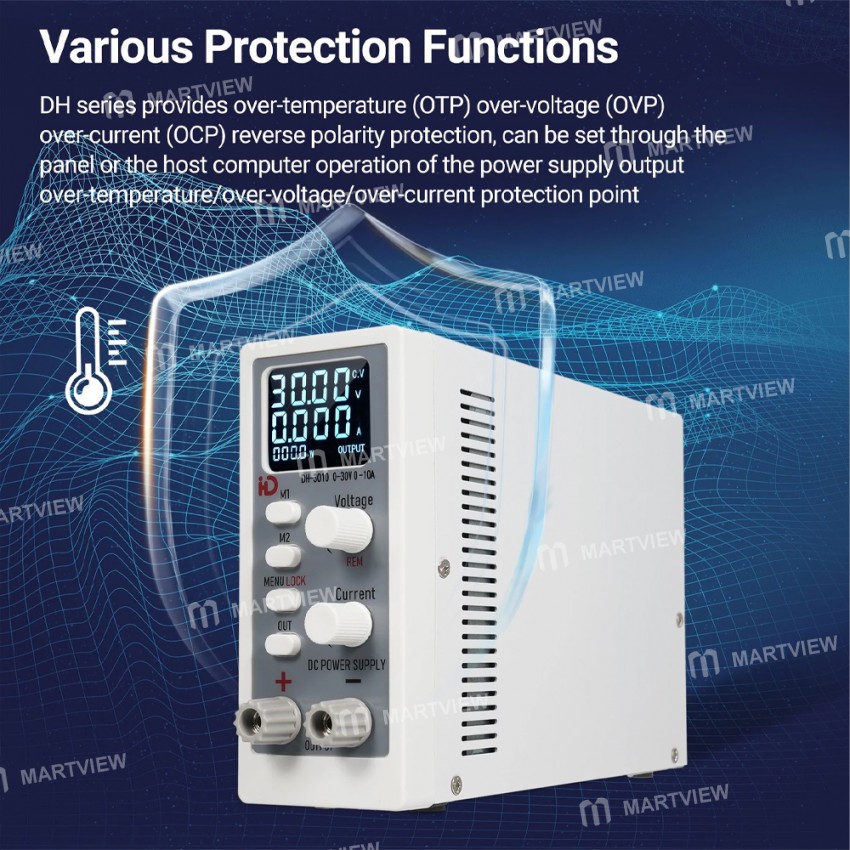

• Various Protection Functions: DH series provides over-temperature (OTP) over-voltage (OVP) over-current (OCP) reverse polarity protection, which can be set through the panel or the host computer operation of the power supply output over-temperature/over-voltage/over-current protection point

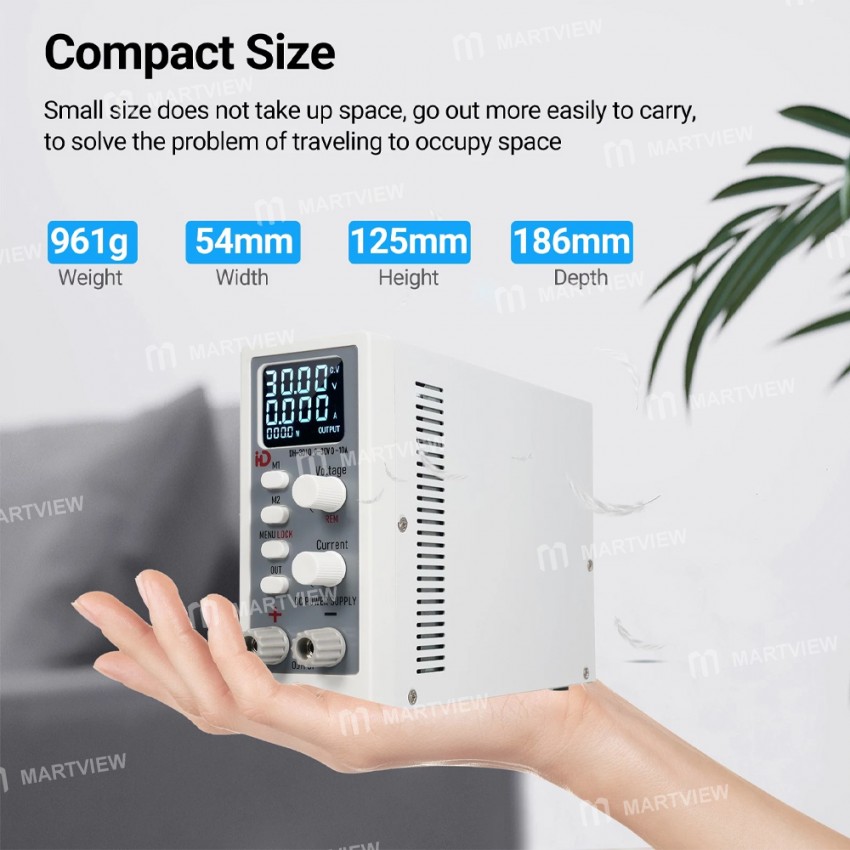

• Compact Size: Small size does not take up space, goes out more easily to carry, to solves the problem of traveling to occupy space

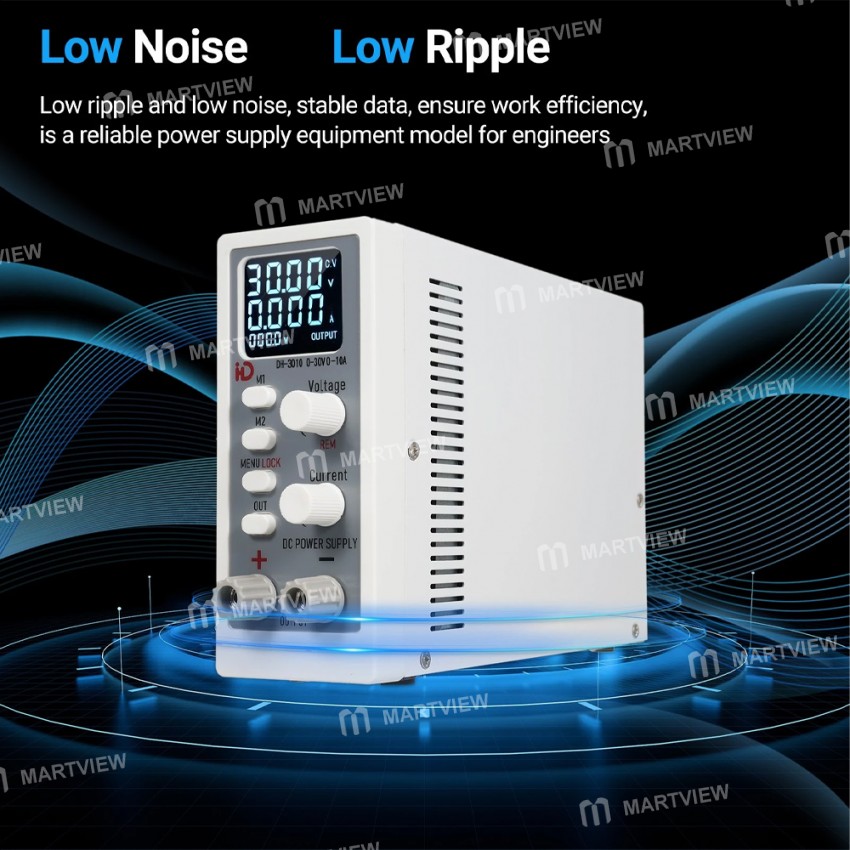

• Low Noise and Ripple: Low ripple and low noise, stable data, ensure work efficiency, is a reliable power supply equipment model for engineers

• Wide Range of Applications: Used in the field of testing, aging, LED drive, industrial control, solar regulation, battery charging, etc

Specification:

• Model: DH-3010

• Material: ABS

• AC Input: Signal phase 220V/110V; Frequency 50Hz/60Hz

• Output Voltage: 0-30V

• Current Output: 0-10A

• Output Power: 300W

• Power Supply Stability: ≤0.02%+5mV

• Load Stability Ratio: ≤0.1%+5mV

• Ripplerms (1-20KHz): 12mVrms

• Backward Resolution Ratio: Voltage 10mV; Current 10mA

• Read Back Precision: Voltage 0.1%+3 digital; Current 0.1%+3 digital

• Setpoint Accuracy: 0.1%+3 digital

• Output Over-voltage Protection: Menu Setting for OVP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off.

• Output Over-current Protection: Menu Setting for OCP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off.

• Voltage Setting: Voltage encoder setting or memory key input

• Current Setting: Current encoder setting or memory key input

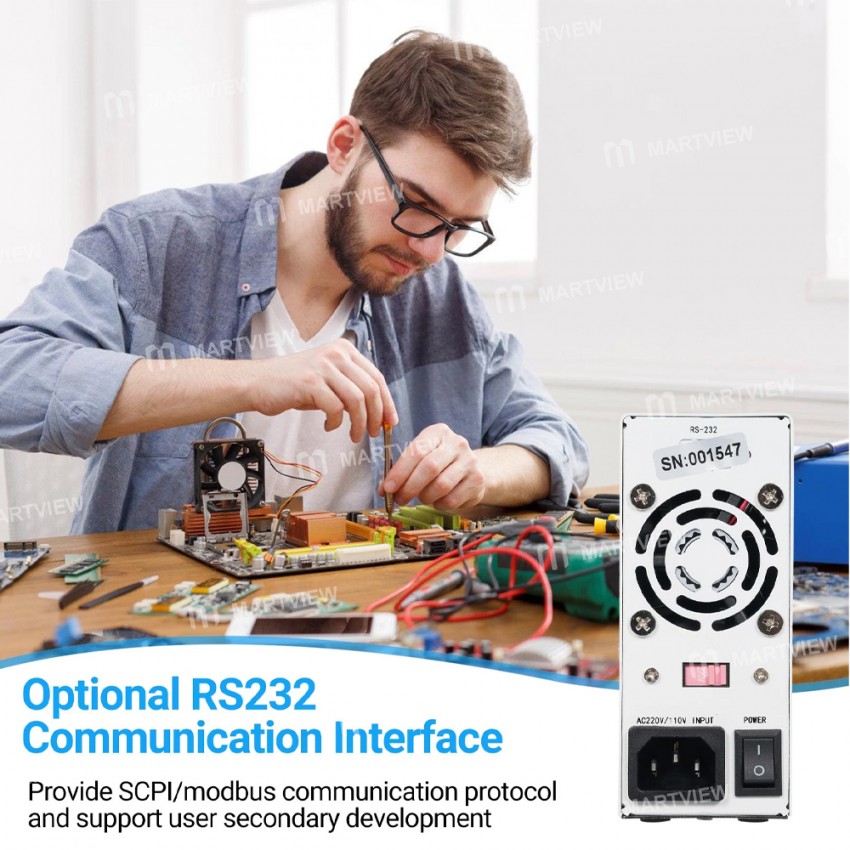

• Control Interface (Optional): RS-232 (Support Modbus & SCPI Protocol)

• Function: Constant Voltage/Constant Current; Foldback Current Protection; Dual Preset Voltage and Current; Key Lock

• Output Polarity: The positive (+) and negative (-) outputs can be grounded arbitrarily

• Heat-Dissipating Method: Intelligent air-cooled (variable speed)

• Operating Environment: Designed for indoor use, temperature: 0℃ to 40℃; humidity: 10 to 85 percent RH

• Storage Environment: temperature: -20℃~70℃; humidity: 10%~90%RH

• Item Size: 186 * 54 * 125mm

• Item Weight: 972g

Package includes:

• 1 x Power Supply

• 1 x Power Cable
