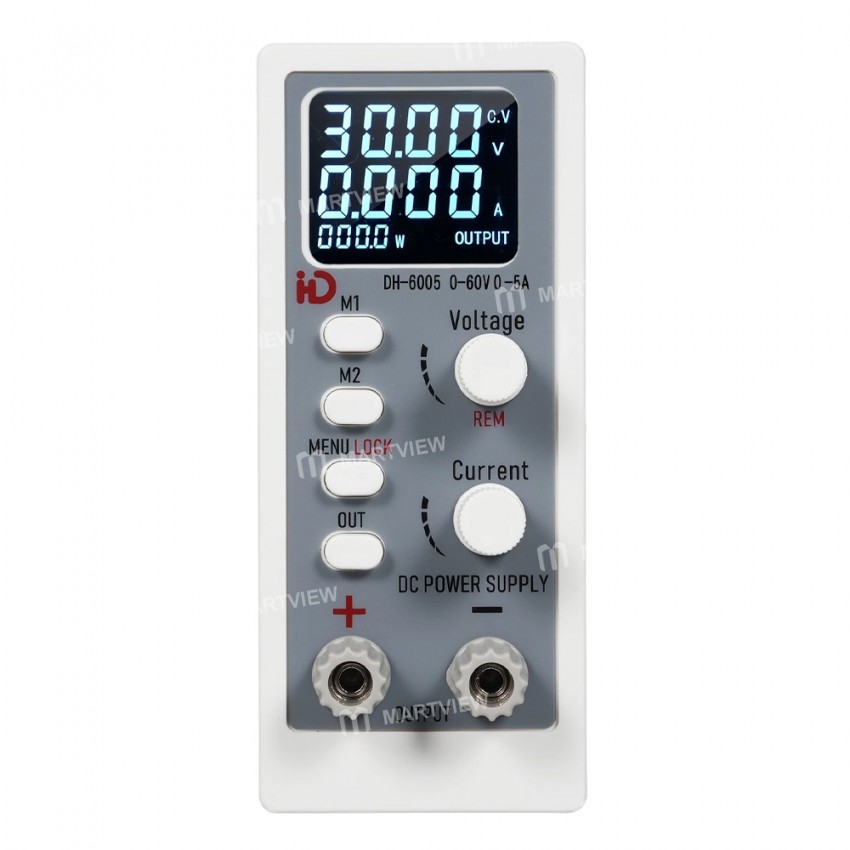

DH-6005 60V / 5A 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

DH-6005 60V / 5A 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

Features:

• DH series is a single-output CNC DC switch power supply. It is characterized by high output power and compact size

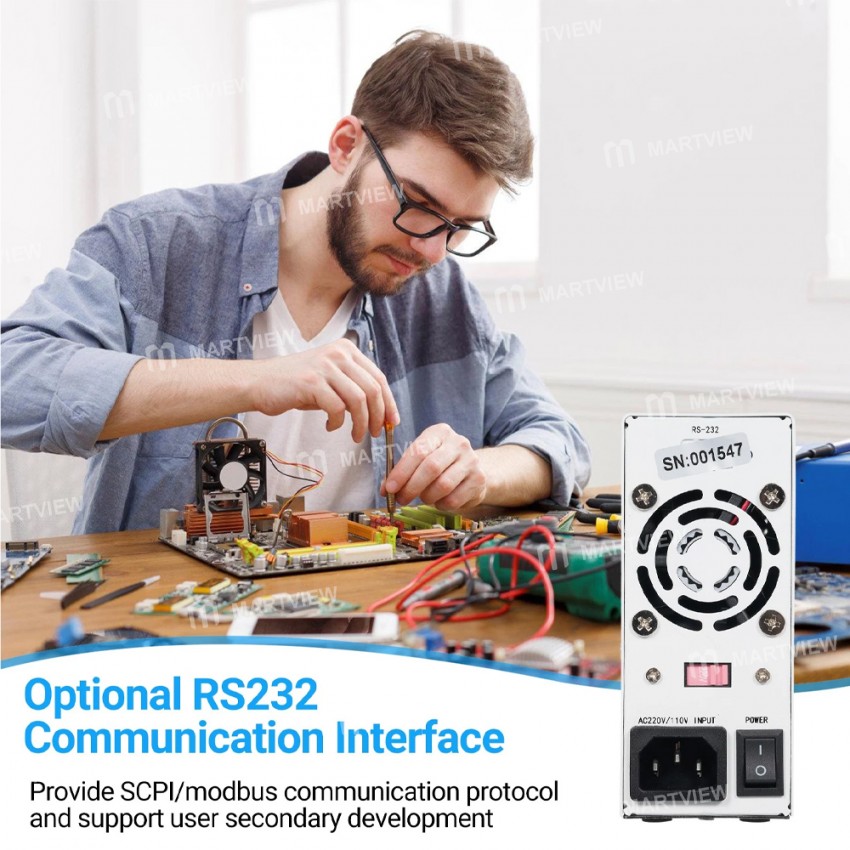

• The DH series can be equipped with an RS232 communication interface and supports SCPI communication protocol and Modbus communication protocol. Enabling the DH series to connect with other devices and support users in conducting secondary development

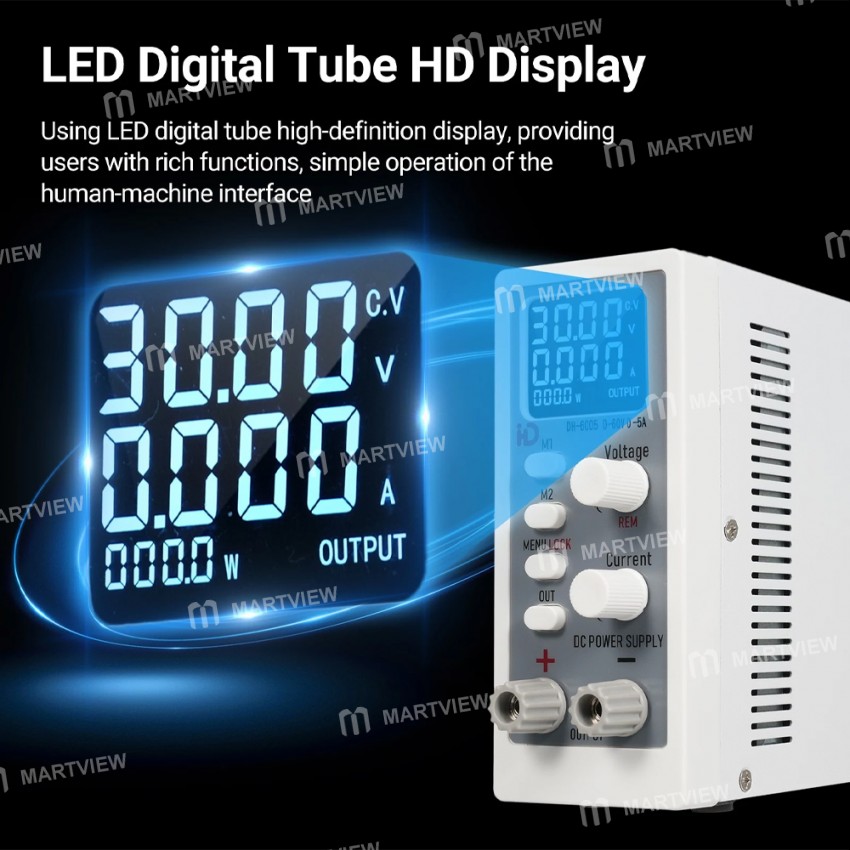

• LED Digital Tube HD Display: Using LED digital tube high-definition display, providing users with rich functions, and simple operation of the human-machine interface

• 2 Groups of Data Storage Function: With two groups of data storage function, "M1-M2" a key storage call, is easy to operate

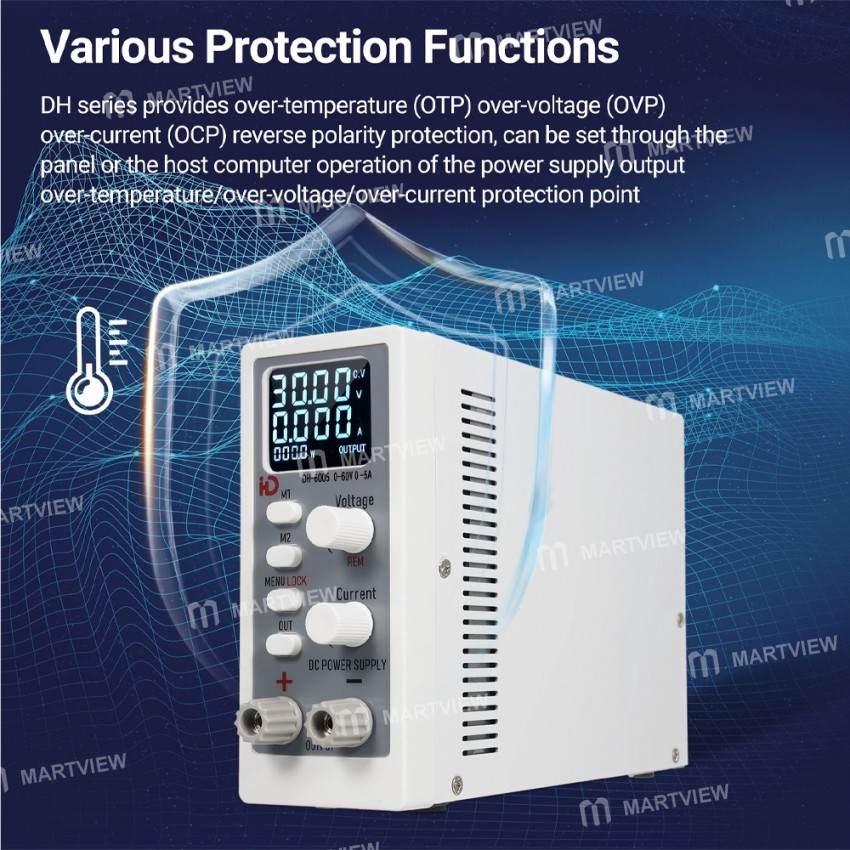

• Various Protection Functions: DH series provides over-temperature (OTP) over-voltage (OVP) over-current (OCP) reverse polarity protection, which can be set through the panel or the host computer operation of the power supply output over-temperature/over-voltage/over-current protection point

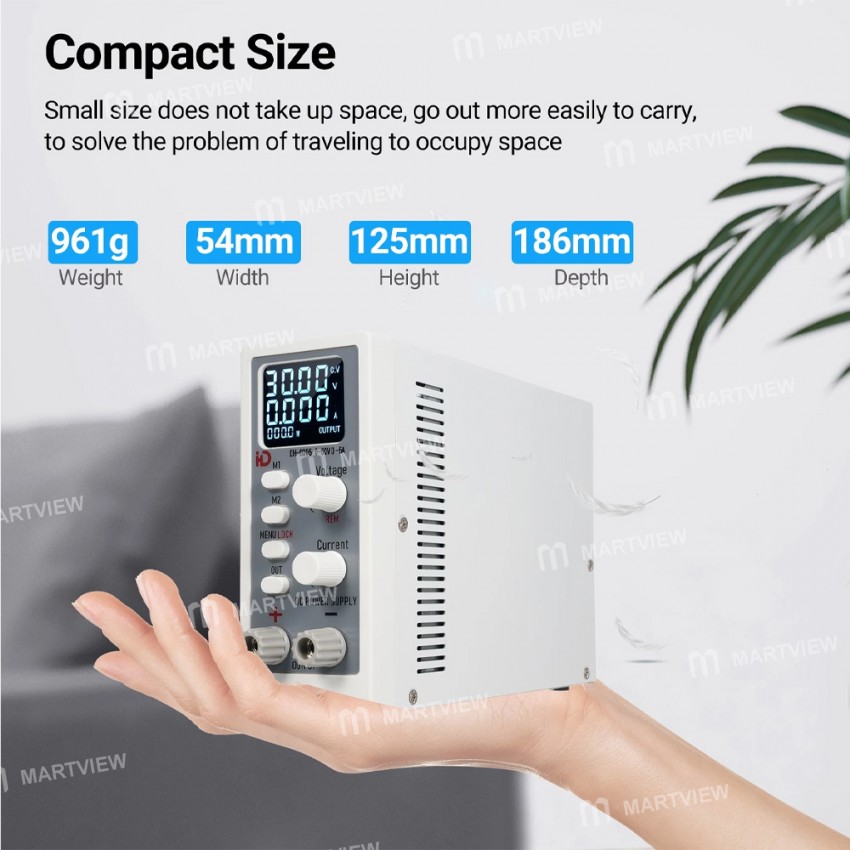

• Compact Size: Small size does not take up space, goes out more easily to carry, to solves the problem of traveling to occupy space

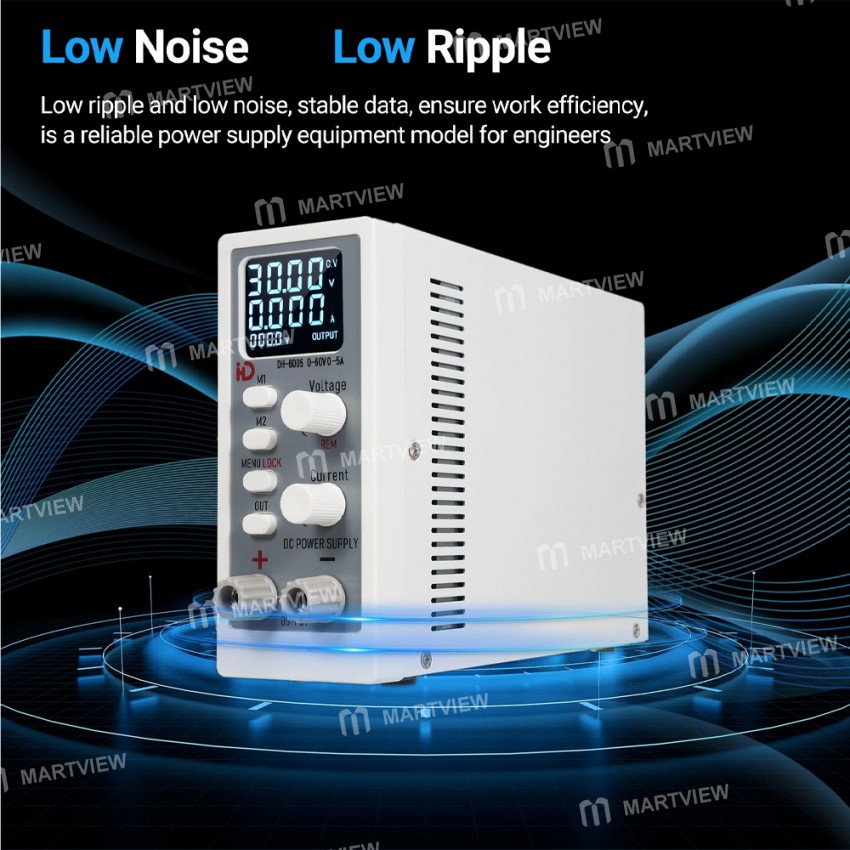

• Low Noise and Ripple: Low ripple and low noise, stable data, ensure work efficiency, is a reliable power supply equipment model for engineers

• Wide Range of Applications: Used in the fields of testing, aging, LED drive, industrial control, solar regulation, battery charging, etc

Specification:

• Model: DH-6005

• Material: ABS

• AC Input: 110V/220V

• Output Voltage: 0~60V

• Current Output: 0~5A

• Output Power: 300W

• Power Supply Stability: ≤0.02%+5mV

• Load Stability Ratio: ≤0.1%+5mV

• Ripplerms (1-20KHz): 8mVrms

• Backward Resolution Ratio: Voltage 10mV; Current 1mA

• Read Back Precision: Voltage 0.1%+3 digital; Current 0.1%+3 digital

• Setpoint Accuracy: 0.1%+3 digital

• Output Over-voltage Protection: Menu Setting for OVP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off

• Output Over-current Protection: Menu Setting for OCP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off

• Voltage Setting: Voltage encoder setting or memory key input

• Current Setting: Current encoder setting or memory key input

• Control Interface (Optional): RS-232 (Support Modbus & SCPI Protocol)

• Function: Constant Voltage/Constant Current; Foldback Current Protection; Dual Preset Voltage and Current; Key Lock

• Output Polarity: The positive (+) and negative (-) outputs can be grounded arbitrarily

• Heat-Dissipating Method: Intelligent air-cooled (variable speed)

• Operating Environment: Designed for indoor use, temperature: 0℃ to 40℃; humidity: 10 to 85 percent RH

• Storage Environment: temperature: -20℃~70℃; humidity: 10%~90%RH

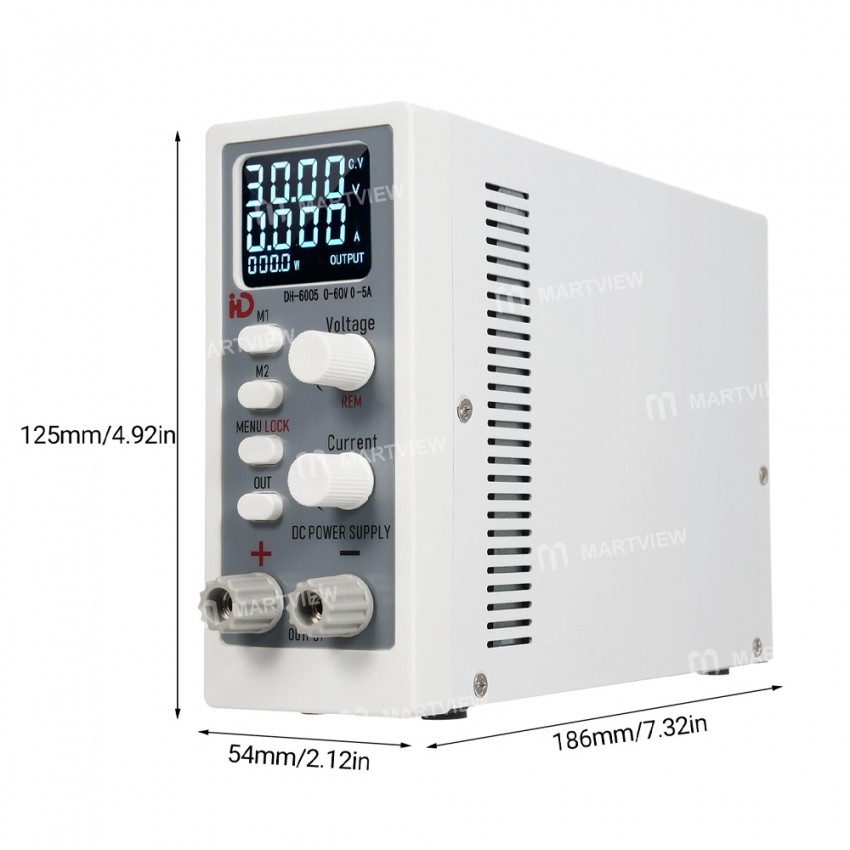

• Item Size: 186 * 54 * 125mm

• Item Weight: 954g

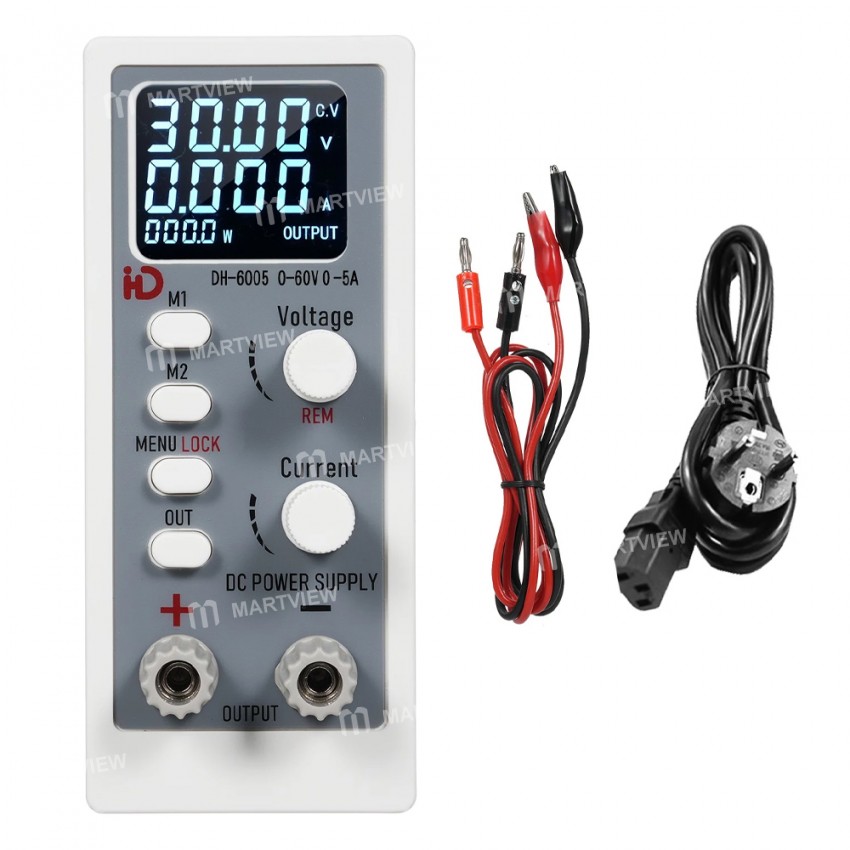

Package includes:

• 1 x Power Supply

• 1 x Power Cord

• 1 x Alligator Clip Lead
