Dock Flex Test Board – for iPhone & Android Phones, U2 IC, USB Charging & Battery Testing
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -2.1% |
| 5 | NaN | -3.5% |
| 10 | NaN | -5.6% |
Please select Model
for Android Phonefor iPhoneProduct details
Description
Product Overview

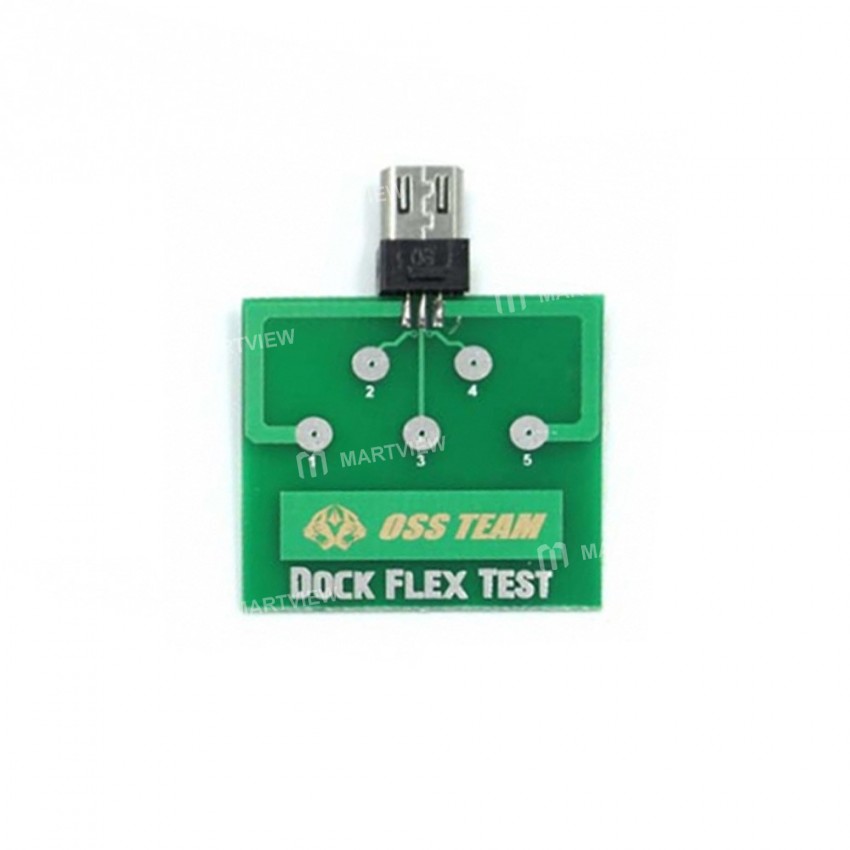

No Need Dismantle Phone Dock Test Board for iPhone & Android – U2 IC / USB Charging / Battery Testing. This board lets you test the mobile phone U2 IC, battery, and charging port performance without removing any phone parts. Simply plug the test board into the tail plug. Compatible with both iPhone and Android models.
Key Features
• Easy, non‑invasive testing of U2 IC, battery and charging port
• Works with iPhone and Android devices
• Direct tail‑plug connection eliminates disassembly
• Accurate fault diagnosis with reference measurements

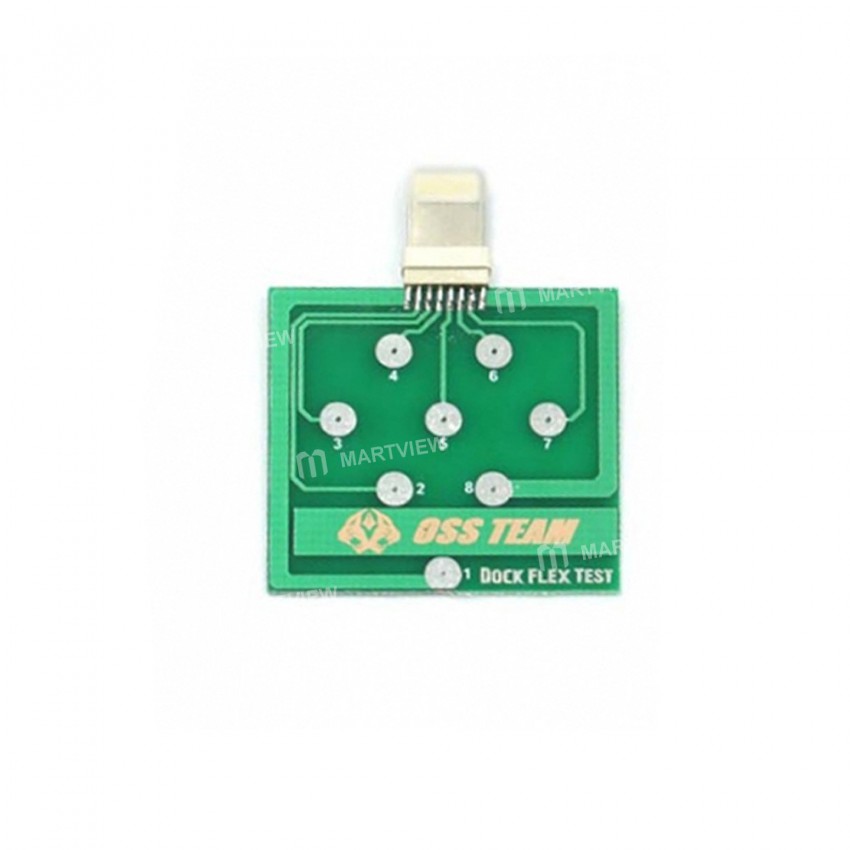

Lightning Phone Pin Definition:
- 1 – identification / control
- 2 – channel 1 negative
- 3 – channel 1 positive
- 4 – power / battery
- 5 – identification / control 0
- 6 – channel 0 negative
- 7 – channel 0 positive
- 8 – grounding
NOTE: Because the pin probe may shift, it is recommended to perform a normal‑working mobile phone measurement and record the values. This makes it easier to compare with a faulty phone and identify errors.
Package includes:
1 x Dock Flex Test Board
