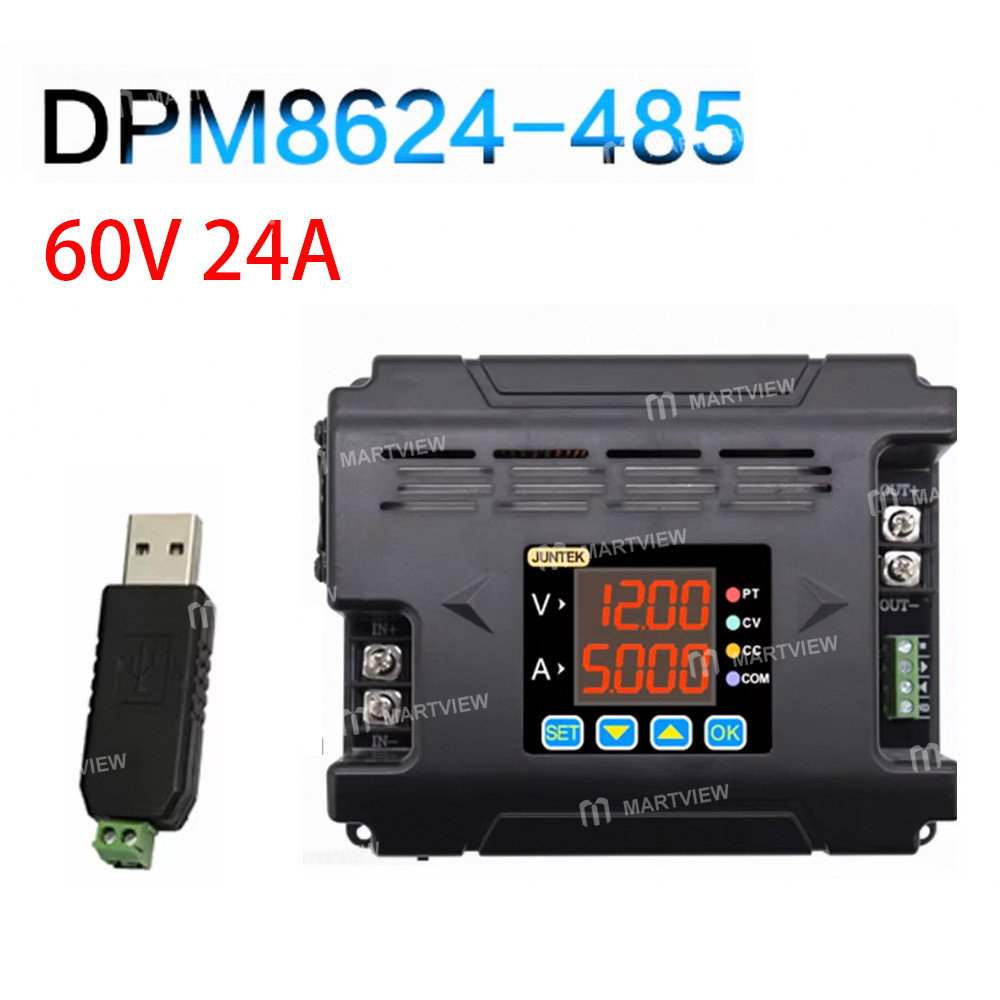

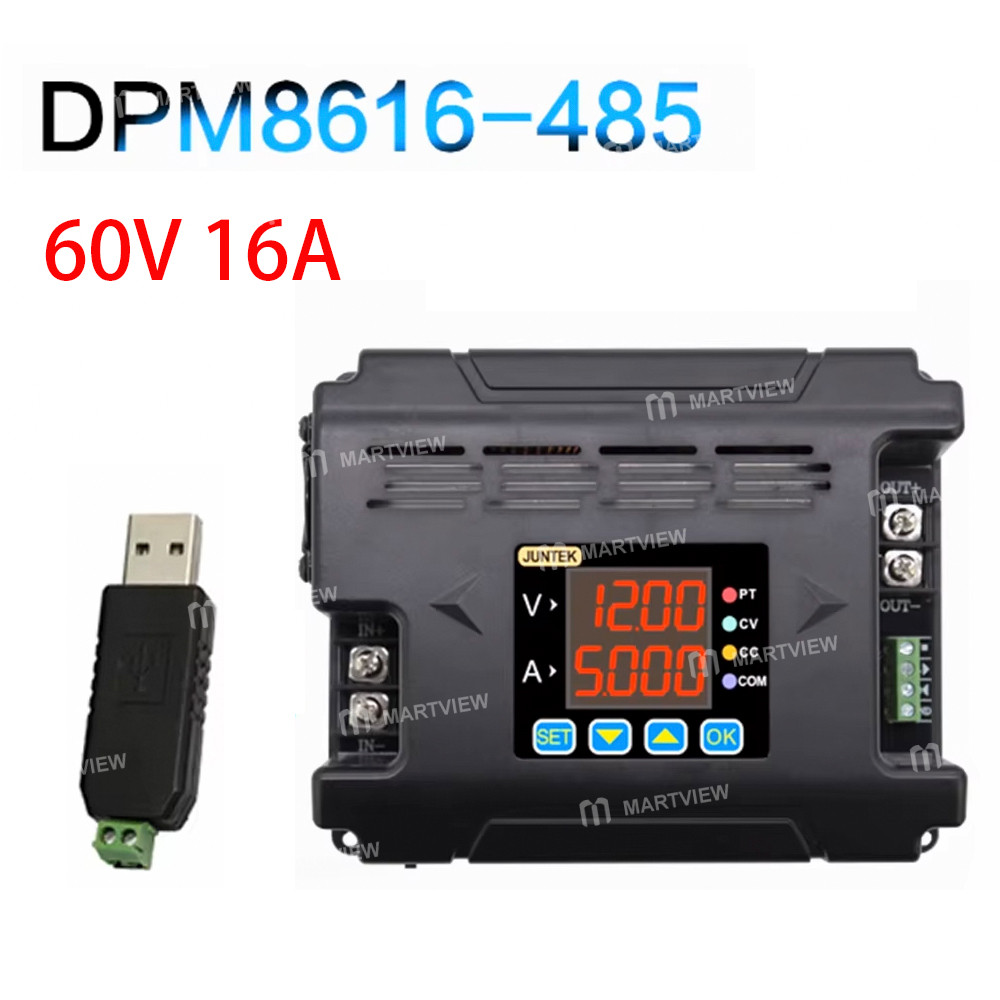

DPM8600-485 Series 60V 5A-24A Programmable Digital DC Step-Down Power Supply with 485 Communication Interface

DPM8600-485 Series 60V 5A-24A Programmable Digital DC Step-Down Power Supply with 485 Communication Interface

Features:

• Based on the switching power supply technology of the BUCK structure, the working frequency is up to 150KHz, and with a minimum differential voltage of 0.5V can still work stably

• Input DC voltage 10-75V, with an AC-DC (AC to DC) switching power supply or battery, you can combine them into a high-precision digital adjustable DC power supply or charger

• The output voltage is 0~60V, digitally continuously adjustable, the minimum voltage resolution is 10mV, and the ripple is lower than 50mVpp

• The output current is divided into 0-5A (minimum resolution 1mA), The current is digital and continuously adjustable

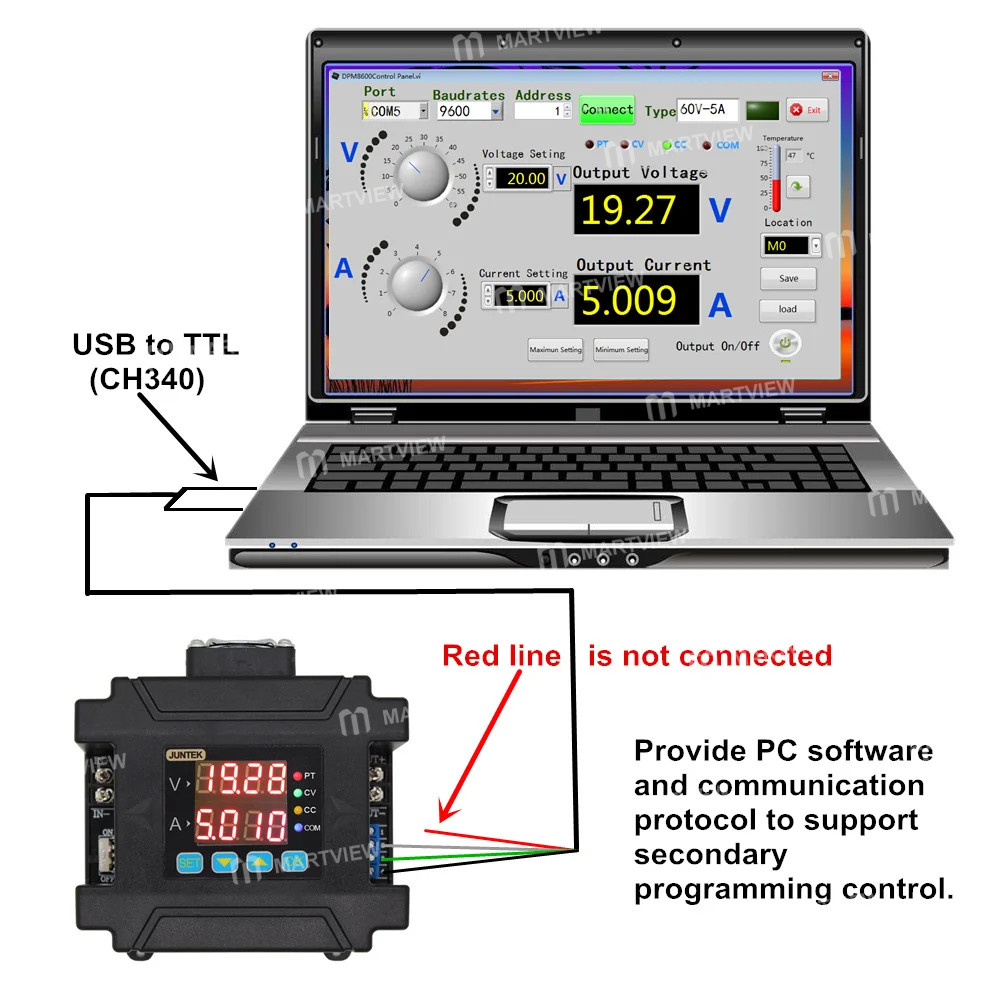

• Provide PC software and communication protocol to support secondary programming control. The standard "USB to TTL "  supports TTL serial communication. It is convenient for everyone to use our PC software to control the power supply

• The communication protocol is divided into a simple communication protocol and a MODBUS-RTU communication protocol, which can be freely selected in the machine menu

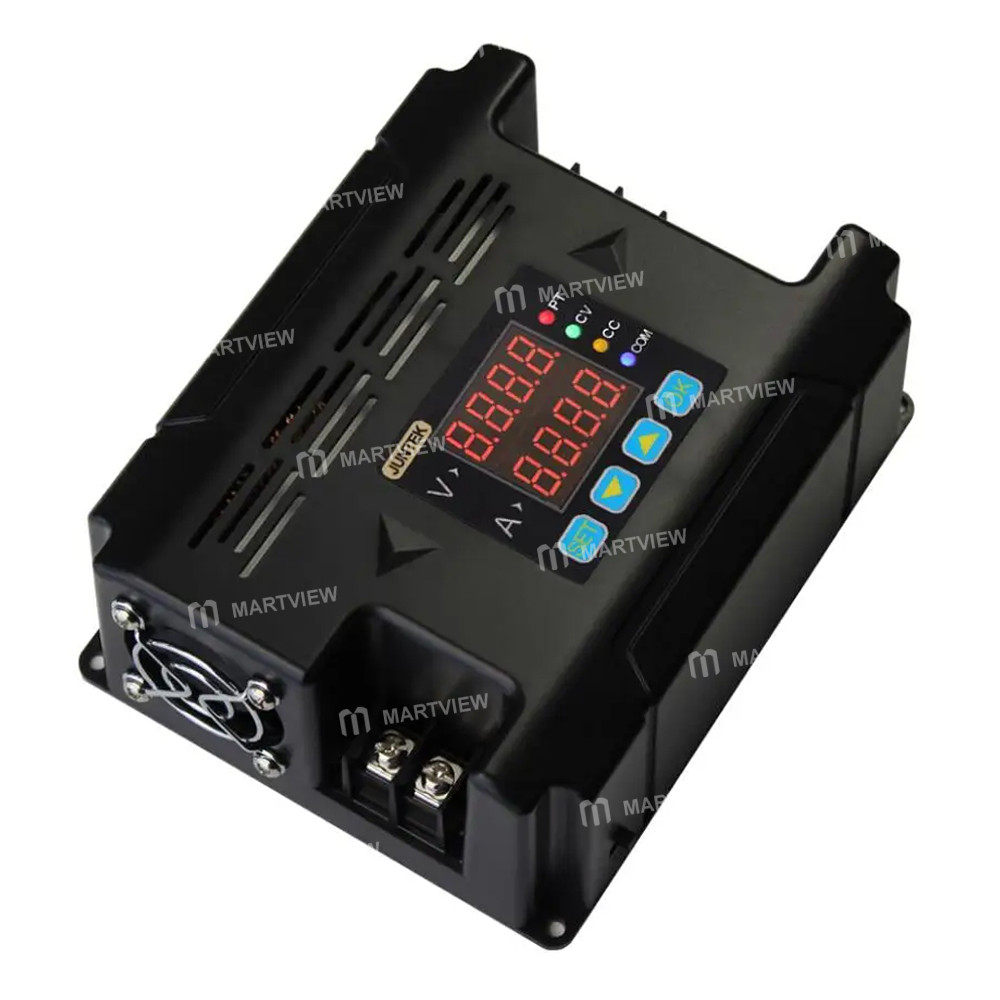

• It can set the power-on automatic output, with its own temperature-controlled fan, intelligently adjust the speed, and it can automatically stop output when over-temperature

• With a quick discharge function, the voltage response speed is adjusted very fast

• Automatically save parameters when the power is off. There are 10 groups of M0~M9 storage locations, which can be saved and recalled at any time

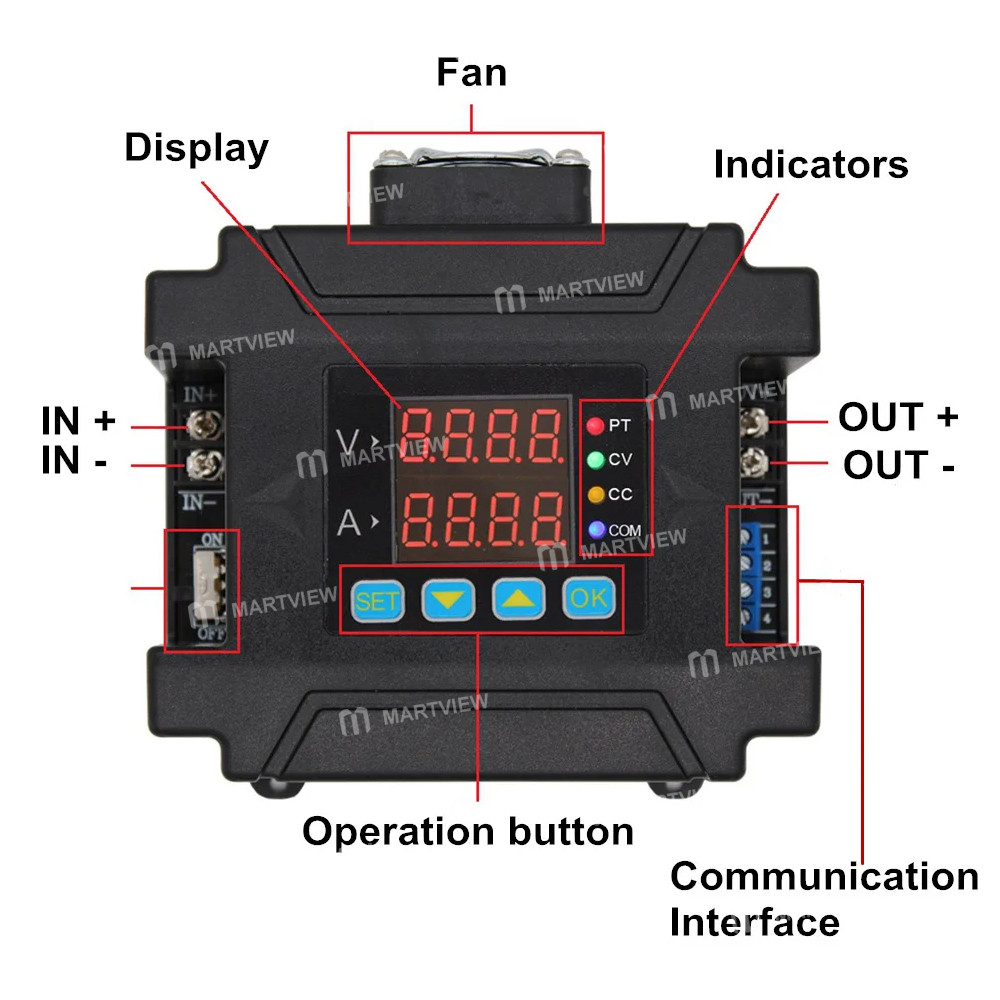

• The internal structure is simple, and it is divided into two parts: The main board and the display board. Removing the shell allows for easy integration into your own device

Specifications:

• Input Voltage range: 10~75V

• Output Voltage range: 0.01~60V

• Output Current range: 0.001~5A/8A; 0.01-16A/24A

• Output power range:   0-300W(5A)/0-480W(8A)/0-960W(16A)/0-1440W(24A)

• Output Voltage setting resolution: 10mV

• Output current setting resolution:  1mA(5A/8A); 10mA(16A/24A)

• Output ripple:  <50mVpp

• Conversion Efficiency:  92% (Input 40V, Output  30V, Current 7A)

• Voltage and current display accuracy:  10mV, 1mA((5A/8A); 10mV,10mA(16A/24A)

• Voltage error:  2％+1 digit

• Current error:  5％+2 digit

• Response time:  <50ms

• Operating Frequency: 150KHz

• Operating Temperature: -10°C to +45°C

• Control Method: Digital Control + LED Display

• Weight: 260g(5A/8A); 420g(16A/24A)

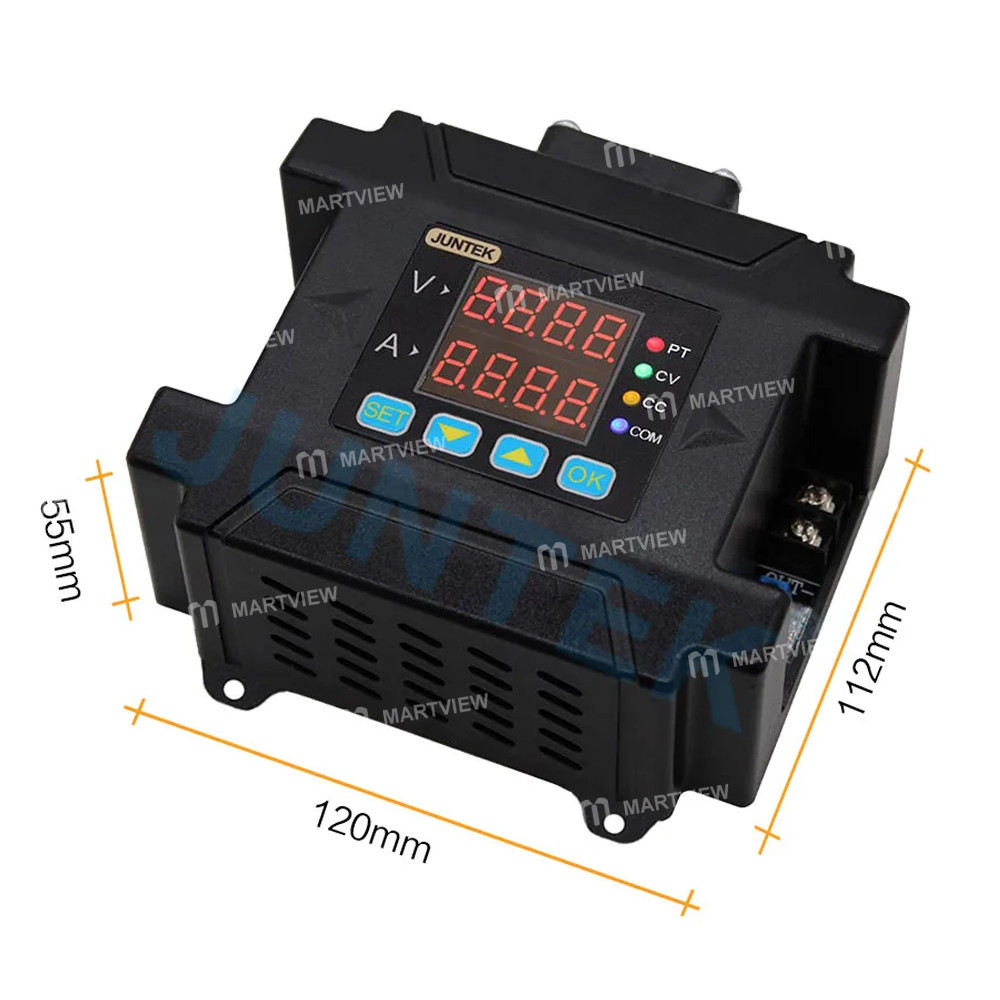

• Dimensions: 131 *112 * 55mm

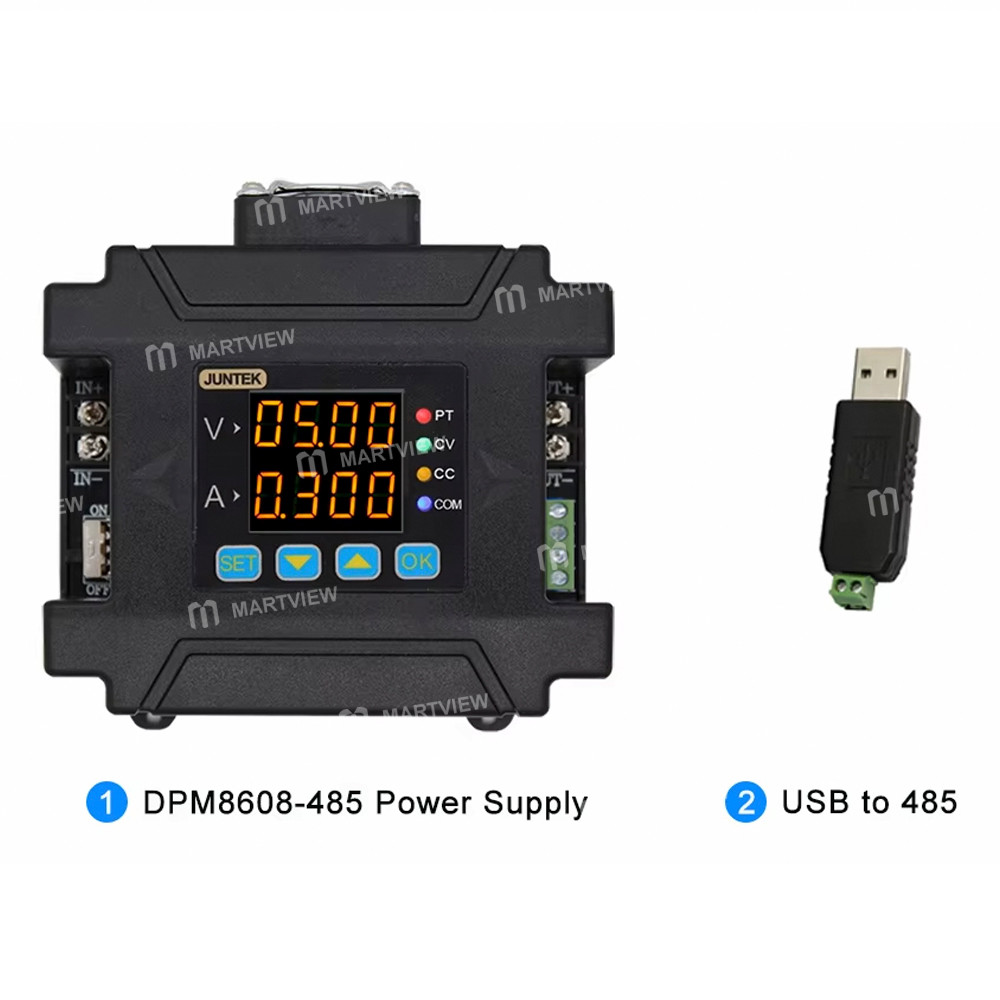

Package includes:

• 1 x DC Power Supply

• 1 x USB to RS-485 Module
