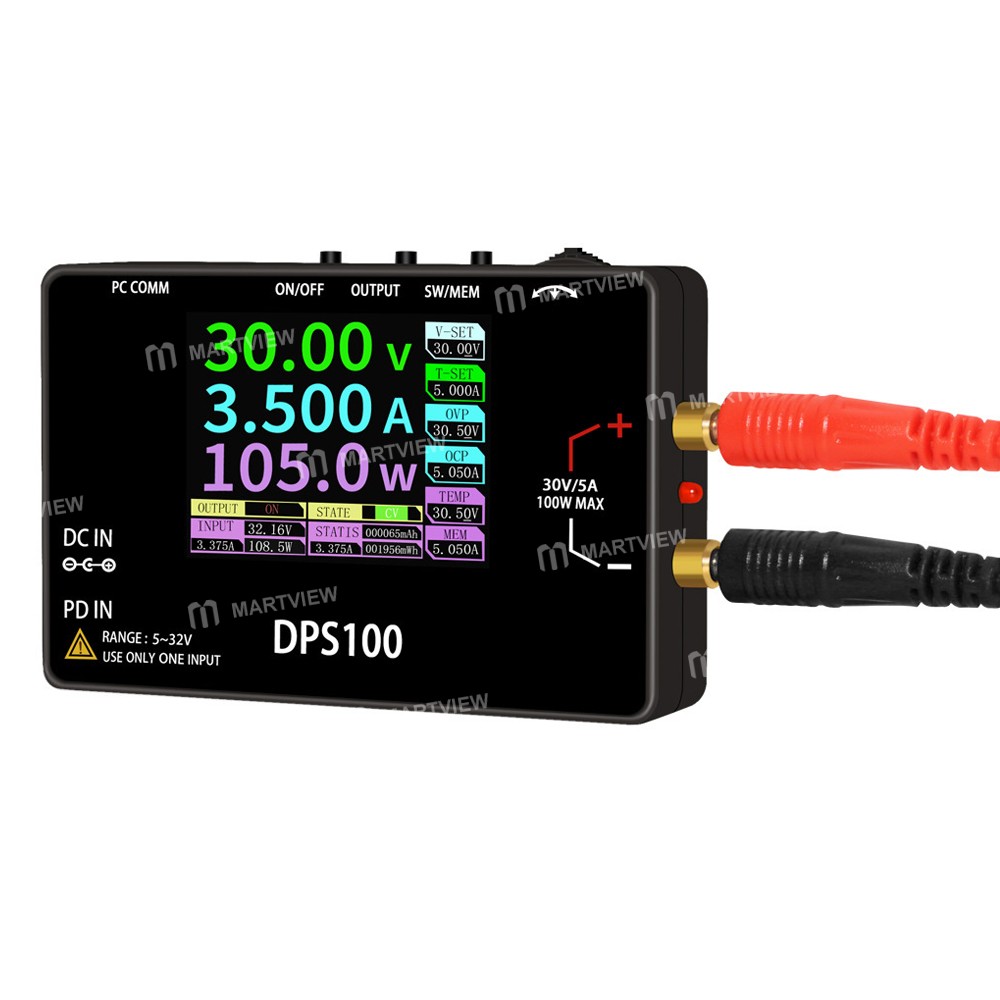

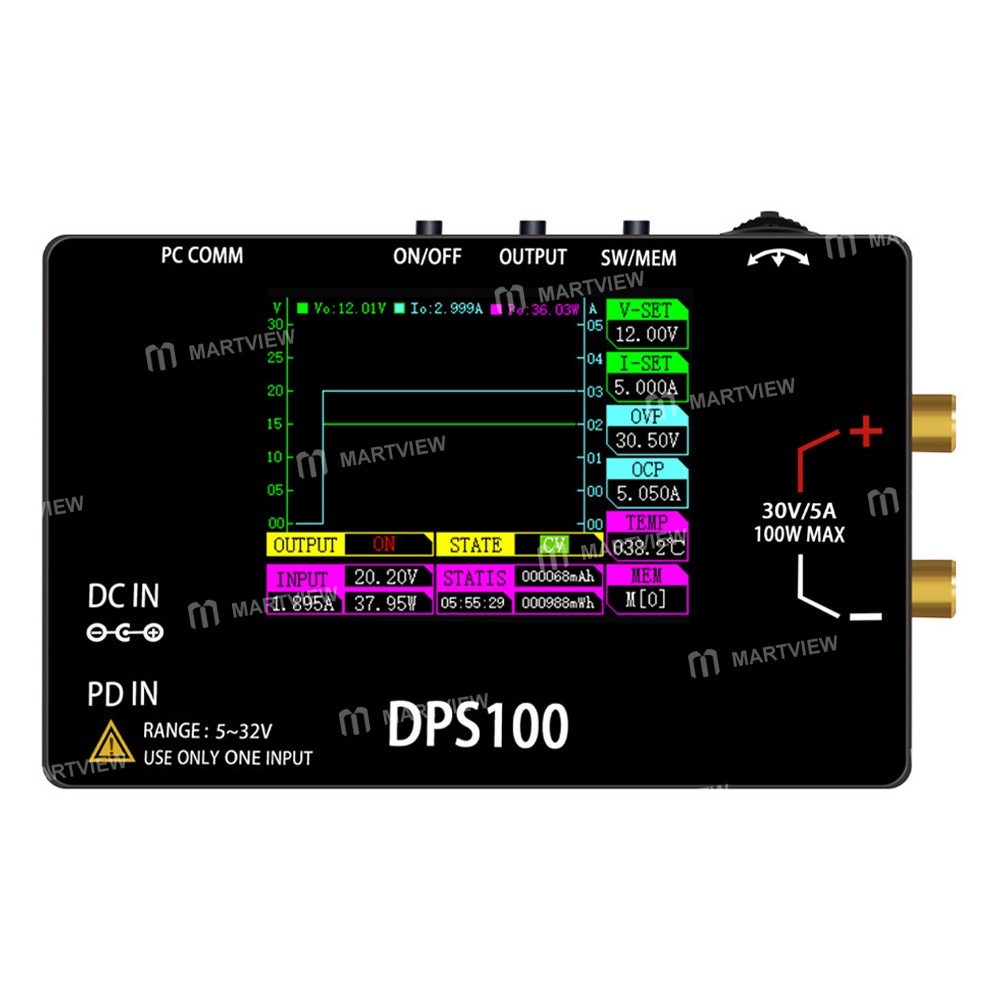

DPS100 Portable 30V / 5A 100W Digital Display Programmable NC DC Stabilized Power Supply

DPS100 Portable 30V / 5A 100W Digital Display Programmable NC DC Stabilized Power Supply

Features:

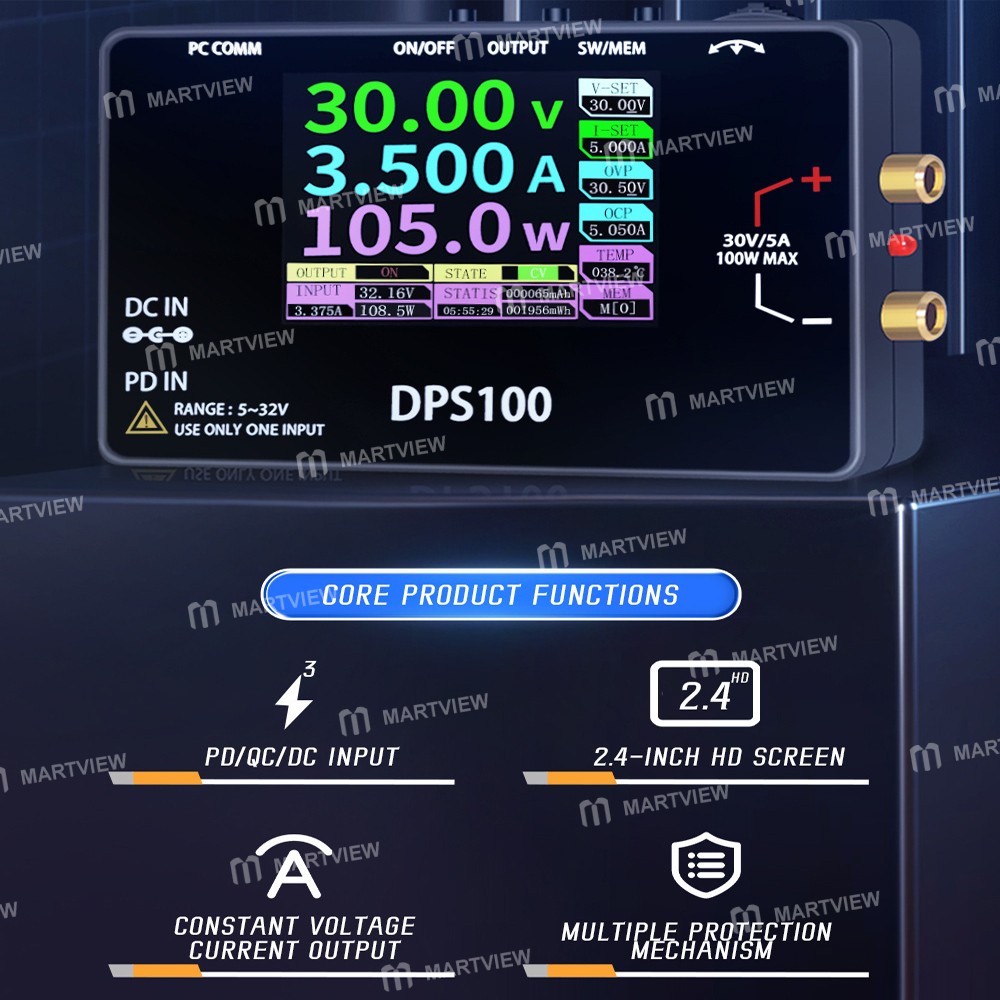

• DPS100 pocket digital adjustable power supply, 30V 5A 100W output, PD/QC/DC input, constant voltage current output, 2.4-inch HD screen, multiple protection mechanism

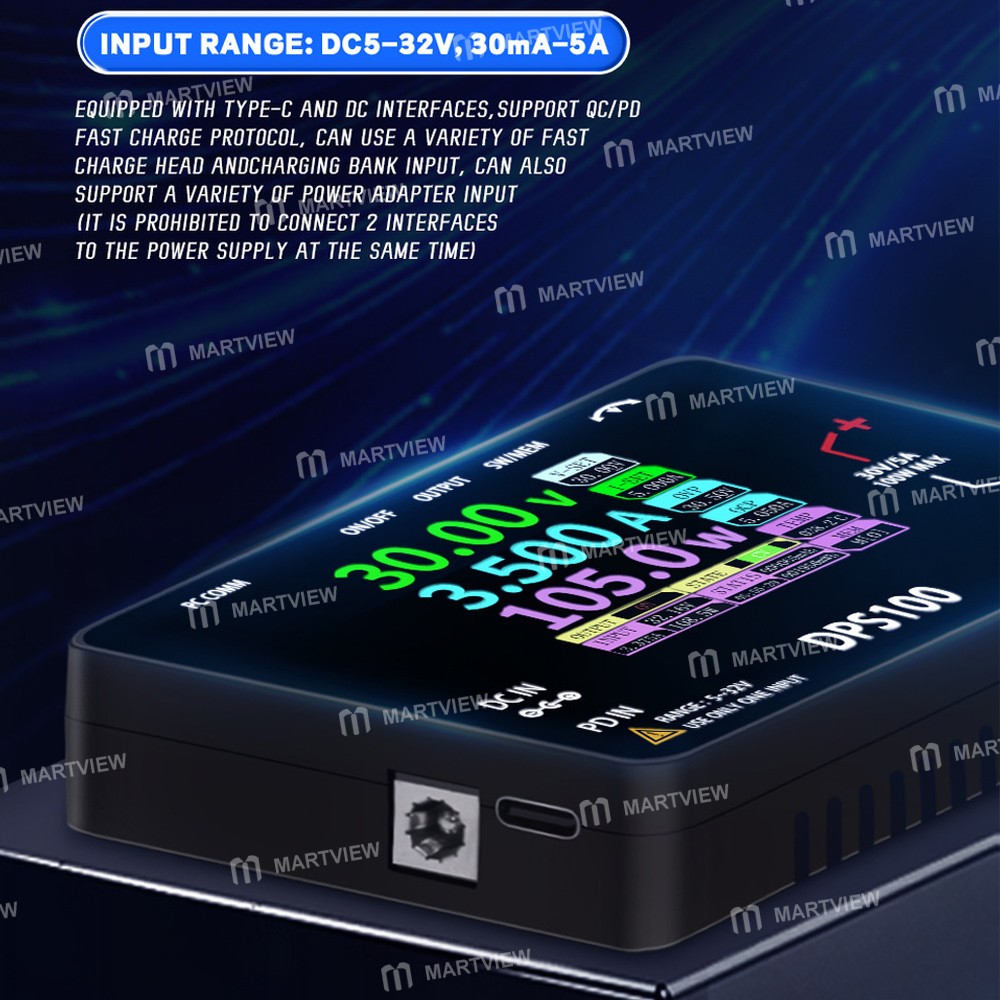

• Equipped with Type-C and DC interfaces, support QC/PD fast charge protocol, can use a variety of fast charge head and charging bank input, can also support a variety of power adapter input (It is prohibited to connect 2 interfaces to the power supply at the same time)

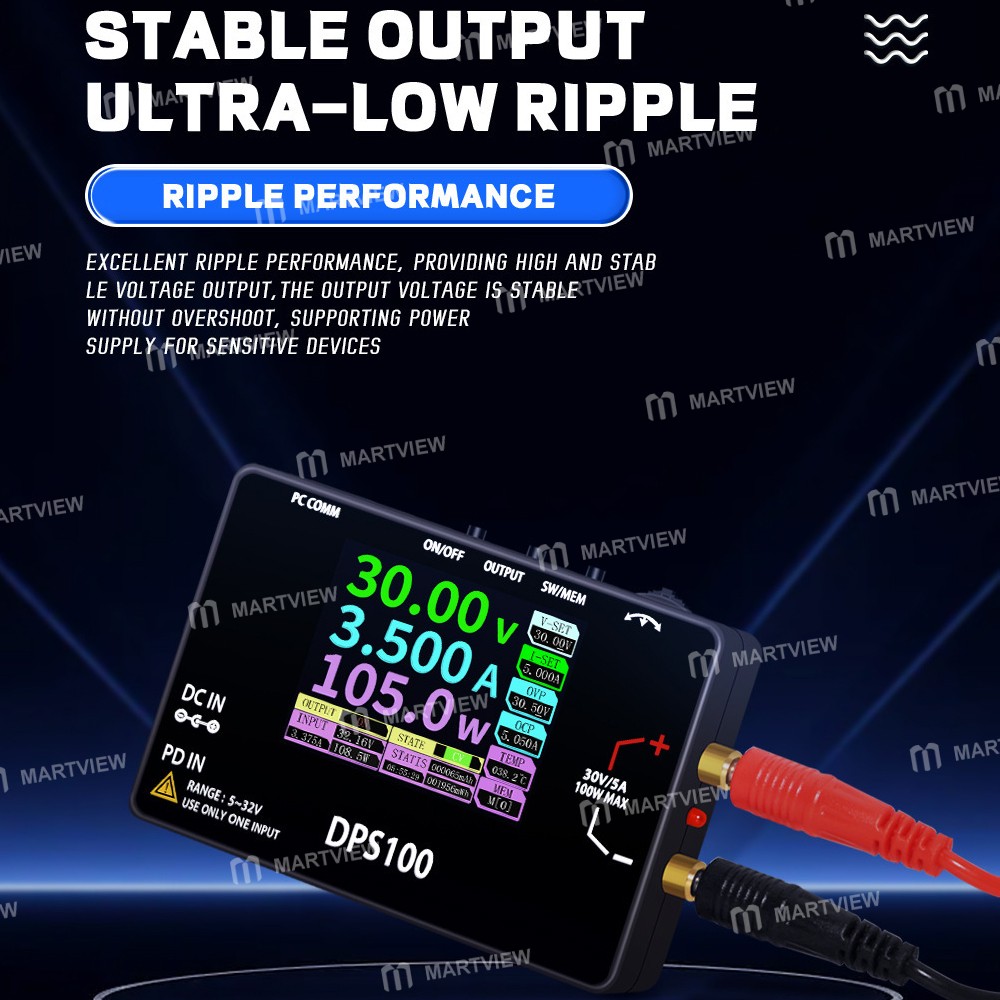

• Excellent ripple performance, providing high and stable voltage output, the output voltage is stable without overshoot, supporting power supply for sensitive devices

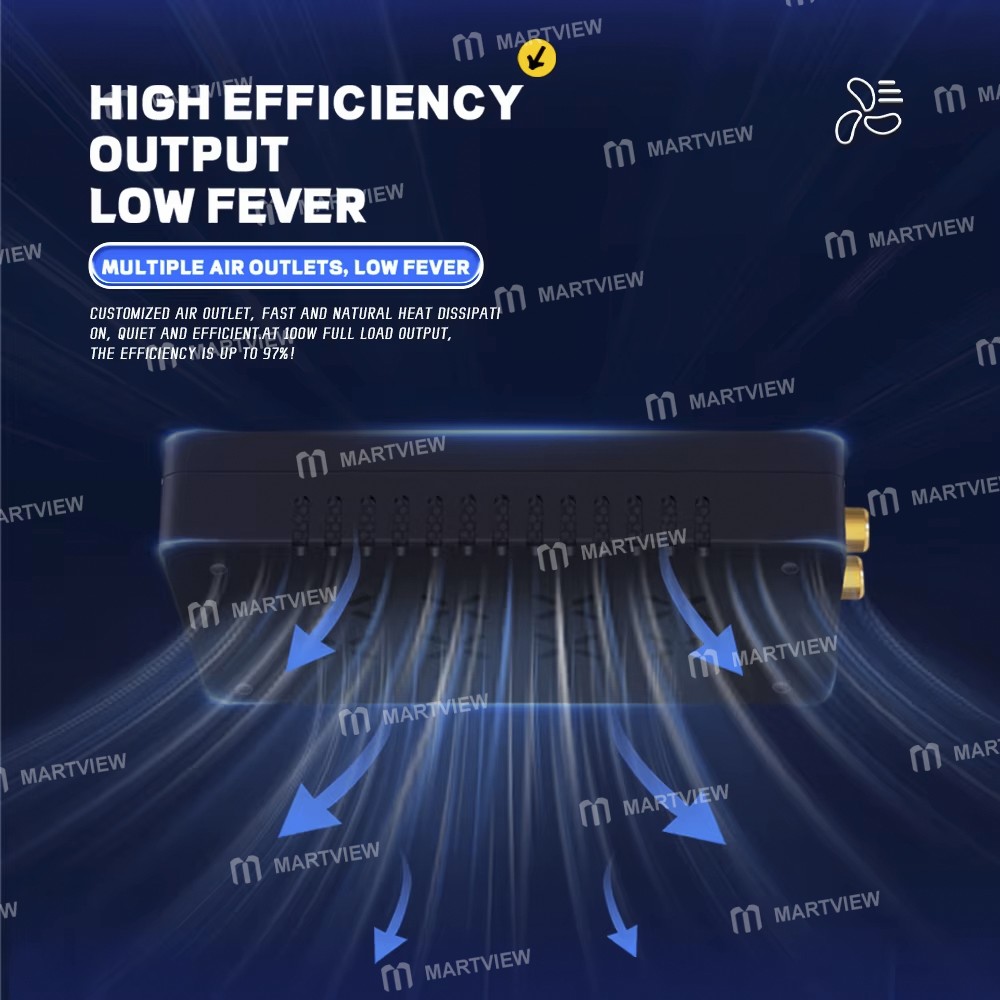

• Customized air outlet, fast and natural heat dissipation, quiet and efficient, at 100W full load output, the efficiency is up to 97%

• Output support: Over-voltage protection, over-current protection, over-power protection, over-heat protection, input under voltage protection, output reverse protection, output reverse protection

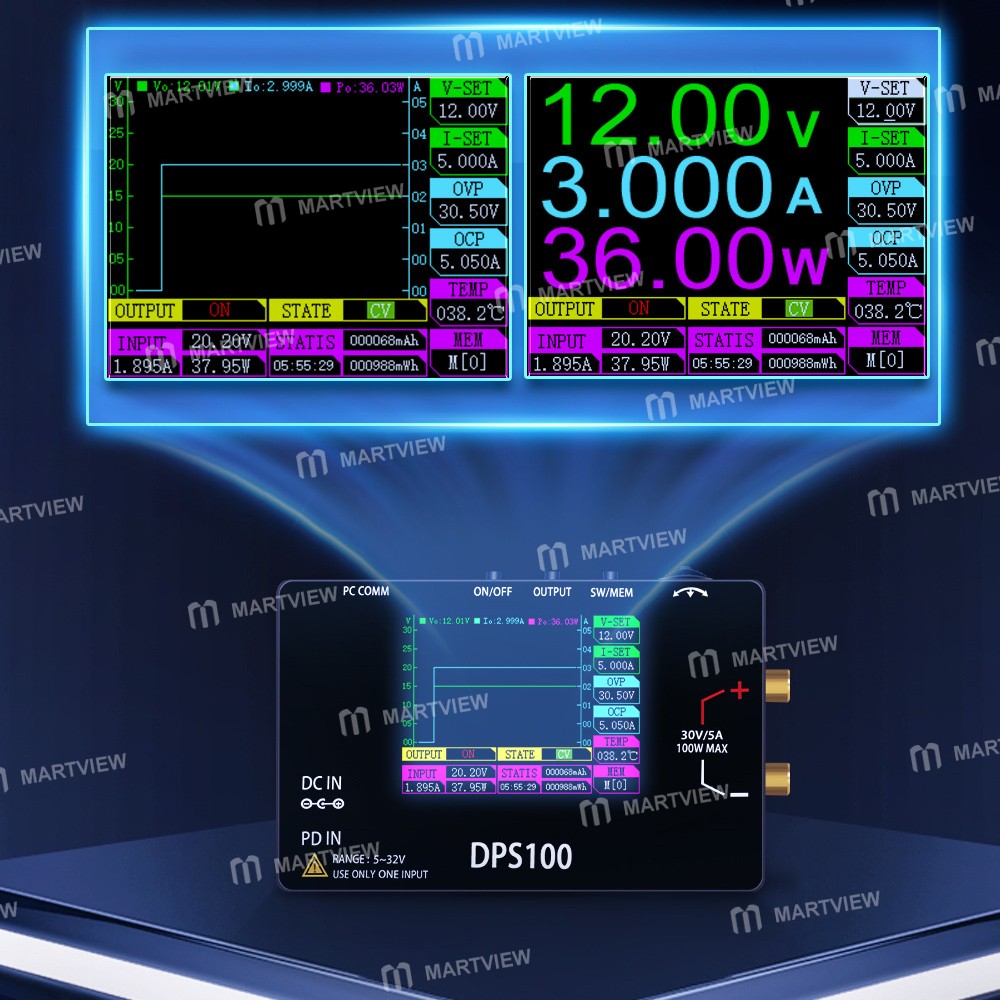

• Using a 2.4 inch HD HTF color screen supports numerical display and curve display to switch beautiful atmosphere

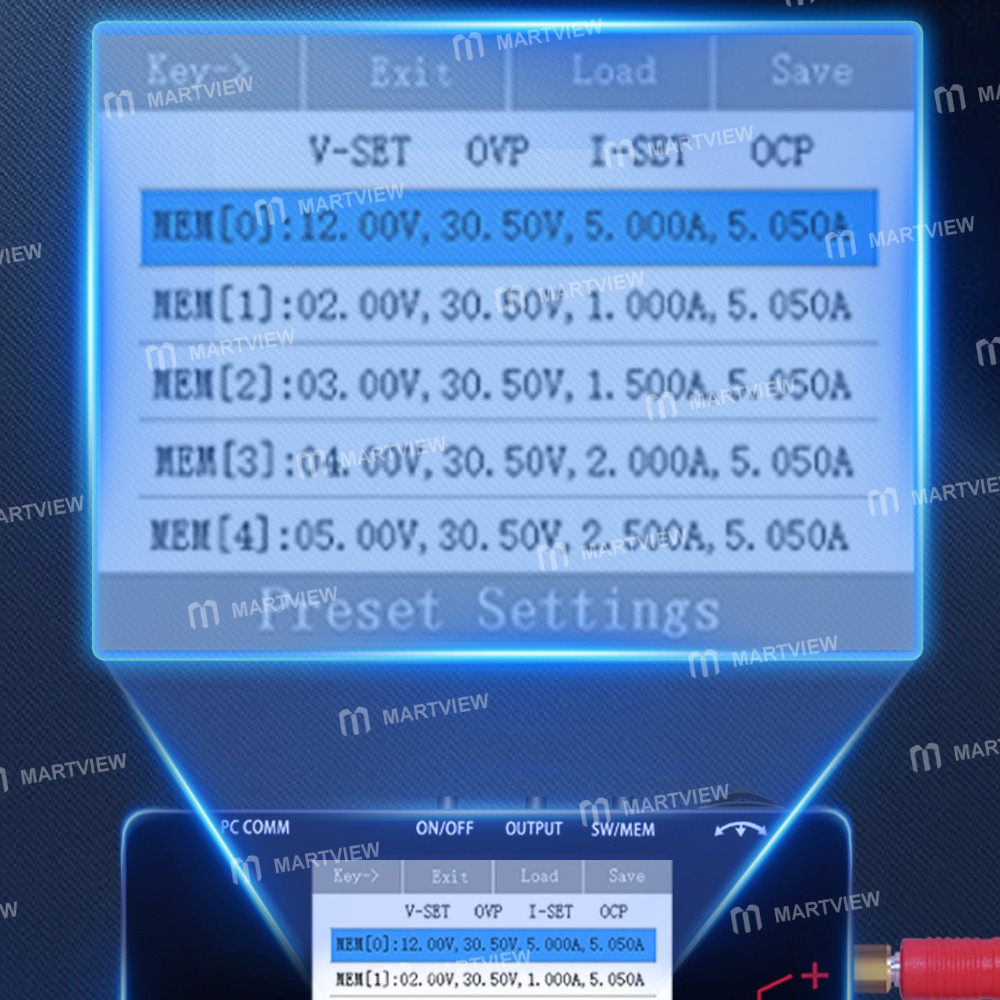

• Dial wheel adjustment is convenient and fast, built-in 10 sets of preset outputs for quick adjustment, maximizes the work efficiency

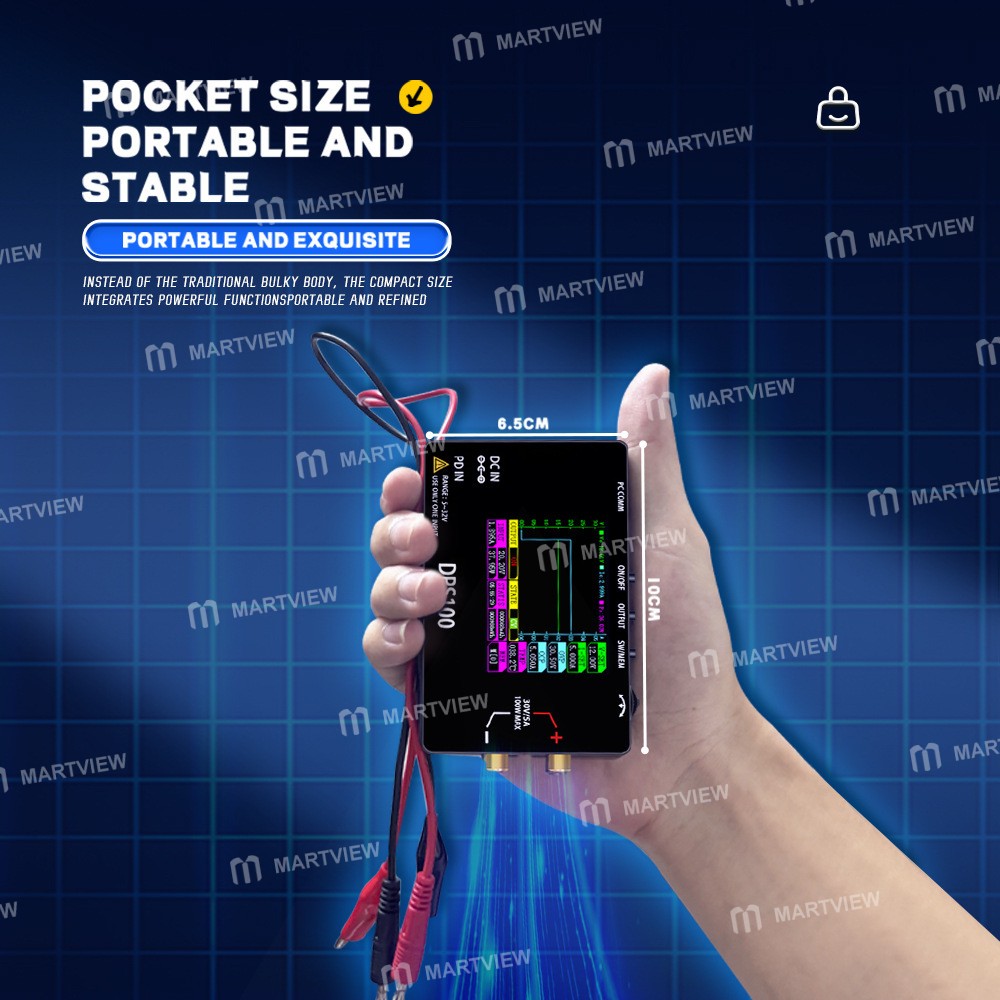

• Instead of the traditional bulky body, the compact size integrates powerful functions, portable and refined

Specification:

• Input parameters: DC 5.0~32V, 30mA~5A

• Resolution of settings: Voltage: 10mV; Current: 1mA

• Output Range: Voltage: 0~30V; Current: 0~5A

• Power: 100W(Max)

• Interface of output: 4.0mm banana head connector

• Accuracy of Settings: Voltage: ≤0.1% ±5mV; Current:≤0.1% ±3mA

• Resolution of measurement: Input voltage: 10mV, Input current: 1mA; Output voltage: 10mV, Output current: 1mA

• Ripple and noise: Voltage: ≤2mVrms, 10mVp-p; Current: ≤1mArms, 3mAp-p

• Output temperature coefficient: Voltage: ≤200ppm; Current: ≤200ppm

• Protocols supported by Type-C ports: PD 3.0/2.0, BC 1.2, etc.

• Full load efficiency: ≤97% @100W(30V, 3.334A)

• Load regulation rate: Output voltage: ≤0.05% ±5mV; Output current: ≤0.1% ±3mA

• Accuracy of measurement: Input voltage: ≤0.2% ±10mV, Input current: ≤0.1% ±5mA; Output voltage: ≤0.1%±10mV, Output current: ≤0.1% ±5mA

• Power regulation rate: Voltage: ≤0.05% ±5mV; Current: ≤0.1% ±3mA

• Working environment: 0℃~40℃, 0~75%RH

• Size: 110*70*20mm

• Weight: 100g

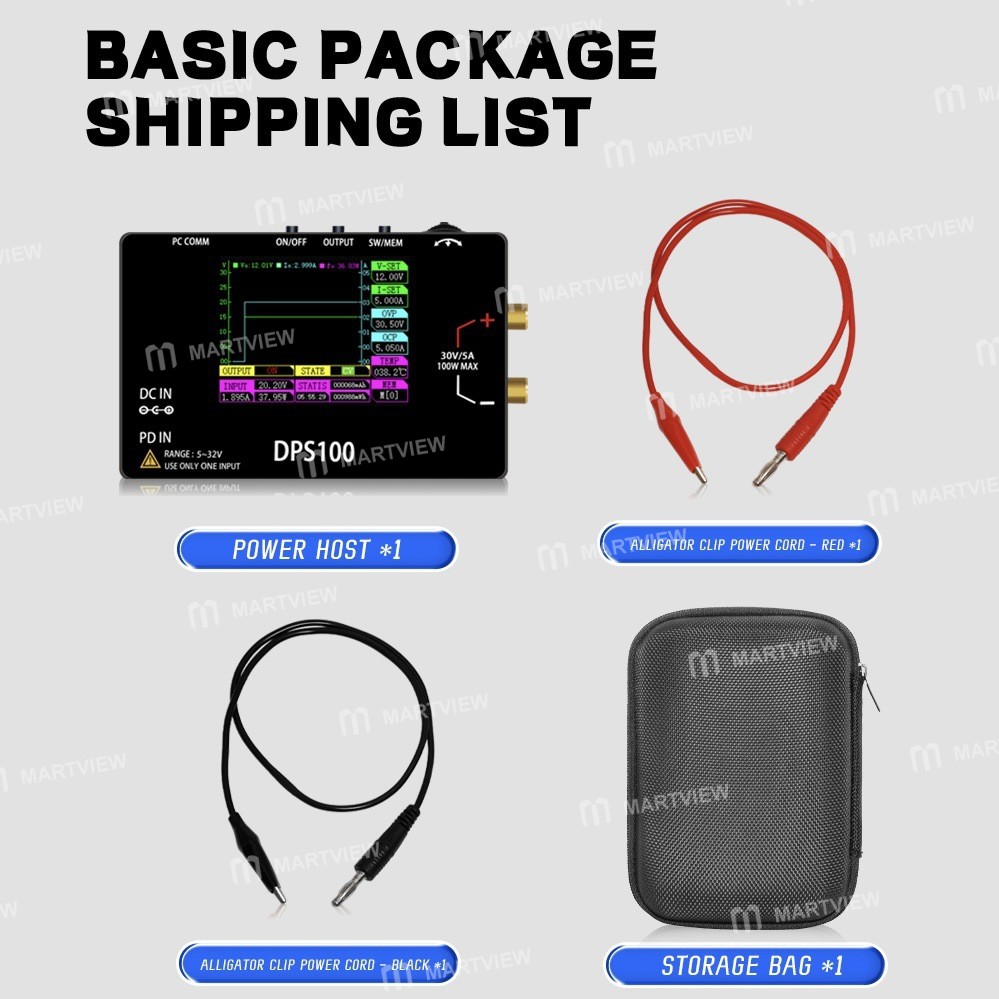

Package includes:

• 1 x Power Supply

• 2 x Test Leads

• 1 x Bag
