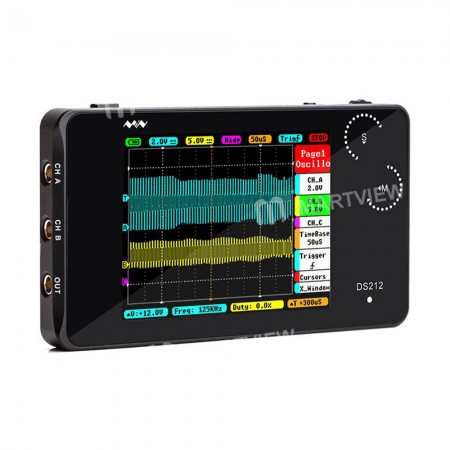

DS212 Portable Dual-channel Digital Touch Screen Oscilloscope with USB Interface

DS212 Portable Dual-channel Digital Touch Screen Oscilloscope with USB Interface

Features:

• Multiple Purpose: Inbuilt signal generator/10Hz-1MHz square (duty adjustable) or 10Hz-20KHz Sine/Square/Triangle/Sawtooth

• Built-in 500mAh lithium battery, adopts Micro USB interface for charging

• Powerful Performance, with modes of vertical range, adaptive horizontal, and triggering threshold. Built-in 8MB -disk storage for waveform data and images

• Synchronous mode: Auto, Normal, Single, None, Scan. Auto measurement: frequency, cycle time, duty cycle, RMS voltage/Vpp /V maximum/Vmin/Avg

• Pocket size digital storage oscilloscope meets basic electronic engineering requirements. 320x240 Colorful TFT display, mini and compact

• Rising/Falling edge trigger, adjustable high/low trigger level, and triggering sensitivity

Specification:

• Condition: 100% Brand New

• Item Type: Oscilloscope

• Material: Aluminium Alloy

• Color: As shown in the picture

• Weight: Approx.344g/12.1oz

• Sampling rate:10Msa/s (maximum)

• Analog channel signal bandwidth:1MHz

• Sampling storage depth:8K (maximum)

• The standard input impedance of analog channels:1MΩ

• Analog channel input voltage:±40V (maximum, X1 probe)

• Analog channel input coupling mode: AC/DC

• Analog channel input sensitivity range:20mv/Div~10V/Div (1-2-5 step)

• Horizontal scanning time base range:1uS/Div~2S/Div (1-2-5 step)

• Mode: with Auto, Normal, Single, None, Scan synchronization mode

• Trigger mode: with rising/falling edge trigger mode

• Settable mode: can set adaptive horizontal, vertical range, trigger threshold mode

• Measurable signal frequency/period/duty cycle: RMS voltage/Vpp /V maximum/Vmin/Avg

• Signal source: Built-in 10Hz~1MHz square (adjustable duty cycle) or 10Hz~20KHz Sine/Square/Triangle/Sawtooth

• Source storage capacity: built-in disk storage capacity 8MB, can store waveform data and waveform images

• Battery: Built-in 500mAh lithium battery, charged by Micro USB port

• Display: color TFT LCD display (resolution 320 * 240)

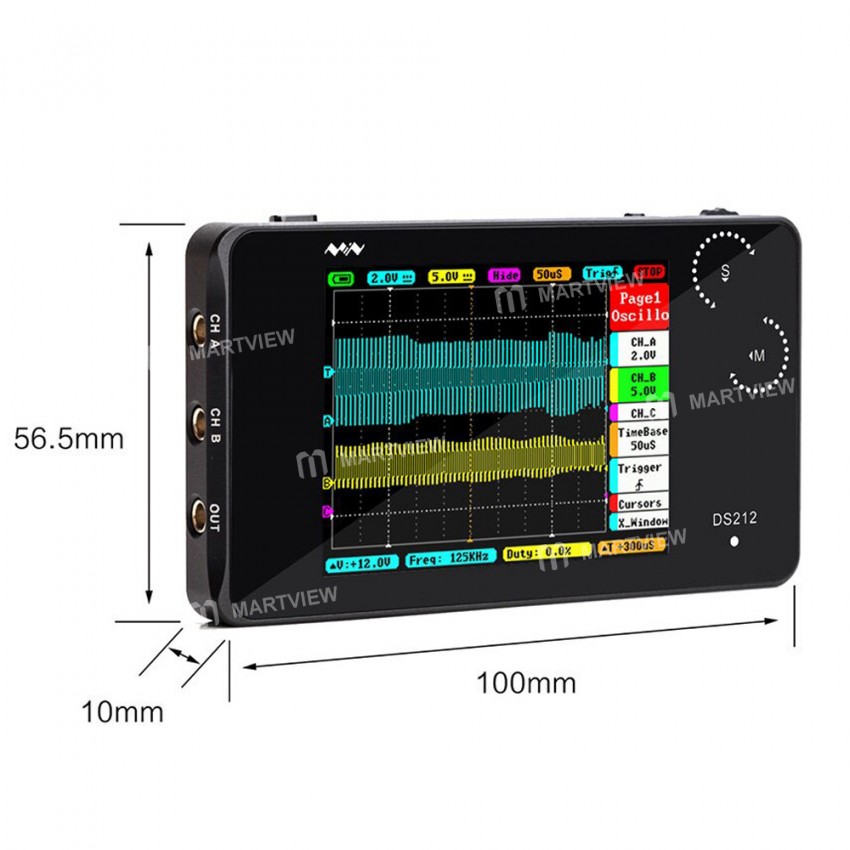

• Host size:100 * 56.5 * 10mm/3.9 * 2.2 * 0.4 in

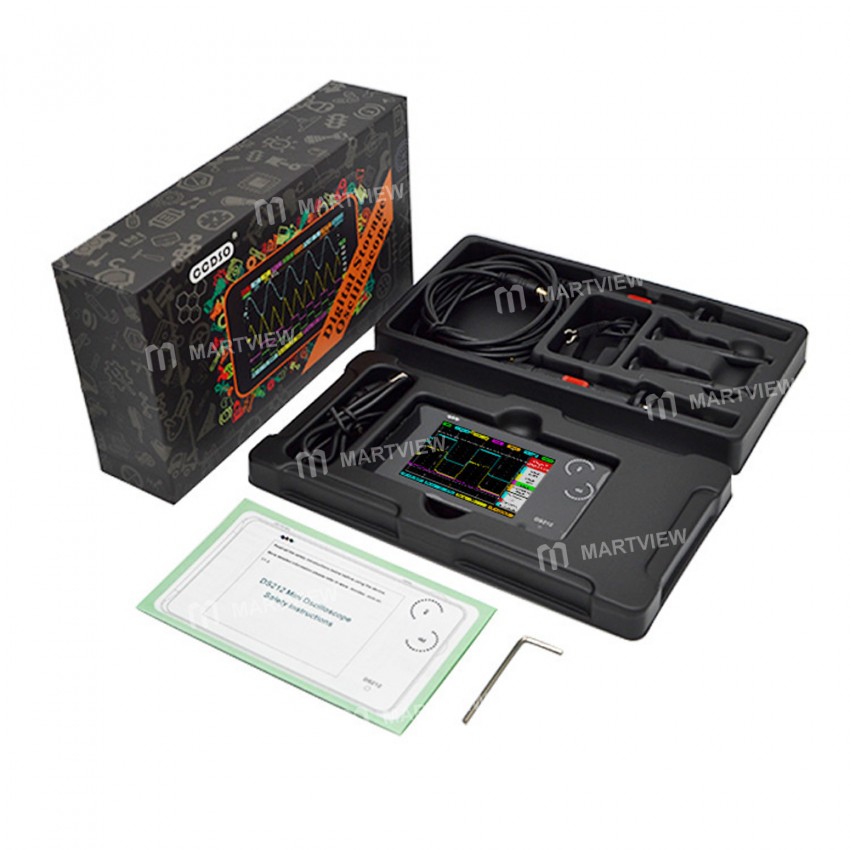

Package includes:

• 1 x Oscilloscope

• 1 x USB Charging Cable

• 2 x Oscilloscope Probe

• 1 x Socket Head Wrench

• 2 x IC

• 2 x Test Hook Hat
