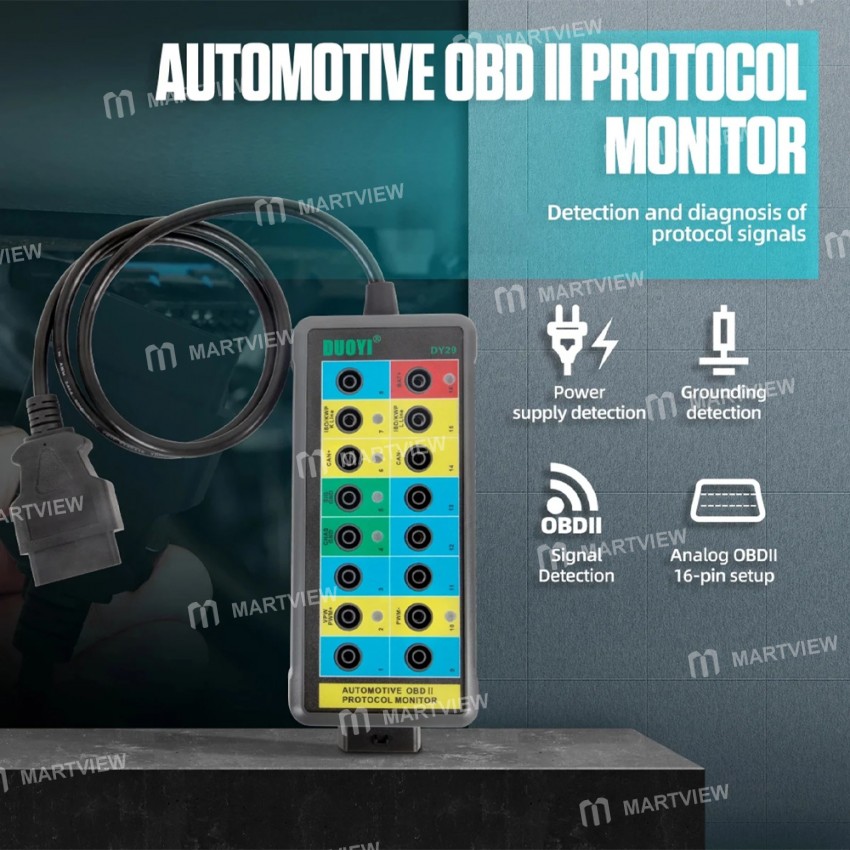

DuoYi DY29 Automotive Diagnostic Signal Protocol Tester

DuoYi DY29 Automotive Diagnostic Signal Protocol Tester

Features:

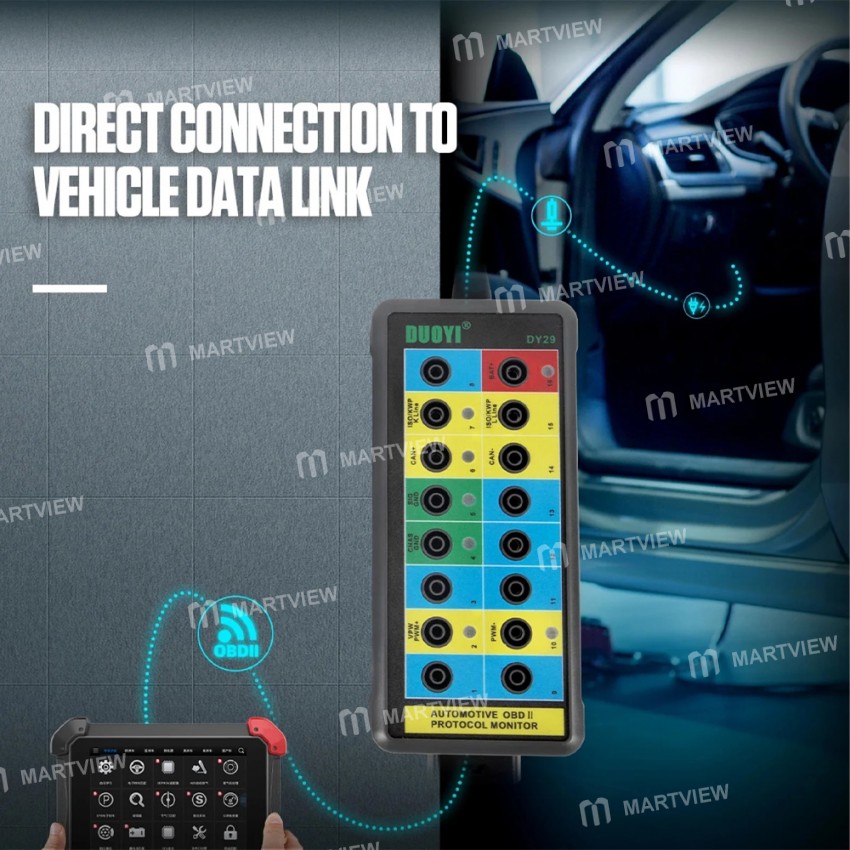

• Probing at the OBDII connector is no longer required

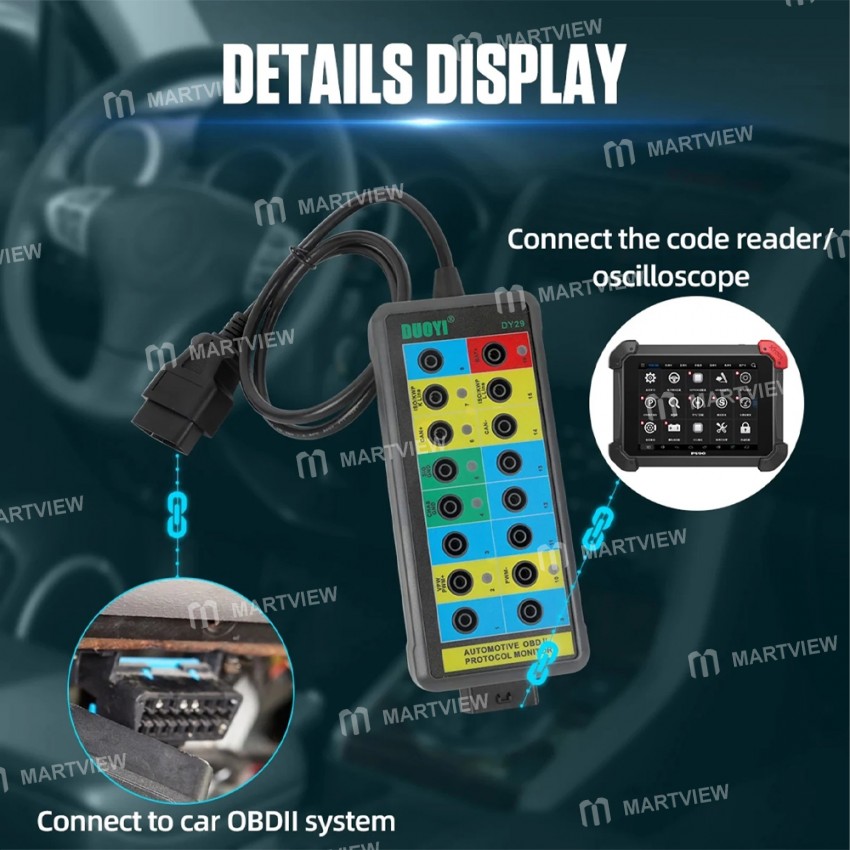

• Easily access each of the 16 pins while the scanner tool communicates with the vehicle

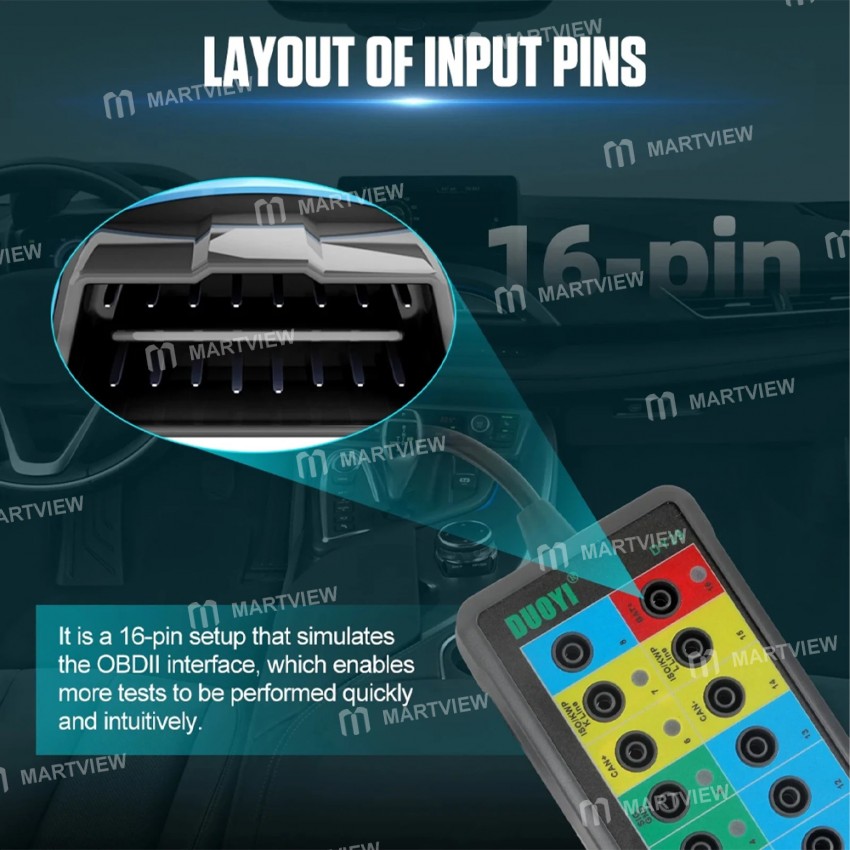

• LEDs to quickly indicate power or ground problems of OBDII connector. Mimics the OBDII connector layout for quick reference

• Quick, safe, and convenient access to chassis ground and power by this monitor

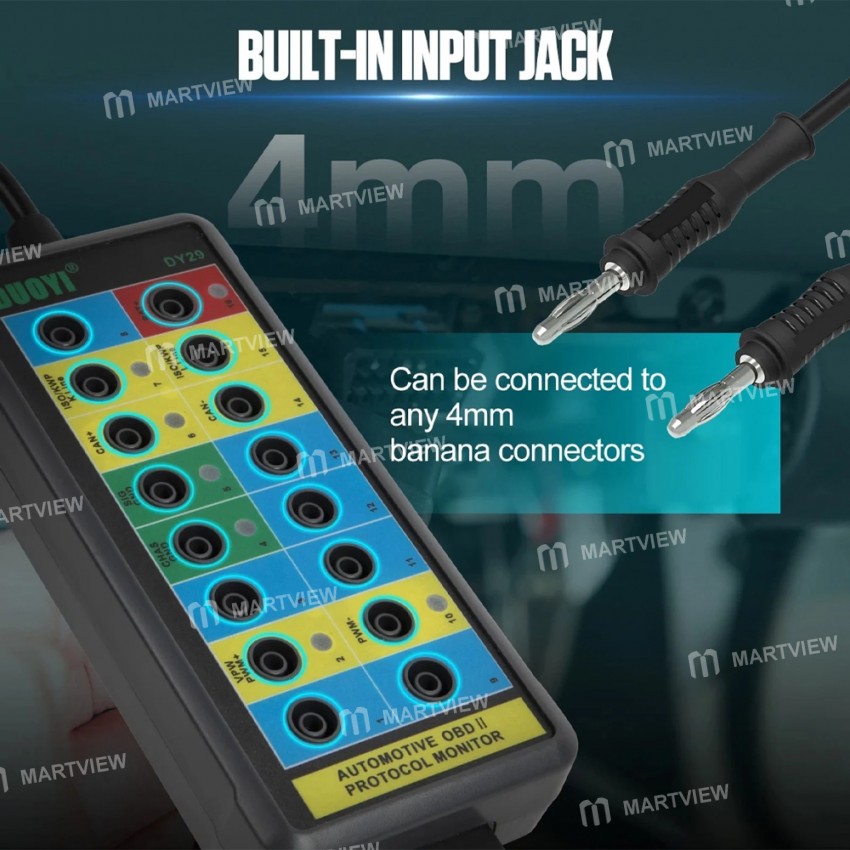

• Uses safety banana sockets that accept all types of 4mm banana plugs including those with safety sheaths

Specifications:

• Name: Electrical Diagnostic Tools Can Bus Analyzer

• Color: Black

• Material: ABS, Electronic Components

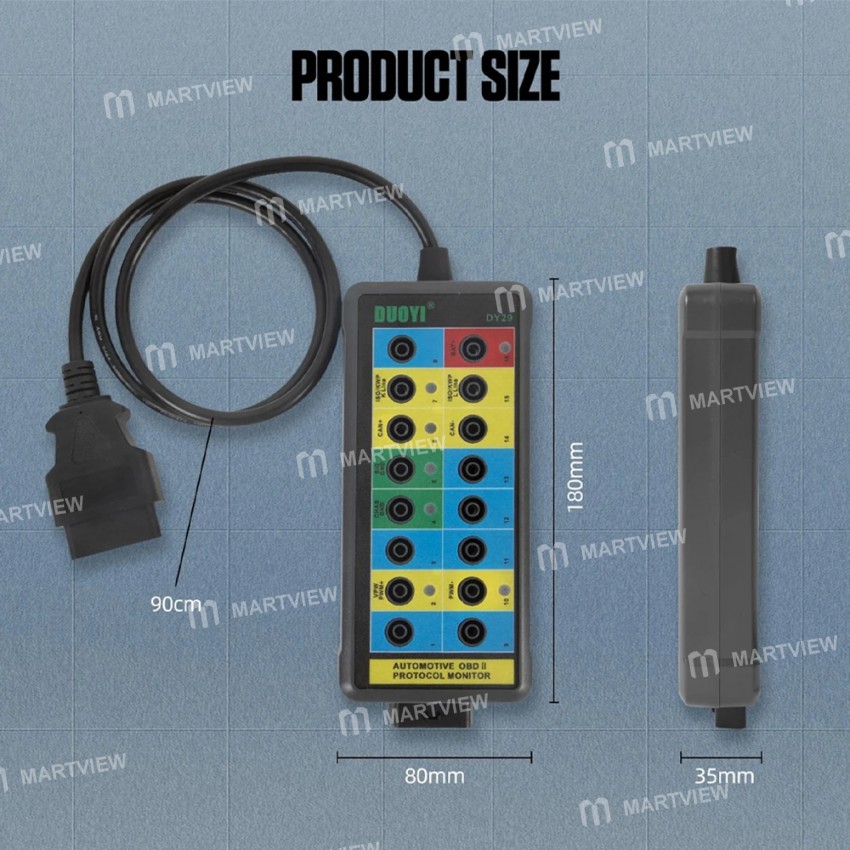

• Size: 180*80mm

• Package Size: 18*8*3.5cm

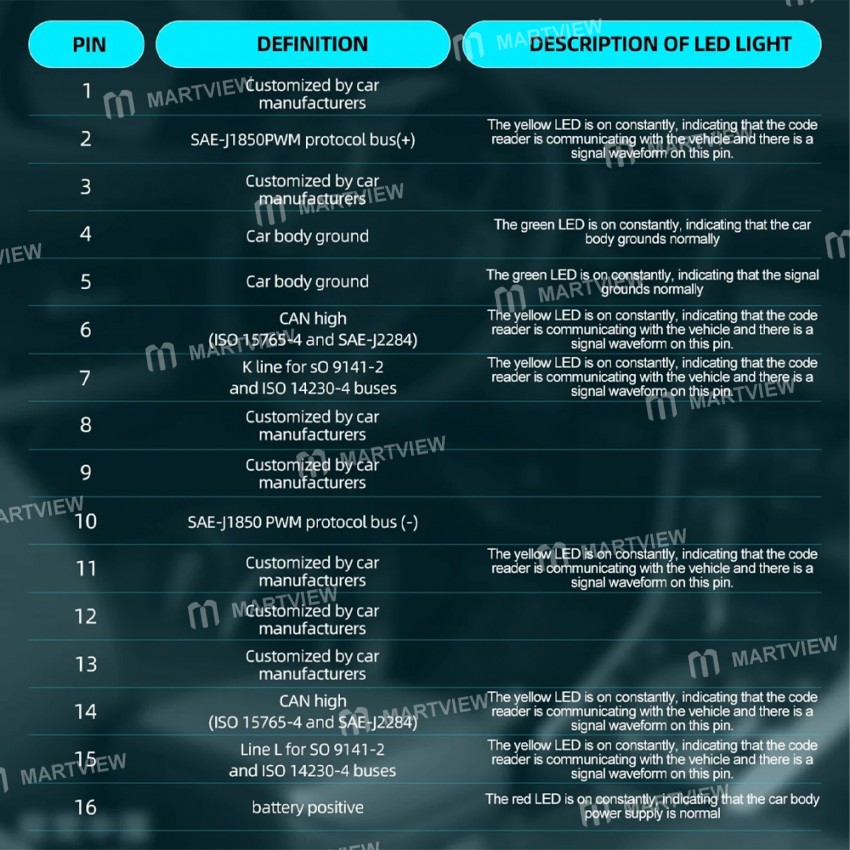

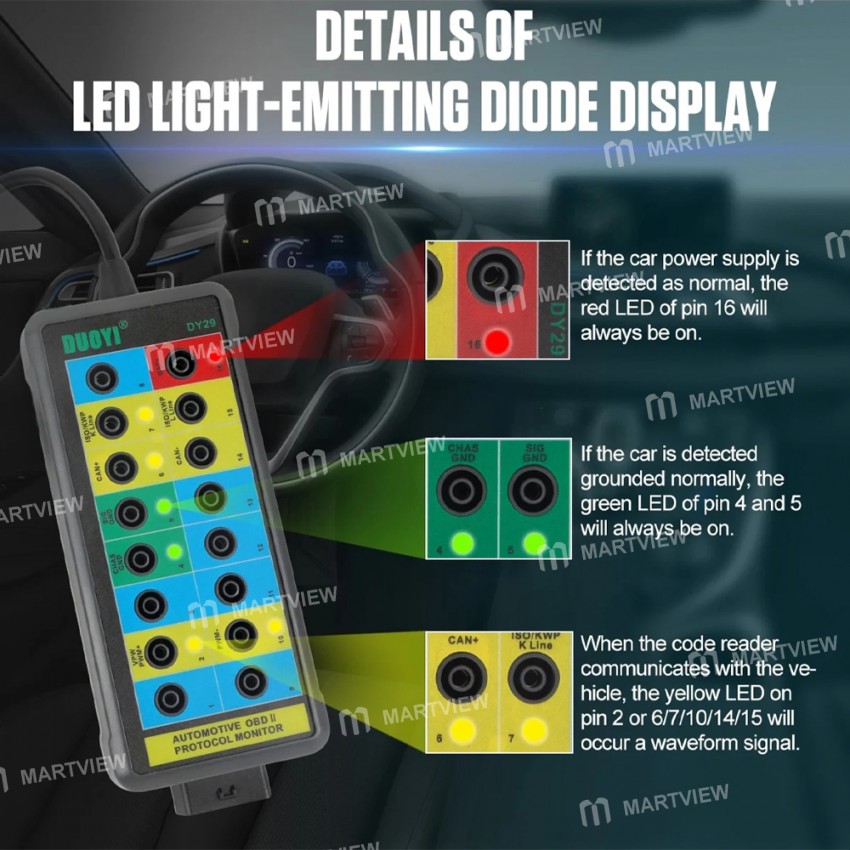

LED indications:

• Yellow LED (Pin 2/6/7/10/14/15): Light up to show communication with the scan tool and protocol identification

• Green LED (Pin 4/5): Light up to show ground is good

• Red LED (Pin16): Light up to show there is power

Package includes:

• 1 x Bus Analyzer
