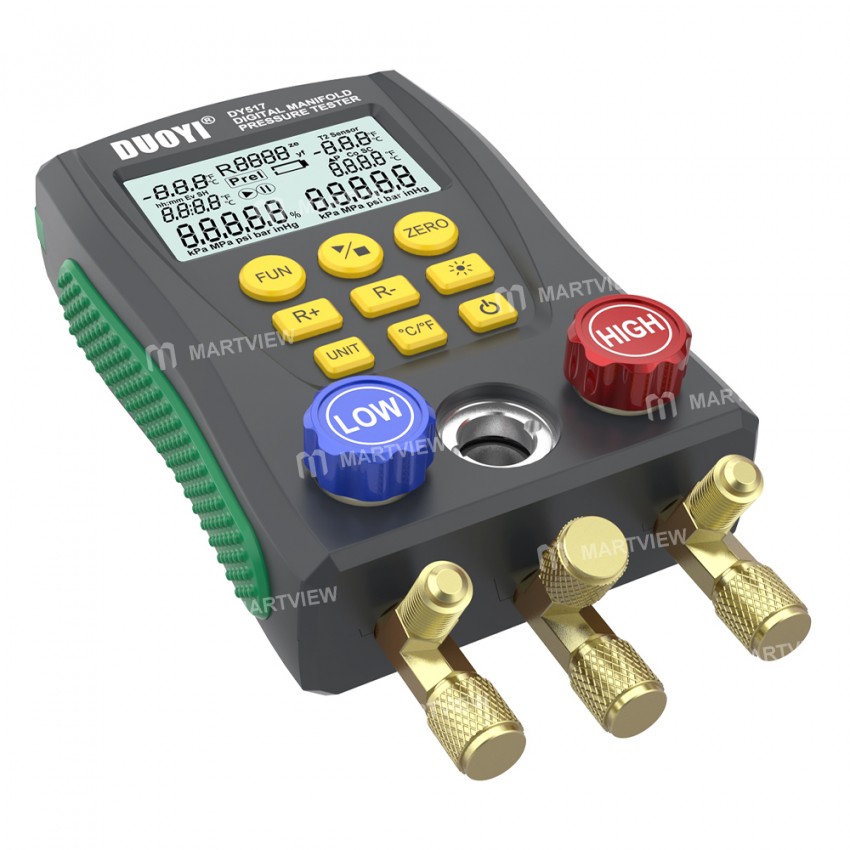

Duoyi DY517 Vacuum HVAC Digital Manifold Pressure Tester

Duoyi DY517 Vacuum HVAC Digital Manifold Pressure Tester

Features:

• The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment such as air conditioners and cold storage

• The instrument has a double pressure test, dual temperature test (need test clip, not included), digital readout, multi-unit switching, multi-mode function, and built-in refrigerant database

• The instrument uses high-strength engineering plastics and a flexible non-slip silicone design, the whole machine is solid and comfortable to hold

• Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability

• Large-size liquid crystal display, LCD backlight support, data display clear and easy to read convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility

• The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, and automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.

• Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate the direct reading of operating process data

• Also, it tests the percentage of vacuum measurement; pressure leak measurement, and leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right

• Note: DY517 does not include the test clip (needs to be purchased separately)

Safety rules and precautions:

• The pressure measured by the digital manifold pressure tester is gauge pressure

• Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar)

• The limit pressure is 10 Mpa (100 bar)

• The maximum operating pressure of the standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar )

• The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar )

• Please confirm the rated pressure value of the tested equipment before testing.

• Do not use it if it exceeds the range of the instrument

• Do not use and store the instrument in high temperature, high humidity, flammable, explosive, and strong electromagnetic fields

• Please do not change the instrument's internal circuit, to avoid any damage to the instrument or danger occurring

• Please wear qualified protective equipment to protect the user during testing

• Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases

Package includes:

• 1 x Refrigeration Digital Manifold Gauge (Battery not included)
