Eakins 37MP HD 1080P 60FPS HDMI USB Lab Digital Industrial Video Microscope Camera with LED and Stand Holder

Eakins 37MP HD 1080P 60FPS HDMI USB Lab Digital Industrial Video Microscope Camera with LED and Stand Holder

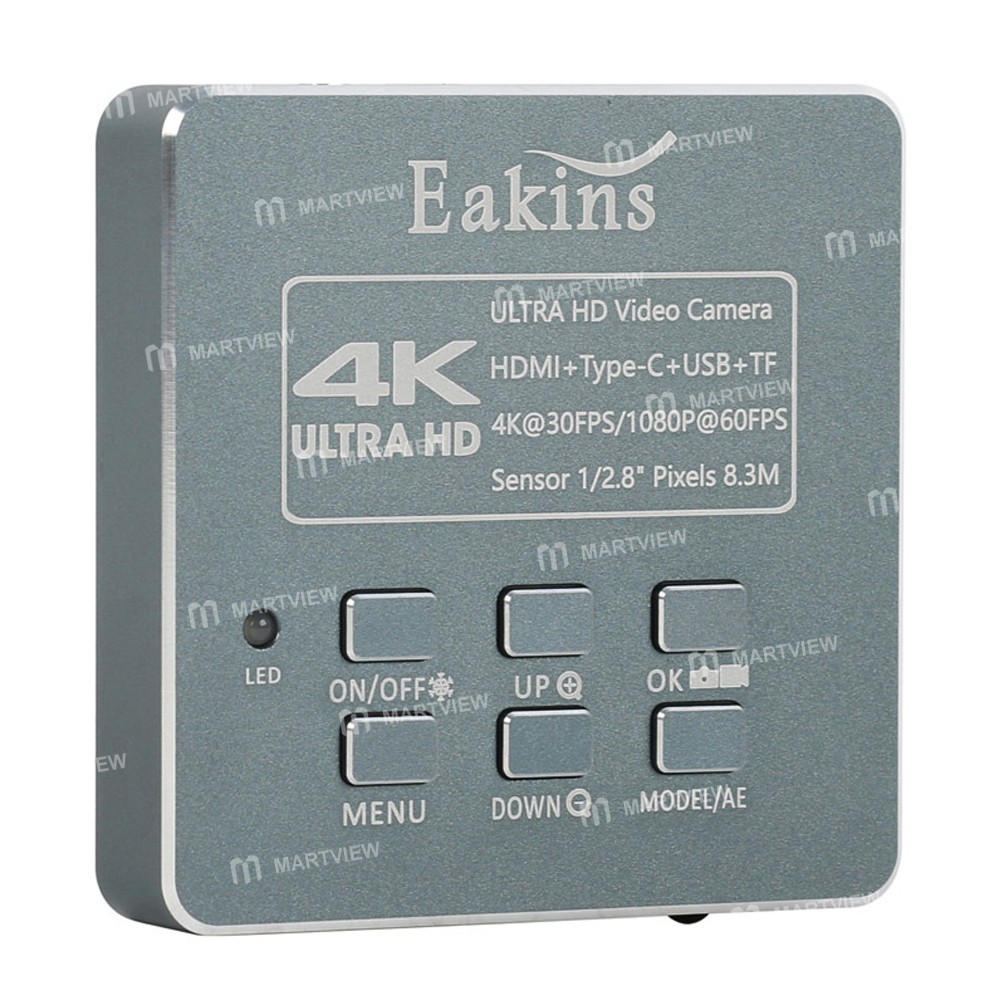

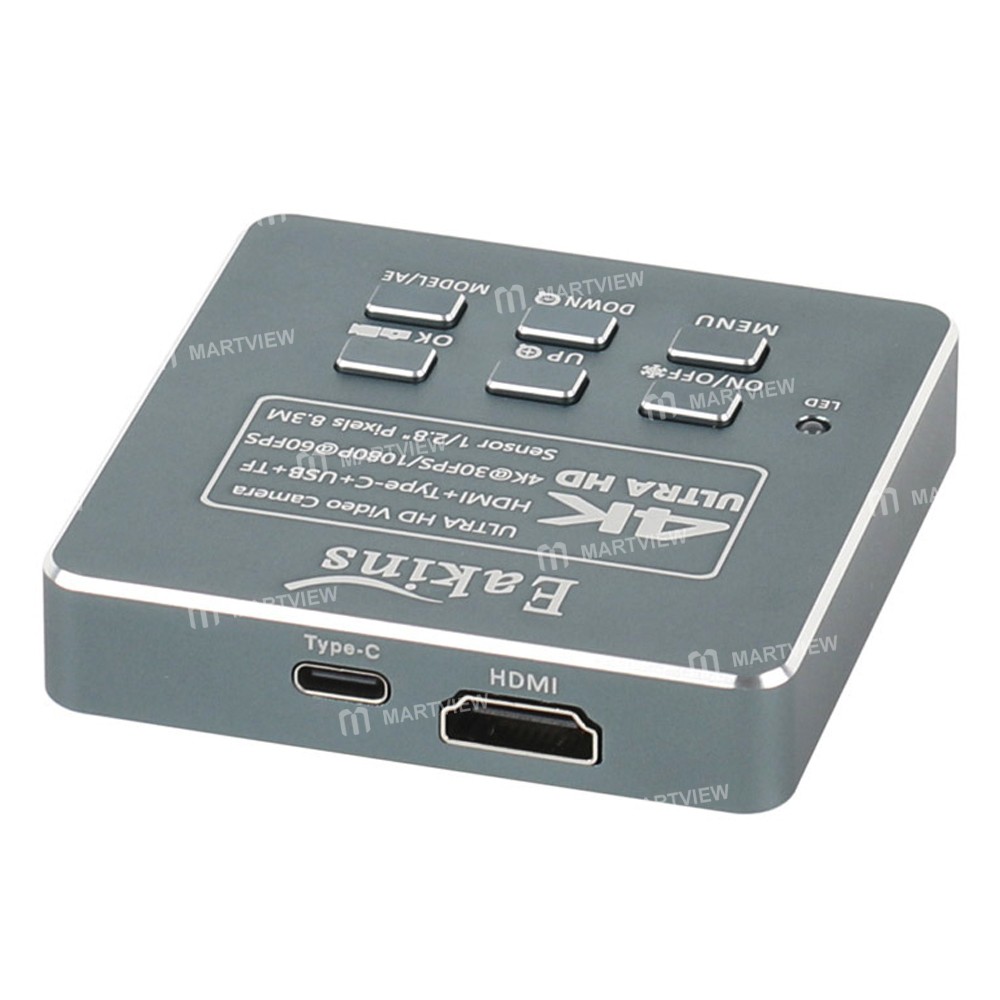

Camera Features:

• Adopts 8.29 megapixel Sony CMOS image sensor
• Adopts 1/2.8-inch image sensor
• HDMI 3840*2160 30 fps/1080P 60 fps image output
• USB2.0 driver-free output 3840*2160 30 fps image output
• 4K video recording
• 4K photo taking
• One-touch freezing/unfreezing function
• e-zoom function
• Supports manual/automatic exposure, exposure compensation value Adjustment
• Support manual/automatic white balance, red, green, blue adjustable
• Provide 16 drawing lines function, line colour, thickness, position adjustable
• Provide centre crosshair display/close
• Support TF card storage, maximum support 64GB
• Support remote control operation, take pictures without shaking image is clearer
• Support Chinese/English menu language (default English)
• Support shutdown setup parameter saving
• Sturdy metal shell

Camera Specifications:

• Sensor: 1/2.9-inch Sony 8.29MP CMOS Sensor

• Pixel Size: 1.45µm × 1.45µm

• HDMI Output: 3840*2160 30 fps/1920*1080 60 fps

• USB Output: 3840*2160/2560*1440/1920*1080/1280*720/640* 480/424*240/320*240 (MJPG)

• Lens Interface: C/CS

• Exposure: Auto/Manual

• Exposure Compensation: Support

• White Balance: Auto/Manual, support R, G, B adjustable

• Storage: Max. 64GB

• Input Voltage: DC 5V

• Scribe: Support 16 straight lines, colour, thickness and position adjustable

• Centre Line: Support

• Menu Language: English/Chinese/Traditional

• Remote Control: Support

• Net weight: 120g

• Product size: 48*48*60mm

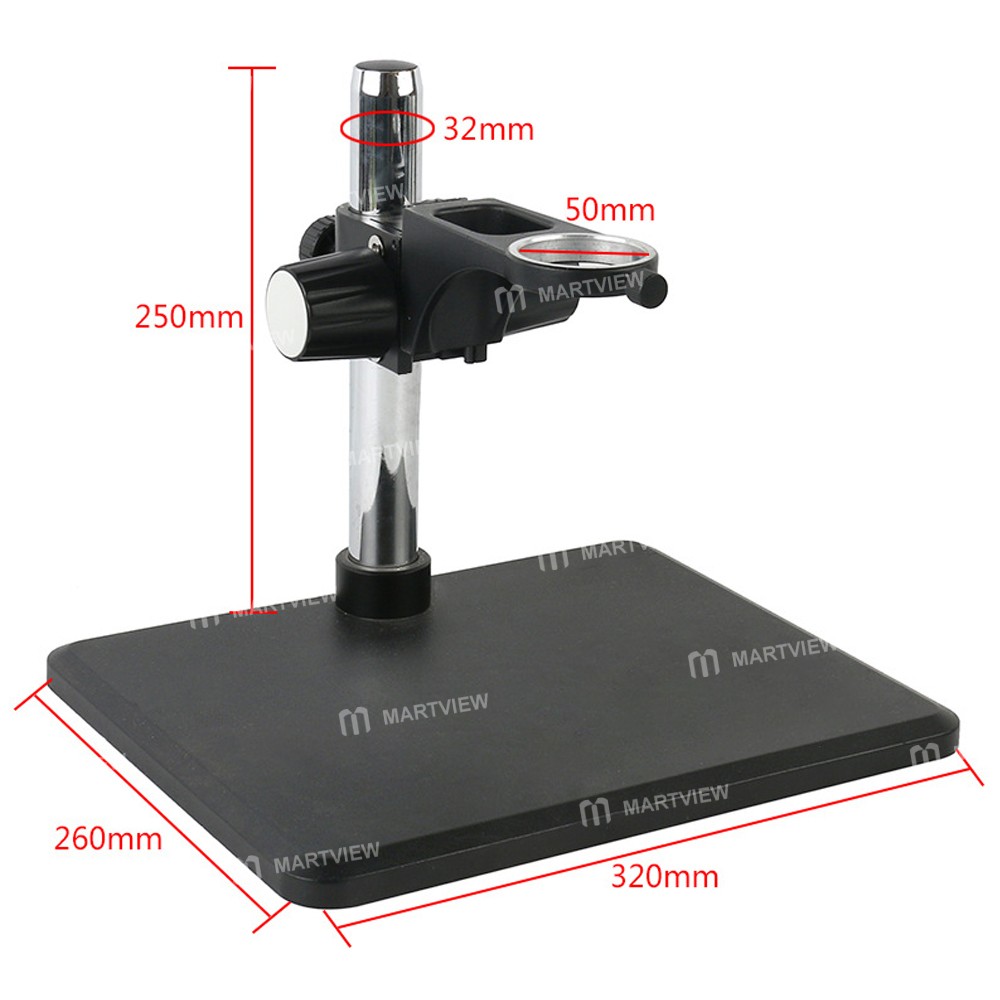

Stand Holder Feature:

• Precision Big Bottom Plate Size: 320mm x 260mm x 240mm

• Height: 240mm

• Stand Column:￠32mm

• Lens Interface Diameter: ￠50mm

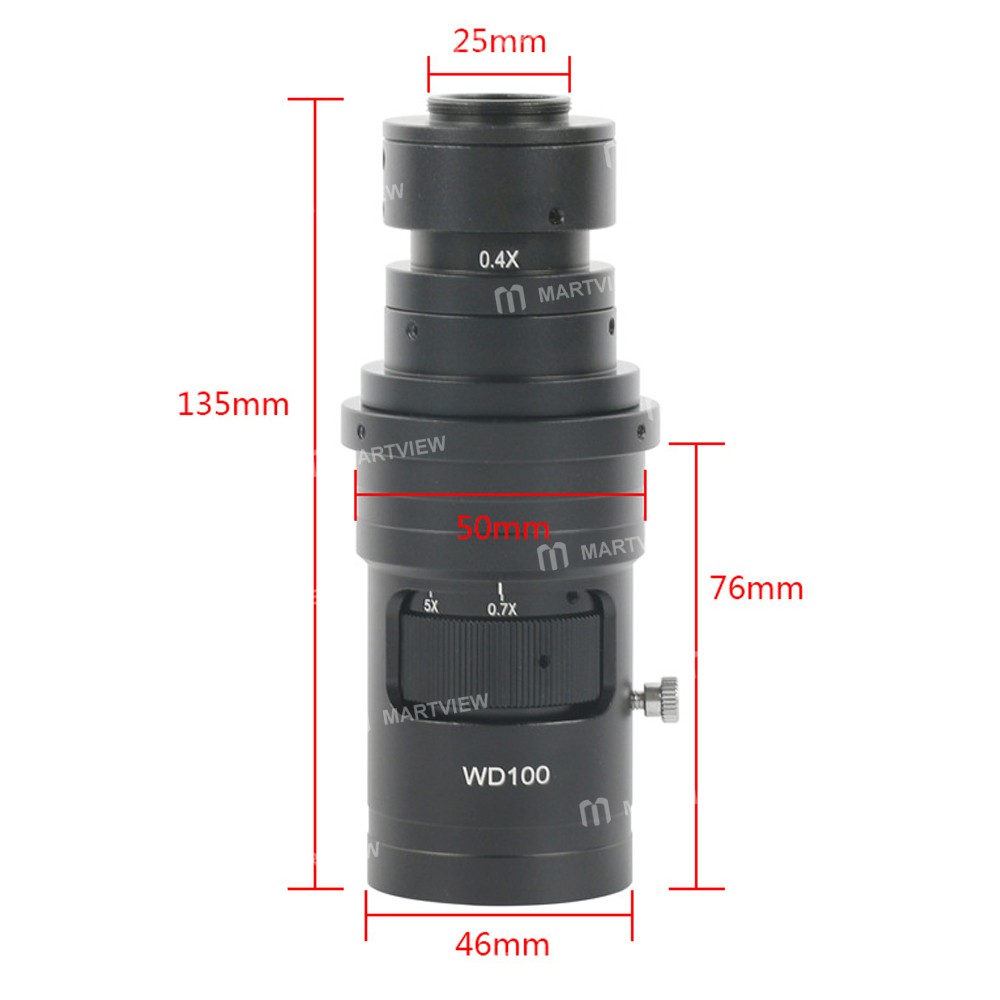

Lens Feature:

• Working distance: 100mm -170mm

• Connector: C mount

• Zoom:continouasly variable zoom

• Objective Magnification: 0.7X - 5X(about 10 - 200X on the display)

• Eyepiece lens adapter: 0.4X

• Fixed position: 50mm

• Locking: 0.7X - 5X Locking

• Auxiliary Objective Lens: 0.35X, 0.5X, 2X (optional)

• Size: 132mm(L) * 55mm(DIA)


LED Features:

• 144 bright white LED bulbs

• 100,000 hours of life

• Intense and focused shadow-free illumination

• The brightness of 0-100% Adjustable, high brightness

• Variable intensity control

• Power input: 100-240V, 50-60HZ

• Suit for the dia of the lens: 30mm-63mm

How to use:

• HDMI connection monitor or UVC link computer, plug-in 12V power supply
• Lightly press the switch key, when the LED light changes from red light to blue light,
• the camera is running, waiting for the display to show
• Tap the main function key to bring up the setup menu.
• Tap the left button or right button to jump to the recording function, tap the right
• button again to start recording, and tap the left button again to browse the stored picture.
• Tap the white balance button to adjust the white balance automatically with one button.
• Tap the zoom button to enlarge the image on the screen.
• Tap the zoom out button to reduce the image in the picture.
• When the camera is running, press the freeze button to freeze the screen.
• Press and hold the key to turn the camera off


Package includes:

• 1 x Microscope Camera
• 1 x Power supply
• 1 x USB cable
• 1 x HDMI cable
• 1 x Remote control
• 1 x Big Stand
• 1 x 144 LED Ring Light
• 1 x 200X Zoom C-mount Lens
• 1 x Work mat
