Easy Jtag EMMC UFS ISP Kit for Encryption Chip Modification

Easy Jtag EMMC UFS ISP Kit for Encryption Chip Modification

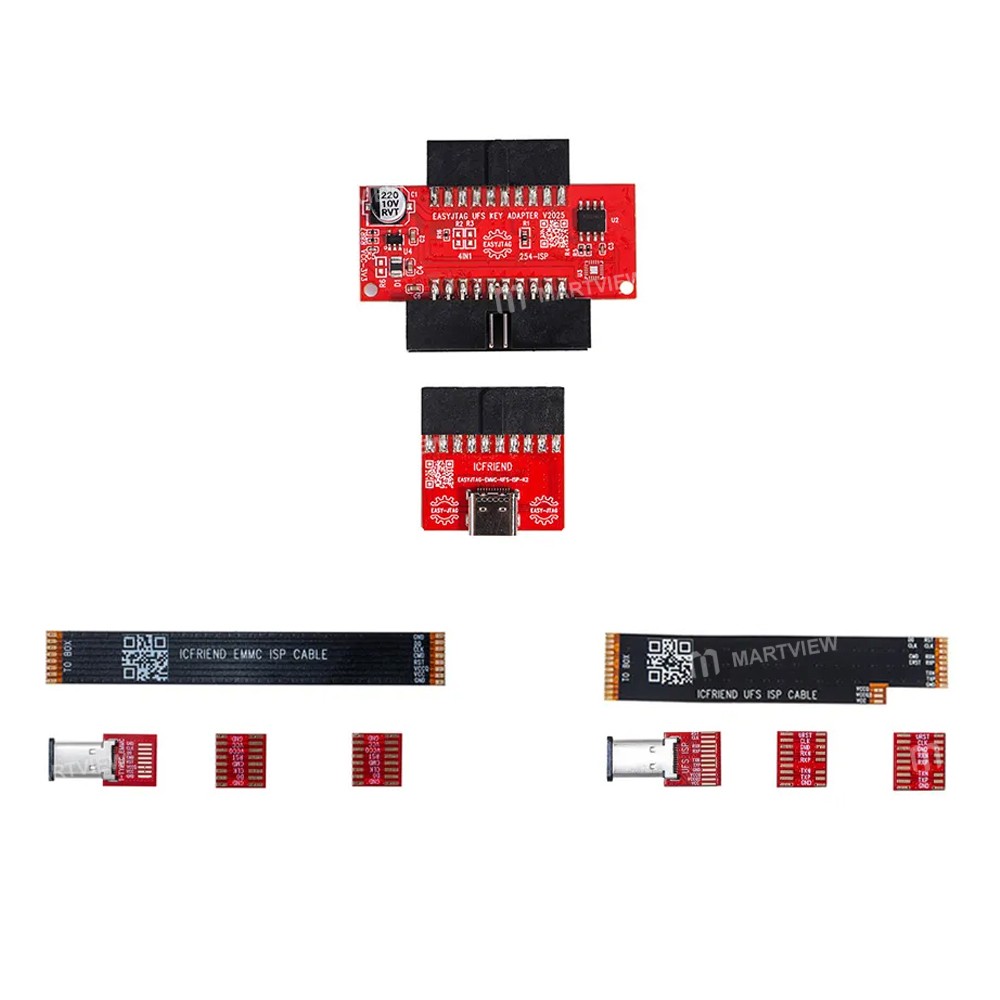

This product is available in two versions, which will be dispatched at random upon shipment!!!

Features:

• Support EASY JTAG 2-in-1 /3-in-1 /4-in-1 / 6-in-1 Encryption chip modification

• Recommended to use a regulated power supply power supply without USB. press and hold the on button, the current 100~200mA, UFS power up successfully

• Using USB power supply and battery device manager need to appear CPU port. If not, UFS power-up is unsuccessful and can not be online

• UFS2.0, 2.1, 2.2 use VCC-3.3 V, VCCQ2-1.8V; UFS3.0, 3.1, 4.0 TX RX CLK RST GND all access to the flywire. Like the seat can no longer use USB and power supply, only the host power supply.

• GND TX RX signal can not exceed 15mm, GND junction point as close as possible to TX RX to keep equal length, some CPU need RST signal wiring

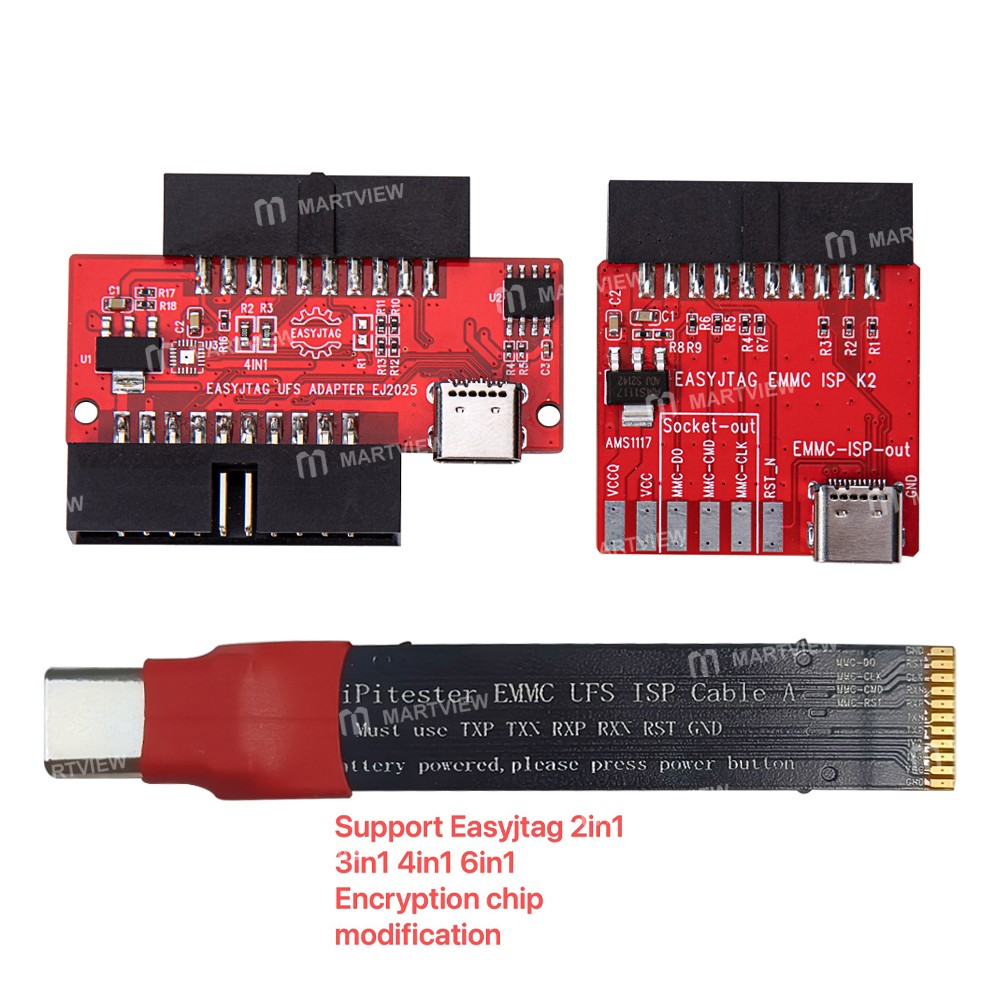

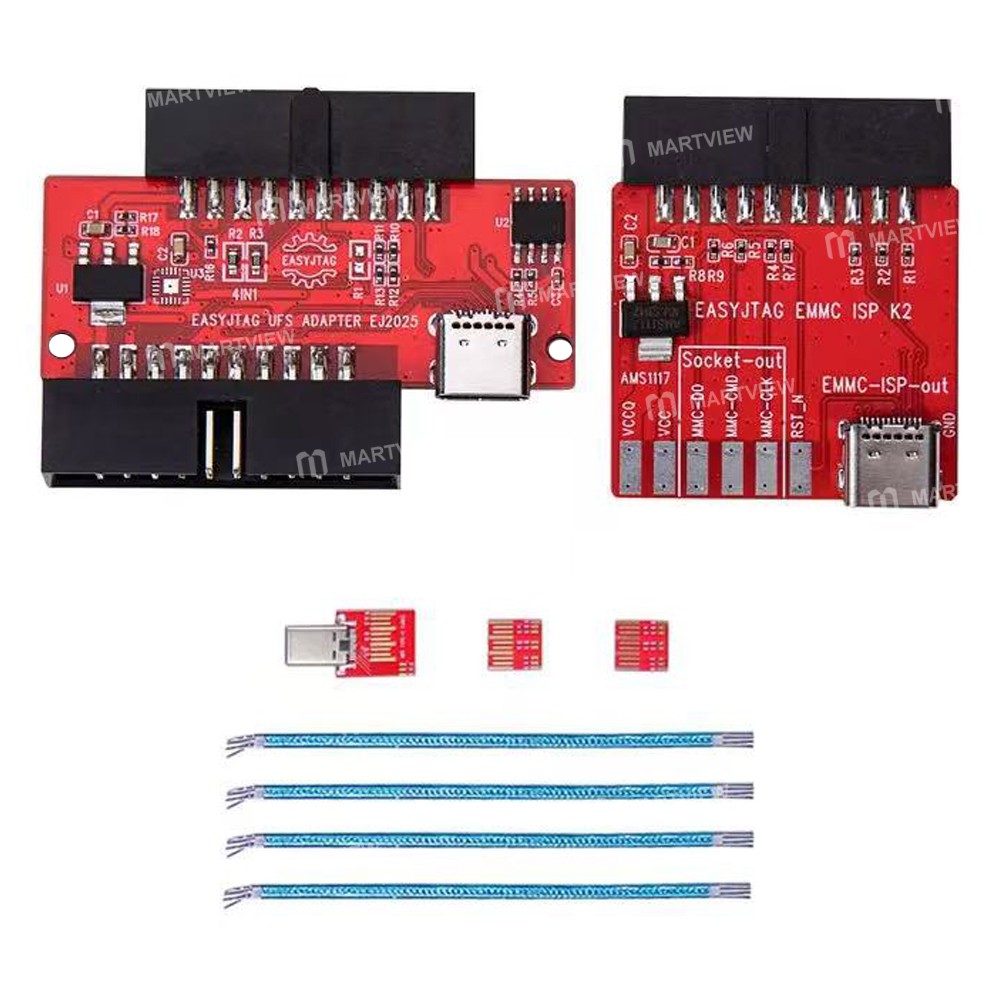

Package includes:

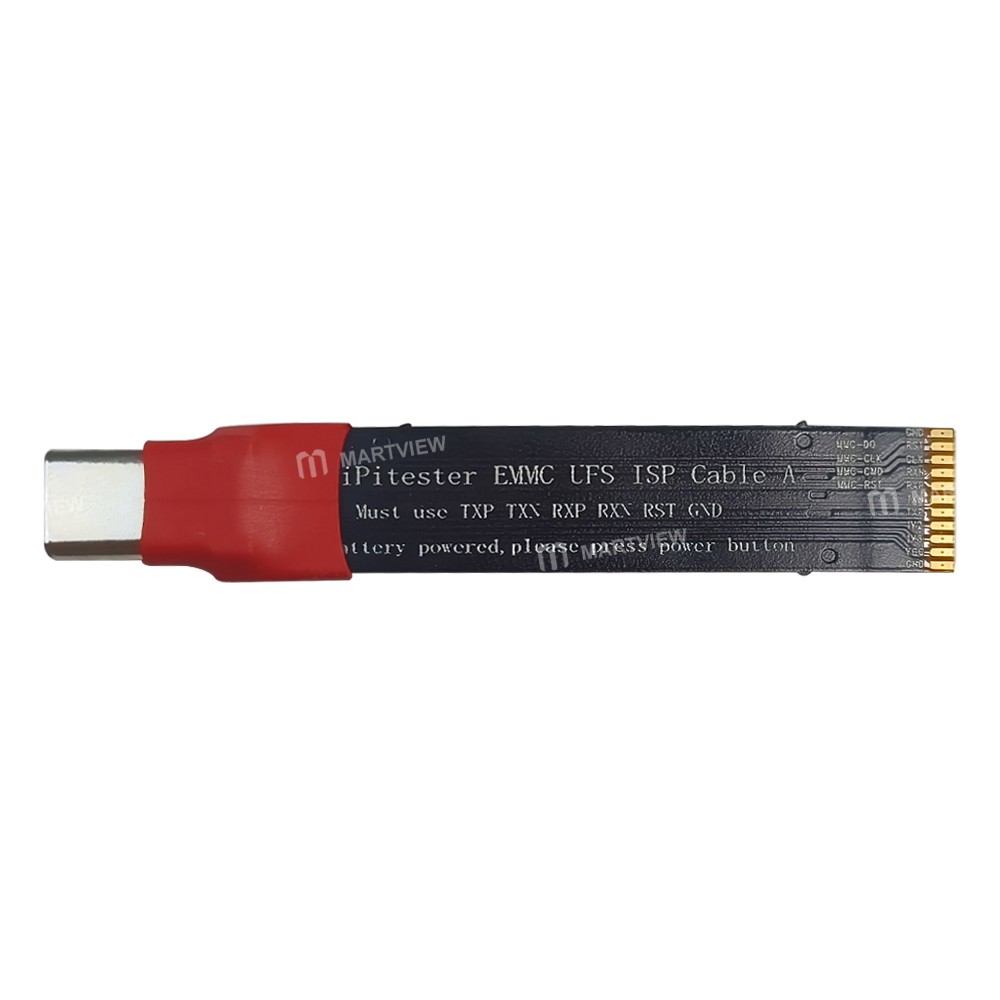

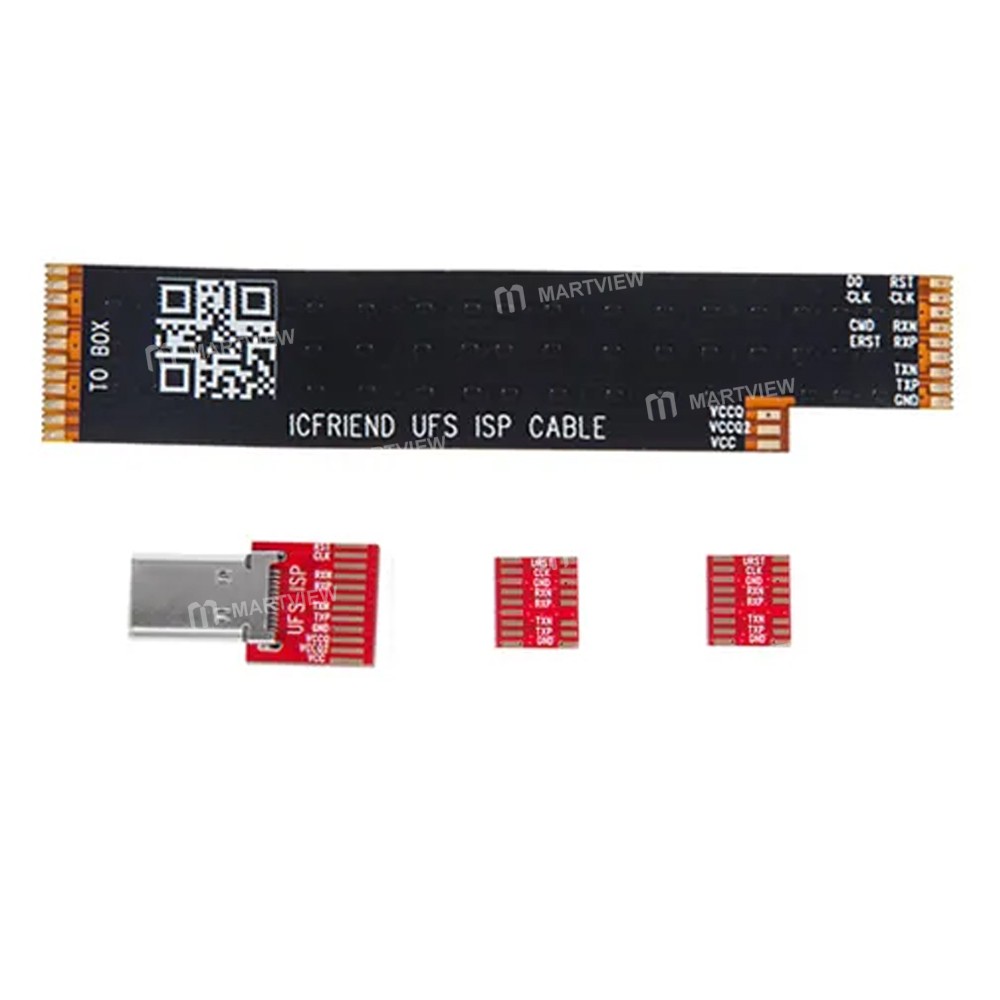

• 1 x EMMC UFS ISP Cable

• 1 x EJ2025 Adapter

• 1 x EMMC ISP K2 Adapter
