EDP to HDMI Adapter Board Support 4K / 2K / 1080P Resolution with 2Lanes / 4Lanes Program

EDP to HDMI Adapter Board Support 4K/2K/1080P Resolution with 2Lanes / 4Lanes Program

Features:

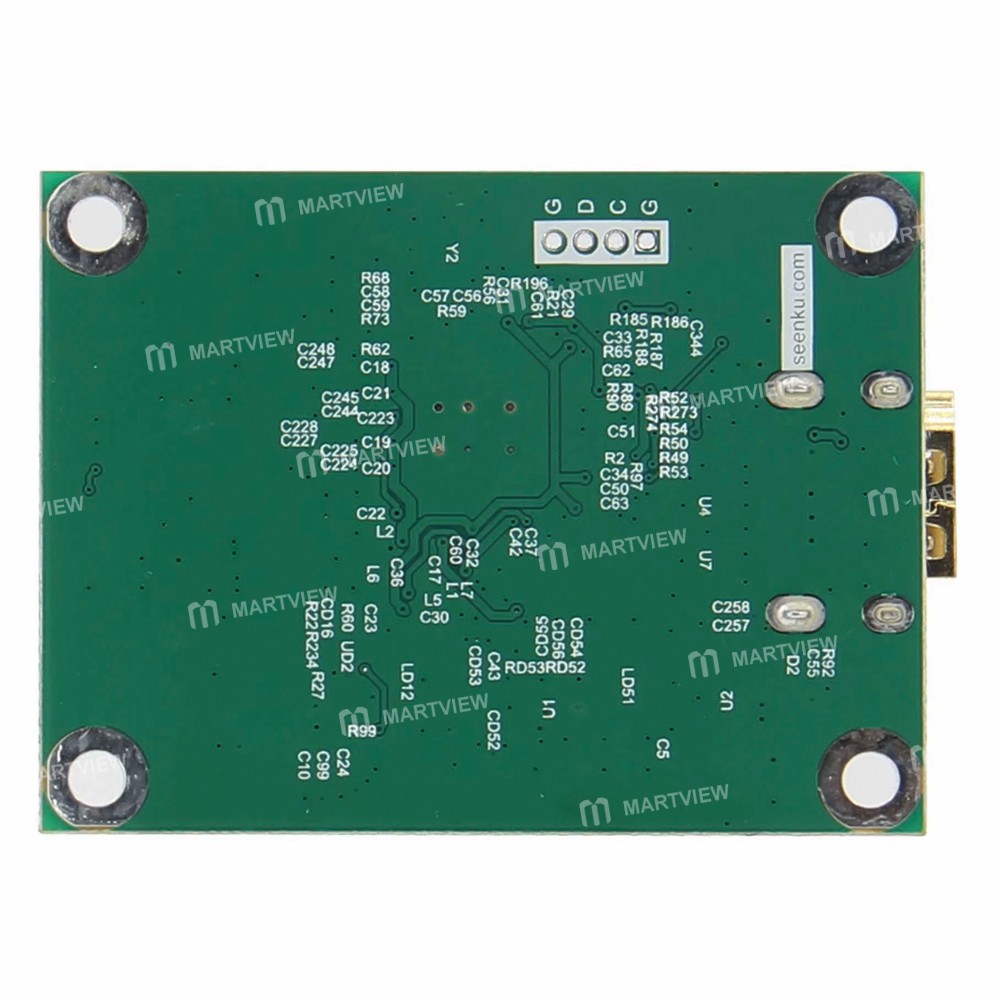

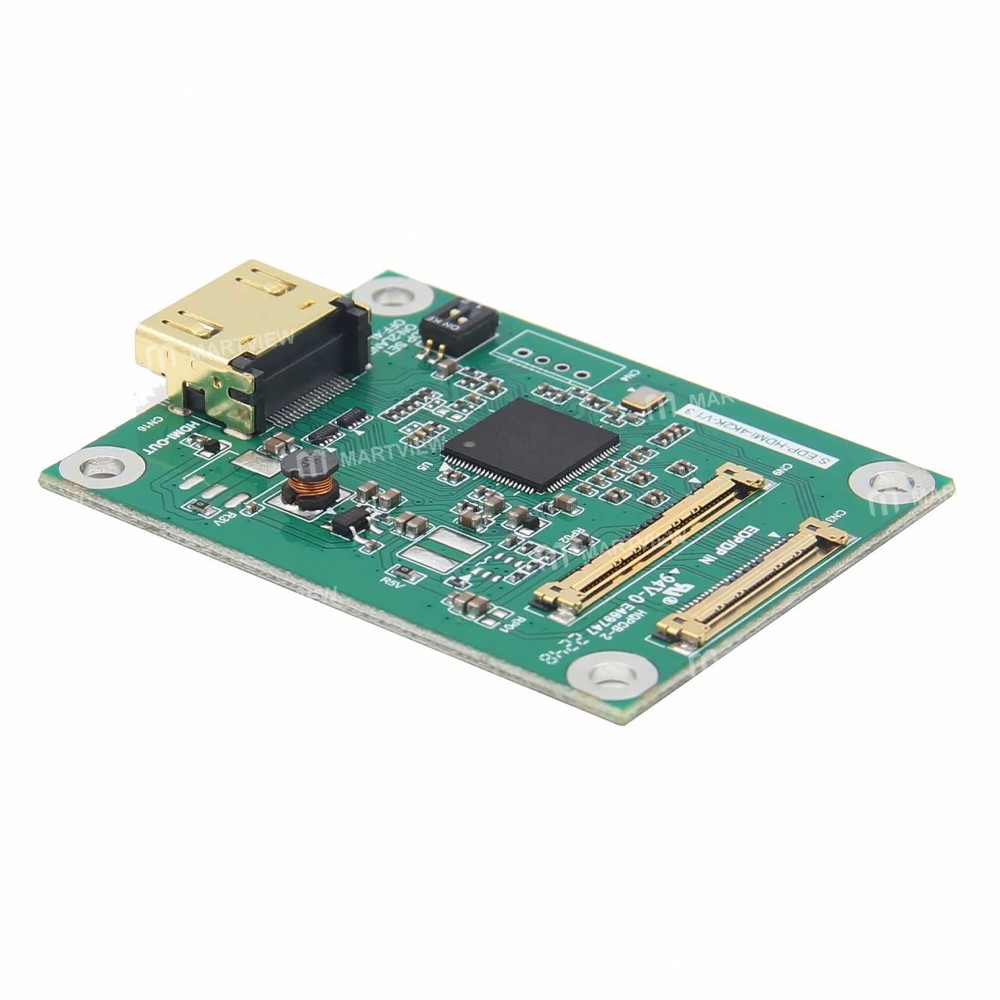

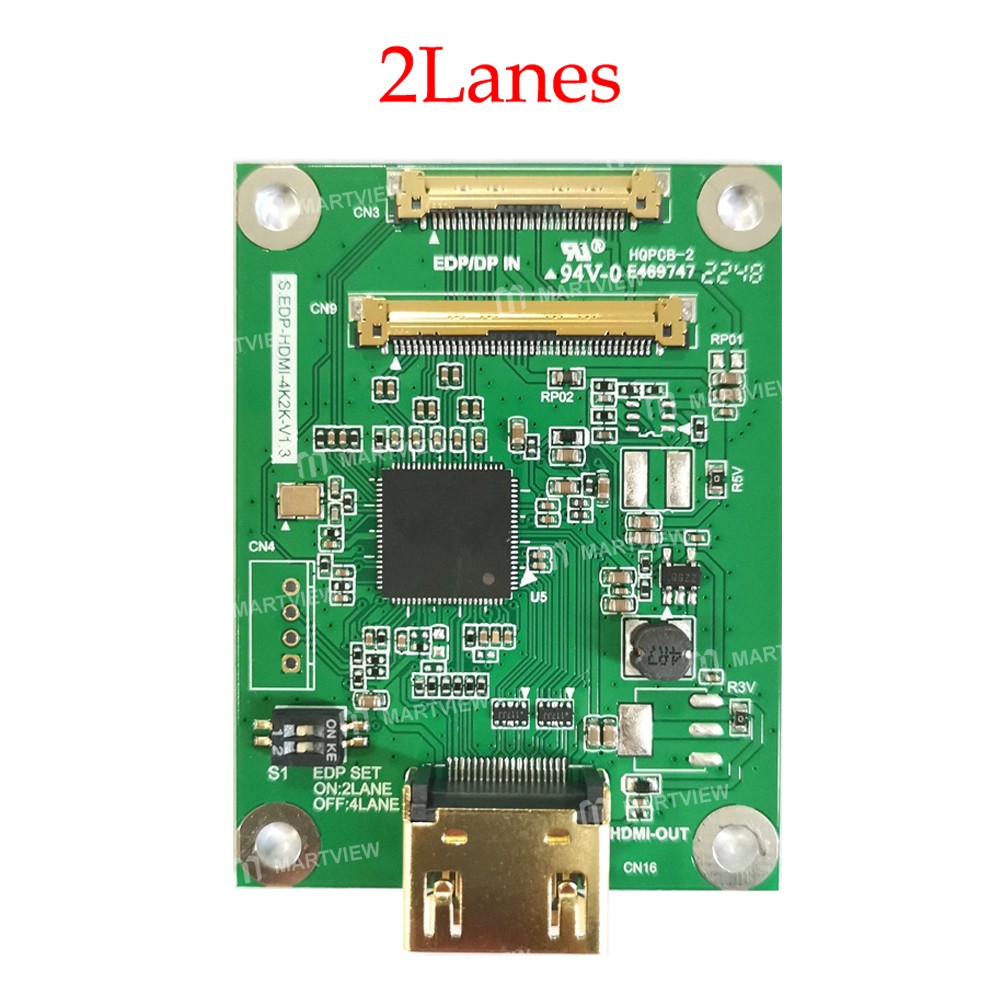

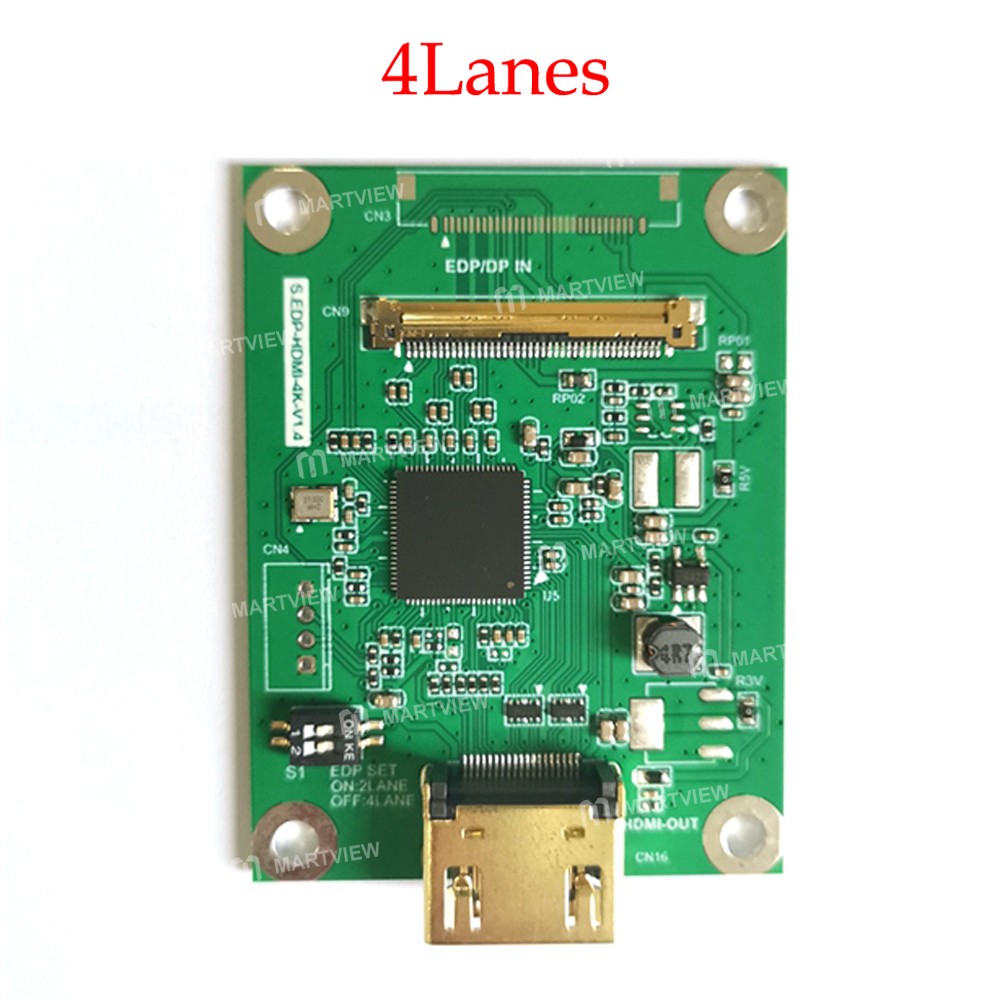

• EDP to HDMI adapter board, HDMI output resolution is to follow the EDP signal output from the motherboard, the adapter board is divided into two programs, one is the program of 2LANE, adapter board HDMI output support 4K@30HZ below the common resolution, one is the program of 4LANE, adapter board output HDMI support 4K@30HZ/4K@60HZ resolution

• S.EDP-HDMI-4K2K. V1.2 is a signal adapter board, which is mainly used to convert EDP signal into HDMI signal, the resolution of this adapter supports up to 4K@60HZ resolution

• The adapter can be used in set-top boxes, advertising machines, conference systems, and other fields

• The power supply mode of the adapter board is powered by the drive voltage of the EDP interface

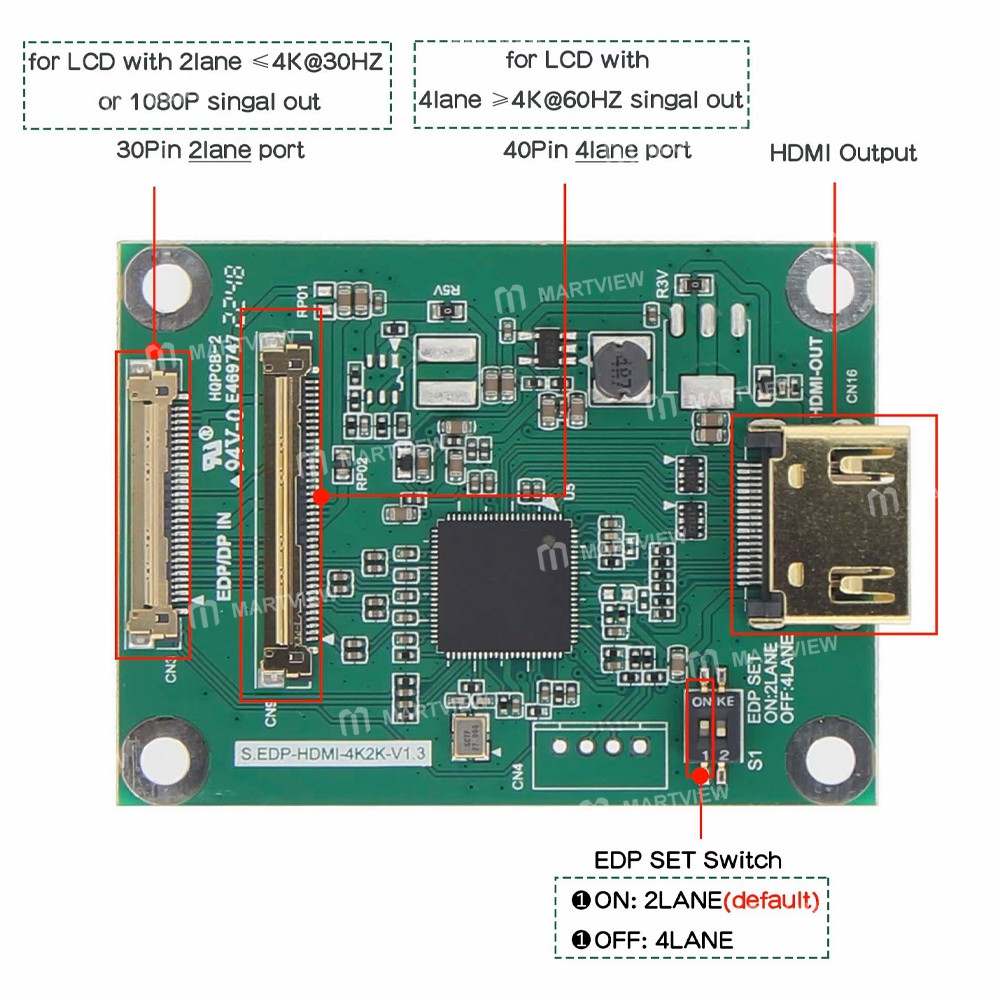

• By default, the adapter board needs the EDP drive voltage to supply 5V-12V

• The adapter board also supports a 3.3V drive voltage power supply when changing the hardware

Specification:
EPD/DP RX:

• Compliant with VESA EDP/DP1.2

• Support 1.62/2.7/5.4Gbps

• Support 1/2/4 lanes （Default with 2 lanes program）

• Support SSC

• 1Mbps AUX channel

• Compliant with HDCP1.3

HDMI TX:

• Compliant with HDMI2.0, HDMI1.4 and DVI1.0

• Compliant with HDCP2.2 and HDCP1.4

• IData rate up to 6Gbps

• Support UHD 4k@60Hz(RGB and YCbCr 4:4:4)

• Support TMDS scrambling for EMI/RFI reduction

• Support SCDC(Status and Control Data Channel)

• Relative humidity: ≤ 80%

• Storage temperature: -20~60°C

• Operation temperature: -20~60°C

Package includes:

• 1 x Adapter Board
