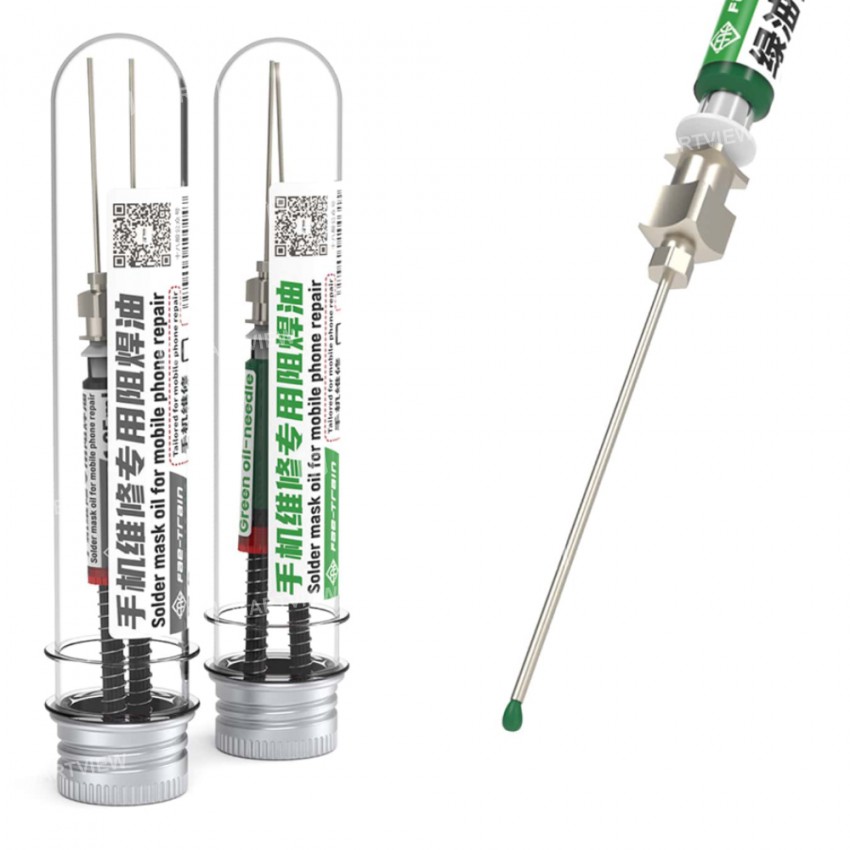

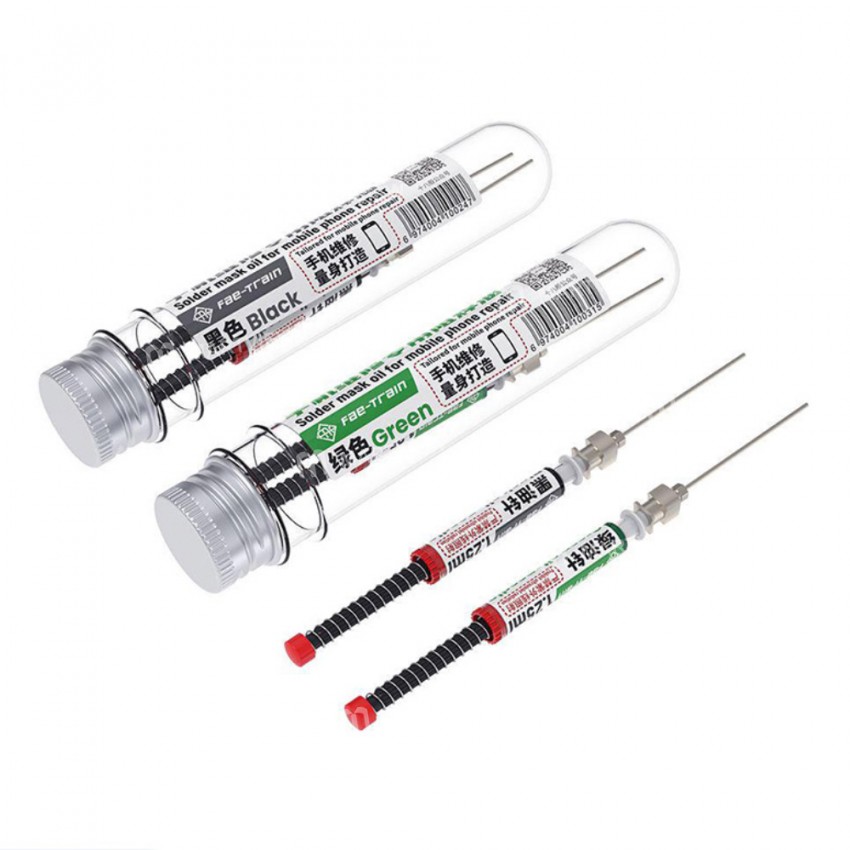

Fae-Train Solder Mask Oil for Mobile Phone PCB Mainboard Repair

Fae-Train Solder Mask Oil for Mobile Phone PCB Mainboard Repair

Features:

• Substrate treatment: Acid treatment, brush washing, drying.

• Screen printing: use the screen version of 36T ~ 51T.

• Pre-bake: temperature is 75±2°C, time is 40~50mins, hot air circulation is dry.

• Exposure: 300-500mj/cm2.

• Imaging: imaging solution: 0.9-1.1%, sodium carbonate, temperature: 28-30 ° C, spray pressure: 1.5-3.0 kg/cm2.

• Post-baking: temperature is 150 ° C, time is 60 mins, hot air circulation curing.

• Due to the special nature of the material, the solder mask oil will not dry naturally. UV curing is required.

• The indoor temperature should be controlled at 20-28 deg C, and the humidity RH30-60% is the best working environment.

• To wipe the wrong substrate, it is recommended to use industrial alcohol or industrial cleaner.

Precautions:

• Use only with adequate ventilation.

• The product contains an organic solvent. Avoid repeated contact with skin. If the product gets on your skin, wipe it off with alcohol and rinse thoroughly with water.

• In order to be cautious, in the operation, the smoke released by the solvent during operation should be avoided as much as possible, and the skin and mucous membrane tissues should not be contacted for too long. Avoid repeated breathing of vapor.

• Avoid contacting with eyes.

• Keep away from children.

Package includes:

• 1 x Solder Mask Oil (2pcs in one tube)

Noted:
Due to FedEx DHL can not send out the parcel comes with Liquid, so we just can send out it by Singapore Post - Standard Mail or Registered Mail. If your order has other products, we will take out this to send by Singapore Post - Standard Mail or Registered Mail, and other products will send out by the courier which you choose. Thanks for understanding.
