FHD 1080P SONY IMX290 Industry Autofocus Measuring Video Microscope Camera with C-Mount Light Big Holder

FHD 1080P SONY IMX290 Industry Autofocus Measuring Video Microscope Camera with C-Mount Light Big Holder

Feature:

• 1080P FULL HD 60FPS high-speed camera

• Autofocus, when observation Objects of different heights(MAX 10CM), you do not need to adjust the lens's Working distance

• When you adjust the lens's Magnification, you do not need to adjust the lens's Working distance

• When you adjust the lens's Working distance(MAX 10CM), you do not need to adjust the lens's Magnification, The camera can Autofocus

Specification:
Sensor: SONY IMX290

• Image Sensor: Colour CMOS

• Pixel size: 1/2.8〞

• Menu: Fully digital UI design

• Method of Operation: Mouse

• Lens interface : C/CS-type

• Power DC: DC5V

• Output method: HDMI

• White Balance : Auto / Manual / One-push control

• Exposure: Auto / Manual

• Display Frame rate: 1080P@60fps

• Scanning method: Line by line scanning

• Shutter Speed: 1/50s(1/60s)～1/10000s

• Operating Temperature: 0℃～50℃

• Magnification / Zoom : Support

• Saving function: Support  U disk(optional)


130X Feature:

• Zoom ratio: 15: 1

• Magnification Power by :1X~120X

• Material vision: 2.4mm-36mm

• Working distance: 55mm-570mm

• Lens length: 110mm

• Interface size: ¢ 28mm


160X 320X Feature:

• 120X Working distance:210mm -1000mm

• 160X Working distance:105mm -210mm

• Connector:CS C mount

• Zoom:continouasly variable zoom

• Objective Magnification:0.7X - 5X(about 4 - 120X on the display)/(about 10 - 160X on the display)

• Eyepiece lens adapter:0.4X

• Fixed position:50mm

• Locking:0.7X - 5X Locking

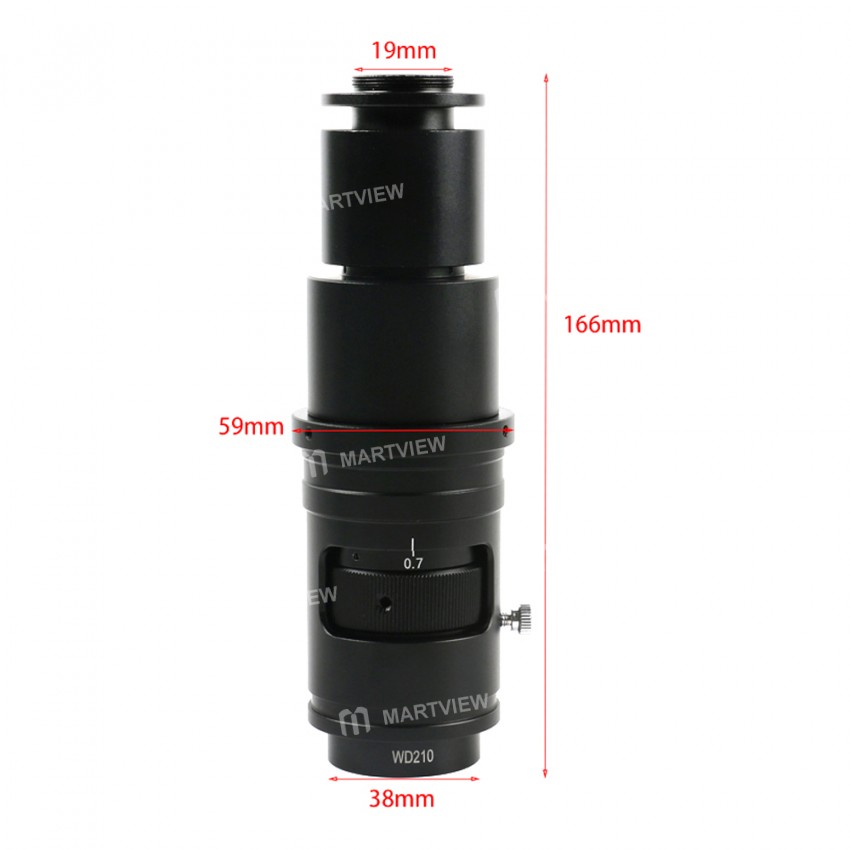

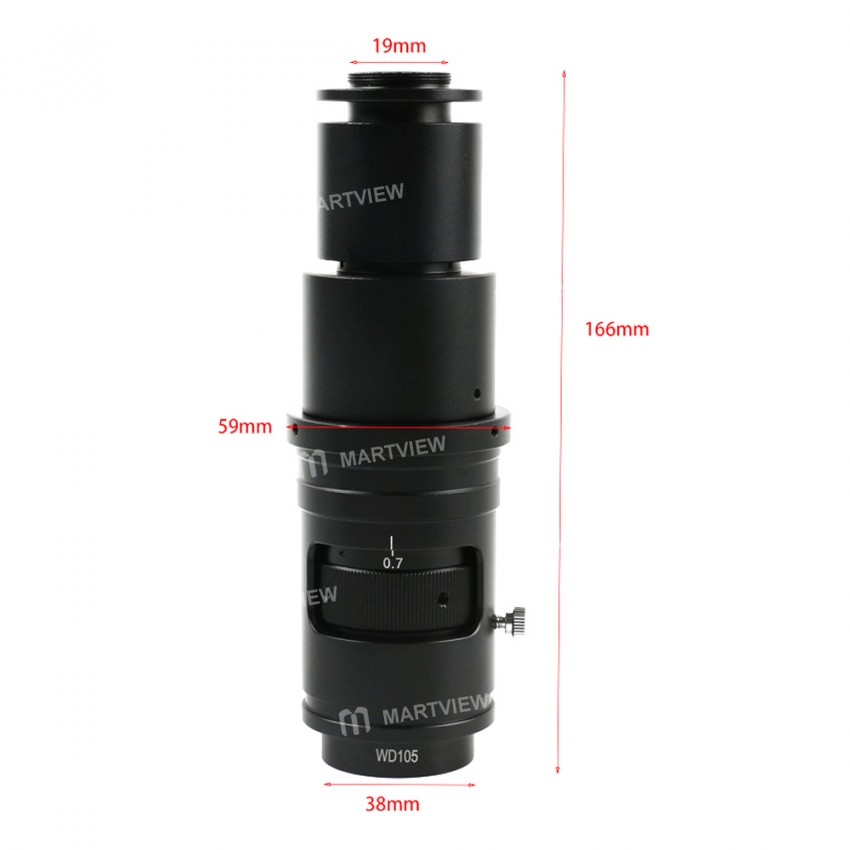

• Size:166mm(L) * 59mm(DIA)


Package includes:
1 x Microscope Camera
1 x Power supply
1 x HDMI Cable
1 x 160X C mount
1 x 320X C mount
1 x 130X C mount
1 x Light
1 x Big Holder
