Product details

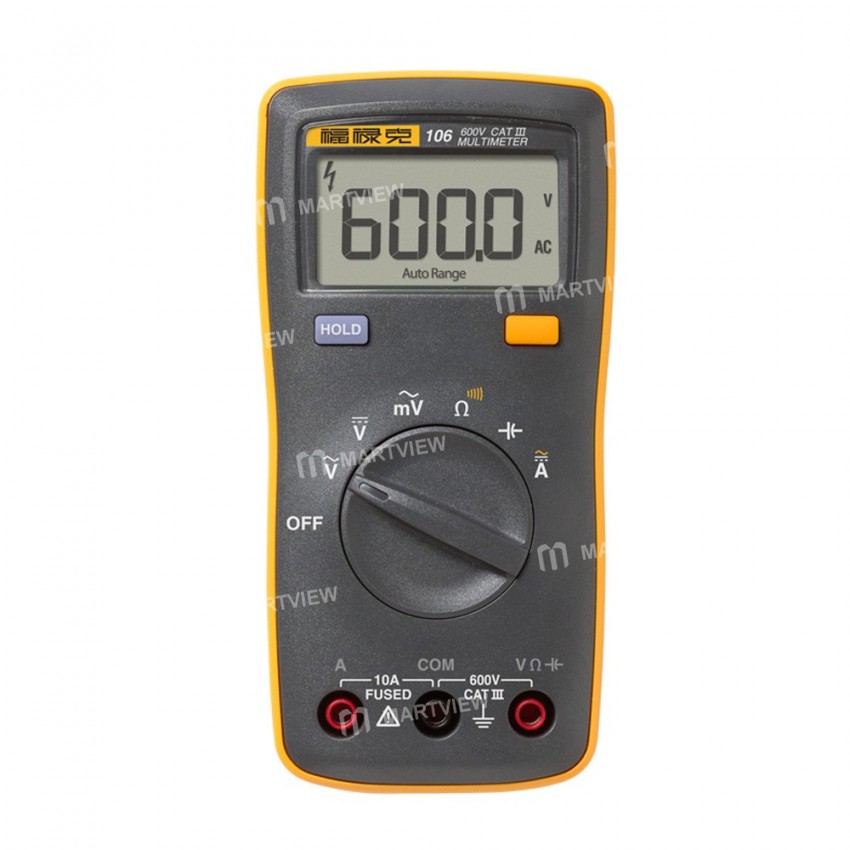

Fluke 106 Palm-sized Portable Digital Mini Multimeter

Key Features

Compact design: Fits in the palm of your hand and travels with you to any job site.
Measurement functions: AC/DC voltage, resistance, continuity, capacitance, and AC/DC current up to 10 A.
Backlit LCD display with data‑hold capability.
Accuracy: Guaranteed for 1 year after calibration (operating at 18 °C‑28 °C, 0 %‑75 % RH). Accuracy is expressed as ±([% of reading] + [Number of least‑significant digits]).

Accuracy Specifications
Function		Range	Resolution	Accuracy
AC Volts¹		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC Volts		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
AC Millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode Test²		2.000 V	0.001 V	10 %
Resistance (Ohms)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3
Capacitance³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	N/A
Duty Cycle⁴		1 % to 99 %	0.1 %	N/A
AC Current (40 Hz to 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC, Hz, and duty‑cycle specifications are valid from 1 % to 100 % of range; inputs below 1 % are not specified. Typical open‑circuit test voltage is 2.0 V; short‑circuit current is <0.6 mA. Capacitance specifications exclude errors from test‑lead capacitance and floor (up to 1.5 nF in the 50 nF range). All AC, Hz, and duty‑cycle are specified from 1 % to 100 % of range; inputs below 1 % are not specified.
Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	600 V¹	>10 MΩ <100 pF²	>60 dB at DC, 50 Hz or 60 Hz	—
AC Millivolts	600 mV	>1 MΩ, <100 pF	>80 dB at 50 Hz or 60 Hz	—
DC Volts	600 V¹	>10 MΩ <100 pF	>100 dB at DC, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
6 × 10⁵ V Hz Max. For AC mV, input impedance is approximately 1 MΩ.
General Specifications
Maximum Voltage Between any Terminal and Earth Ground	600 V
Display (LCD)	6000 counts, updates 3 times/sec
Battery Type	2 × AAA, NEDA 24A, IEC LR03
Battery Life	≥ 200 hours
Temperature
Operating	0 °C to 40 °C
Storage	‑30 °C to 60 °C
Relative Humidity
Operating Humidity	Non‑condensing when <10 °C; ≤ 90 % at 10 °C – 30 °C; ≤ 75 % at 30 °C – 40 °C
Operating Humidity, 40 MΩ Range	≤ 80 % at 10 °C – 30 °C; ≤ 70 % at 30 °C – 40 °C
Altitude
Operating	≤ 2000 m
Storage	≤ 12 000 m
Temperature Coefficient	0.1 × (specified accuracy) / °C (outside 18 °C – 28 °C)
Fuse Protection for Current Inputs	11 A, 1000 V Fast Fuse (Fluke‑specified part only)
Size (HxWxL)	142 mm × 69 mm × 28 mm
Weight	≈ 200 g
IP Rating	IEC 60529: IP 40
Safety	IEC 61010‑1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment	IEC 61326‑1: Portable
Electromagnetic Compatibility	Class A (Industrial Broadcasting & Communication) – Korea only¹
This product meets requirements for industrial (Class A) electromagnetic‑wave equipment and is intended for business environments only; not for residential use.
