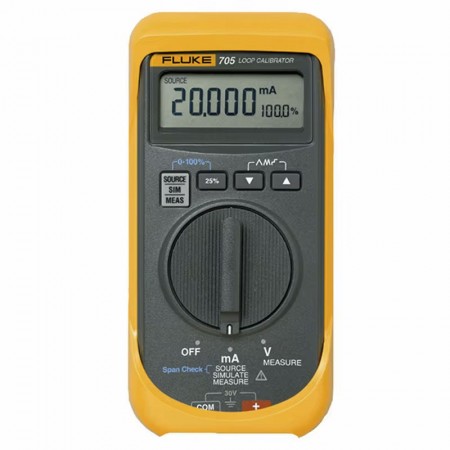

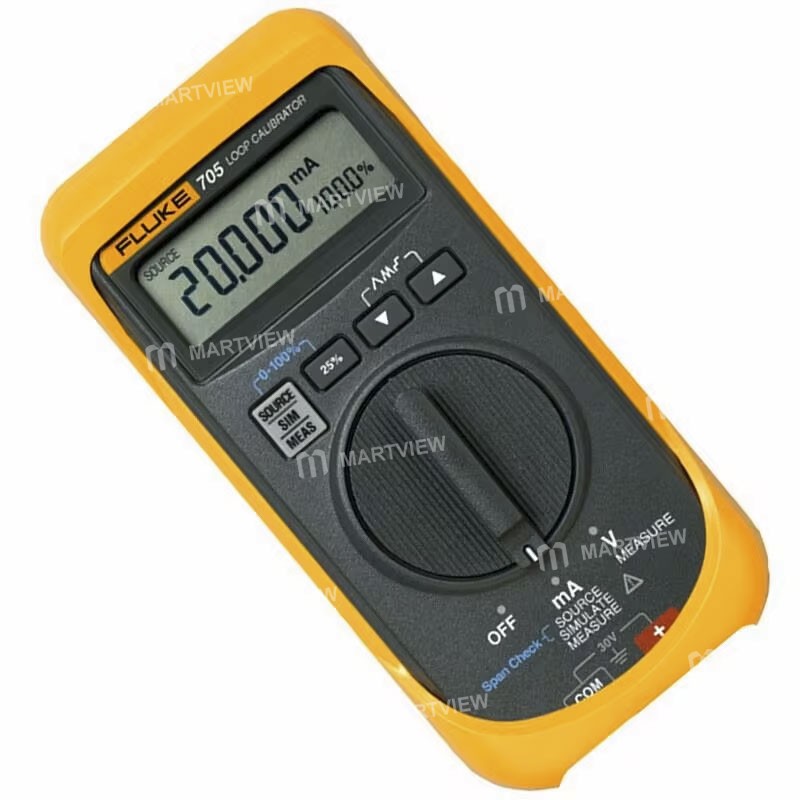

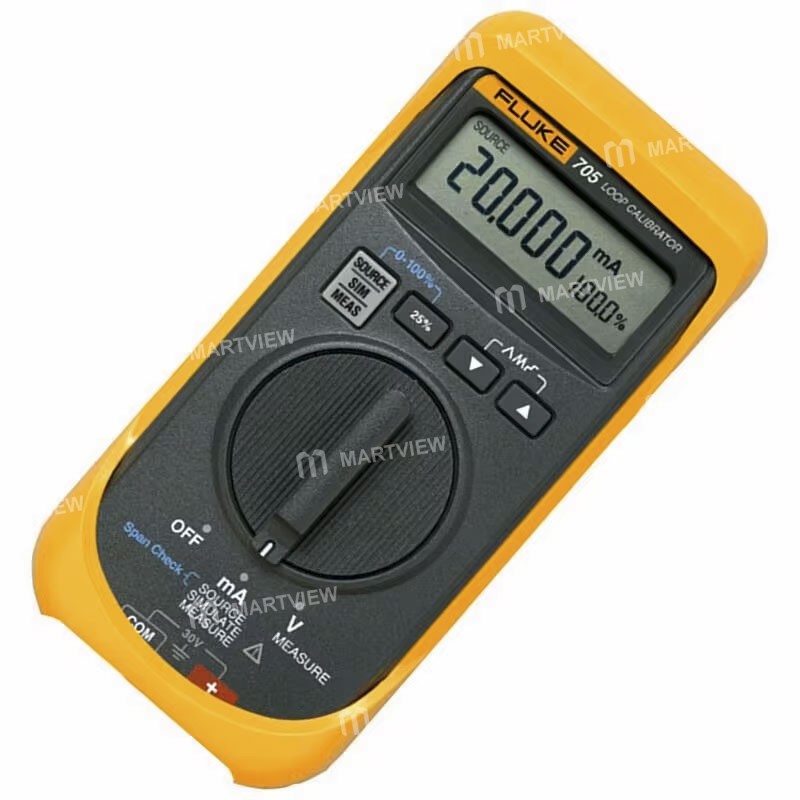

Fluke 705 Loop Process Calibrator for mA Sourcing Simulation and Measurement

Fluke 705 Loop Process Calibrator for mA Sourcing Simulation and Measurement

Features：

• mA sourcing, simulation, and measurement

• 0.02% accuracy and 0.001 mA resolution

• Simultaneous mA and % of span display

• Selectable step or ramp outputs

• 24 V Loop supply with mA measure

• DC 0-28V measurement to check Loop Voltage

• Easy battery exchange without opening the case

• Compact case with separate protective holster

Specification:

• Range: 0V to 28V

• Resolution: 1mV

• Accuracy: 0.025% Rdg 1 counts

• Current measurement Range: 0mA to 24mA

• Resolution: 0.001 mA

• Accuracy: 0.02% Rdg +2counts

• Current sourcing Range: 0mA to 20mA or 4mA to 20mA

• Accuracy: 0.02% Rdg +2counts

• Drive capability: 1000Ω@24mA

• Loop power while measuring mA: 24V

• Voltage sourcing: n/a

• Display current and of span: Yes

• Auto step, auto ramp: Yes

• Spam Check: Yes

• Battery life: 18 hours typical, at 12mA

Package includes:

• 1 x Loop Process Calibrator (with Battery)
