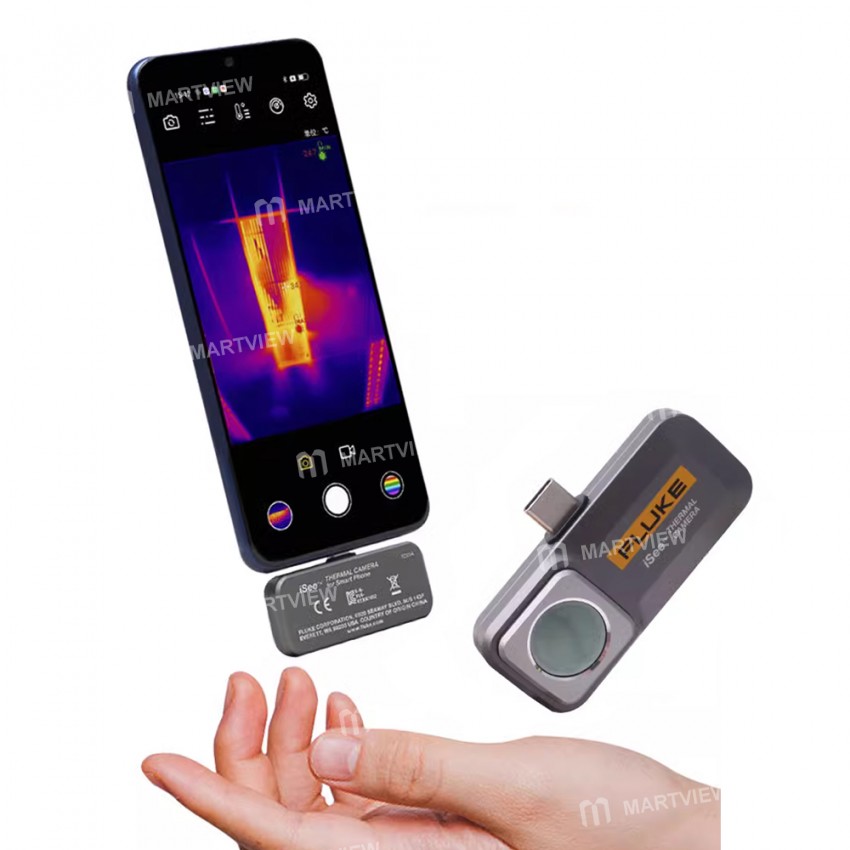

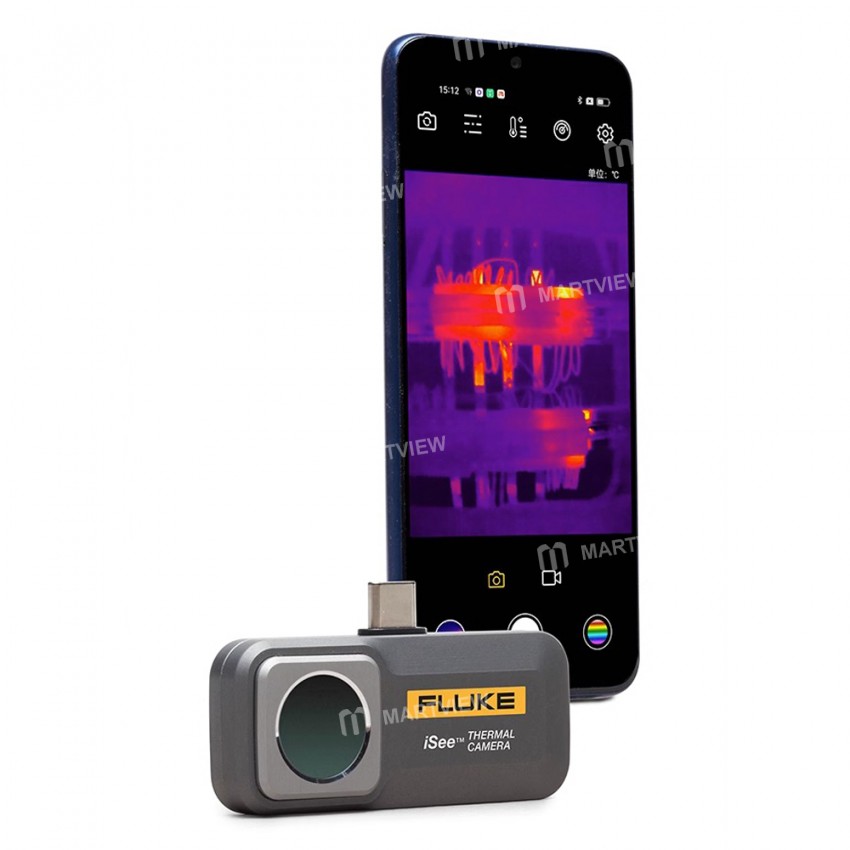

Fluke iSee TC01A Type-C Infrared Thermal Imager for Android / Harmony OS Phones

Fluke iSee TC01A Type-C Infrared Thermal Imager for Android / Harmony OS Phones

Features:

• 256*192 pixel HD image quality, -10~550°C range for a wide range of applications, multiple colour options, ±2% or ±2°C accuracy

• 256*192 HD pixels without blurring, 25Hz smooth video without lagging, comparable to professional-grade thermal imaging fine image

• Real-time capture of points, lines and surfaces at high and low temperatures, comprehensive temperature analysis, automatic interval shooting, image comments, comparative view of infrared and visible images

• The customised colour palette, customised watermark, record multiple lives

• Type-C direct connection, plug and play, no need to charge, large screen display

• 50mk (0.05°C) thermal sensitivity, over-temperature zone alarm for subtle screening

• 1m drop resistance, IP54 dust and water resistant

• Use of aluminium, combined with a unique special surface treatment and laser photo etching process

Specification:

• Product model: Fluke iSee TC01A

• Infrared resolution: 256x192

• Pixel size: 12μm

• Temperature measurement range: -10~150 ℃, 100 ℃~550 ℃

• Accuracy: ± 2%

• Temperature measurement distance: 0.25~5M

• Frame rate: 25Hz

• Focal length: Fixed 3.2mm

• Thermal sensitivity (NETD): 50mK

• Spectra: 8-14μm

• Field of view angle (HxV): 56° x 42°

• Spatial resolution: 3.81 Mrad

• USB interface: Type-C

• Working temperature: 0~40 ℃

• Storage temperature: -30~60 ℃

• Working humidity: 10%~90% RH

• Power consumption: 350mW

• Protection level: IEC 60529, IP54

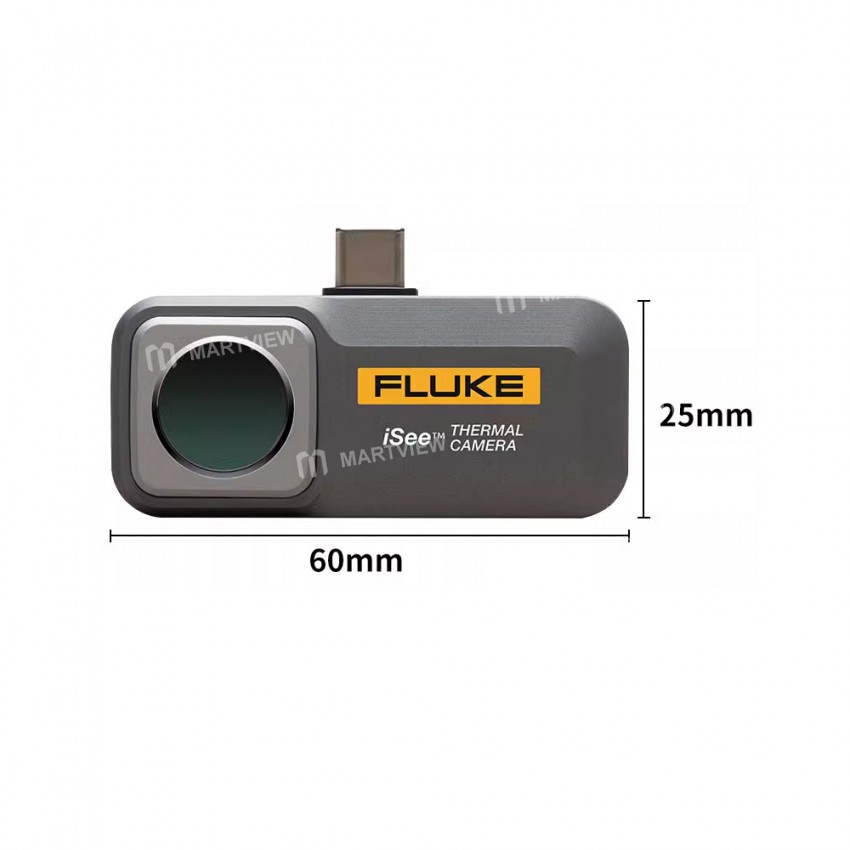

• Size: 59*32*10mm

Package includes:

• 1 x Infrared Thermal Imager
