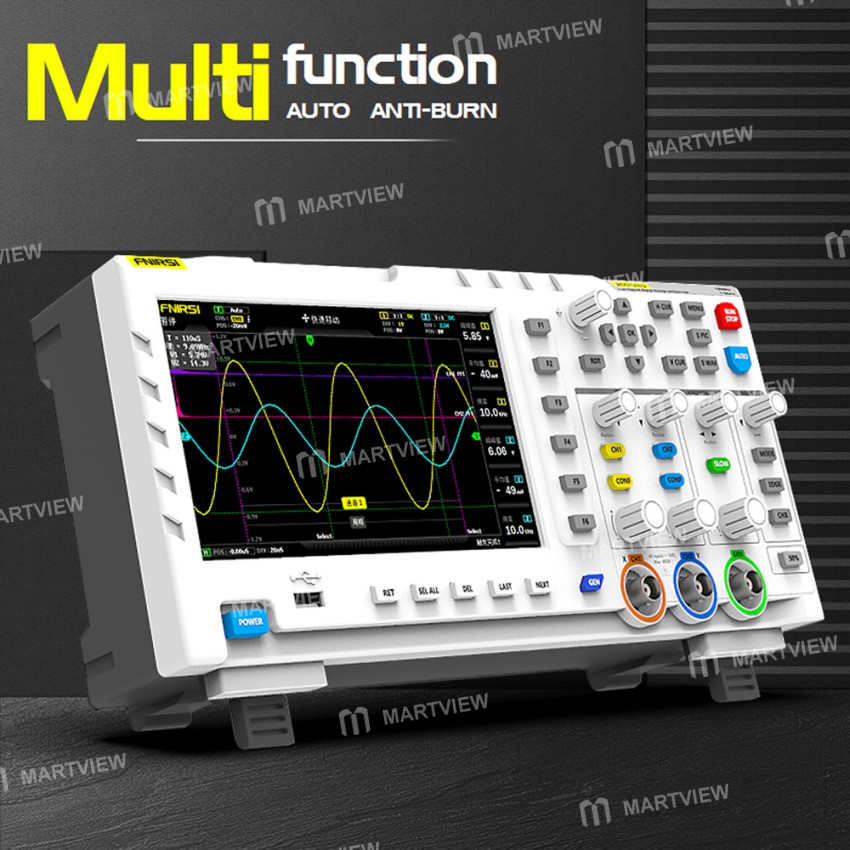

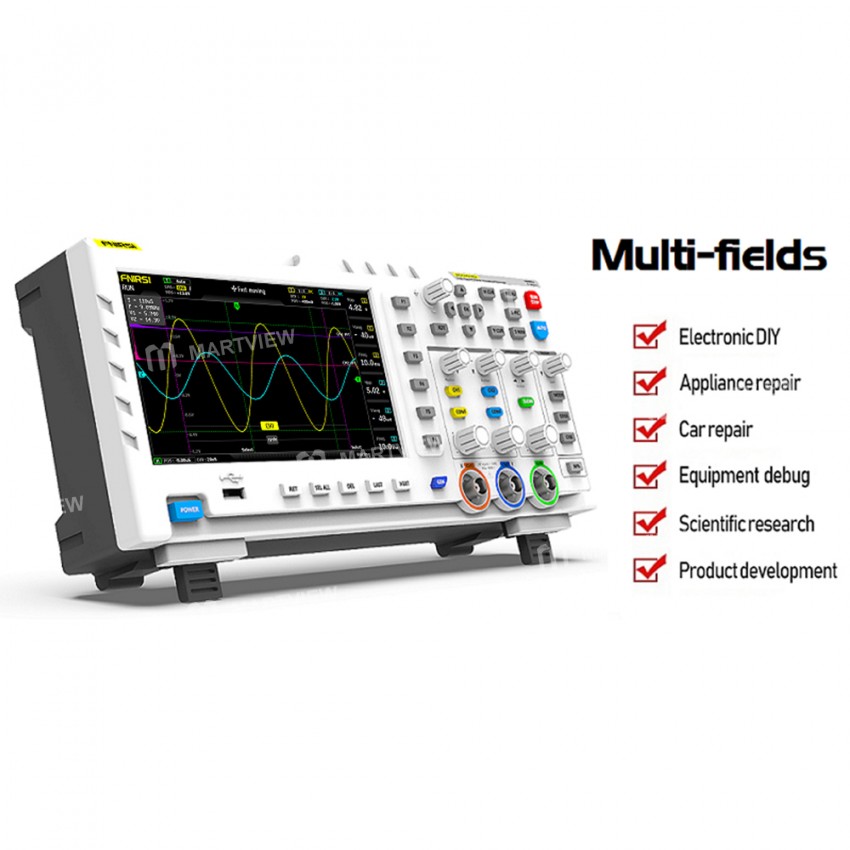

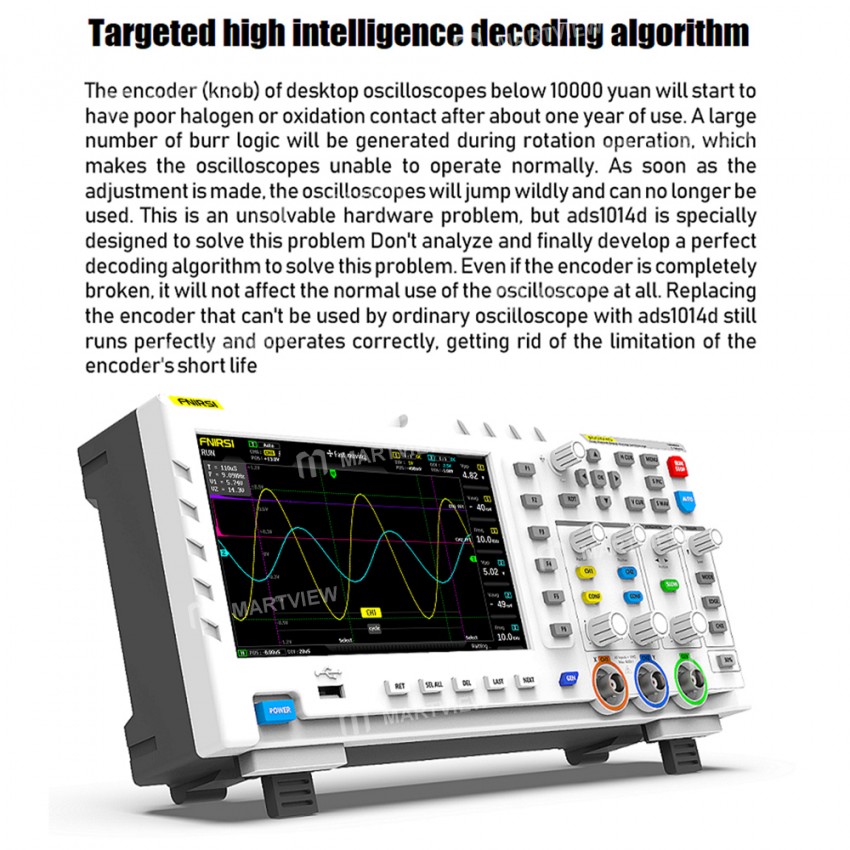

Fnirsi-1014D Portable Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz 2 Ana-log Bandwidth 1GSa / s Sampling Rate

Fnirsi-1014D Portable Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz* 2 Ana-log Bandwidth 1GSa/s Sampling Rate

Specifications:

• Material: ABS

• Ana-log band width: 100MHz * 2

• Number of channels: 2 channels

• Maximum real time sampling rate: 1GSa/s

• Vertical sensitivity: 50 mV/div ~ 500 V/div

• Horizontal time base range: 50S/div ~ 10nS/div

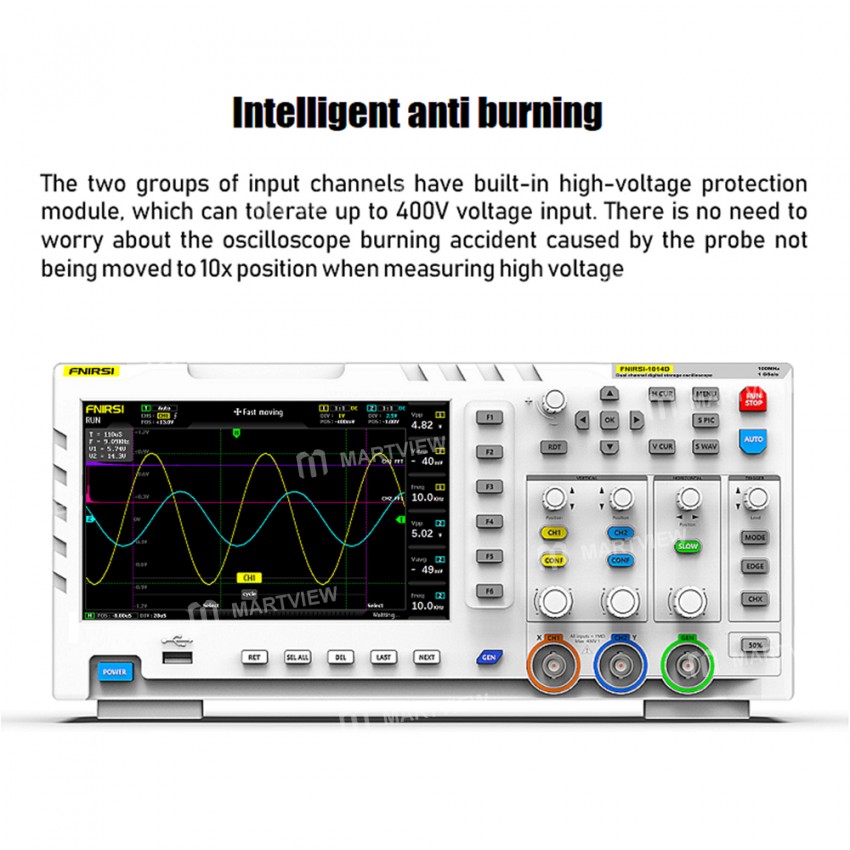

• Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

• Input resistance: 1M

• Storage depth: 240Kbit

• Input resistance: 1MΩ

• ADC precision: 8bits

• Record Length: 30KB

• Storage depth: 240Kbit

• Max Waveform Capture Rate: 50,000wfm/s

• Band Width: 100-349MHz

• Coupling mode: AC/Direct Current

• Trigger mode: Single, Normal, Auto

• Trigger edge: Rising edge/Falling edge

• External trigger voltage 0~40 V

• Extension ports: USB picture export

• Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in

• Package weight: 1949g / 4.3lb

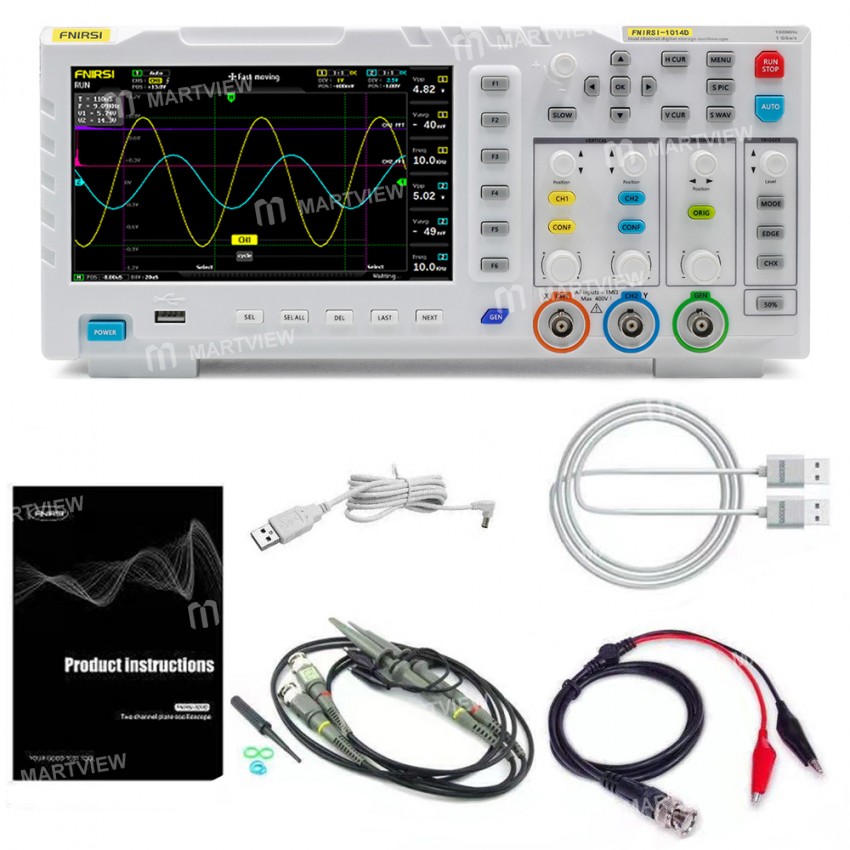

Package includes:

• 1 x Fnirsi-1014D Portable Oscilloscope
