Fnirsi 2C23T Handheld 3-in-1 Dual Channel Digital Oscilloscope + Multimeter + Signal Generator

Fnirsi 2C23T Handheld 3-in-1 Dual Channel Digital Oscilloscope + Multimeter + Signal Generator

Features:

• 2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI

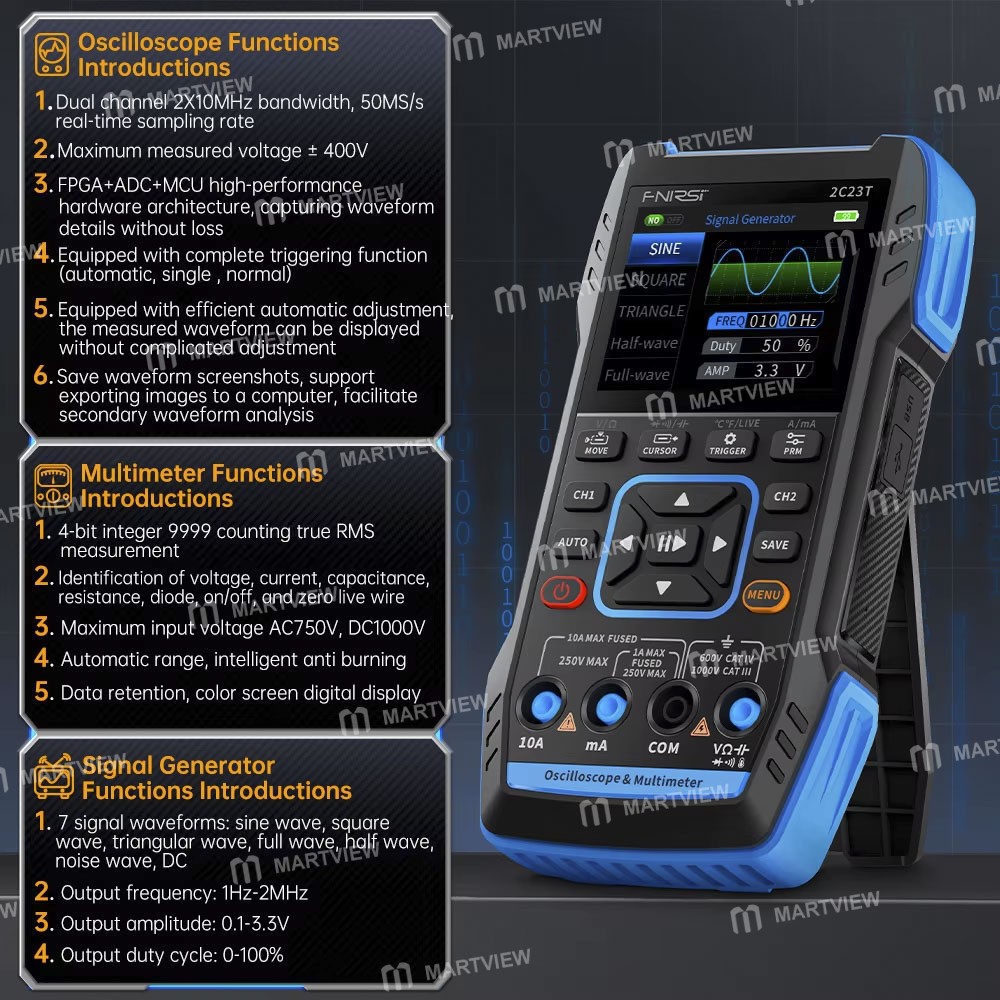

• This device is equipped with three main functions oscilloscope, multimeter, and signal generator

• The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V

• Support for saving and viewing waveform screenshots for analysis has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off, and other measurement functions

• Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz, the output frequency, amplitude, and duty cycle are adjustable

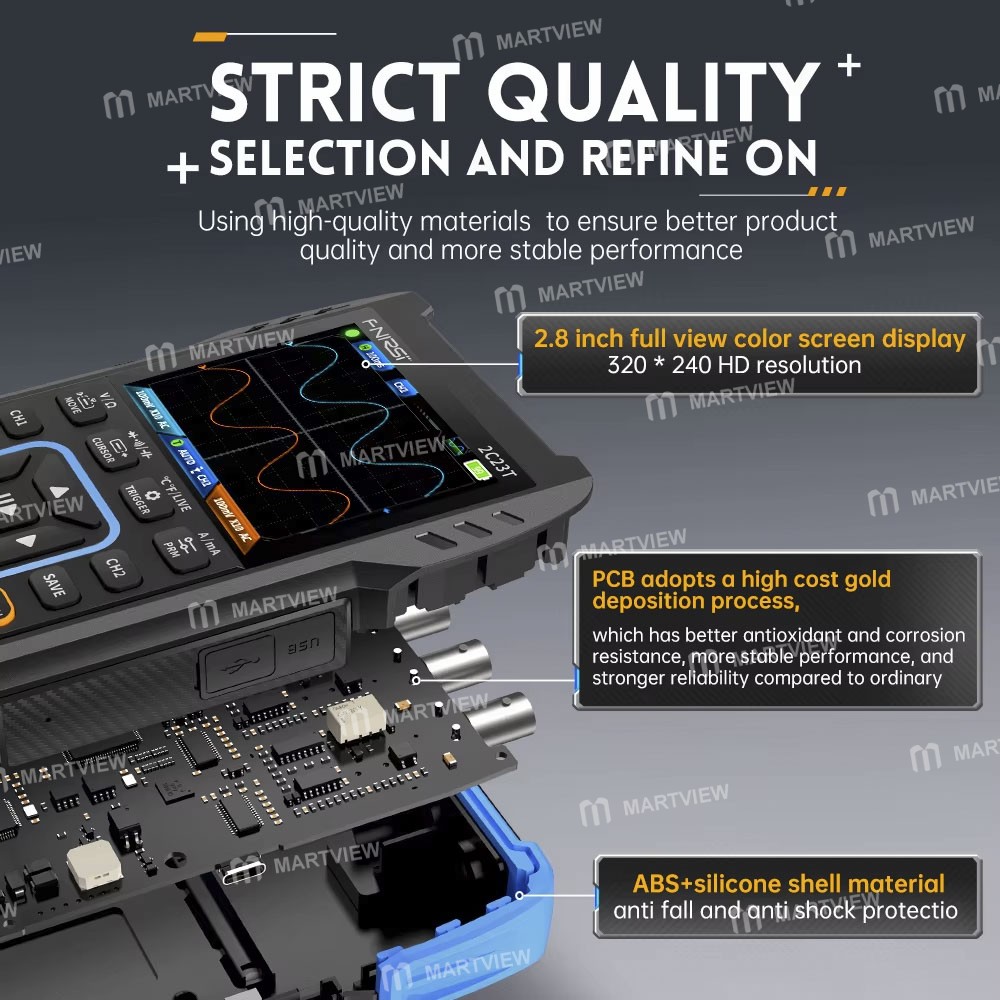

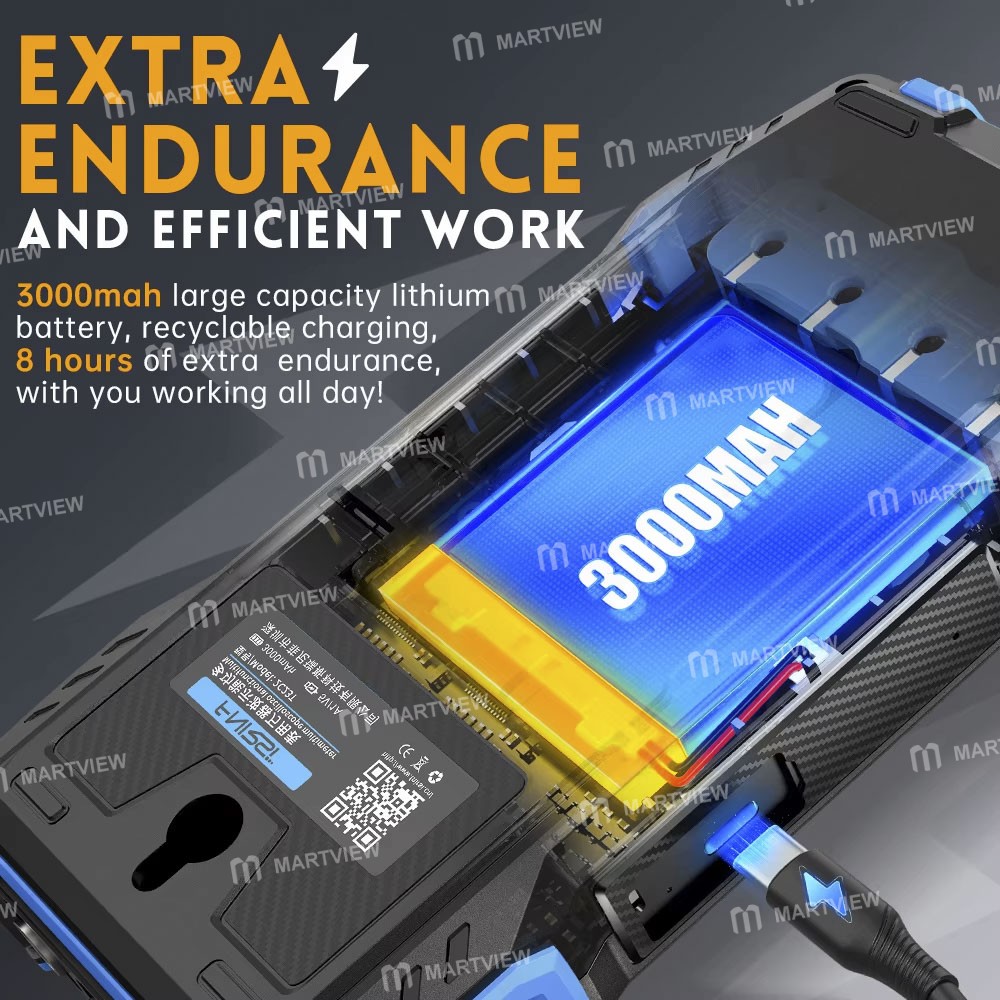

• Using a 2.8 inch 320*240 resolution high-definition LCD screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6H

• Provide users with more and stronger practical functions in a compact size, while also having good portability

• Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument

Specification:
Oscilloscope:

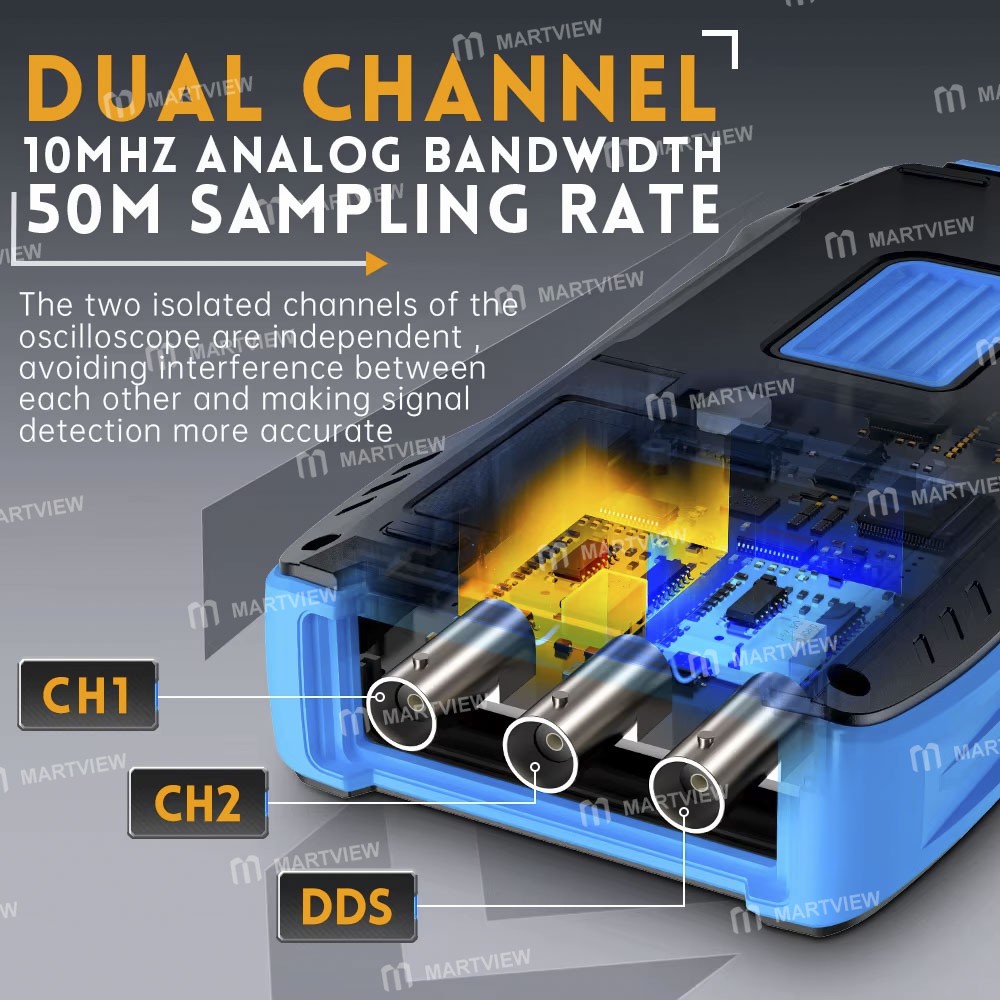

• Channel: Dual-channel

• Sample rate: 50M

• Analog bandwidth: 10M (Dual channel independent 10M)

• Storage depth: 32kB

• Impedance: 1MΩ

• Time Base Range: 50ns~10s

• Vertical sensitivity: 20mV/div~10V/div (X1)

• Maximum measured voltage: ±400V

• Trigger mode: Auto/Normal/Single

• Trigger type: Rising edge, Falling edge

• Display mode: YT/Scroll

• Coupling method: AC/DC

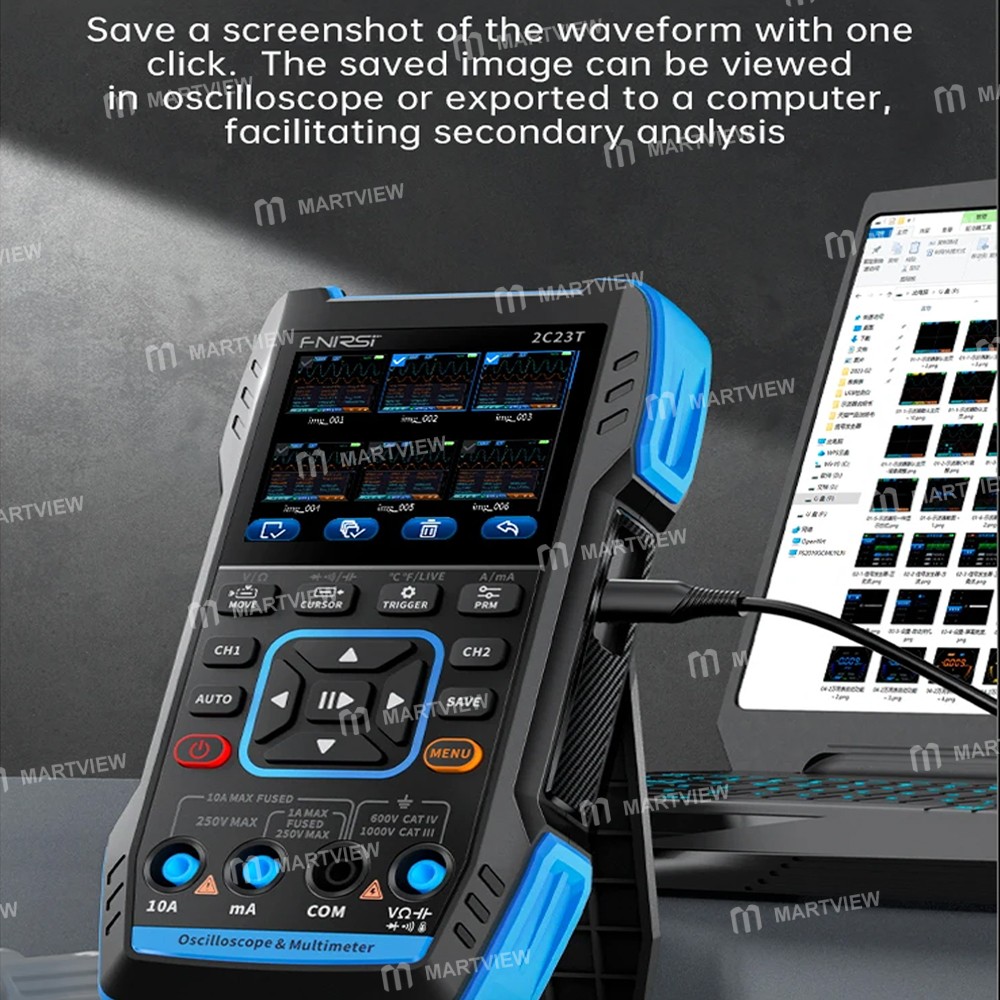

• Save waveform screenshot: Yes

• Export waveform images: Yes

Multimeter:

• DC Voltage: 9.999V~999.9V

• AC voltage: 9.999V~750.0V

• DC current: 9999uA~9.999A

• AC current: 9999uA~9.999A

• Resistance: 999.9Ω~99.99MΩ

• Capacitance: 9.999nF~99.99mF

• Temperature Rang: -55~1300℃/-67~2372℉

• Diode: Yes

• Continuity test: Yes

• Live line detection: Yes

Signal Generator:

• Channel: Single channel

• Frequency: 1Hz~2MHz

• Amplitude: 0.1~3.3V

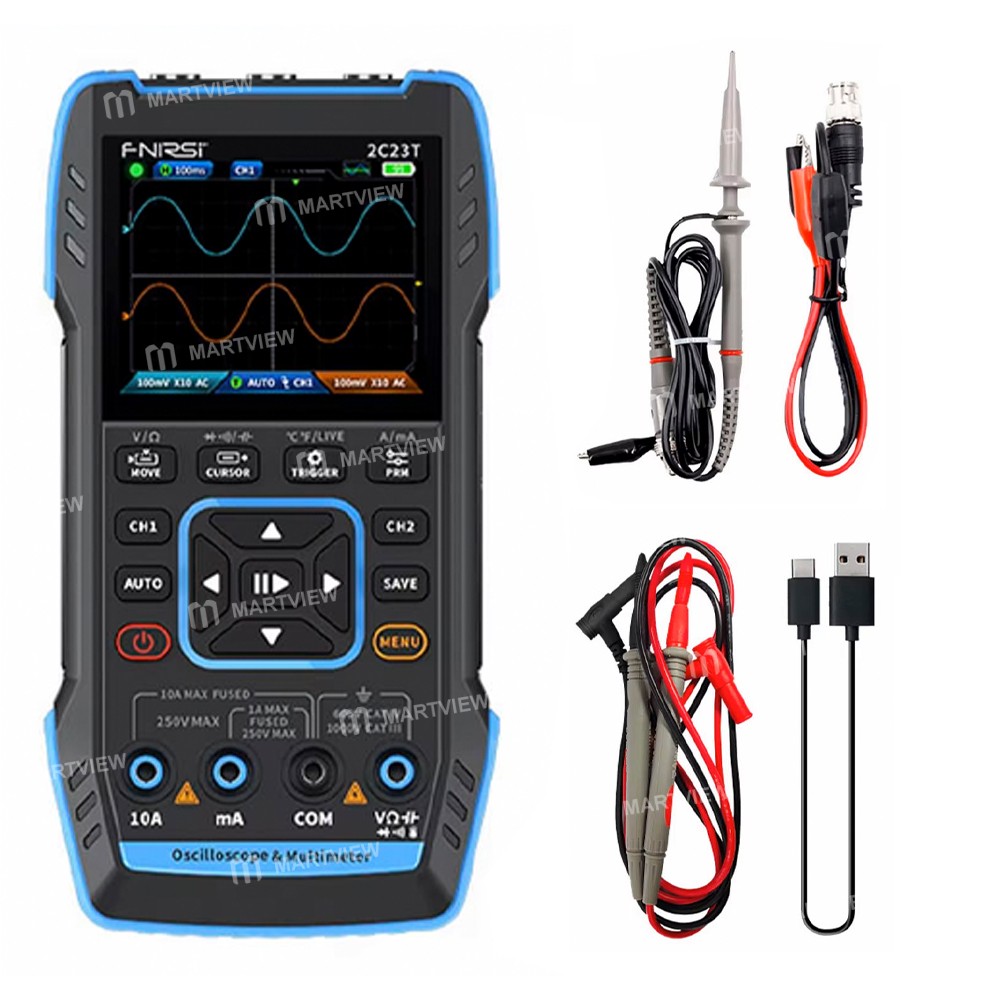

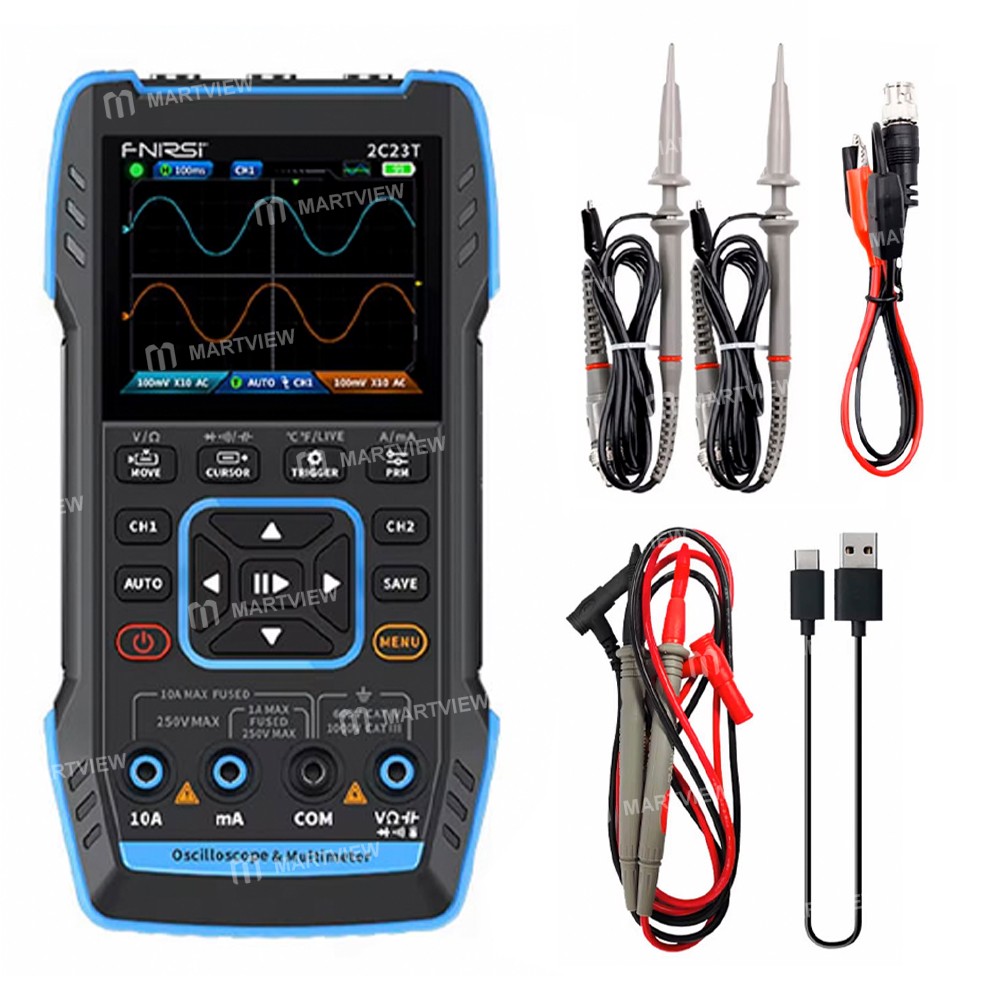

Package includes:

• 1 x 2C23T

• 1 x P6100 Probe (The Premium Version is two)

• 1 x Crocodile Clip Probe

• 1 x Multimeter Test Leads

• 1 x Charging Cable
