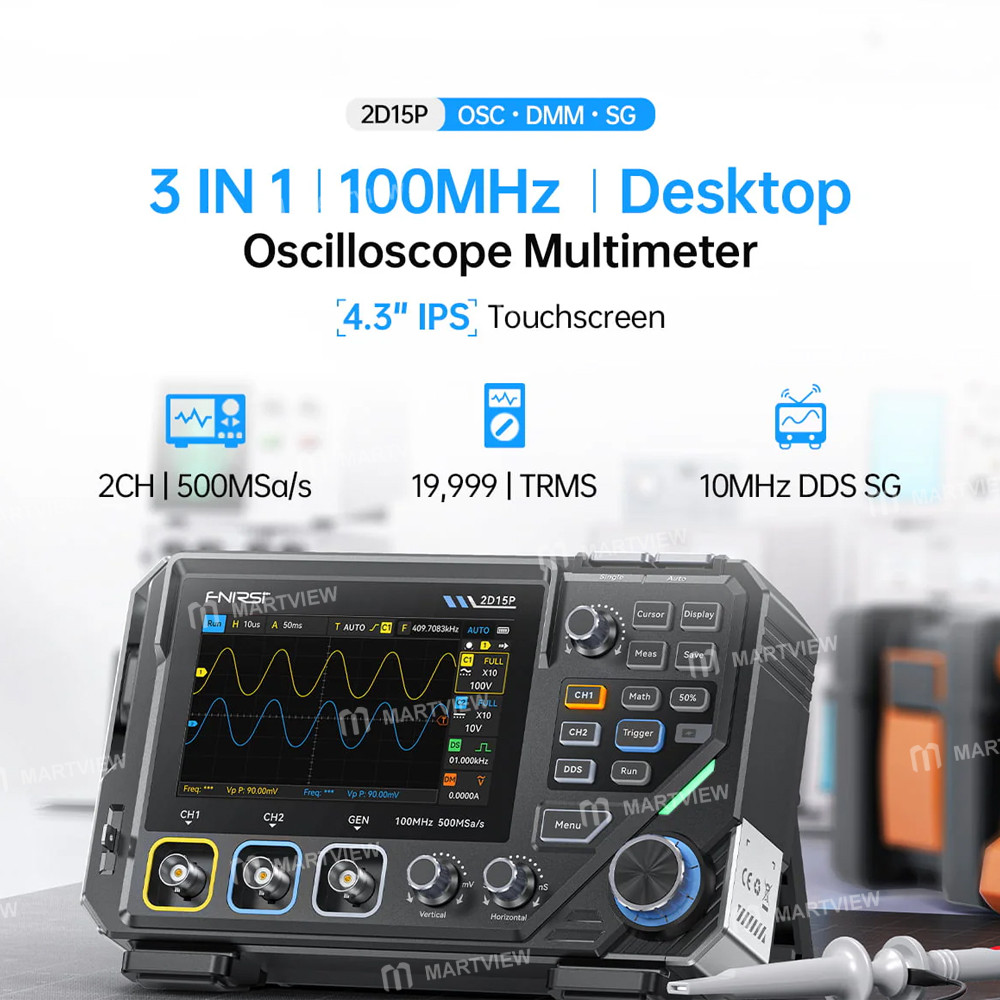

Fnirsi 2D15P 3-in-1 Benchtop 2CH 100MHz Phosphor Signal Generator Oscilloscope Multimeter

Fnirsi 2D15P 3-in-1 Benchtop 2CH 100MHz Phosphor Signal Generator Oscilloscope Multimeter

Features:

• Dual-Channel Input: 100 MHz single-channel / 50 MHz dual-channel operation

• Selectable Memory Depths: 10 K / 100 K / 1 M for flexible data capture

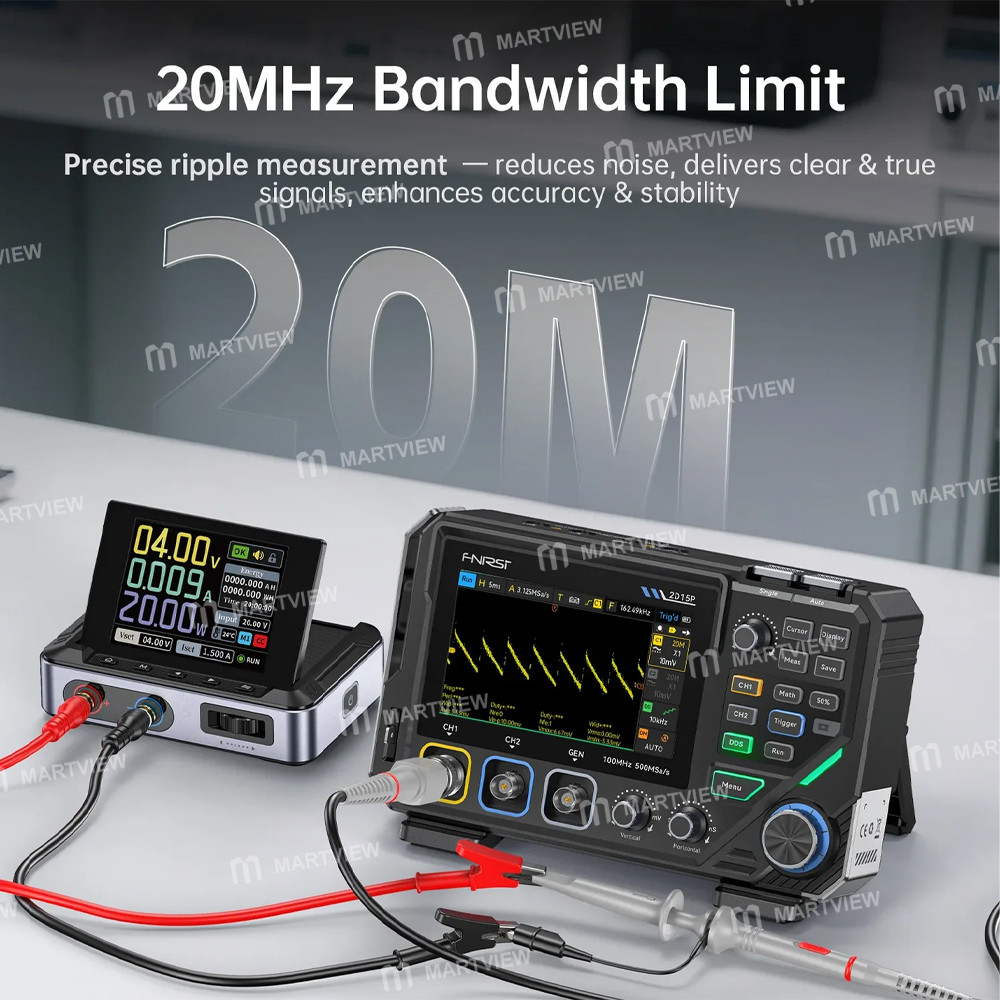

• 20 MHz Bandwidth Limit: Reduces noise for accurate ripple and precision testing

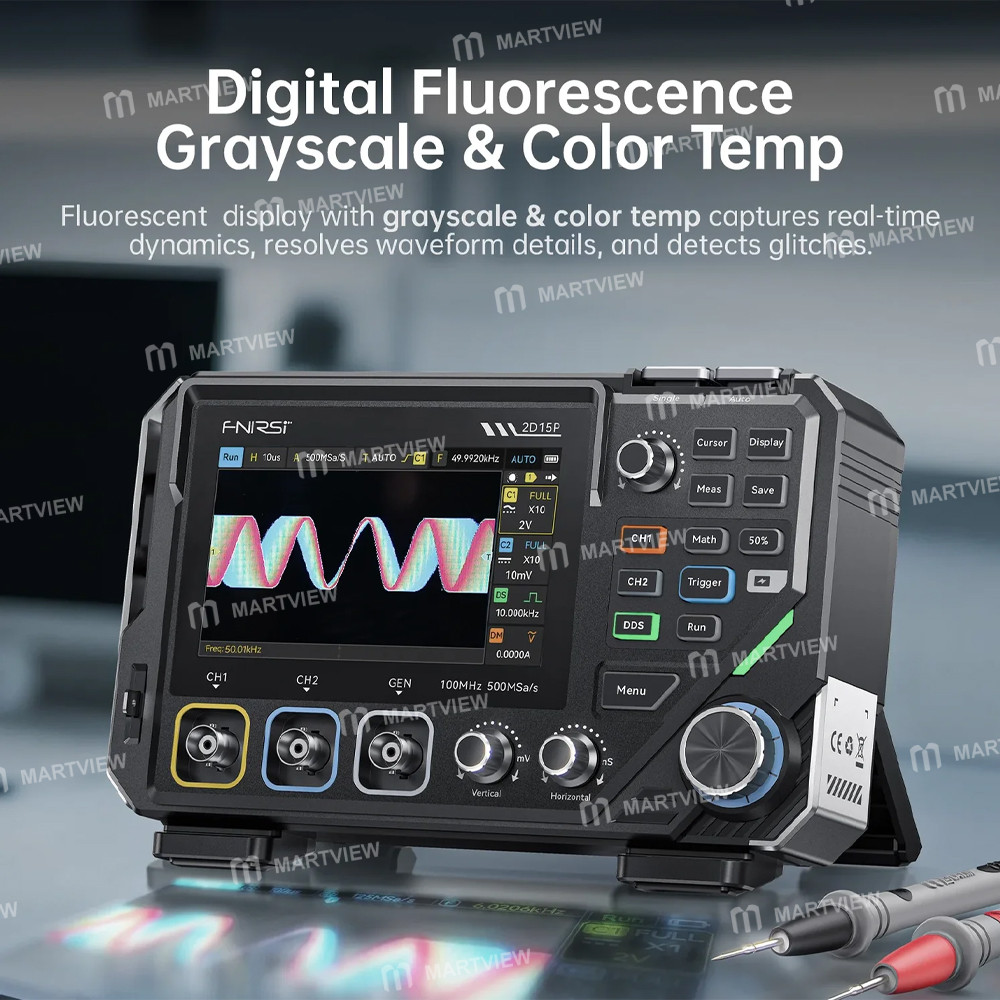

• Grayscale & Color Temperature Visualization: Reveal waveform persistence and signal dynamics

• Math Operations (Add, Subtract, Multiply, Divide, etc.): Real-time signal computation

• XY Mode & Infinite Persistence: Visualize phase relationships and waveform overlap

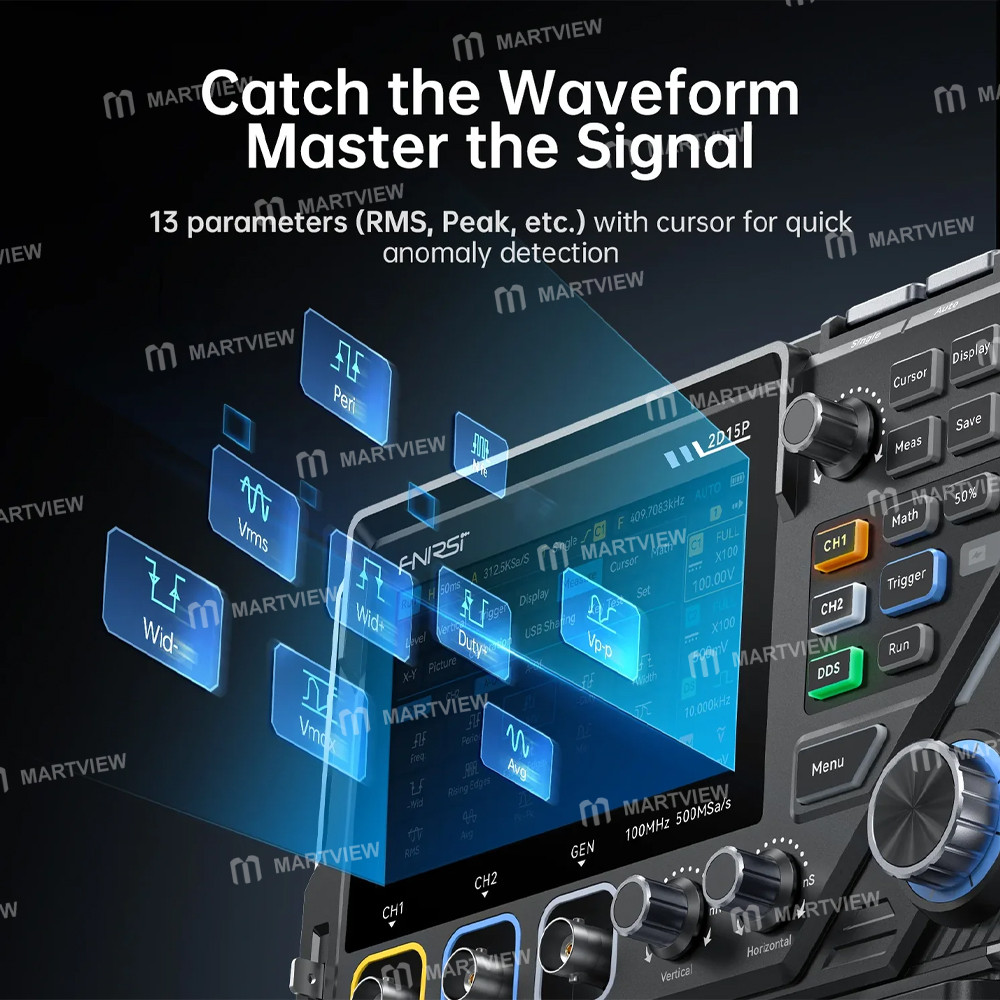

• Cursor Function & 13 Auto Measurements: Quick and clear parameter analysis

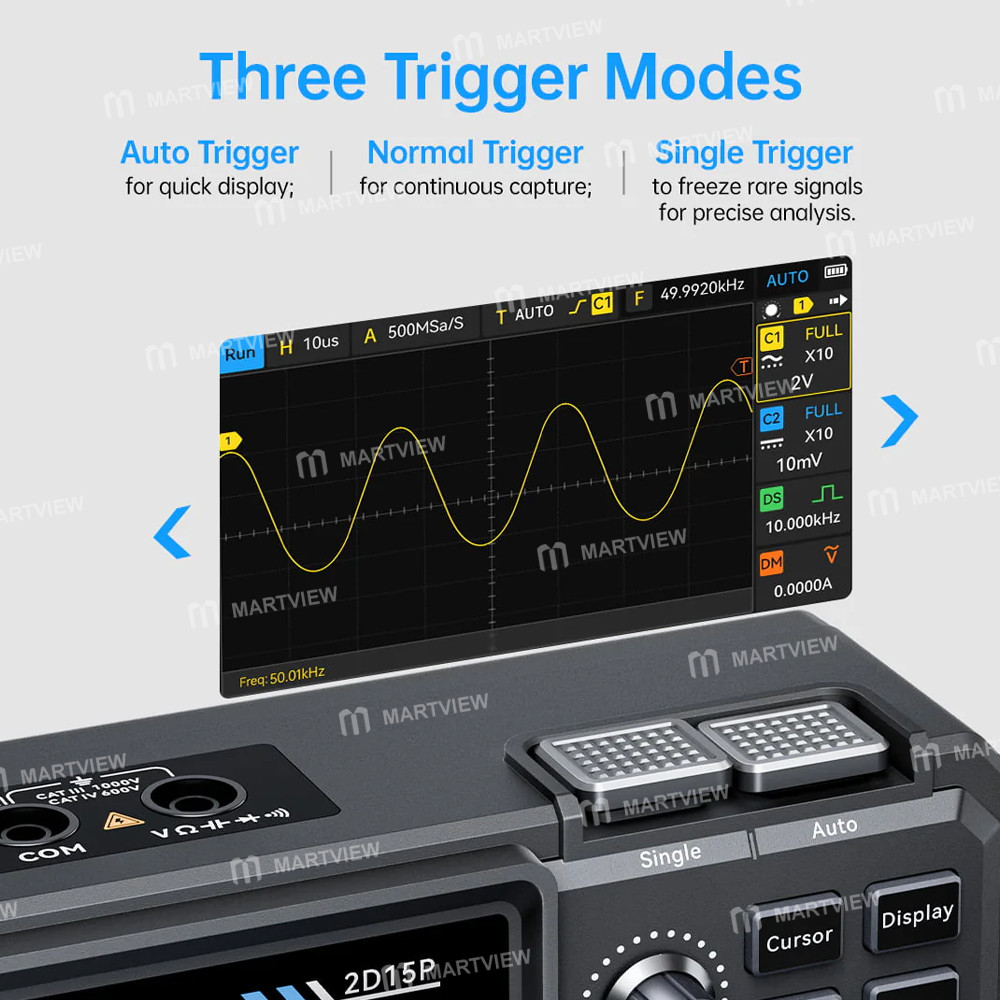

• Auto / Normal / Single Trigger Modes: Flexible signal capture for every testing need

• 10 MHz DDS Signal Generator: Output up to 11 common waveforms with adjustable amplitude and duty cycle

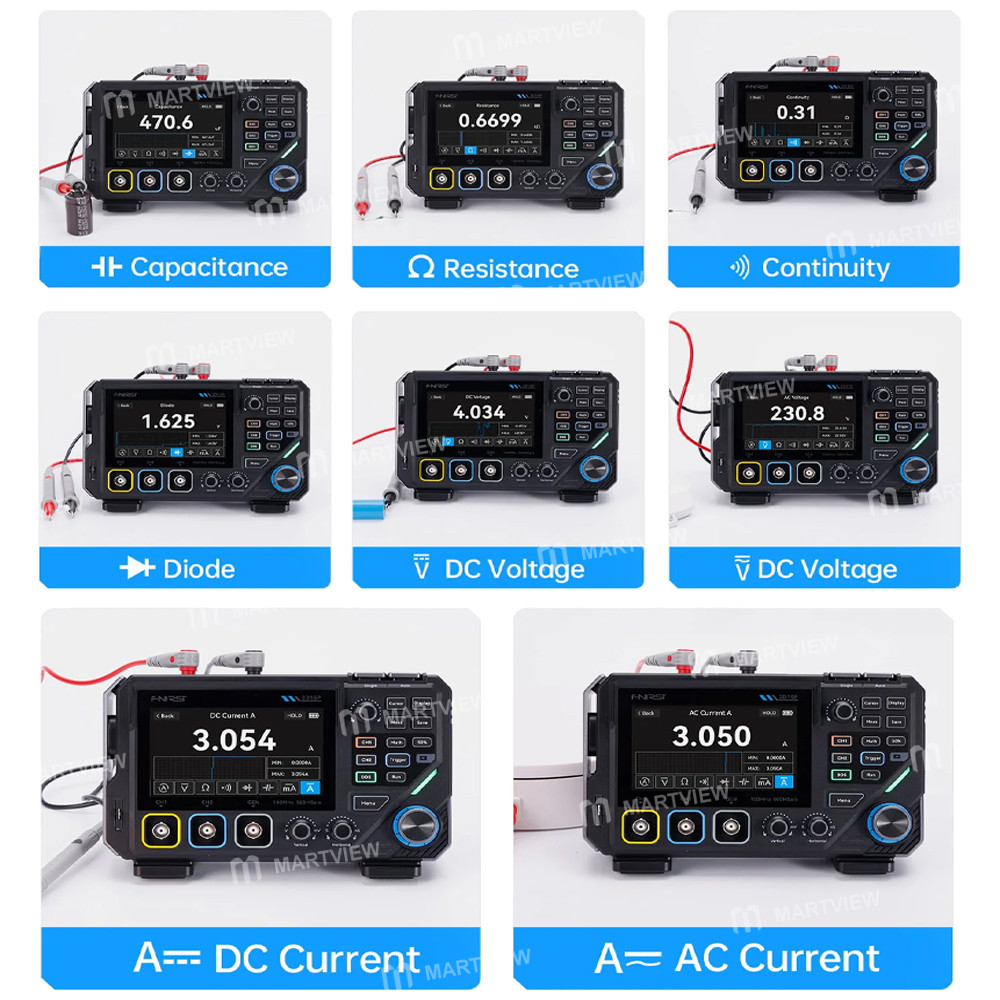

• True RMS Multimeter (19,999 Counts): Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests

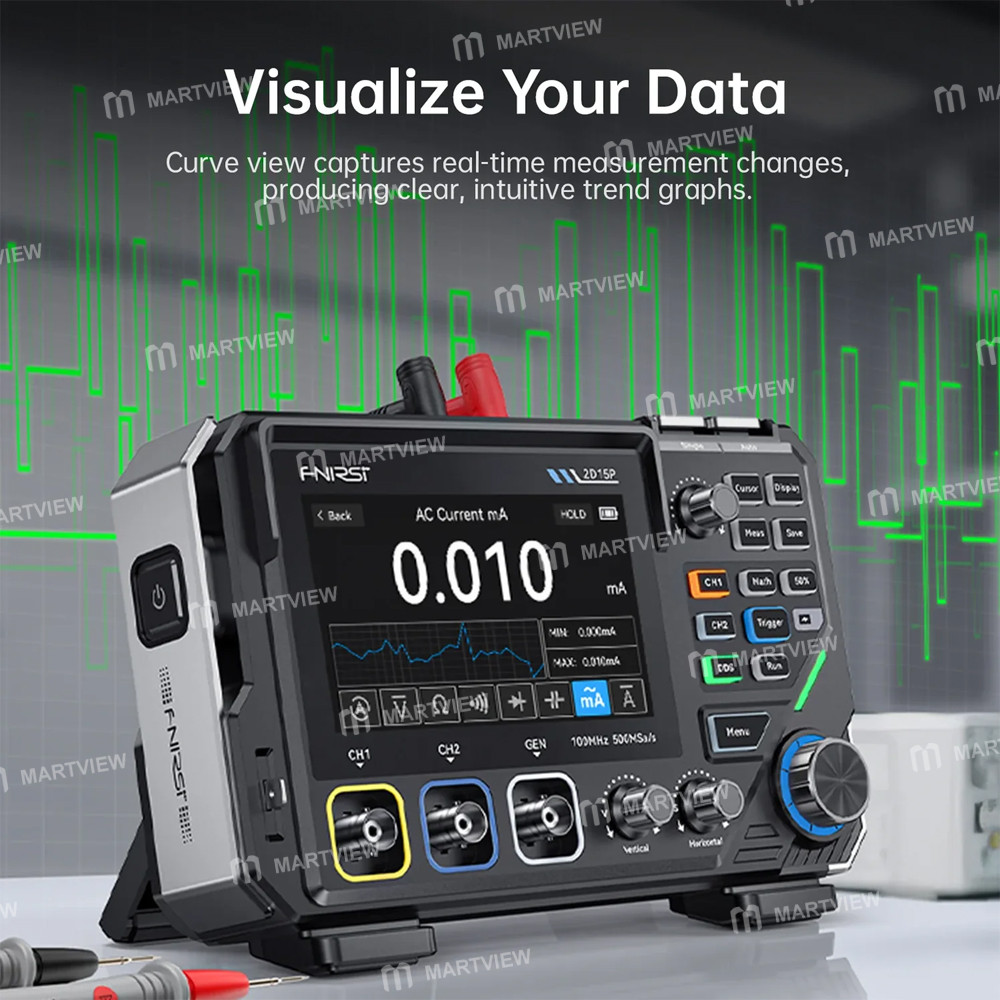

• Curve View Function: Displays real-time trend graphs for visual signal tracking

• FPGA + MCU + ADC Architecture: Ensures high-speed signal processing and stable performance

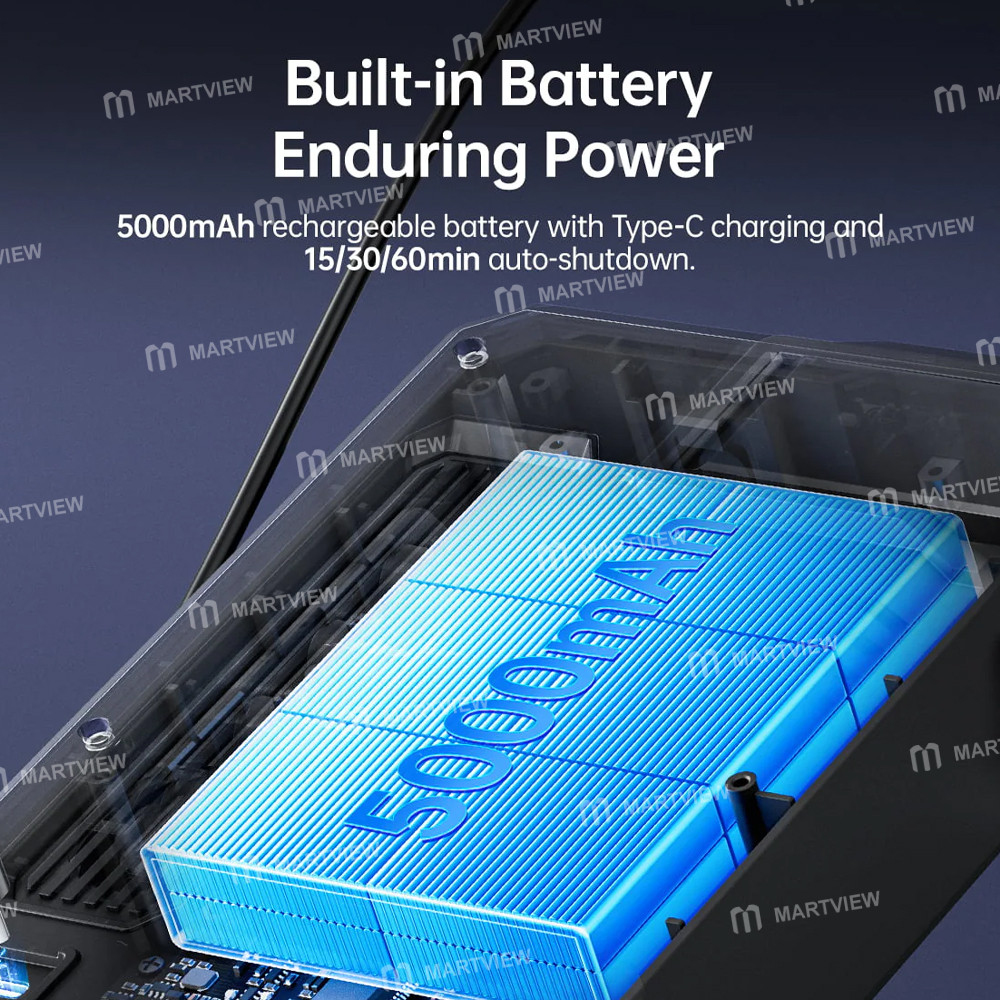

• Compact & Lightweight Design: 30 % lighter body with a powerful 5000mAh battery

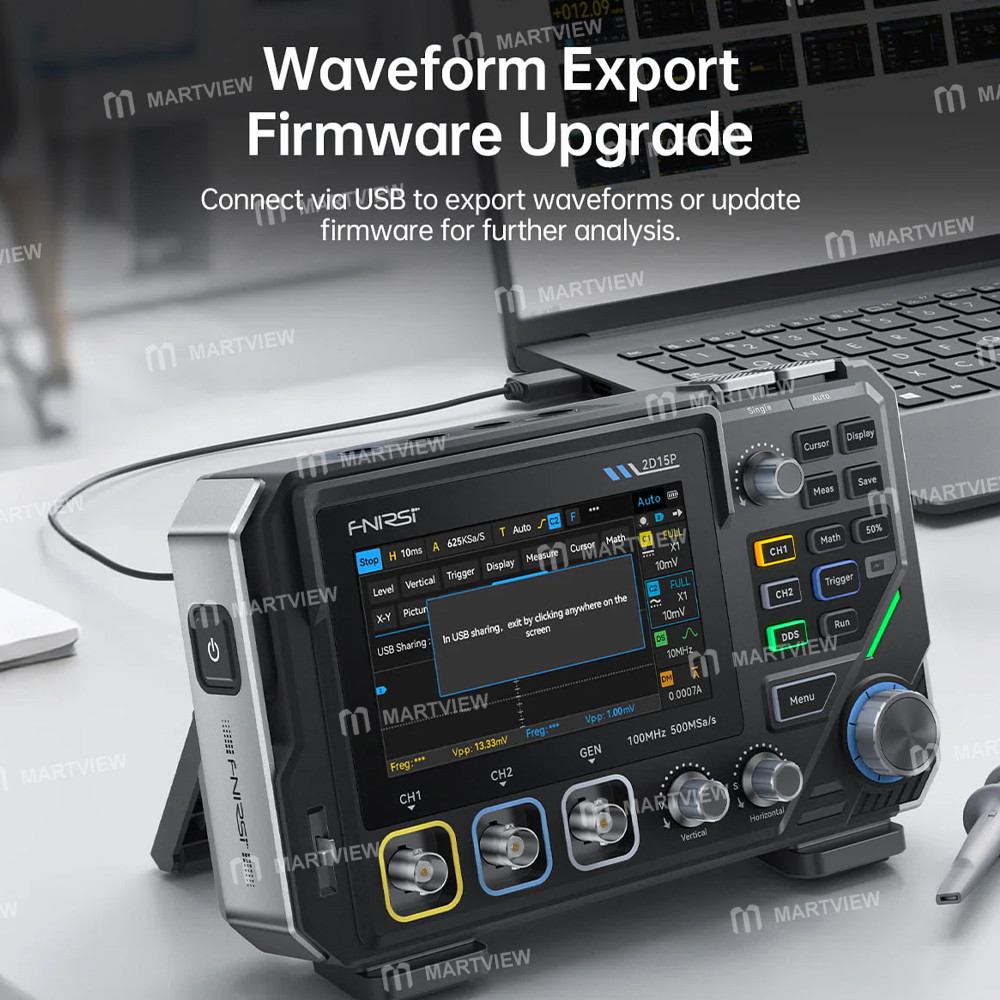

• Wave Save & Export Function: Store and transfer waveform data for post-analysis

• Type-C Charging Interface: Convenient, fast, and universal power connection

Specifications:
Oscilloscope:

• Channel: Dual Channel

• Sample Rate: 500MSa/s

• Analog Bandwidth: 100MHz

• Memory Depth: 10K, 100K, 1M

• Input Impedance: 1MΩ

• Timebase Range: 5ns ~ 50s

• Vertical Sensitivity: 10mV ~ 10V/div

• Max Input Voltage: 800V (x10 Probe)

• Trigger Mode: Auto, Normal, Single

• Trigger Type: Rising, Falling, Both Edges

• Display Mode: Dot, Vector, Color Temp

• Coupling: AC/DC

• Persistence: min / 2s / 5s / 10s / 20s / 50s / ∞

• Math Operations: Yes

• Waveform Capture: Yes

• Waveform Export: Yes

• Cursor Measurement: Yes

Multimeter:

• DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V

• AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V

• DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

• AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

• Resistance: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω

• Capacitance: 999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF

• Diode: Yes

• Continuity:  Yes

Signal Generator:

• Channel: 1CH

• Frequency: 0 ~ 10MHz

• Amplitude: 0.1 ~ 3.0Vpp

• Duty Cycle: 0 ~ 100%

Package includes:

• 1 x Scope DMM

• 2 x P6100 Probe

• 1 x Multimeter Probe

• 1 x Alligator Clip Probe

• 1 x USB Data Cable
