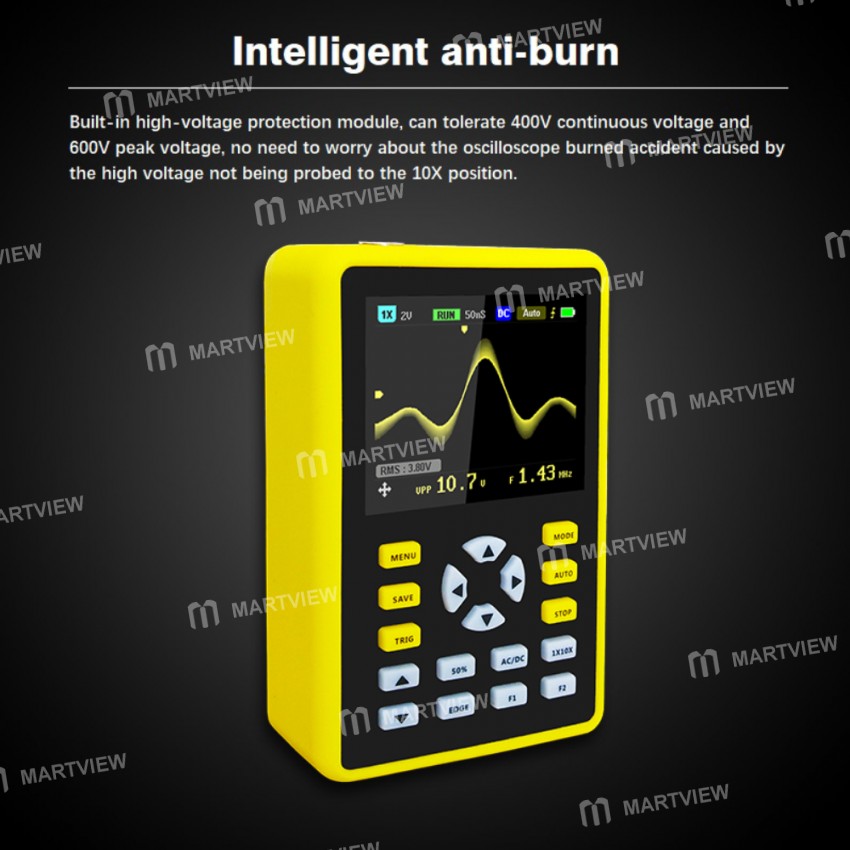

Fnirsi-5012H Portable Digital Oscilloscope 500MS / s Sampling Rate 100MHz Analog Bandwidth

Fnirsi-5012H Portable Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth

Specifications:

• Analog band width: 100MHz

• Maximum real time sampling rate: 500MS/s

• Vertical sensitivity: 50 mV/div ~ 100 V/div

• Horizontal time base range: 50S/div ~ 6nS/div

• Maximum test voltage: 80 V (1X probe), 800 V (10X probe)

• Storage depth: 128KB

• Input resistance: 1M

• ADC precision: 8bits

• Coupling mode: AC/DC

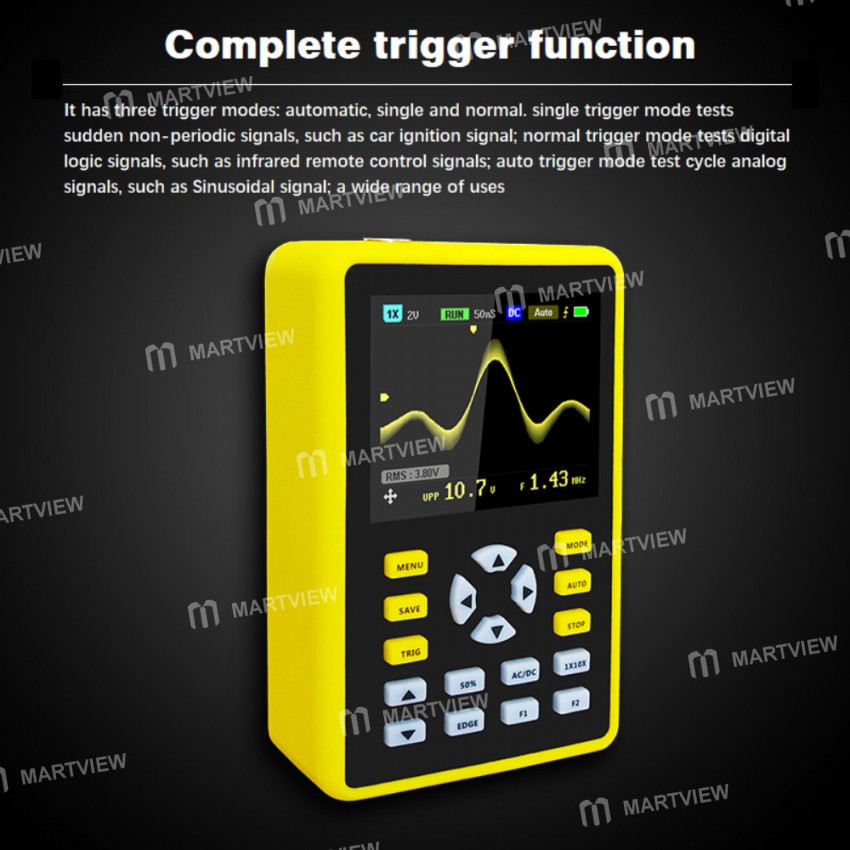

• Trigger mode: Single, Normal, Auto

• Trigger edge: Ascending/descending edge

• External trigger voltage 0-80 V

• Display: 2.4 inch - 320*240

• Power supply: 3000 mAh lithium battery

• Size: 114mm x 74mm x 33mm

• Weight: 250g

Package includes:

• 1 x FNIRSI-5012H oscilloscope host

• 1 x Matching 100MHz probe(1X and 10X)

• 1 x Micro USB data line
