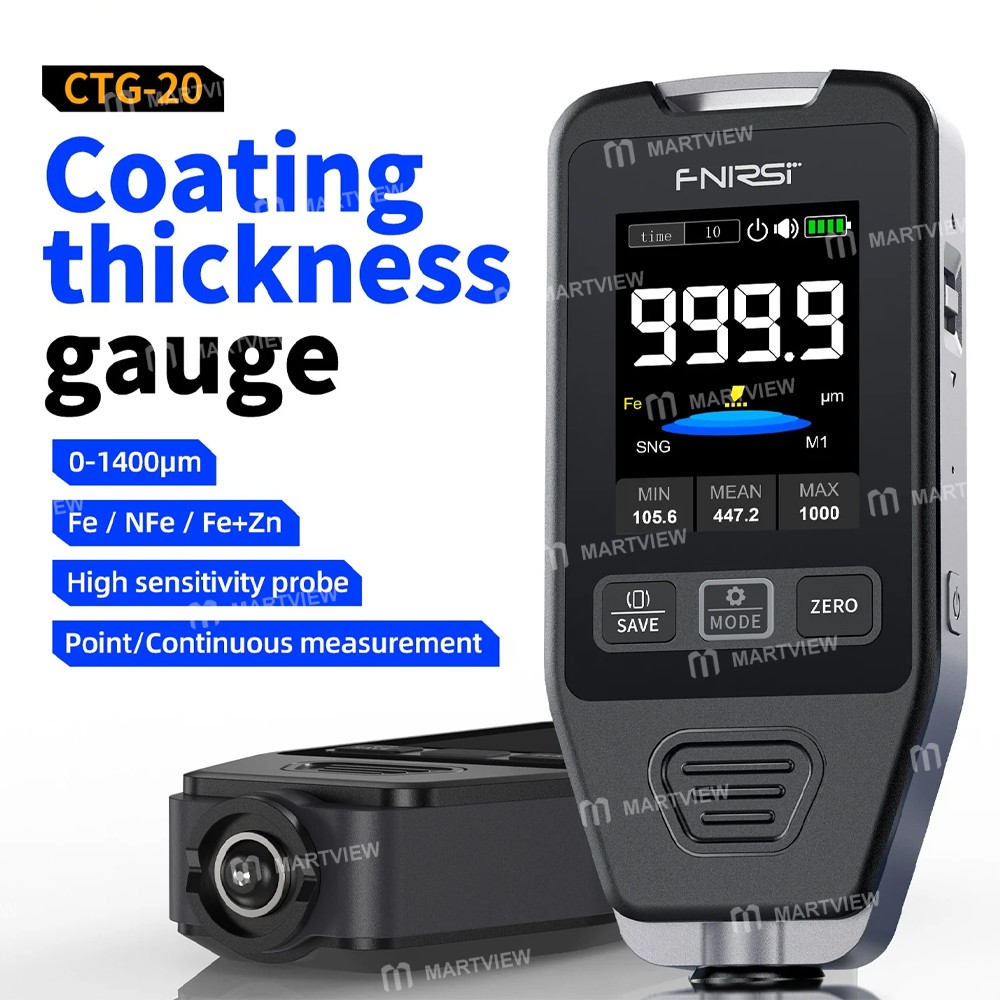

Fnirsi CTG-20 Car Paint Coating Thickness Gauge Tester for Fe / NFe / Fe+Zn

Fnirsi CTG-20 Car Paint Coating Thickness Gauge Tester for Fe / NFe / Fe+Zn

Overview:
CTG-20 is a coating thickness gauge used to measure the thickness of electroplated coatings or coatings on metal surfaces. It can measure the thickness of non-magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non-magnetic materials such as aluminum

Features:

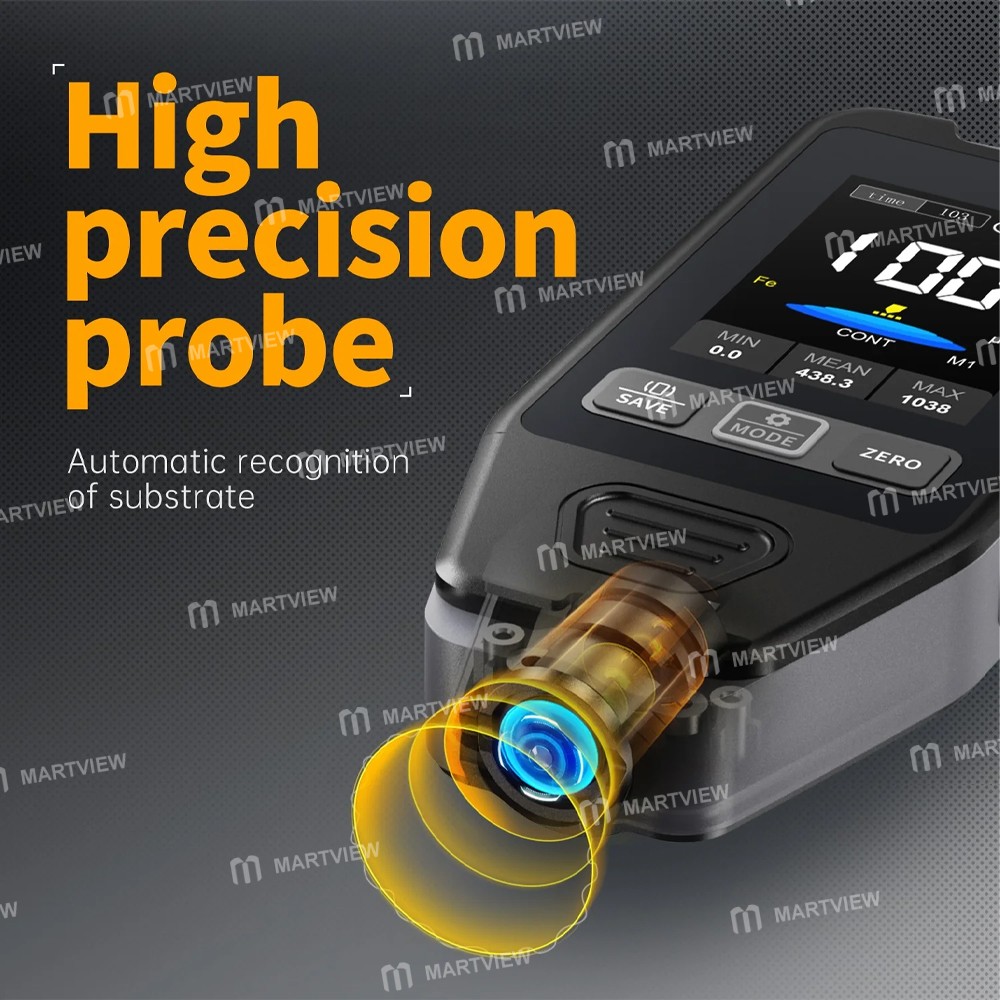

• A highly sensitive probe automatically identifies the substrate, taps to measure, and gets data in seconds

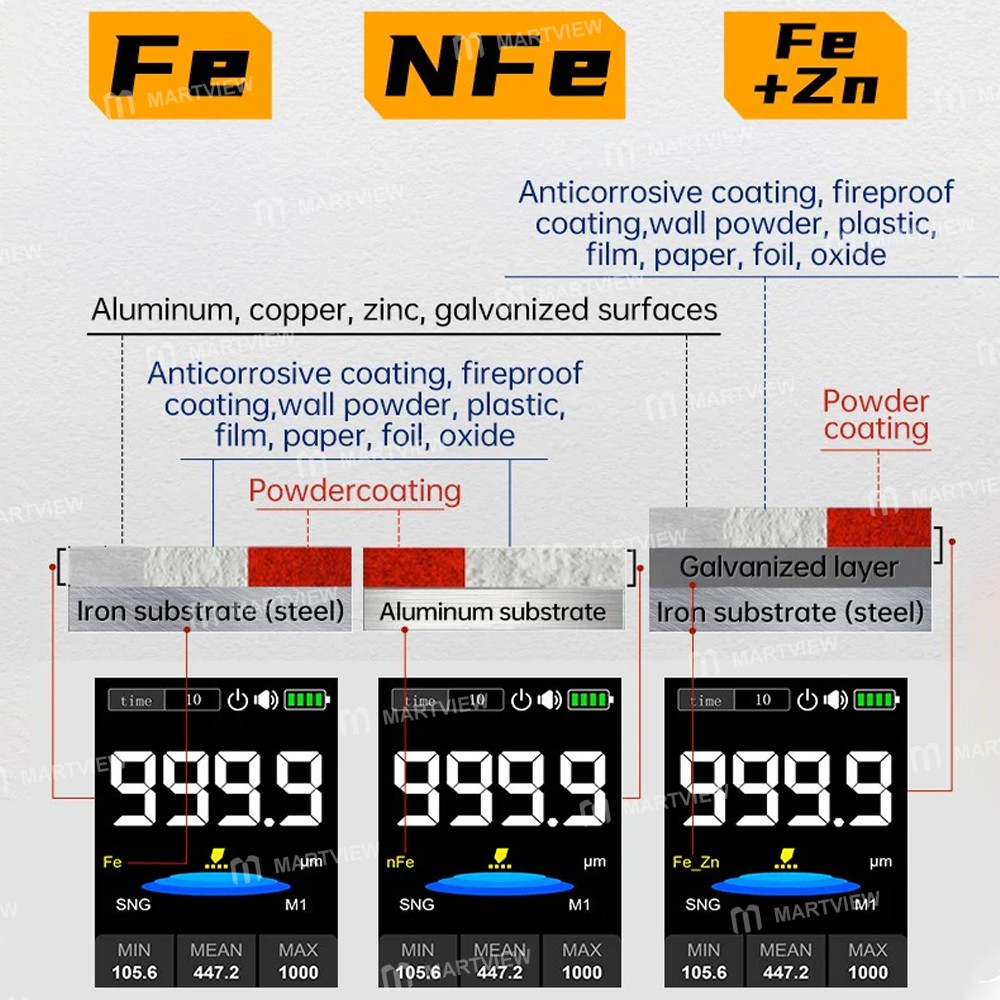

• Triple use of Iron, Aluminum, and Zinc, with comprehensive detection

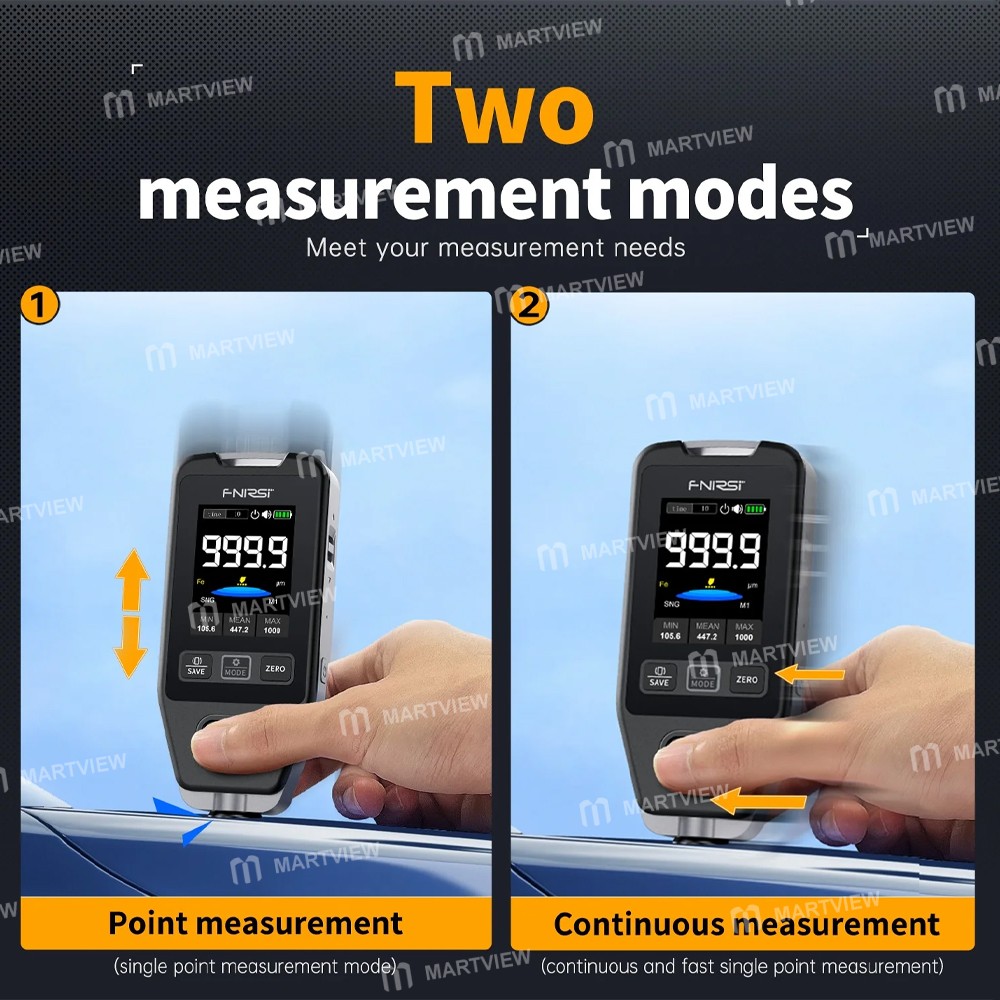

• Two measurement modes, long press "Save" to lock and view the max, mini, ave, and real-time values, and  short press "Save" to rotate the screen to meet your measurement needs

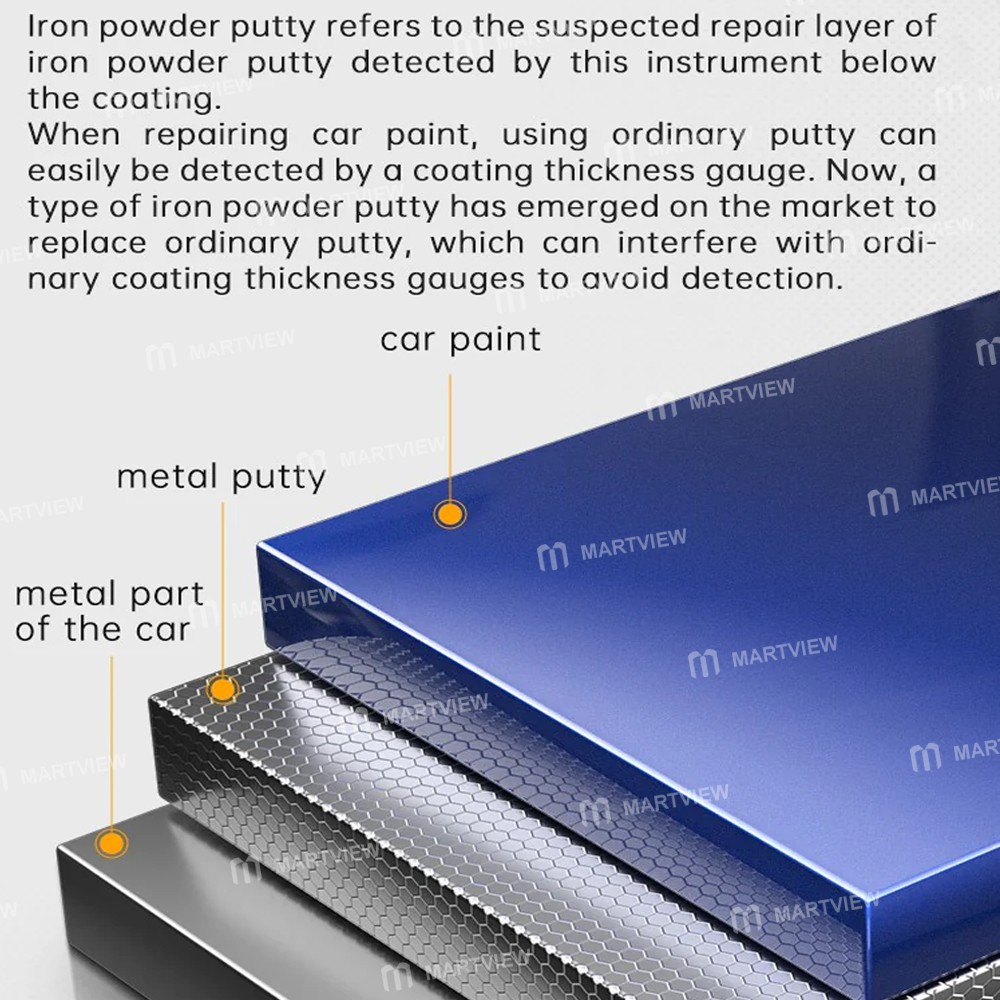

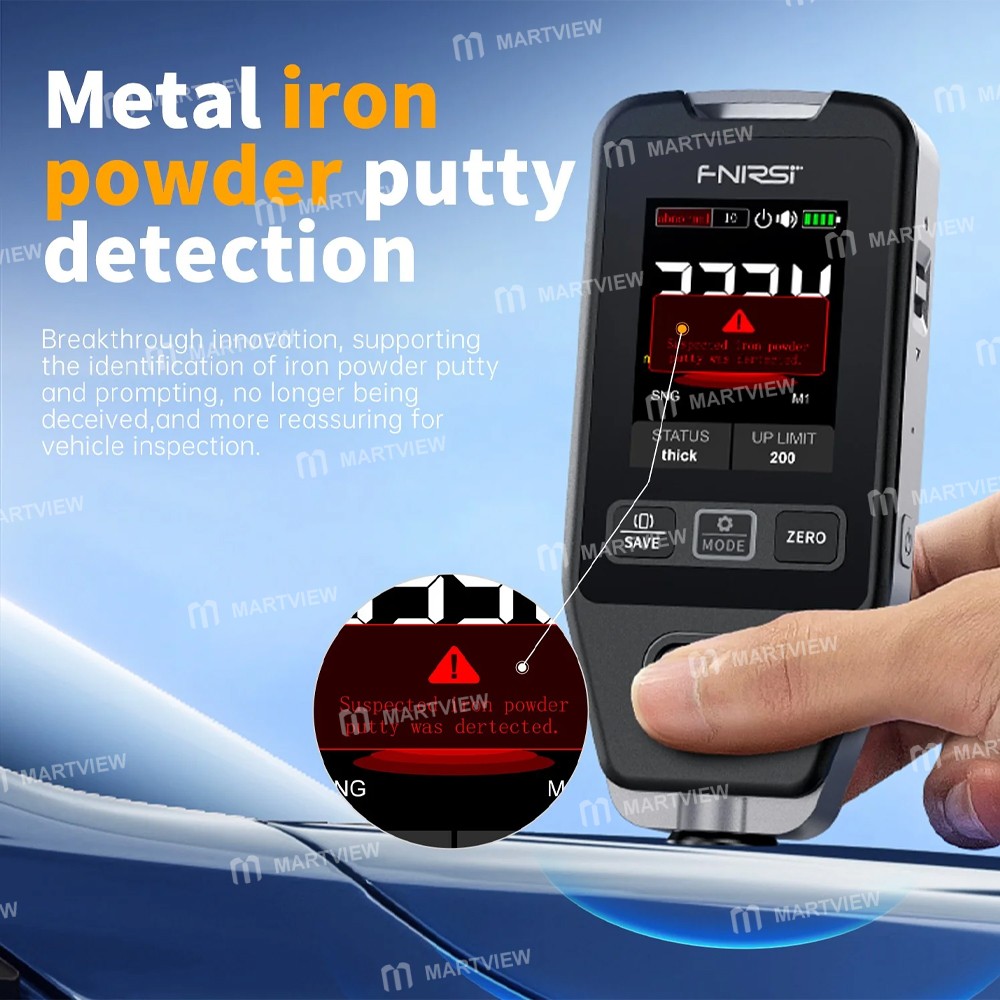

• Breakthrough innovation, supporting the identification of iron powder putty and prompting, no longer being deceived, and more reassuring for vehicle inspection

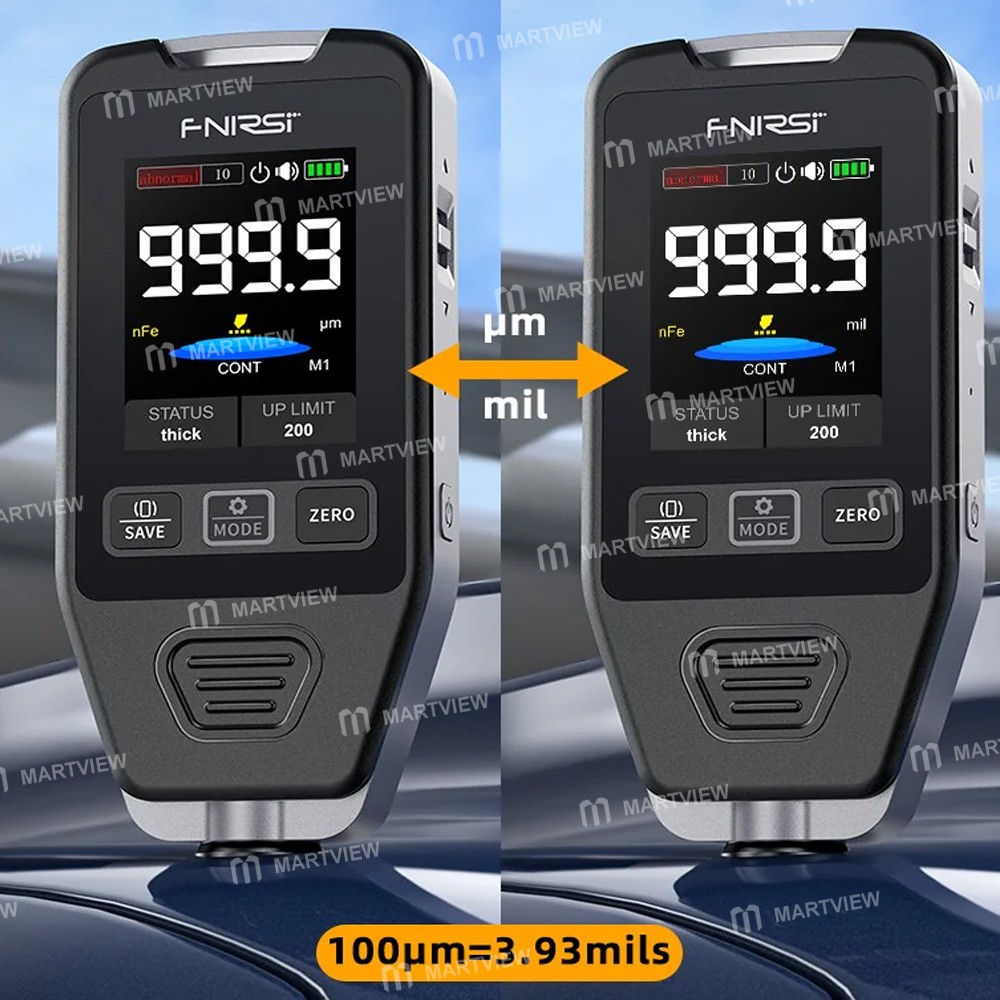

• Double unit quick switching, the um/mil unit can be freely switched to make the measurement data clearer

• Quick zero calibration, is faster, more accurate, and more reassuring, short press the "ZERO" button to perform zero calibration

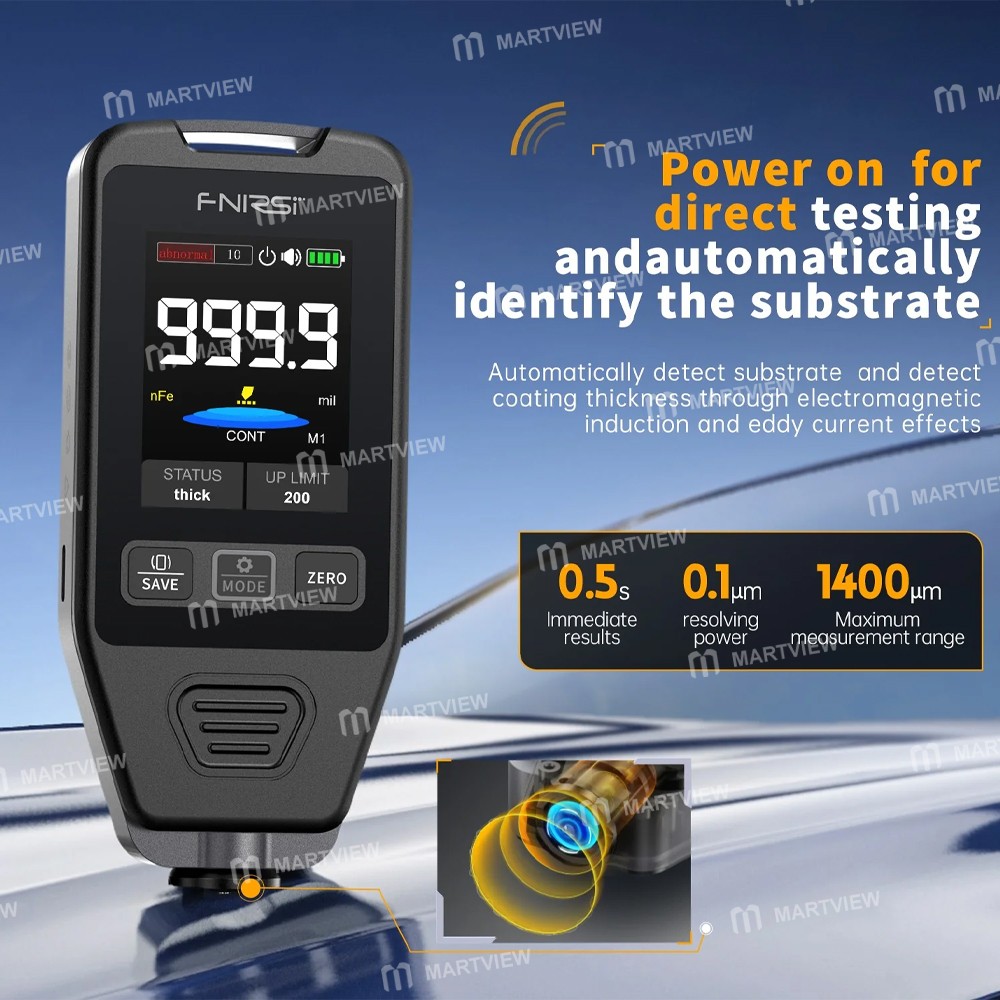

• Automatically detect substrate and detect coating thickness through electromagnetic induction and eddy current effects

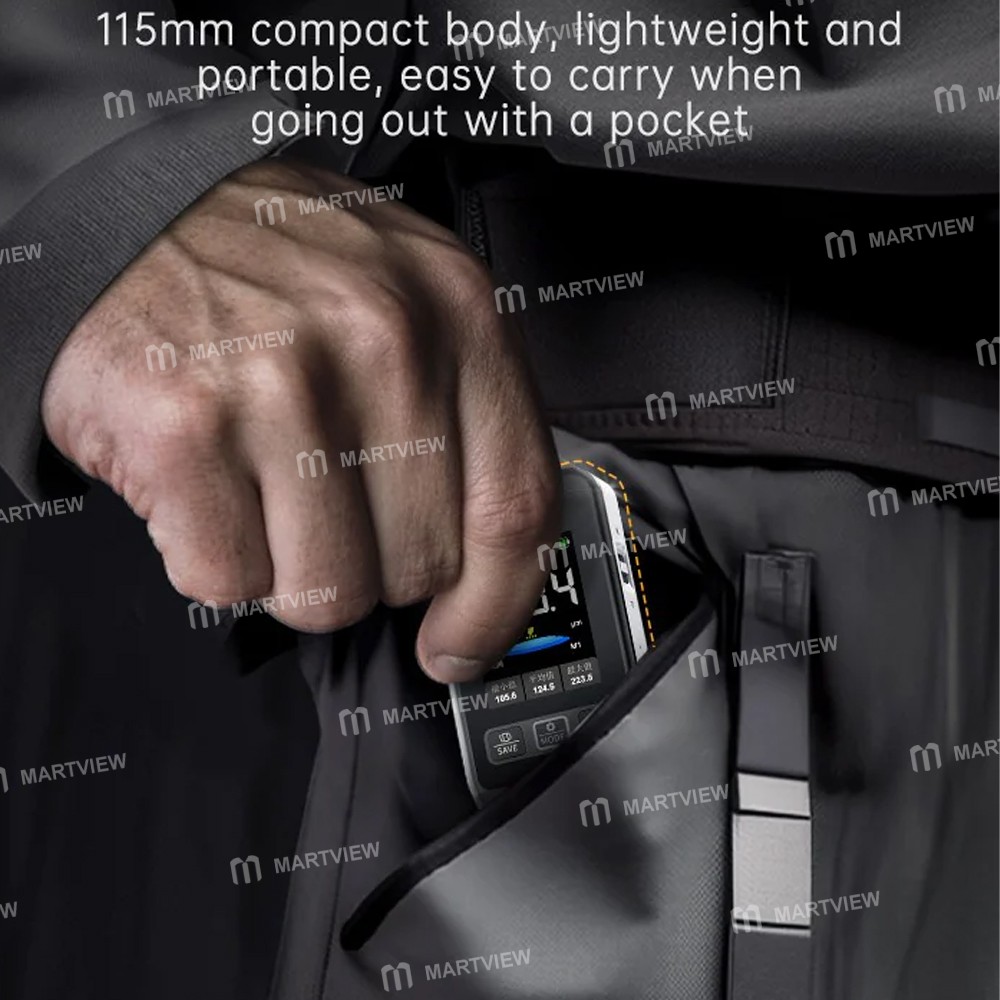

• Exquisite and compact one-handed grip, 115mm compact body, lightweight and portable, easy to carry when going out with a pocket

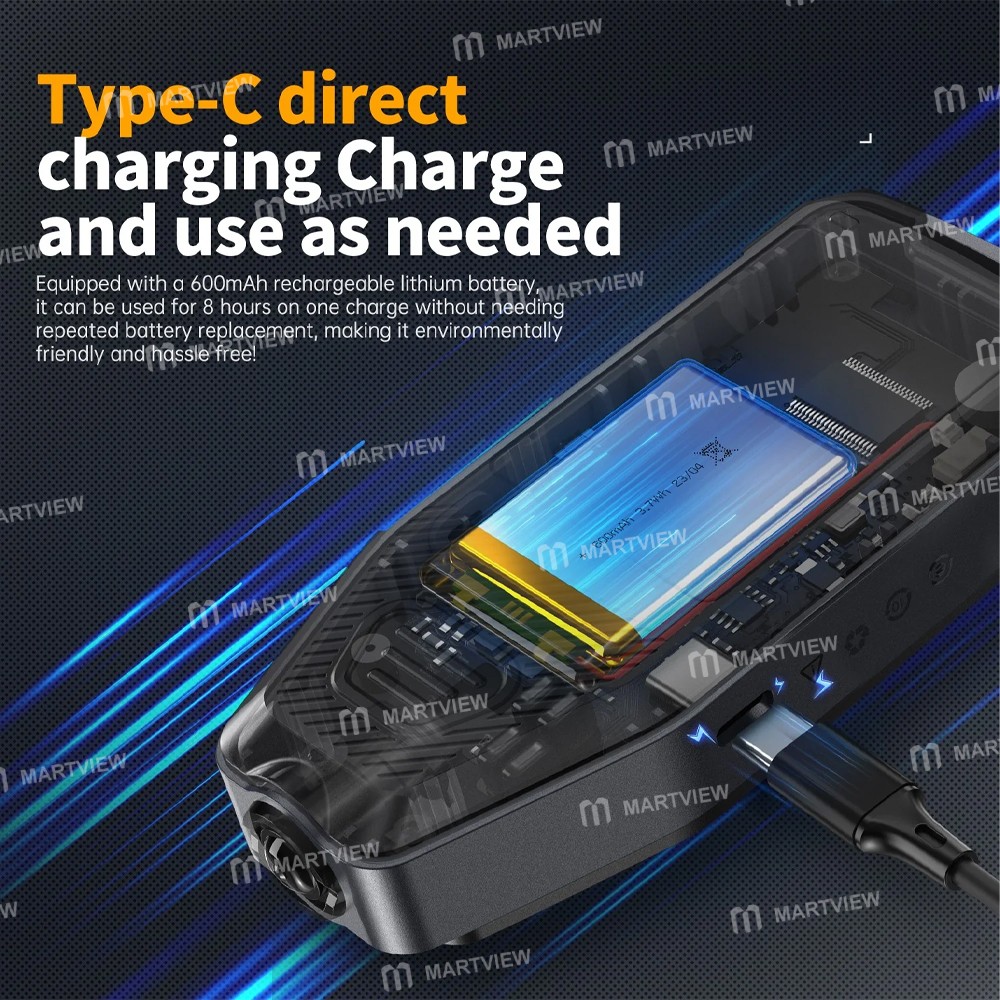

• Equipped with a 600mAh rechargeable lithium battery, it can be used for 8 hours on one charge without needing repeated battery replacement, making it environmentally friendly and hassle-free

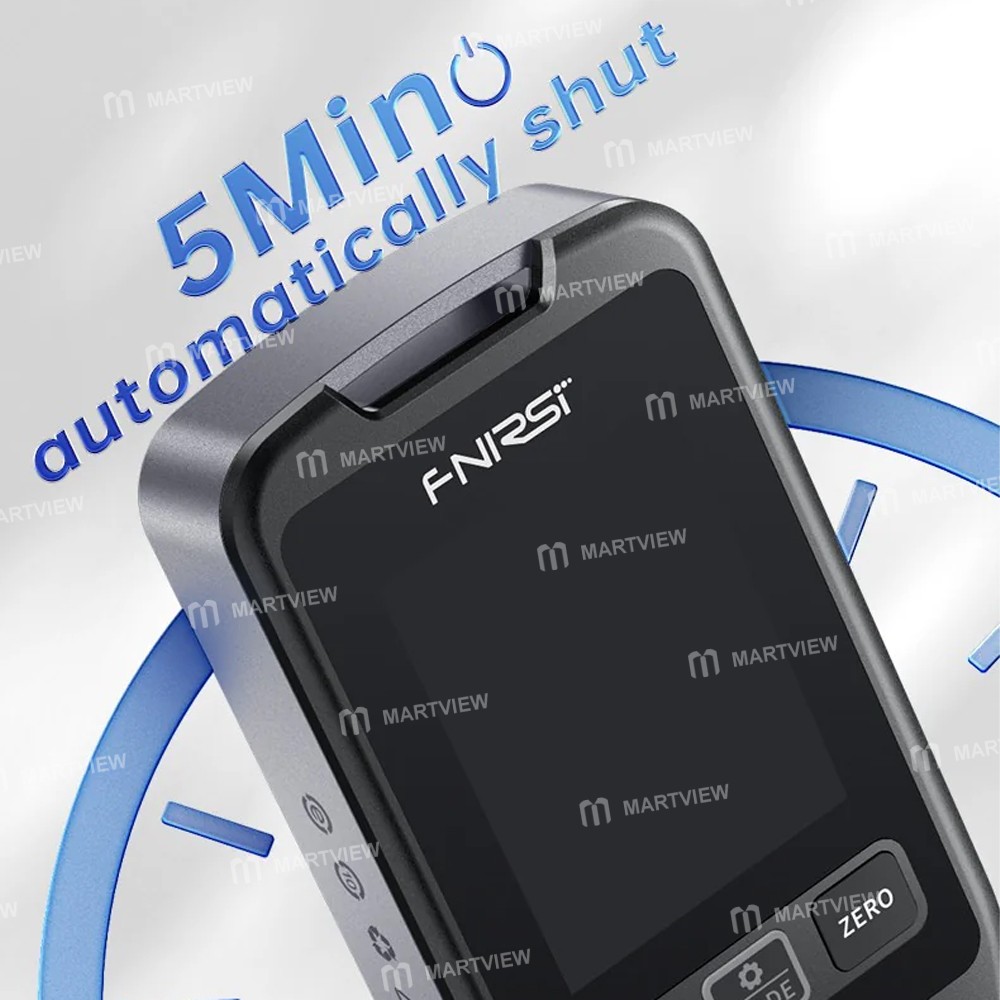

• Automatic shutdown without operation, automatic shutdown can be set, with no operation for 5 minutes to automatically shut down and extend battery life

Specification:

• Measuring range: 0~1400um

• Accuracy: ±3%+2um

• Resolution ratio: 0.1um

• Calibration: Zero-point calibration, multi-point calibration

• Unit: um, mil

• Minimum convex curvature radius: 5mm

• Minimum concave curvature radius: 25mm

• Minimum measurement area diameter: 20mm

• Work environment: No strong magnetic field Temperature: -10~50℃; Humidity: 20%~90% RH

• Battery: 600mAh Lithium battery

• Data Storage: Support

• Putty Powder Test: Support

• Rotatable Screen: Support

• Auto Power Off: Support

• Size: 115*48*18mm

Package includes:

• 1 x Coating Thickness Gauge

• 1 x Charging Cable
