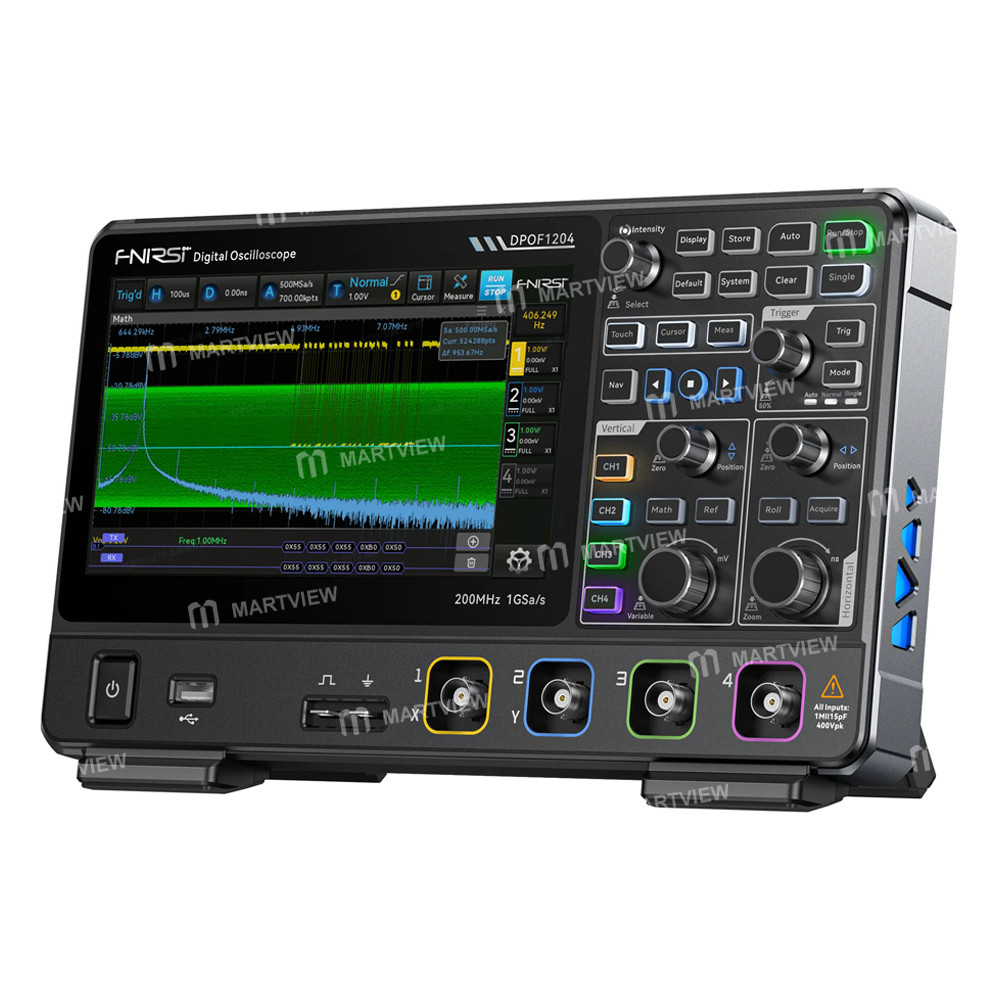

Fnirsi DPOF1204 200MHz 1GSa / s 4-Channel High-Refresh-Rate Desktop Digital Fluorescence Oscilloscope

Fnirsi DPOF1204 200MHz 1GSa/s 4-Channel High-Refresh-Rate Desktop Digital Fluorescence Oscilloscope

Features:

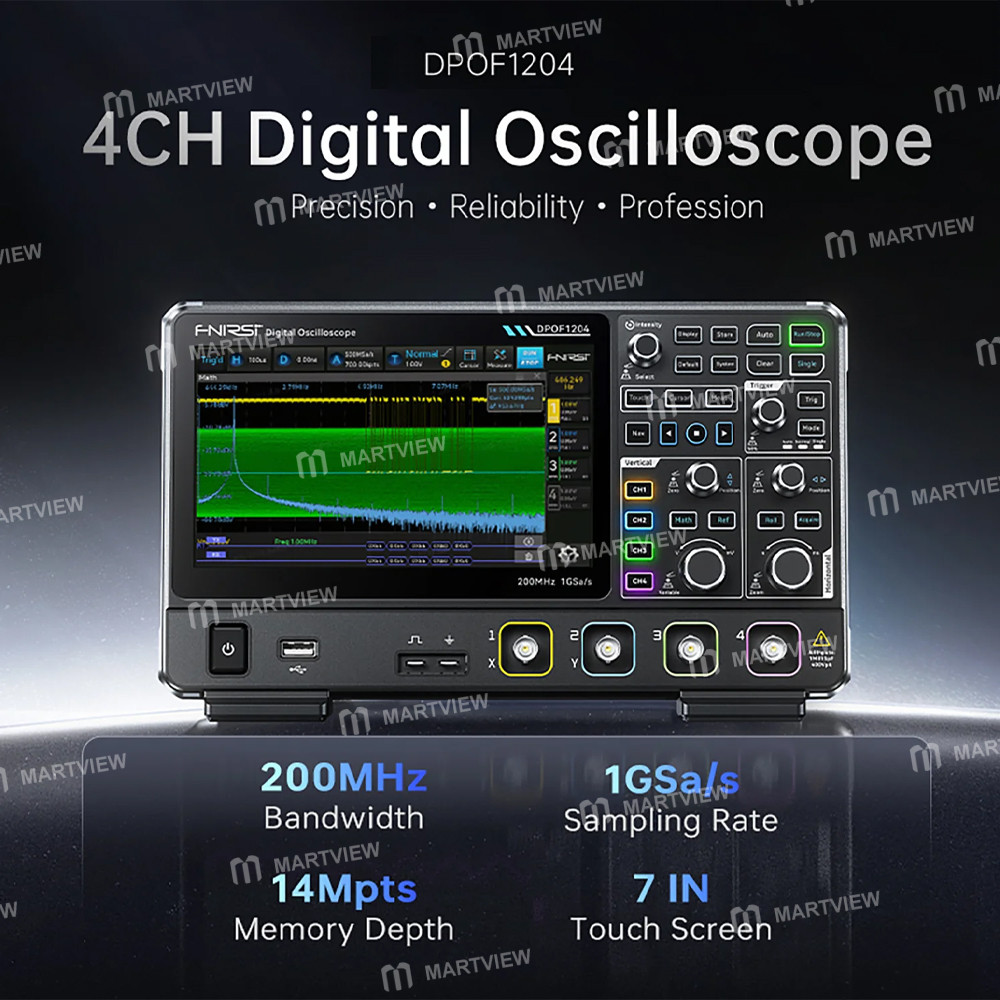

• Analog 4CH Ultra Precision: Equipped with four independent analog channels, the DPOF1204 ensures high-precision signal acquisition and accurate multi-channel analysis for complex and high-demand measurement applications.

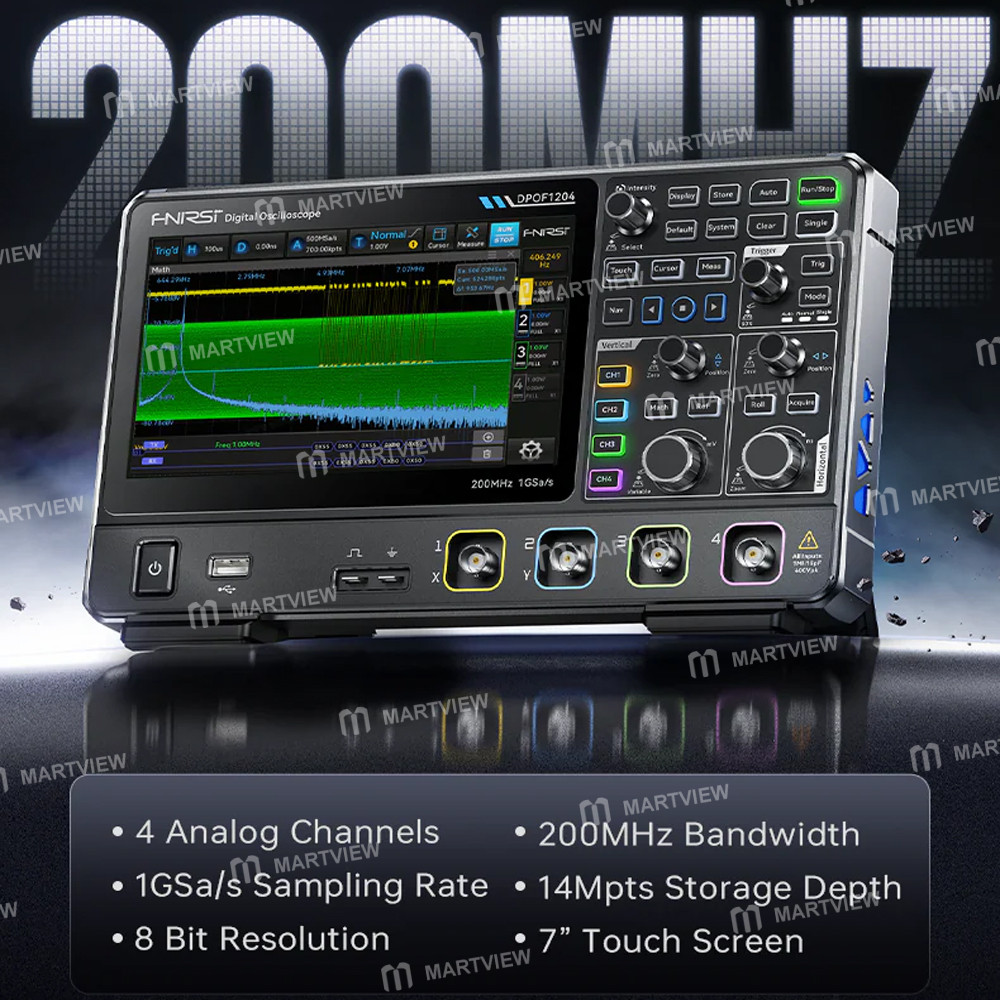

• High-Performance Signal Capture: It delivers a bandwidth of 200 MHz and a maximum real-time sampling rate of 1 GSa/s, ensuring accurate waveform reconstruction and reliable measurement results.

• Ultra-Fast Waveform Capture Rate: With a waveform capture rate of up to 450,000 waveforms per second, the device allows users to quickly detect transient events and rare signal anomalies.

• Deep Memory Depth: The oscilloscope provides up to 14 Mpts memory depth, enabling long-duration signal recording while maintaining high resolution during waveform zoom and analysis.

• Ultra-Low Noise & High Sensitivity: Its ultra-low noise design, with a noise floor as low as 70–90 μVrms and a sensitivity of 500 μV/div, ensures precise measurement of low-level signals and improved signal clarity.

• Advanced Triggering System: The device includes more than 13 hardware trigger modes along with serial bus triggers, enabling accurate capture of complex signal conditions and protocol-specific events.

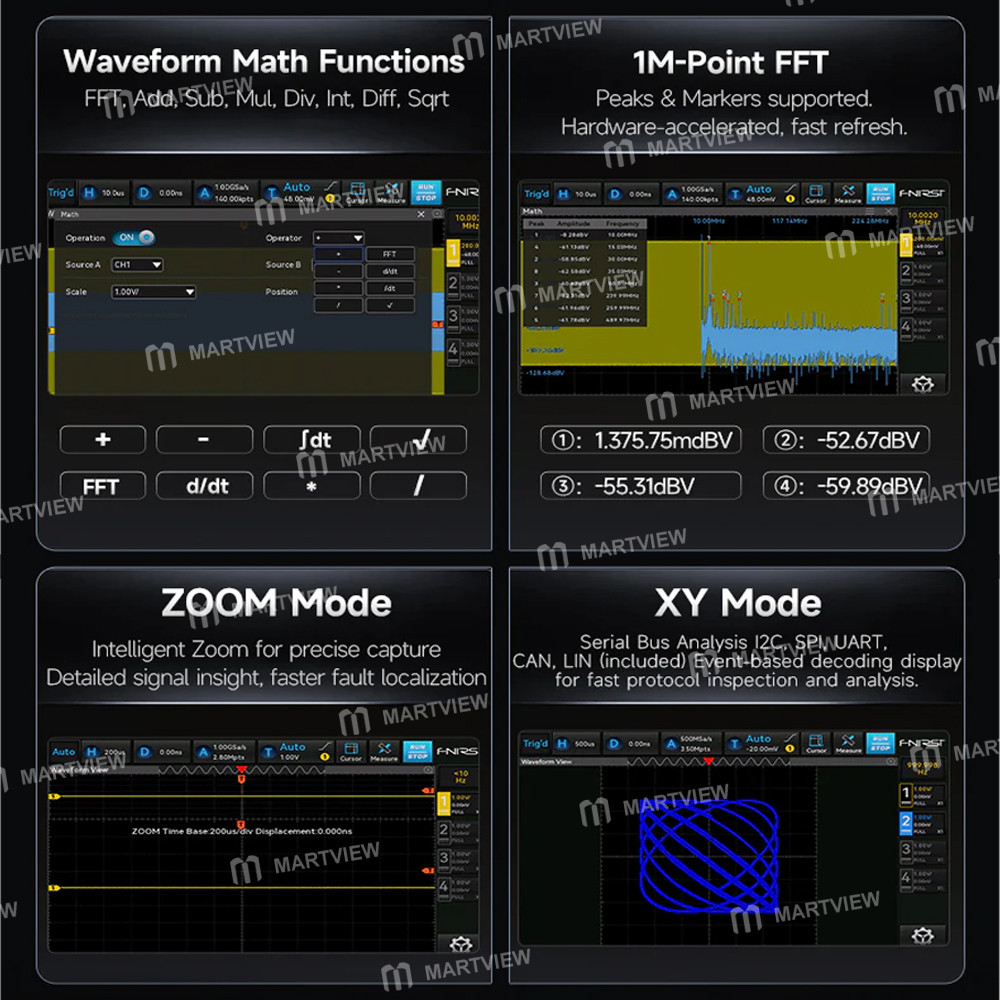

• Integrated FFT Spectrum Analysis: The built-in FFT function supports up to 1M-point processing with peak detection and marker capabilities, allowing efficient frequency-domain analysis alongside time-domain measurements.

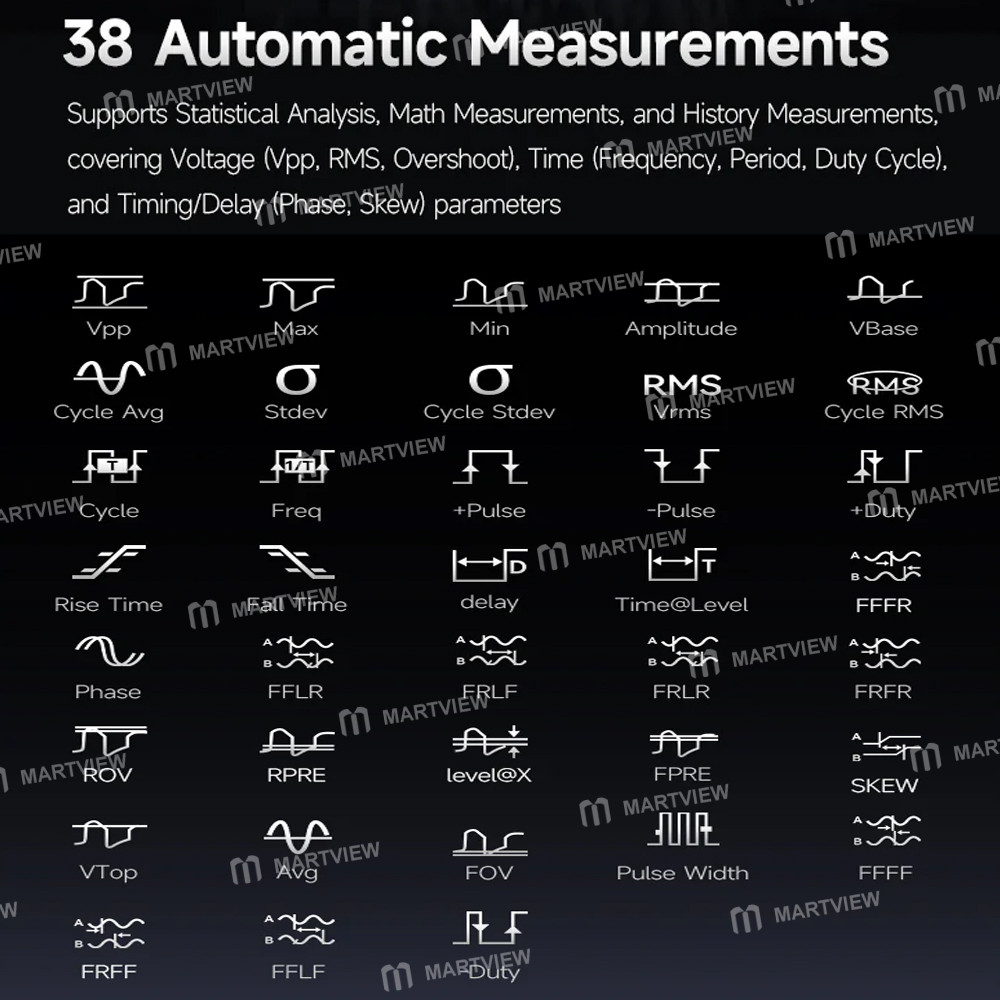

• Comprehensive Measurement Functions: It offers 38 automatic measurement parameters covering voltage, time, and delay, along with support for statistical analysis, math operations, and history measurements.

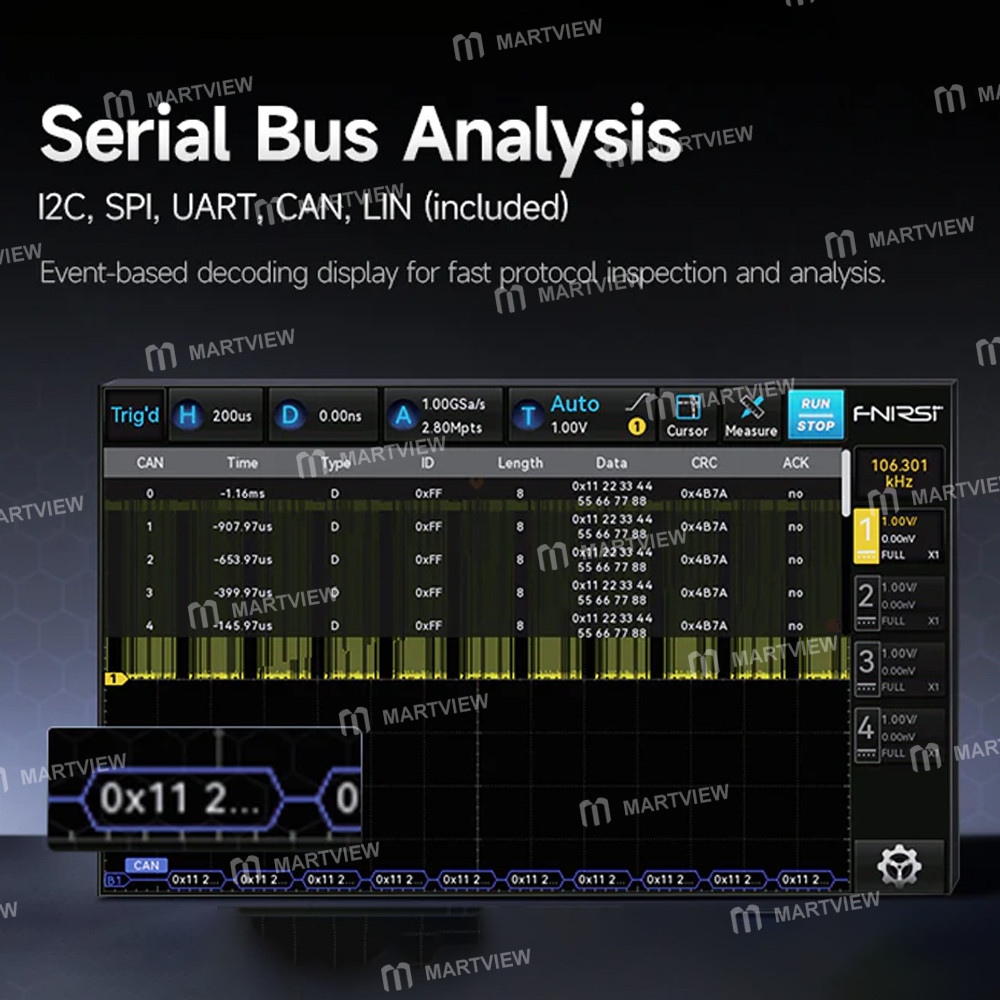

• Serial Bus Decoding: The oscilloscope supports I2C, SPI, UART, CAN, and LIN decoding, simplifying embedded system debugging and communication analysis.

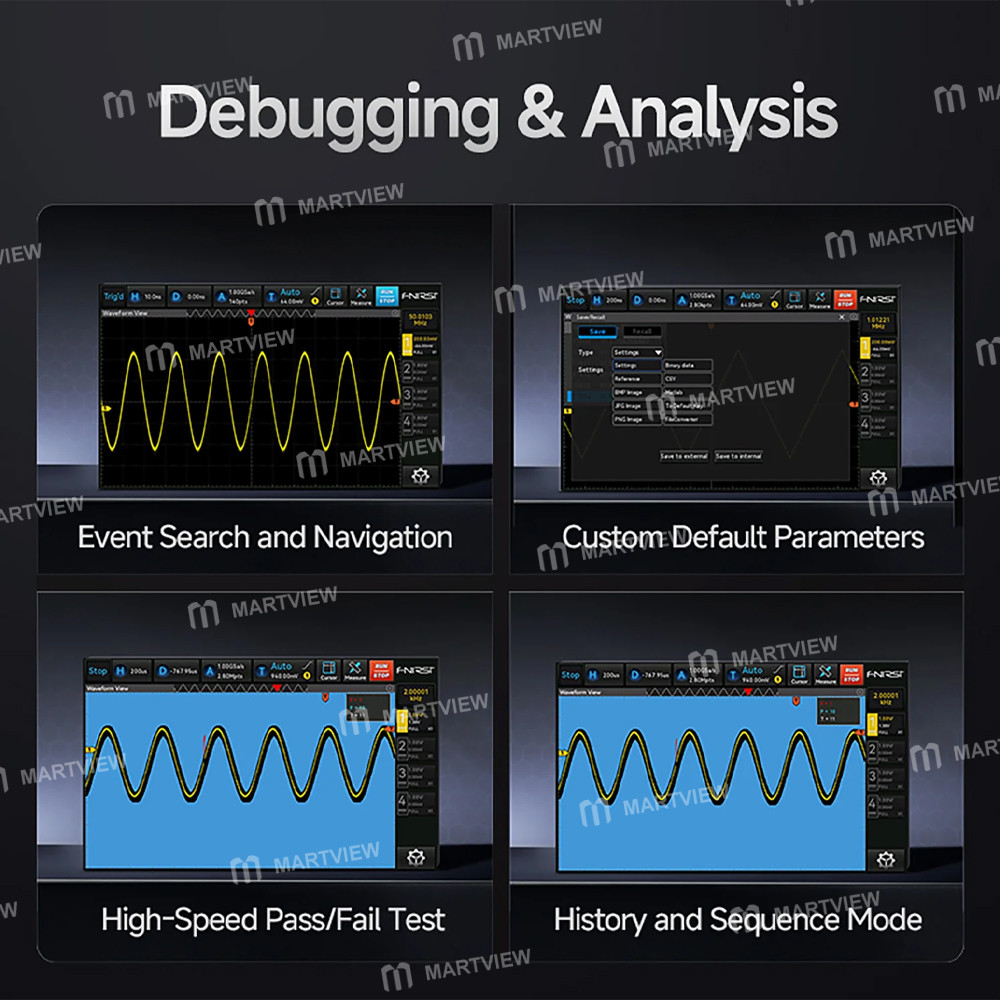

• History & Sequence Mode: It supports up to 90,000 segmented records with minimal dead time, enabling efficient capture, replay, and fast localization of abnormal events.

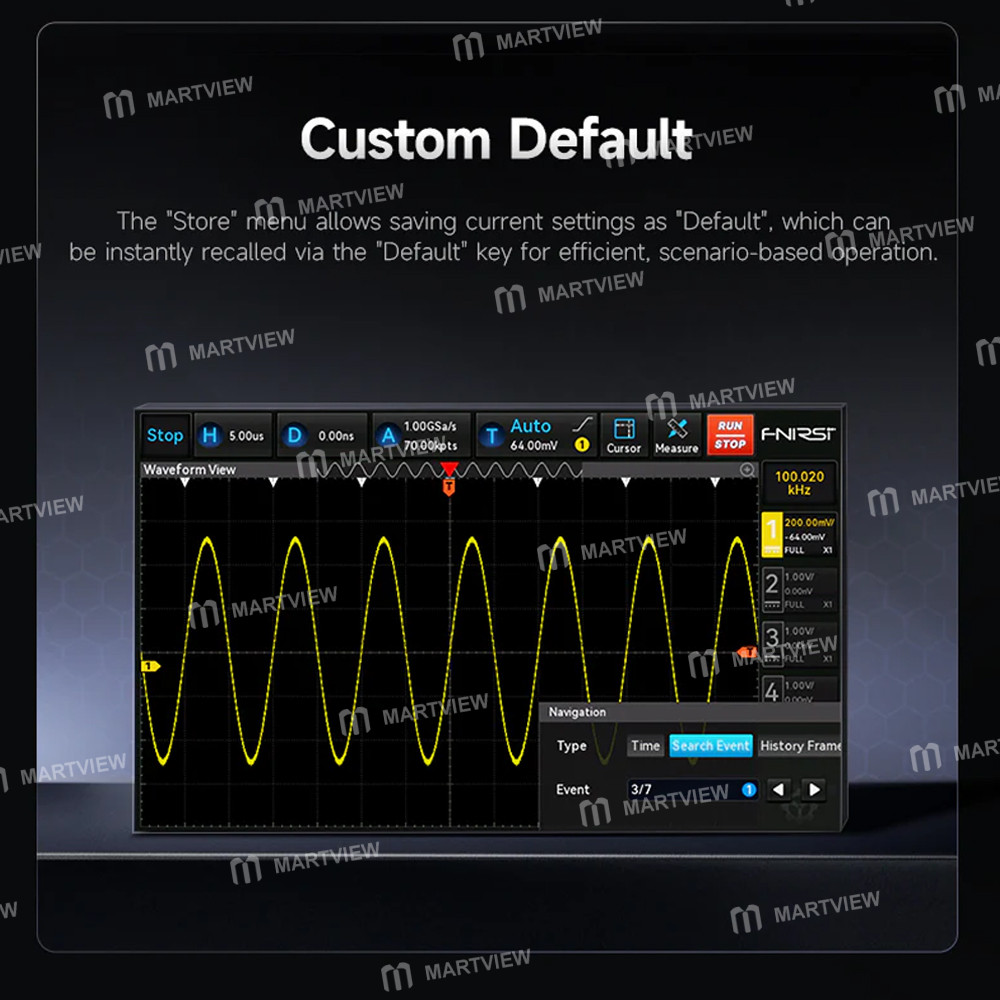

• Intelligent Analysis Tools: The device includes event search and navigation functions, allowing users to quickly locate waveform events based on defined criteria.

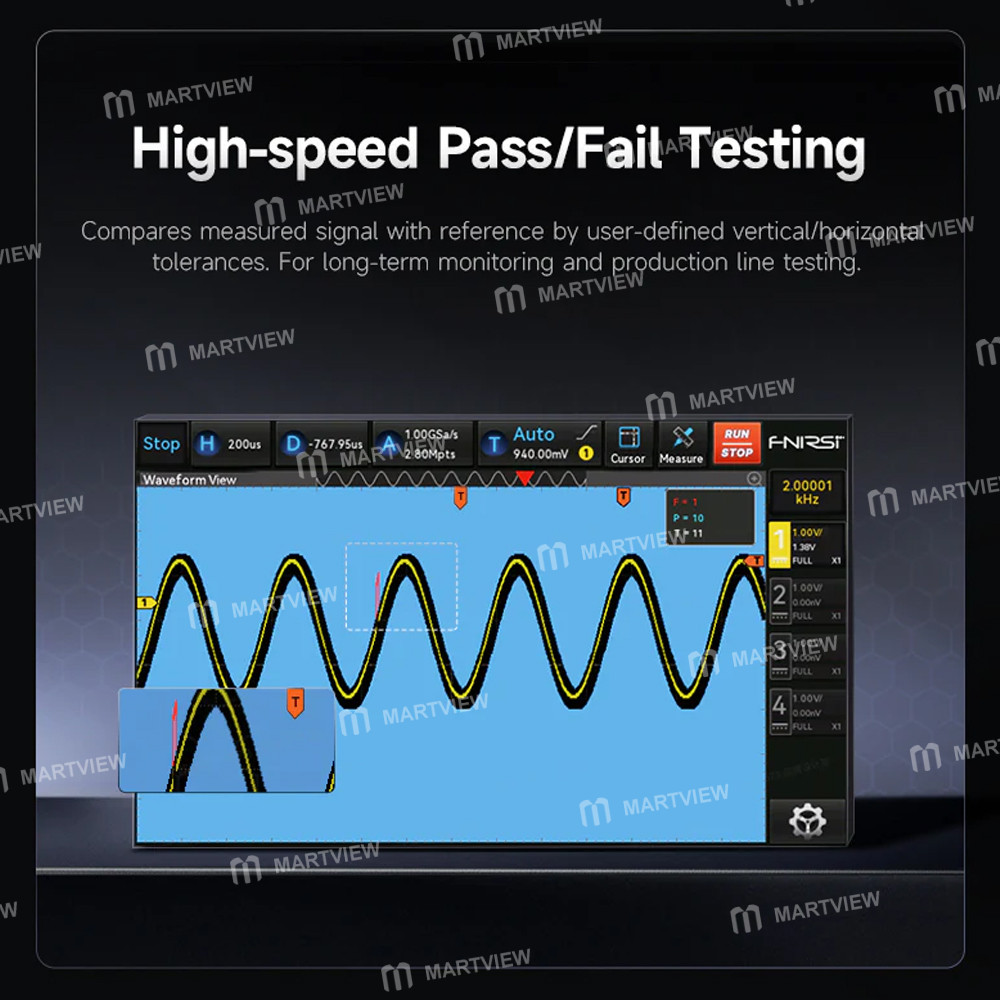

• Pass/Fail Testing Capability: It supports high-speed Pass/Fail testing with user-defined tolerances, making it suitable for automated testing and production line applications.

• User-Friendly Operation: The intuitive interface features a 7-inch touchscreen and 18 one-click shortcut operations, improving efficiency and simplifying workflow.

• Flexible Connectivity & Remote Control: Multiple interfaces, including USB, LAN, and trigger I/O, combined with SCPI commands and WebControl support, enable remote operation and system integration.

• Advanced Hardware Architecture: Built on a SoC and FPGA integrated architecture, the oscilloscope ensures high-speed processing, signal integrity, and stable performance in demanding environments.

Specifications:

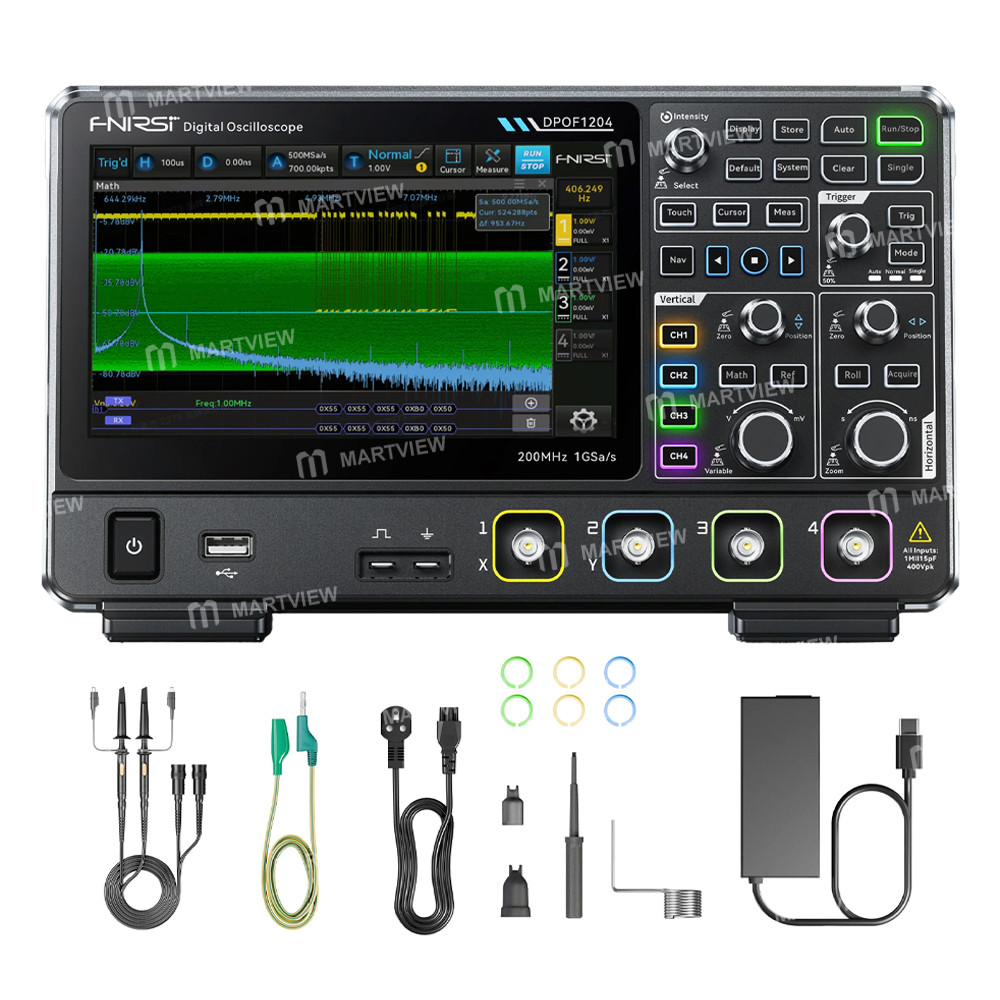

Package includes:

• 1 x Oscilloscope

• 4 x Passive Probes

• 1 x Grounding Wire

• 1 x Power Adapter

• 1 x USB-A to USB-B Cable
