Fnirsi DSO-TC2 Portable 2-in-1 Multi-function Digital Oscilloscope Transistor Tester Multimeter

Fnirsi DSO-TC2 Portable 2-in-1 Multi-function Digital Oscilloscope Transistor Tester Multimeter

Features:

• TC2 ingeniously integrates a digital oscilloscope, electronic component tester, PWM signal generator, and other functions into one. It is equipped with a large-size color dot matrix TFT display

• Bring more practical functions to users with a small size, Also has good portability.

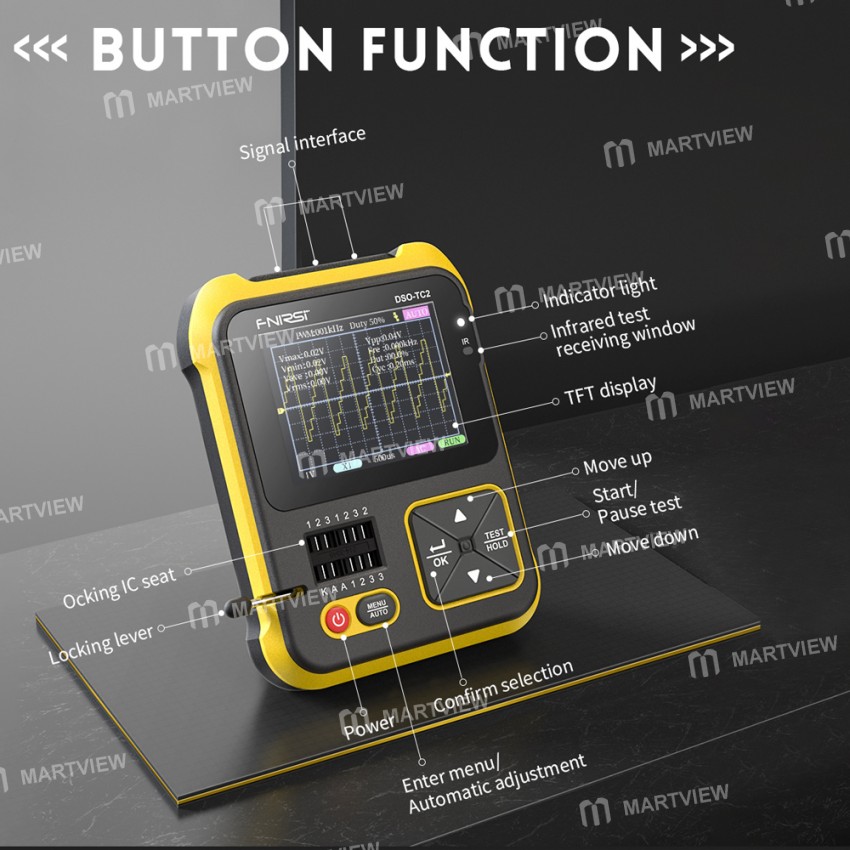

• TC2 has various working modes such as oscilloscope and component tester. Each time you click the power button, it will enter the mode selection interface

• "Mos Test" mode can test various types of transistors and identify device type, pin polarity, hFE, turn-on voltage, junction capacitance, capacitance, resistance, inductance components, etc.

• TC2 is especially suitable for the fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small-batch components

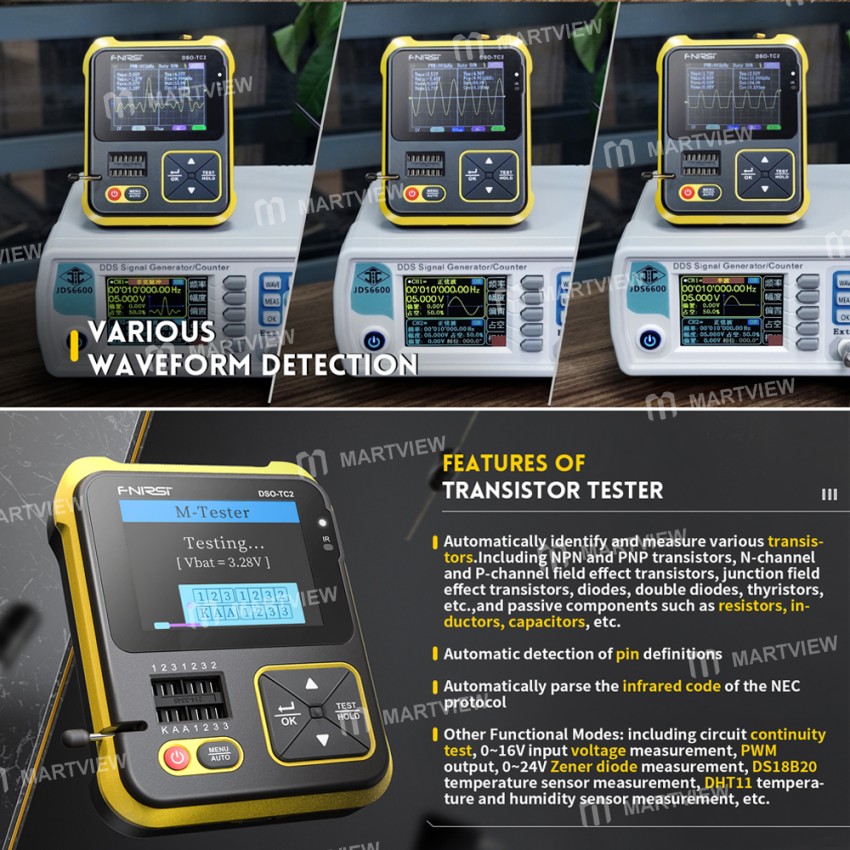

• "Oscilloscope" mode to test the signal waveform of the circuit

• Support online operation with a computer, you can refresh the official firmware by yourself and complete the upgrade

• The real-time sampling rate of 2.5MS/s 200kHz bandwidth

• With full trigger function (single, normal, automatic)

• Can measure voltage signals up to ±400V

• Equipped with efficient one-button AUTO, the measured waveform can be displayed with a simple adjustment

• Self-contained 80kHz/5.0VPWM wave test signal source with an adjustable duty cycle

• Automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel FETs, junction FETs, diodes, dual diodes, thyristors, etc., as well as passive components such as resistors, inductors, and capacitors

• Automatic detection of pin definitions

• Automatically parse the infrared code of NEC protocol

• Other functional modes: include circuit continuity test, 0~16V input voltage measurement, PWM output, 0~24V Zener diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature, and humidity sensor measurement, etc

Specification:

• Real-Time Sampling Rate: 2.5MS/s

• Analog Band Width: 0~200kHz

• Input Resistance: 1MΩ

• Coupling Mode: AC/DC

• Test Voltage Range: 1:1 probe: 80Vpp(±40V): 10:1 probe: 800Vpp (400V)

• Vertical Sensitivity: 10mV/Div 10V/Div (in 1-2-5 increments)

• Vertical displacement: Adjustable, with an indication

• Horizontal time base range: 10us/Div ~500s/Div (in 1-2-5 increments)

• Trigger mode: Auto/Normal/Single

• Trigger type: Rising edge, falling edge

• Trigger level: Adjustable, with an indication

• Waveform freeze: Yes (HOLD function)

• Automatic: Maximum, minimum, average, RMS, peak-to-peak, Measurement Frequency, period, duty cycle

• PWM output: FRQ: 0~80KHz, Duty cycle: 0~100%, Amplitude: 5.0V

Package includes:

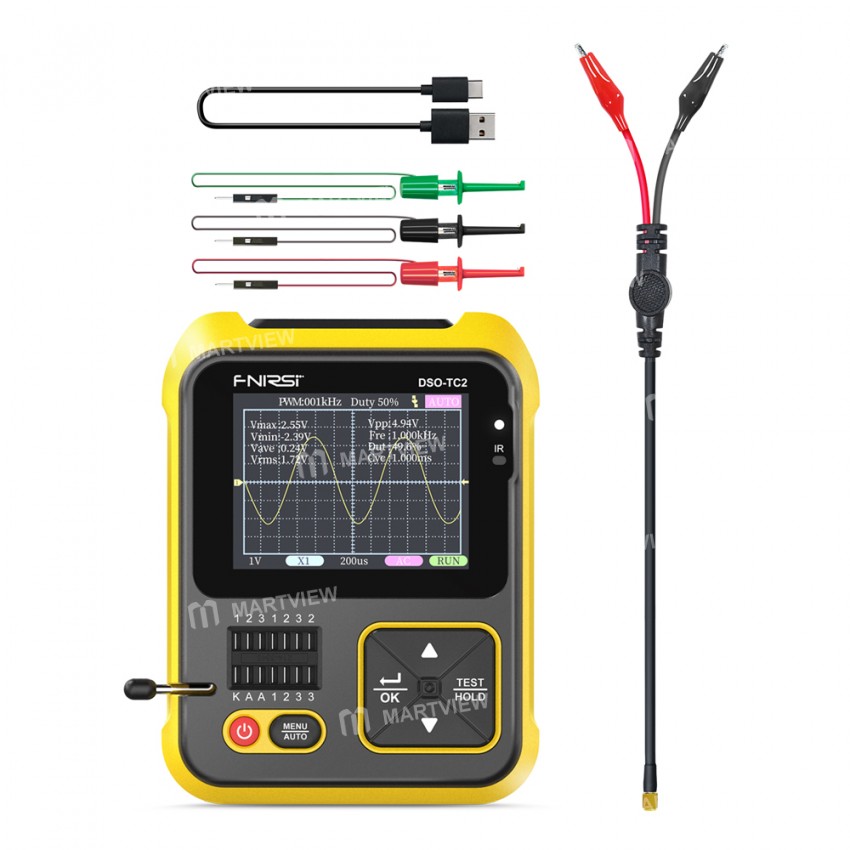

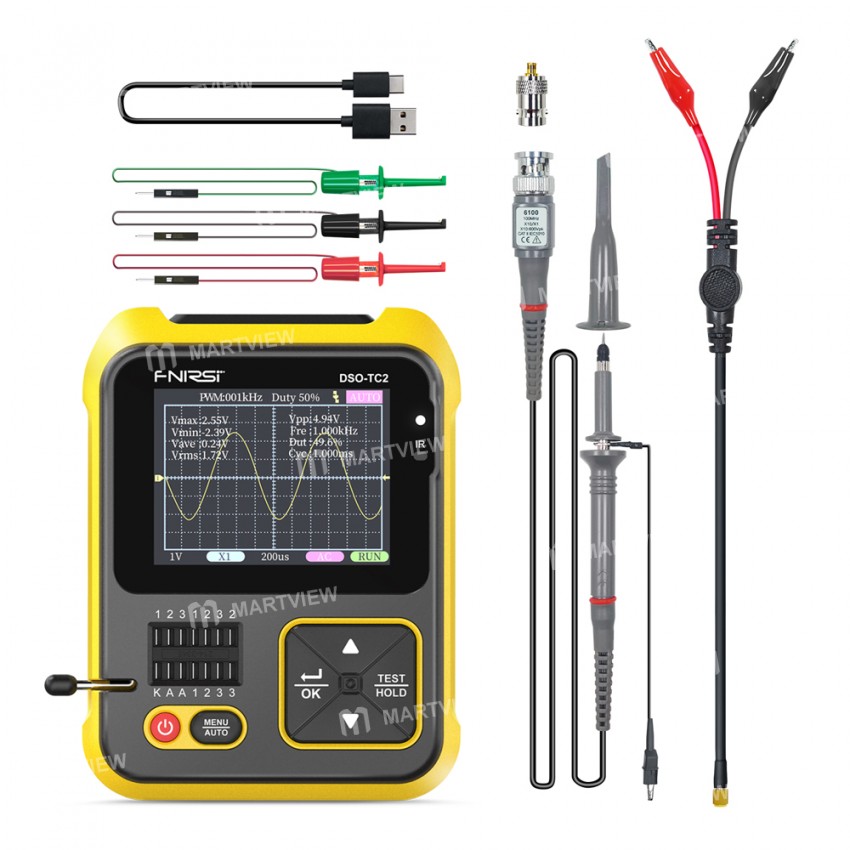

• 1 x Host

• 1 x Type-C Cable

• 3 x Test hook

• 1 x Regular Probe

• 1 x Adapters(only High-end version)

• 1 x P6100 High Voltage Probe(only High-end version)
