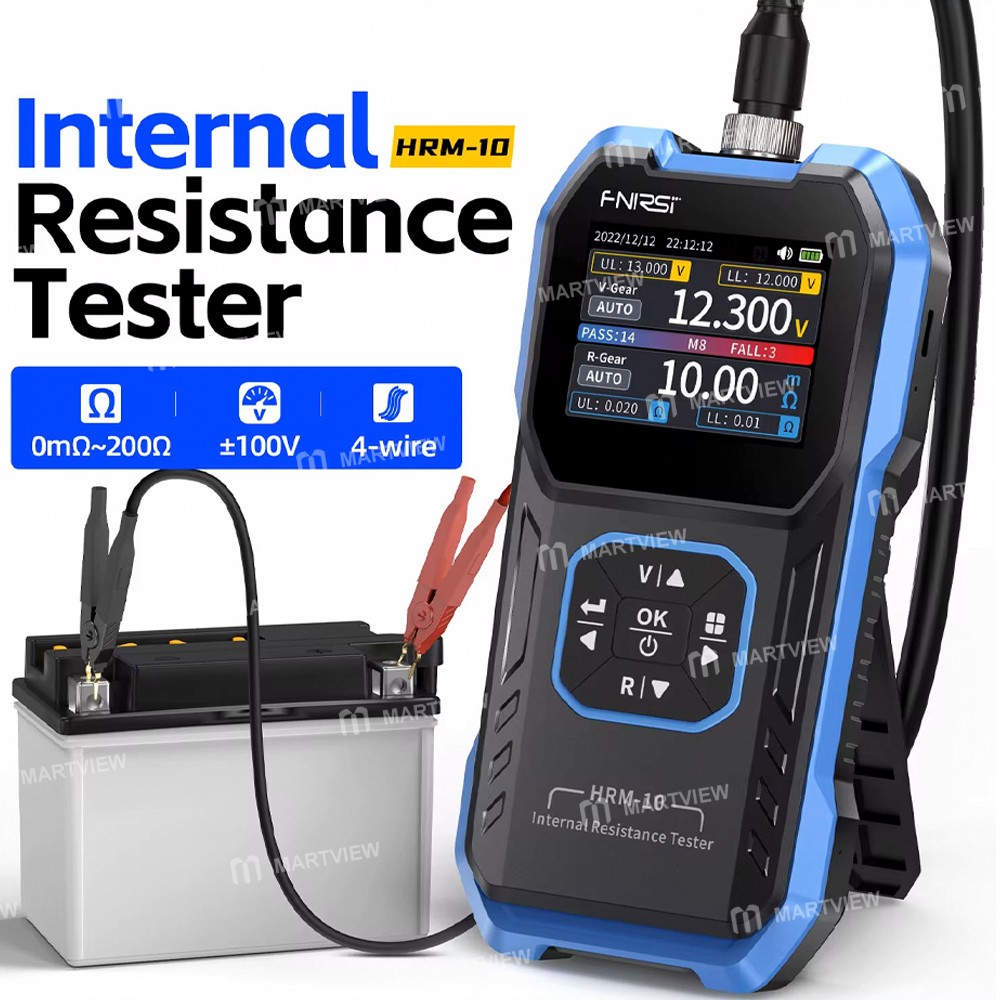

Fnirsi HRM-10 High-precision Lithium Battery Voltage Internal Resistance Tester

Fnirsi HRM-10 High-precision Lithium Battery Voltage Internal Resistance Tester

Features:

• HRM-10 high-precision internal resistance tester, resistance: 0mΩ~2000Ω, voltage: 0V~±100V

• TFT HD color display, brilliant layout, data at a glance, upgrade your visual experience now

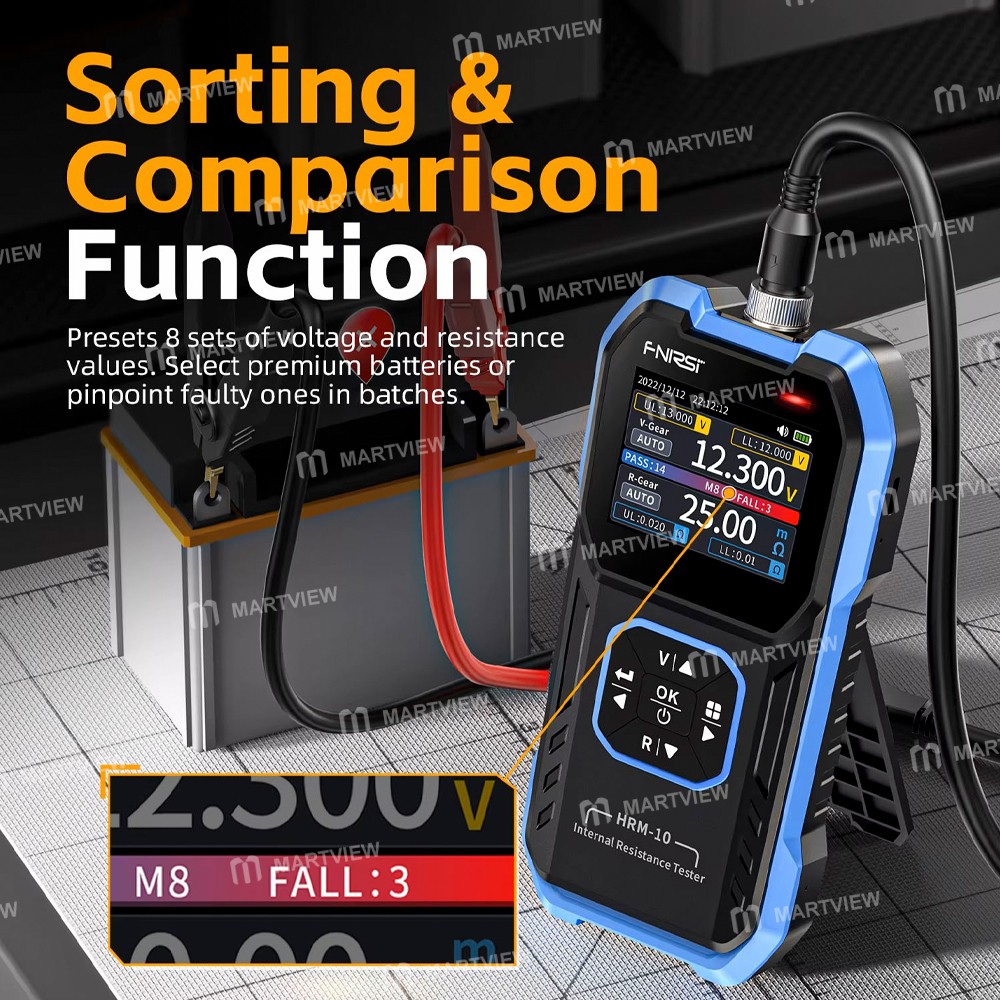

• Sorting & comparison function presets 8 sets of voltage and resistance values, select premium batteries or pinpoint faulty ones in batches

• Full-process record,  clear at a glance, auto-saved test records for clear, instant results, connect to PC, export analyze data easily

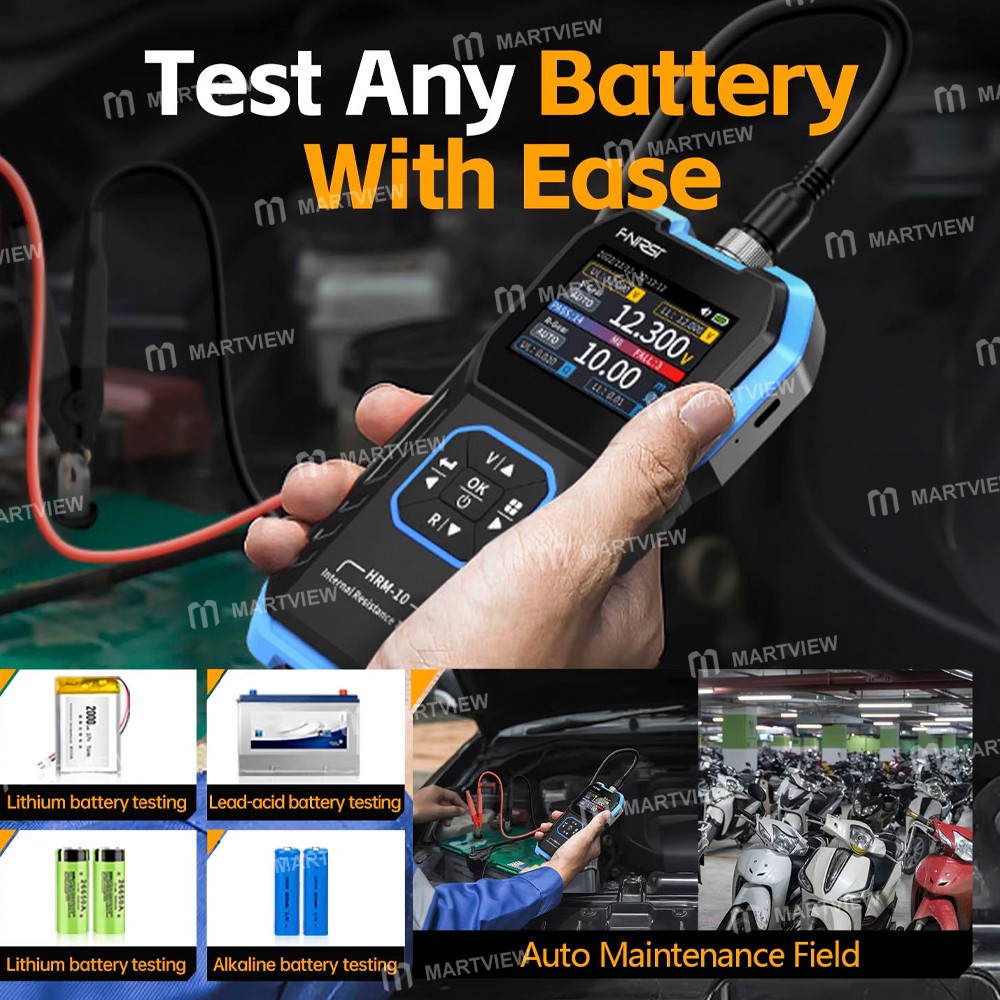

• Versatile use, unbeatable power, test any battery, see its internals at a glance, experience the power of our battery tester now

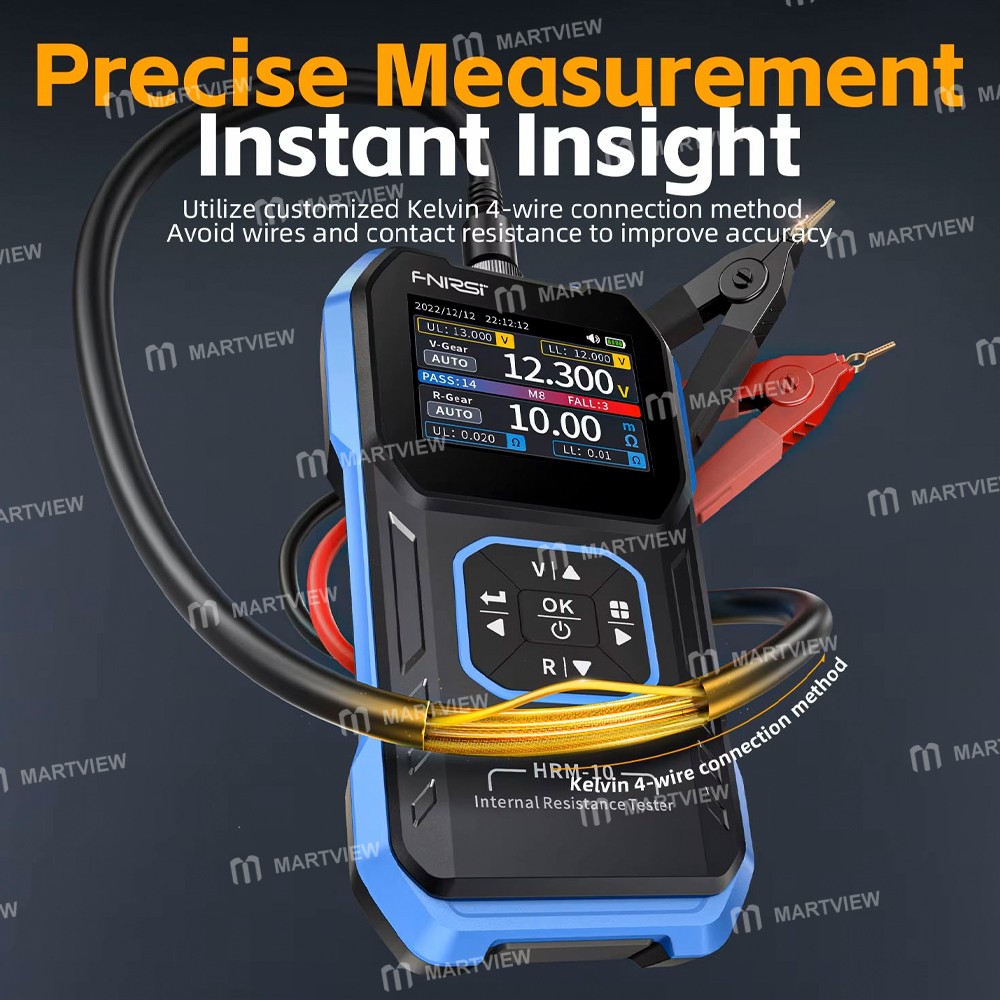

• Precise measurement, instant insight, utilize customized Kelvin 4-wire connection method, avoid wires and contact resistance to improve accuracy

• Data hold, record persistent stay, one-click pause, data stays on screen, no re-measurements, time and effort saved

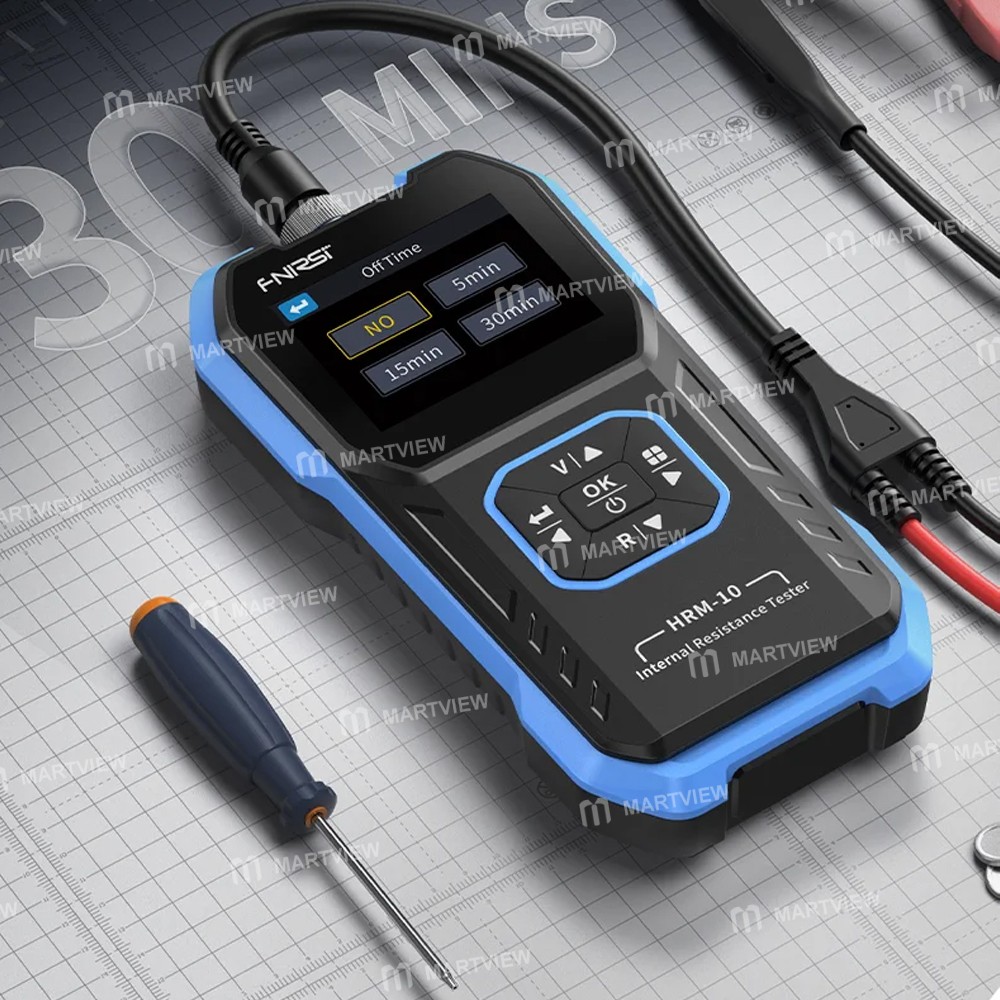

• Intimate protection, auto shutdown mode, choose auto shutdown or set a specific shutdown time for safety and longer device life

• Perfect for various occasions, lightweight & portable, your go-to tool for field repairs and DIY projects

Specification:

• Voltage measuring range: 0~±100V（DC）

• Voltage gear: Automatic, 1V, 10V, 100V

• Resistance measuring range: 0~200Ω

• Resistance gear: Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

• Accuracy: ±0.5%

• Instrument test signal frequency: AC 1Khz

• Rechargeable: Type-C interface (5V/1A)

• Built-in battery: 1000mAh lithium battery

• User calibration: Support

• Sorting mode: Support

• History record: Support

• Recorded data export: Support

• Working environment: -10℃~+45℃, relative humidity<80%

• Storage environment: -20℃~+80℃, relative humidity<80%

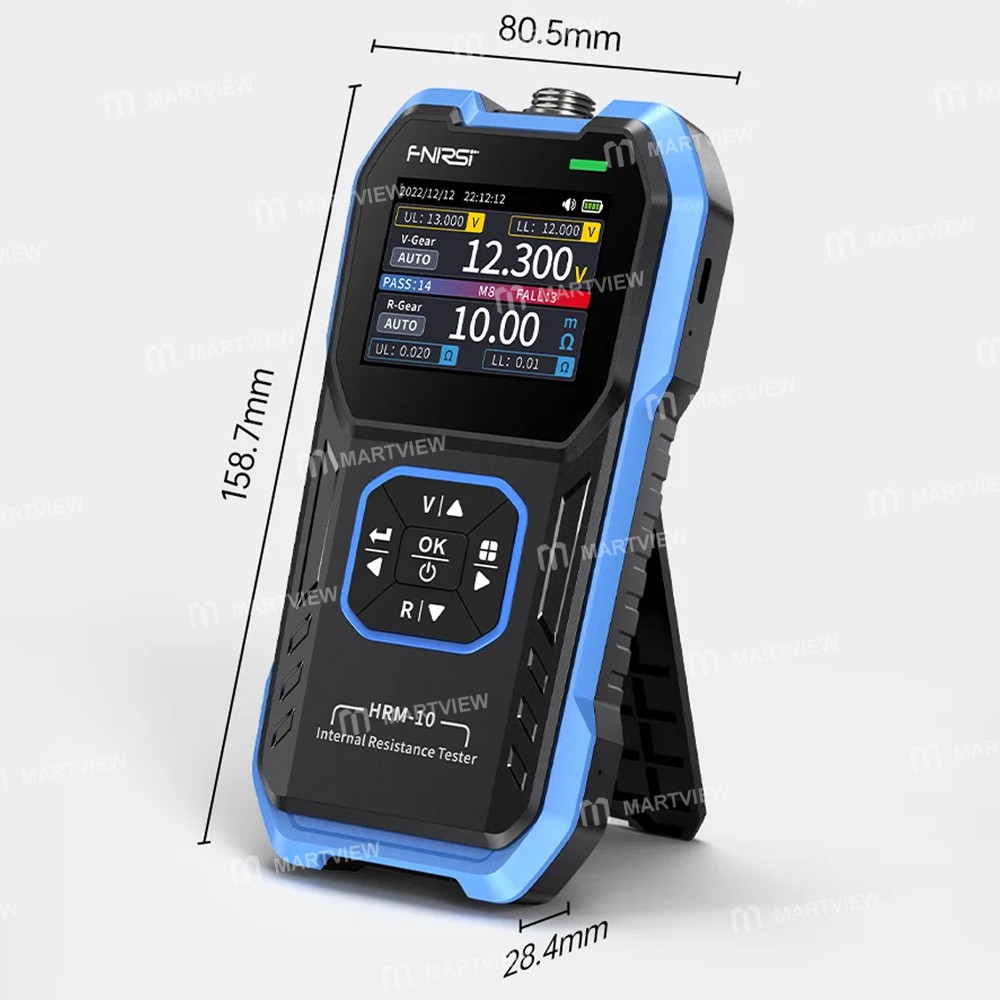

• Size: 158.7*80.5*28.4mm

• Weight: 225g

Package includes:

• 1 x HRM-10 Host

• 1 x Kelvin Clip Test Line

• 1 x Data Cable
