Fnirsi LCR-P1 Multifunction LCR Transistor Tester for Capacitor Resistor MOS Field Effect Diode Triode

Fnirsi LCR-P1 Multifunction LCR Transistor Tester for Capacitor Resistor MOS Field Effect Diode Triode

Features:

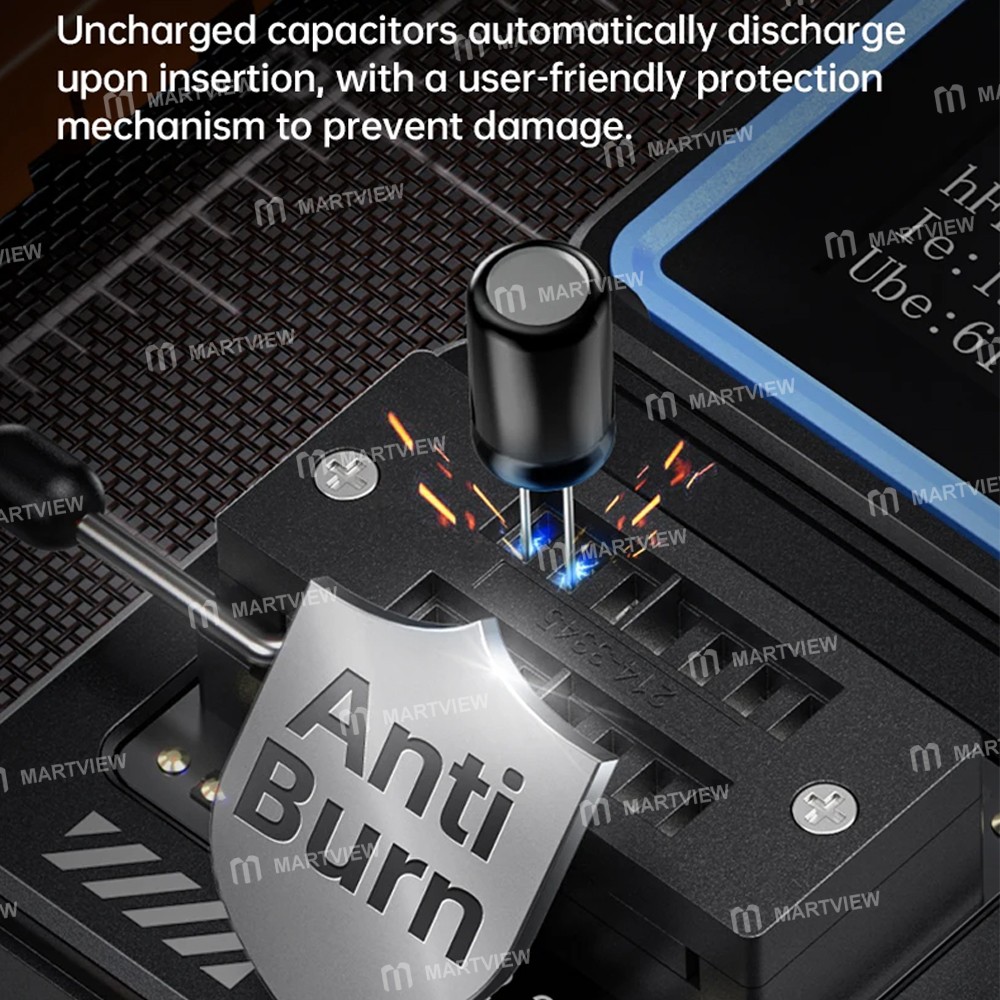

• Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage

• Supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer

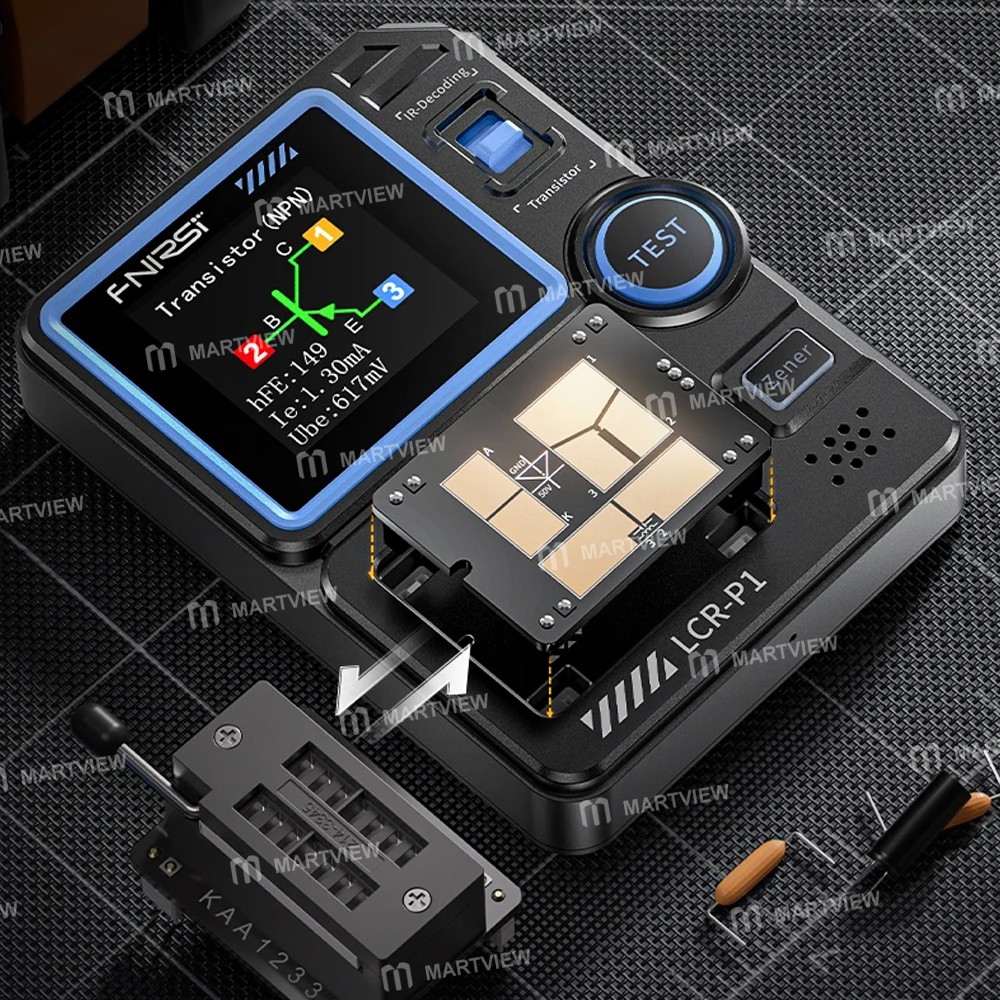

• Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency

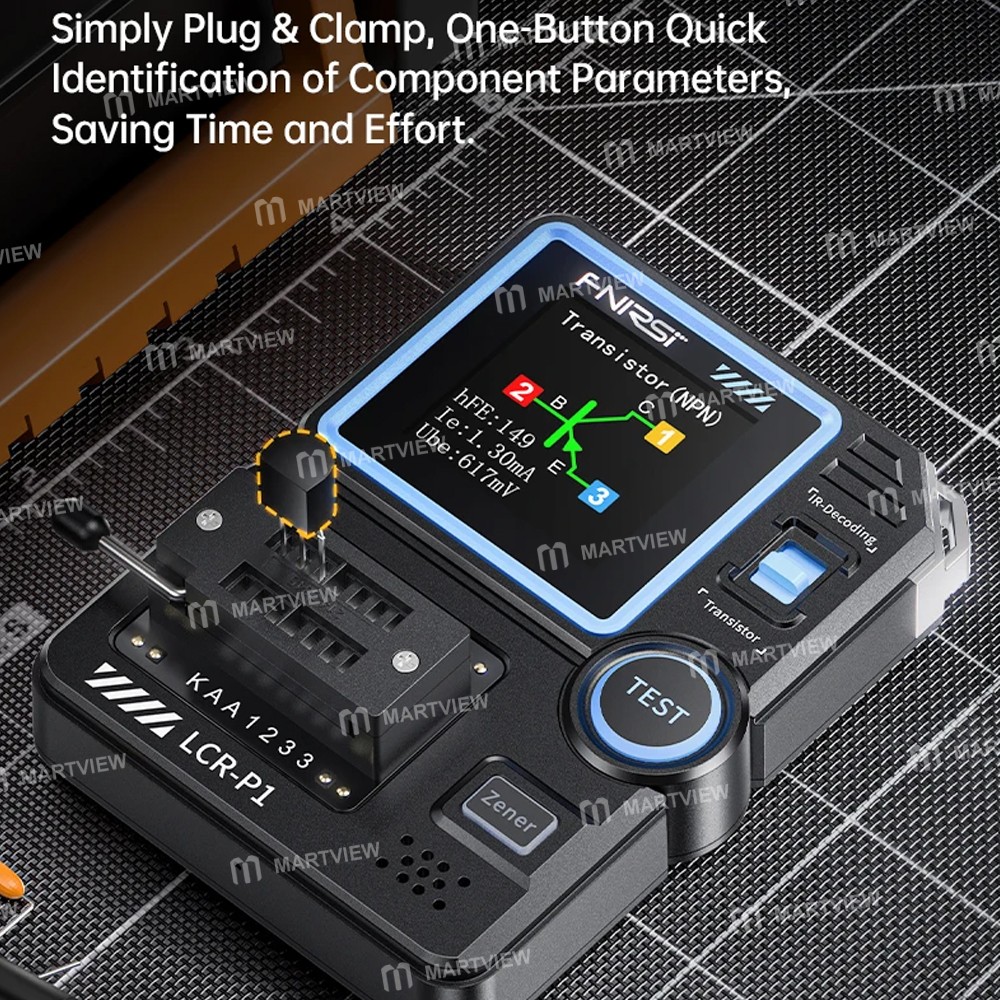

• Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort

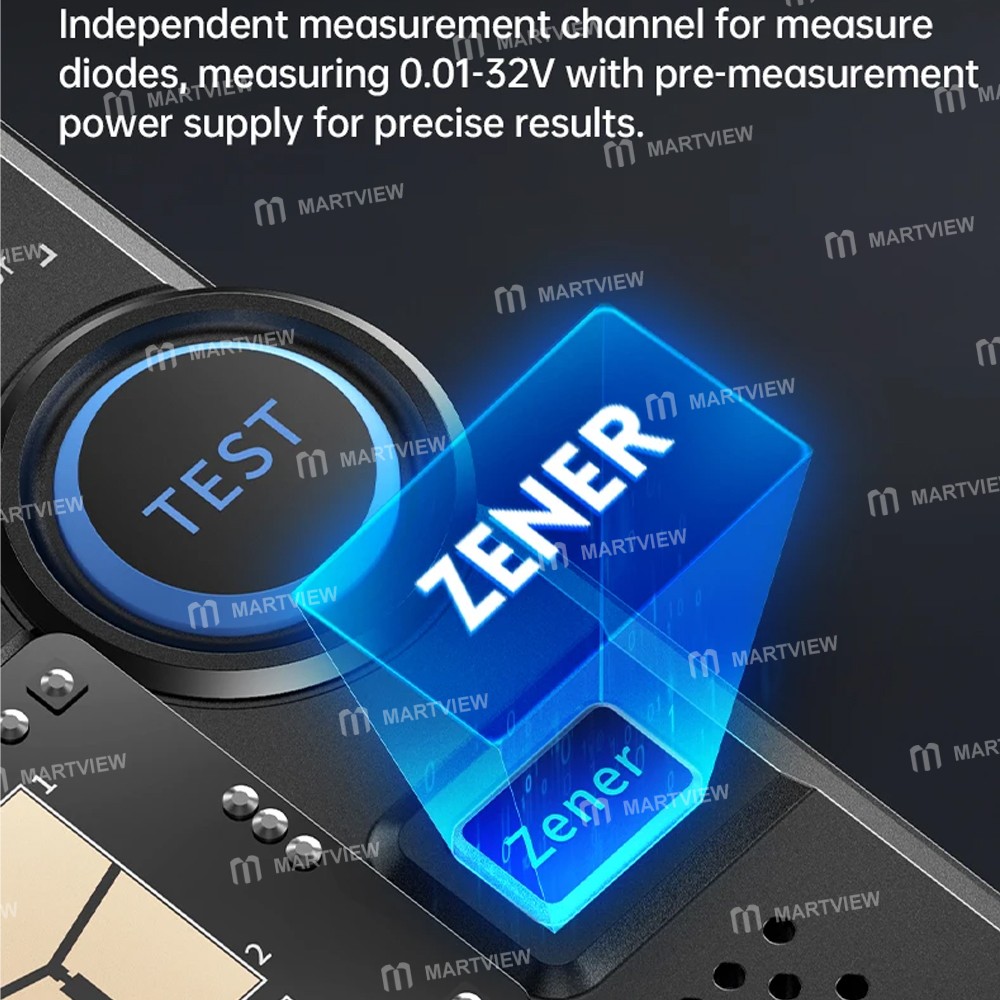

• Independent measurement channel for measuring diodes, measuring 0.01-32V with pre-measurement power supply for precise results

Specification:

• Model: LCR-P1

• Screen Display: 1.44 Inch Color Screen

• Charging Specification: USB Type-C, 5V/1A

• Power supply: 300mAh lithium battery

• Operating Temperature: 0~40℃

• Resistance: 0.01Ω~50MΩ

• Capacitance: 25pF~100mF

• Inductance: 10uH-1000uH

• Transistor: 10＜β＜600

• Diode: Forward voltage drop＜4.5V

• Voltage Regulator Diode: 0.01~4.5V, 0.01~32V

• Field-Effect Transistor: JFET, IGBT, MOSFET

• One-way/Bidirectional thyristor: Turn-on voltage < 5V, gate trigger current < 6mA

• Battery: 0.1~4.5V

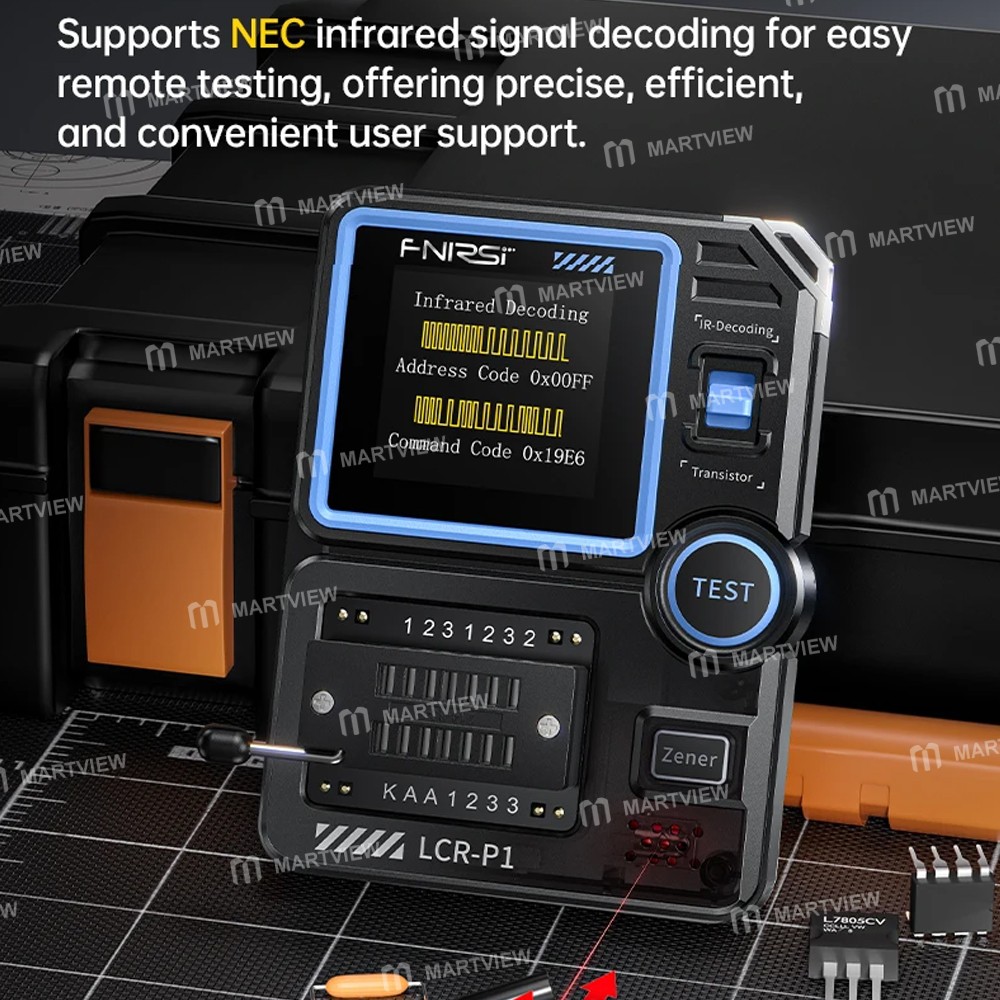

• IR remote decoding: NEC protocol infrared code

• Battery Capacity: 300mAh lithium battery

• Anti-burn protection: yes

• Data Export: Supported

• Firmware upgrade: Supported

Package includes:

• 1 x Host

• 1 x SMD test board

• 1 x Data cable

• 3 x Test Hook
