Fnirsi LCR-ST1 Handheld Digital Bridge Tweezers for Measuring Resistance Capacitance Inductance

Fnirsi LCR-ST1 Handheld Digital Bridge Tweezers for Measuring Resistance Capacitance Inductance

Features:

• The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument

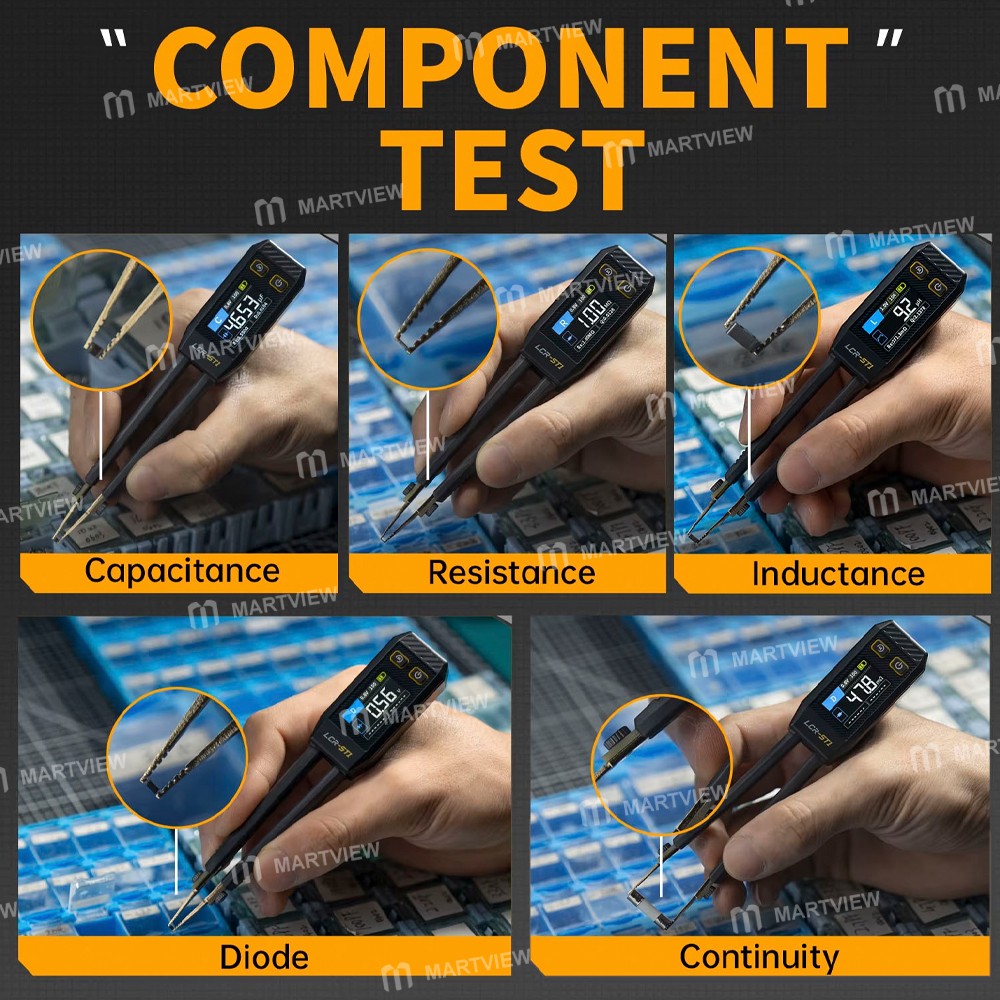

• It supports precise automatic measurements of resistance, capacitance, inductance, diodes, and Continuity.

• This product adopts advanced measurement technology to ensure high accuracy and stability

• Its 1.14-inch color screen display and magnetic adsorption function enhance the convenience of use

• The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

• The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components

• The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.

• Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately

Specification:

• Model: LCR-ST1

• Capacitance range: 1pF-22mF

• Inductance range: 1μh-10H

• Resistance range: 10mΩ-10MΩ

• Diode: On voltage 0.7V

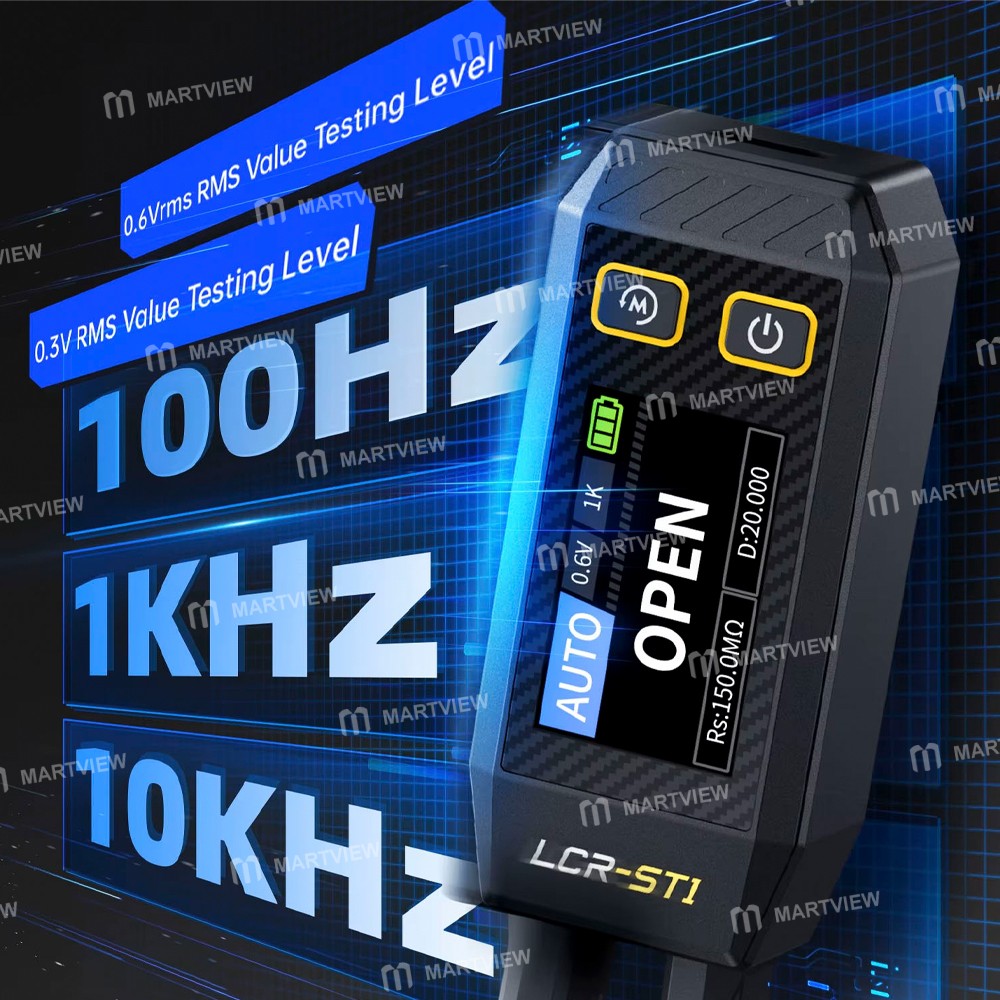

• Frequency test: 100Hz, 1kHz, 10KHz

• Level test: 0.3V, 0.6V RMS

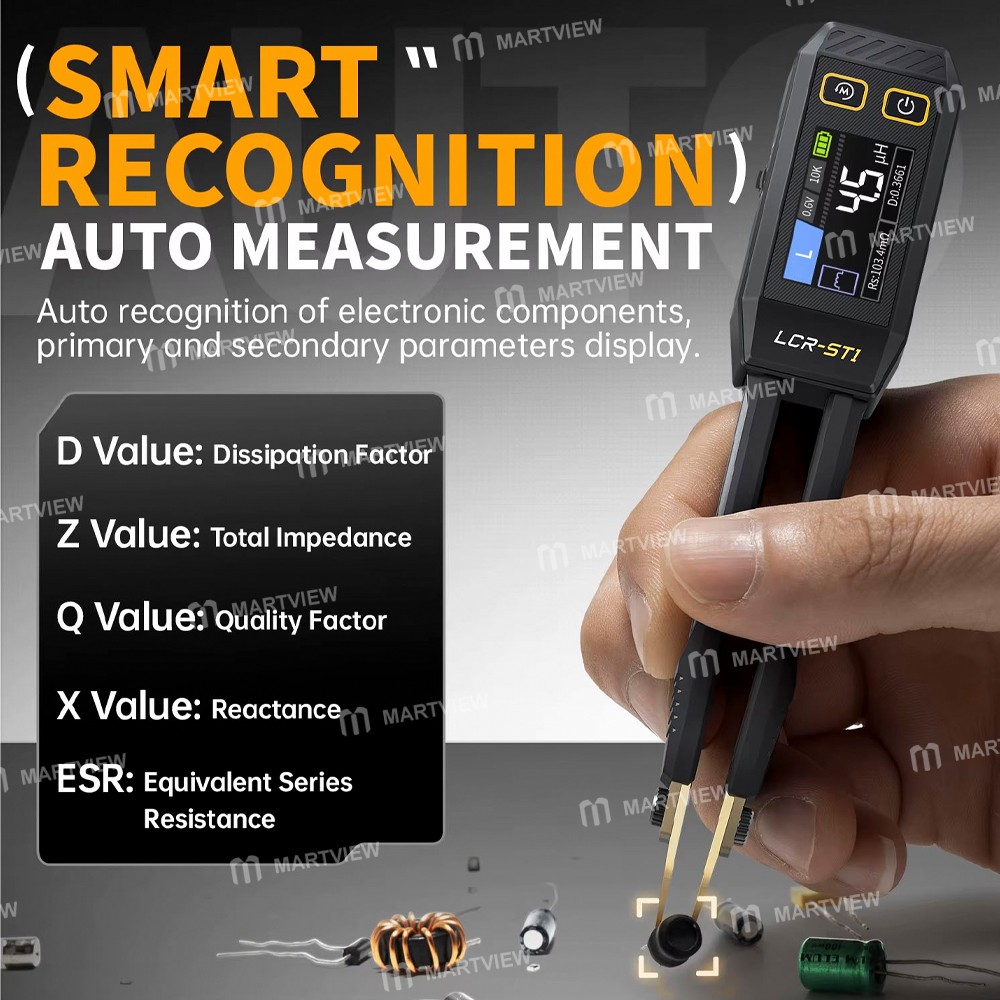

• Parameter display: ESR, D value, Q value, Z value, X value

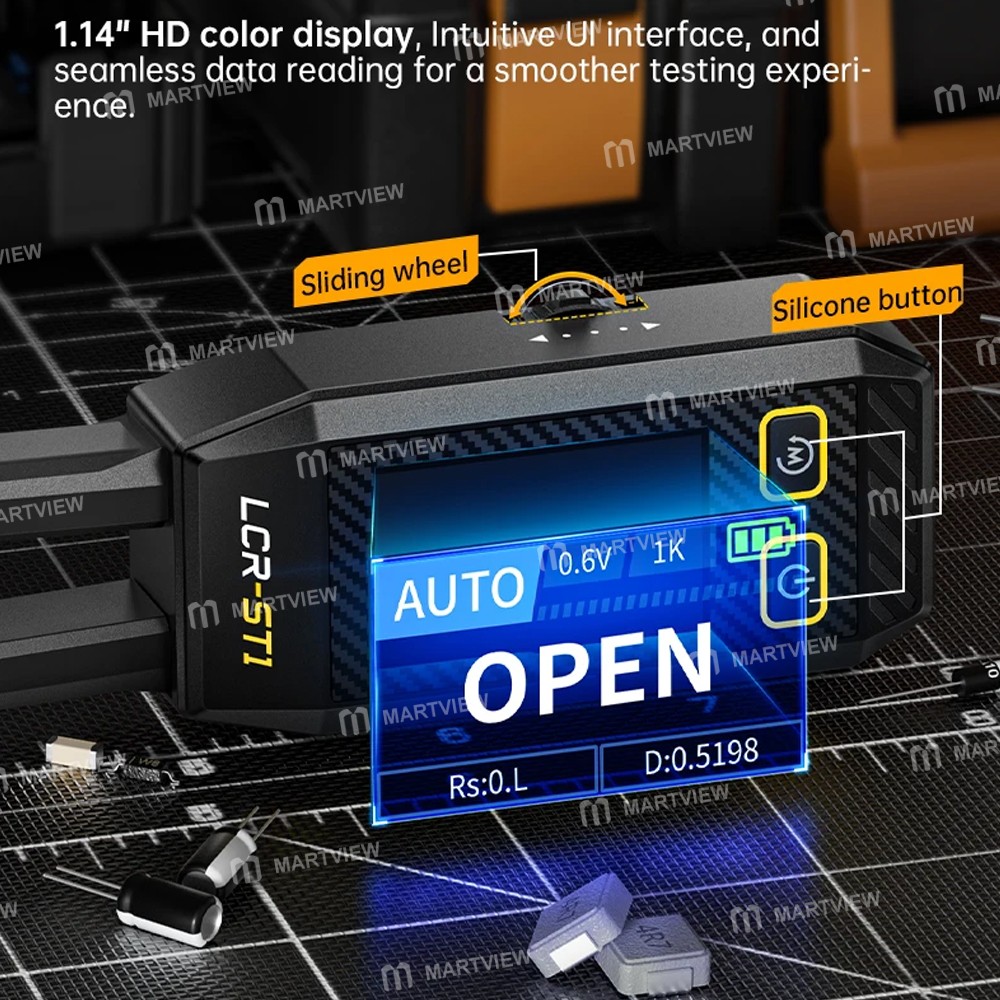

• Display: 1.14'' color screen

• Charging Interface: Type-C, 5V/A

• Power Supply: 250mAh lithium battery

• Auto recognition measurement: Support

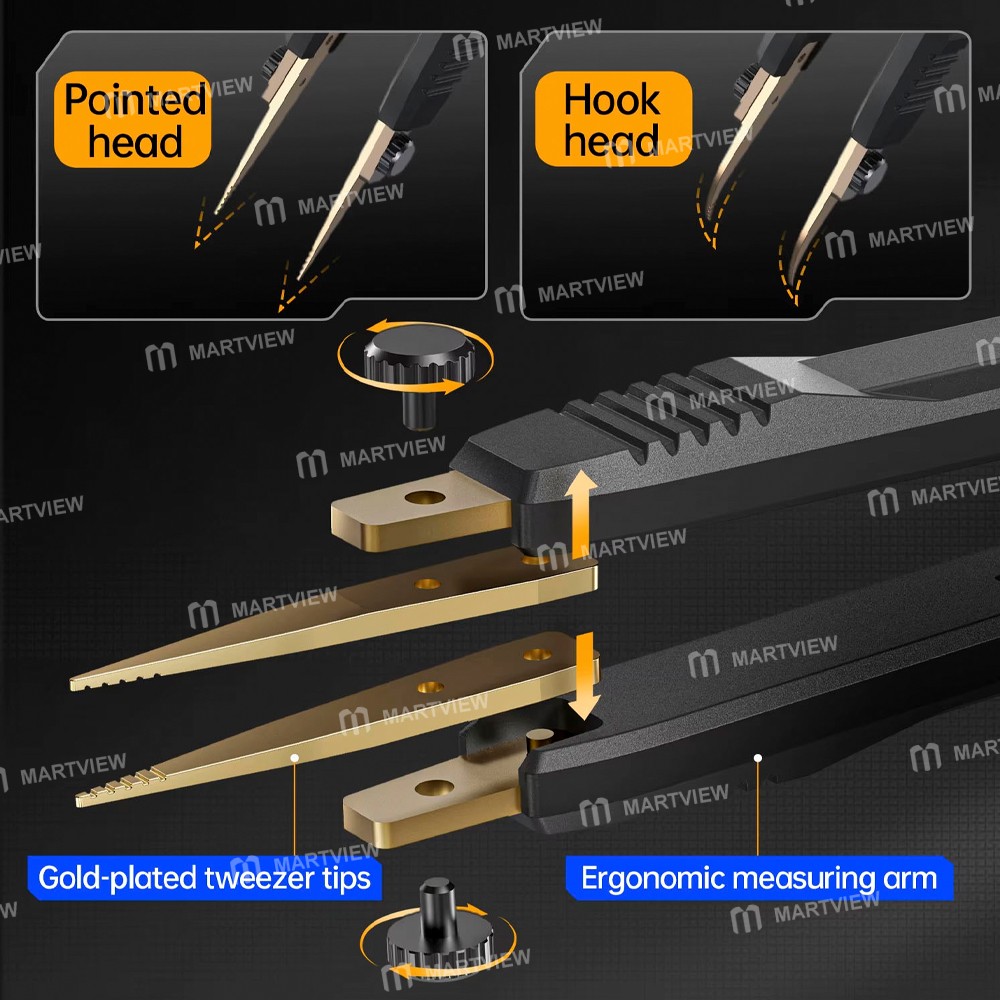

• Replaceable tweezer head: Support

• Auto shutdown: Support

• Data hold: Support

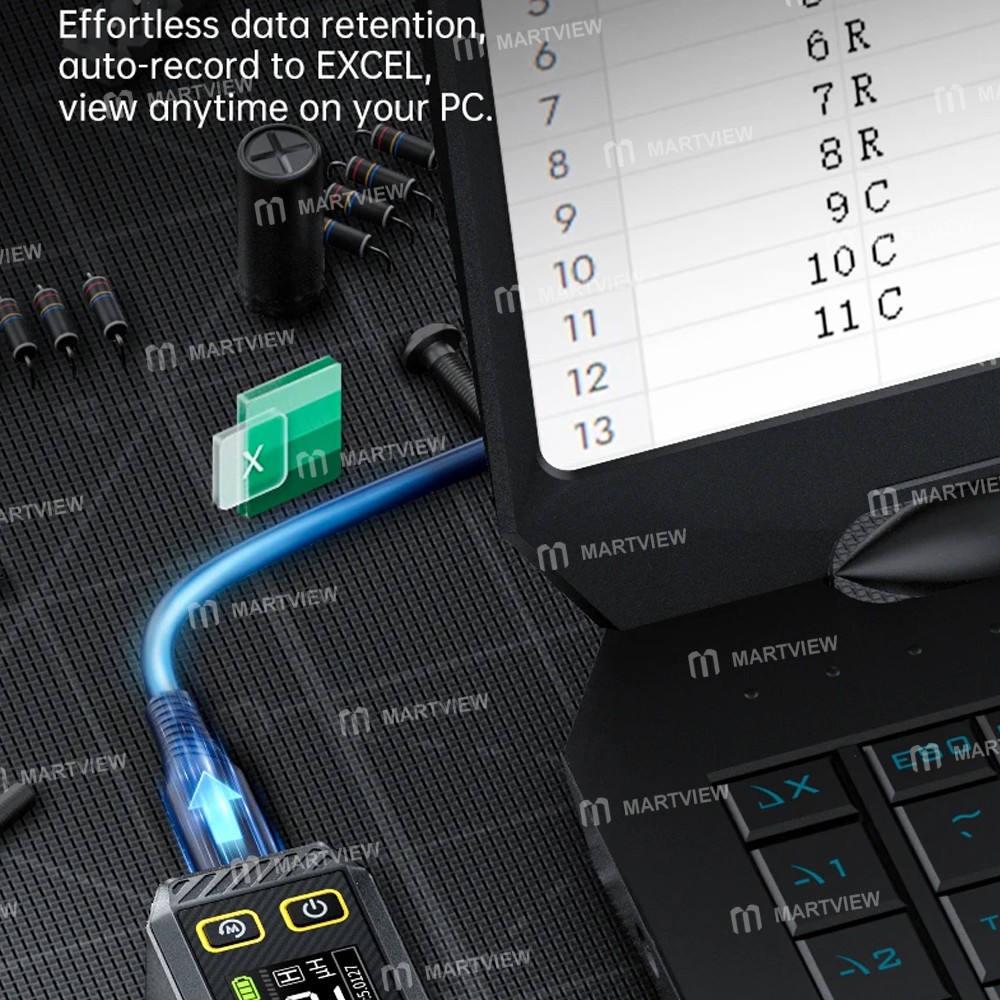

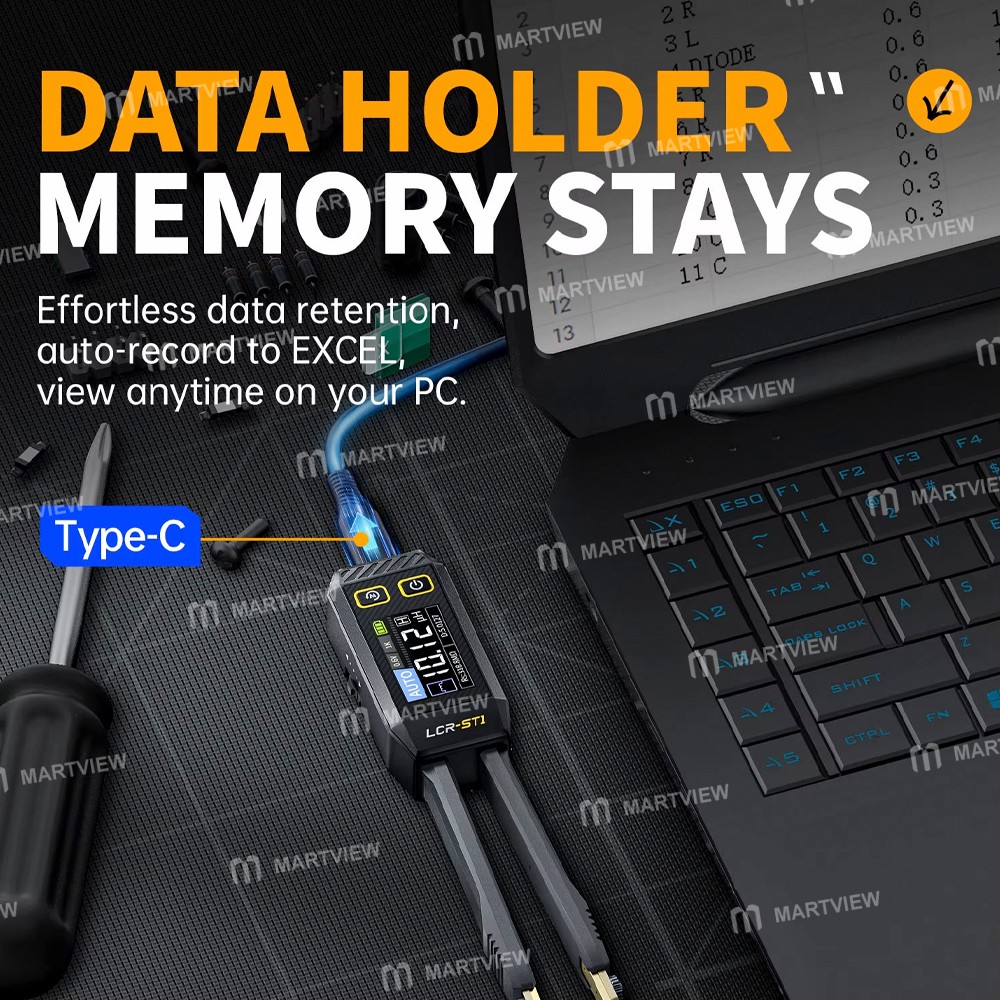

• History record: Connect to PC to view and export

• Language: Chinese, English

• Size: 28*19*150mm

• Weight: 41g

Package includes:

• 1 x Tweezers

• 1 x Pair of Gold Plated Tweezers with Curved Feet

• 1 x USB Cable
