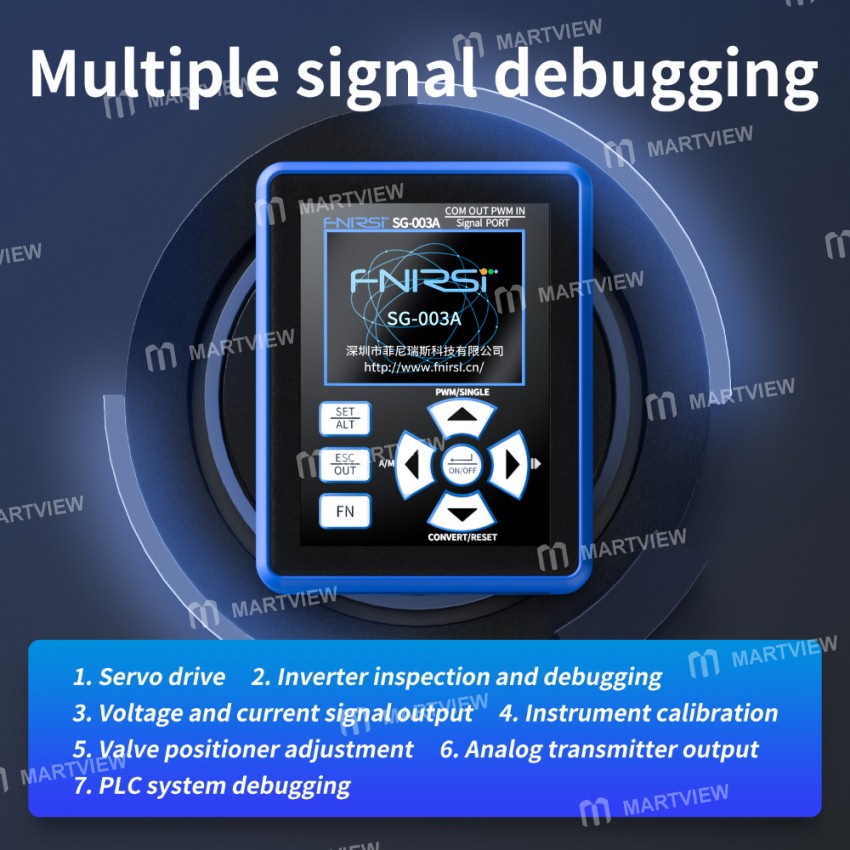

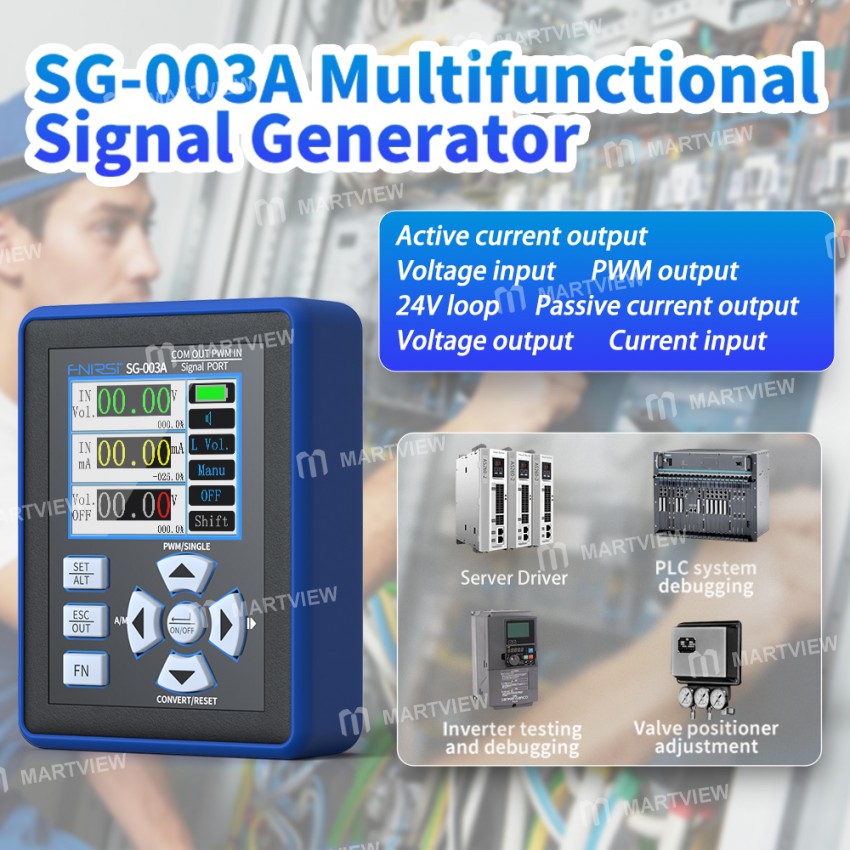

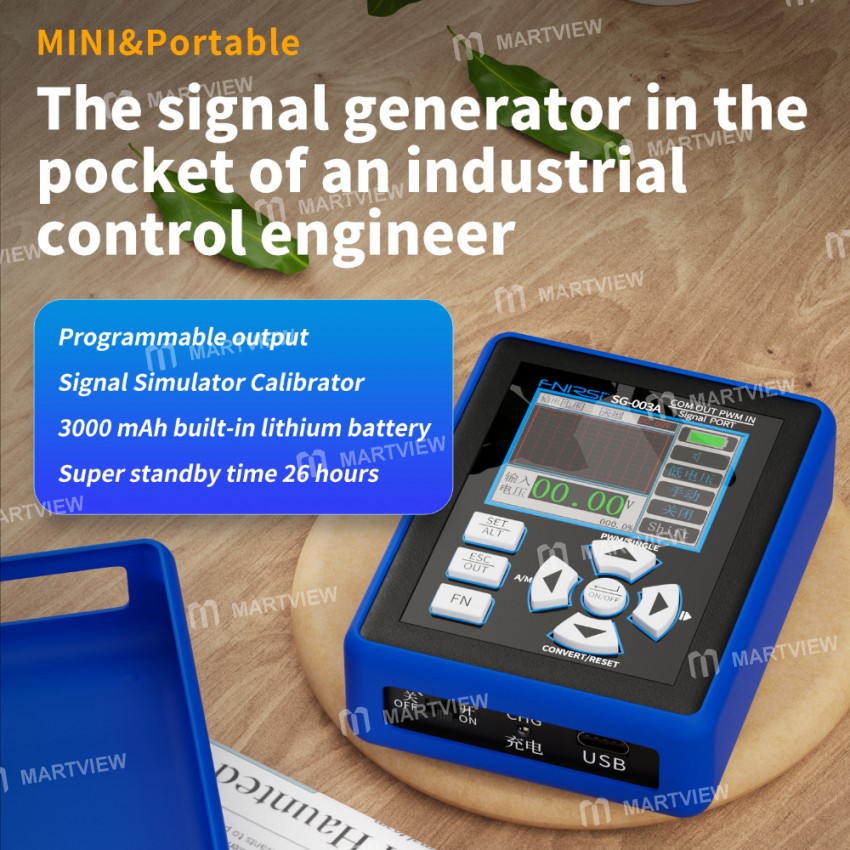

Fnirsi SG-003A 0-10V Signal Generator Adjustable Current Voltage Simulator

Fnirsi SG-003A 0-10V Signal Generator Adjustable Current Voltage Simulator

Specifications:

• Material: Plastics

Active current output:

• Ranges: 0~24mA
• Resolution: 0.01mA
• Maximum load: 750Ω
• Precision: ±(0.1% 0.005)

Passive current output:

• Range: 0~24mA

• Resolution: 0.01mA

• External power supplys: up to 30V

• Precision: ±(0.1% 0.005)

Voltage output:

• Range: 0~15V

• Resolution: 0.01V

• Precision: ±(0.1% 0.005)

24V voltage output:

• Drive current: 0~24mAh

• Resolution: 0.01mA

• Precision: ±(0.1% 0.005)

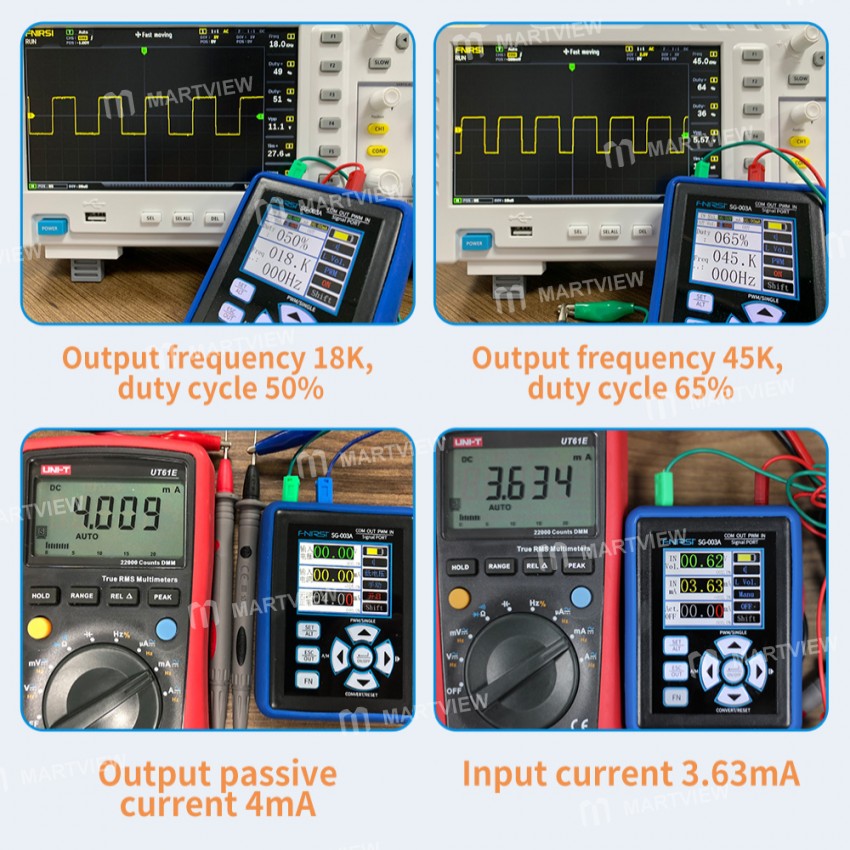

PWM output (frequency):

• Ranges: 0~20K, 45K, 90K, 180K

• Resolution: 1Hz

• Accuracy: ±2%

PWM output (duty ratio):

• Ranges: 0~100

• Resolution: 1%

• Accuracy: ±2%

Current input:

• Ranges: 0~24mA

• Resolution: 0.01mA

• Accuracy: ±(0.1% 0.005)

Voltage input:

• Ranges: 0~30V

• Resolution: 0.01V

• Accuracy: ±(0.1% 0.005)

• Battery: 1 * lithium battery, 3000mAh (included)

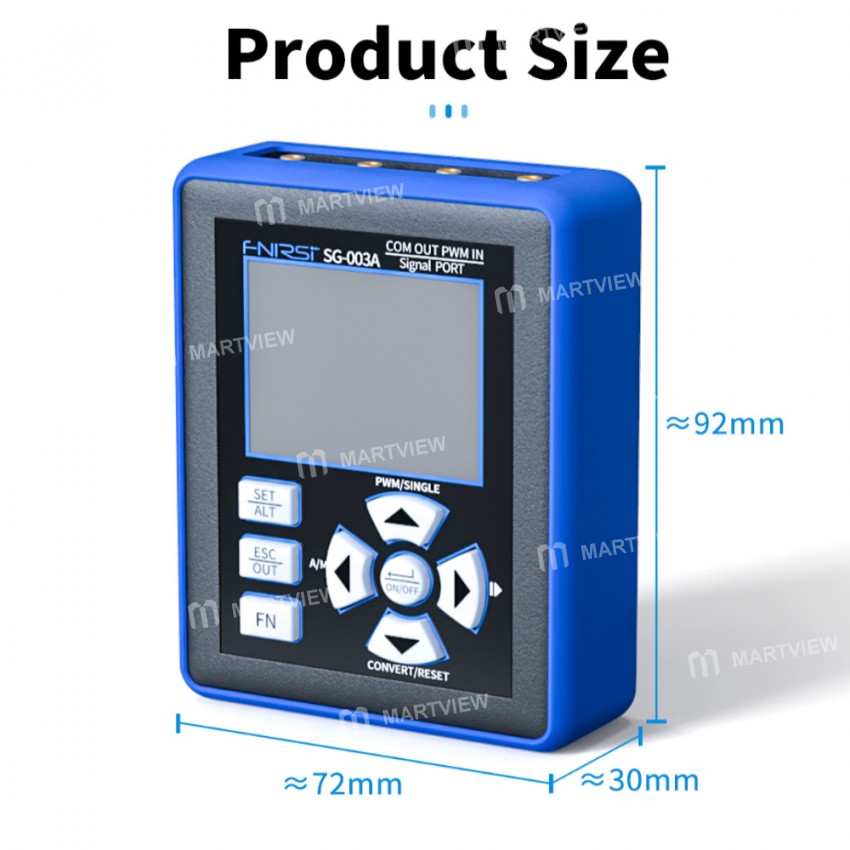

• Package size: 92 * 72 * 38mm / 3.6 * 2.8 * 1.5in

• Package weight: 370g / 13.1ounce

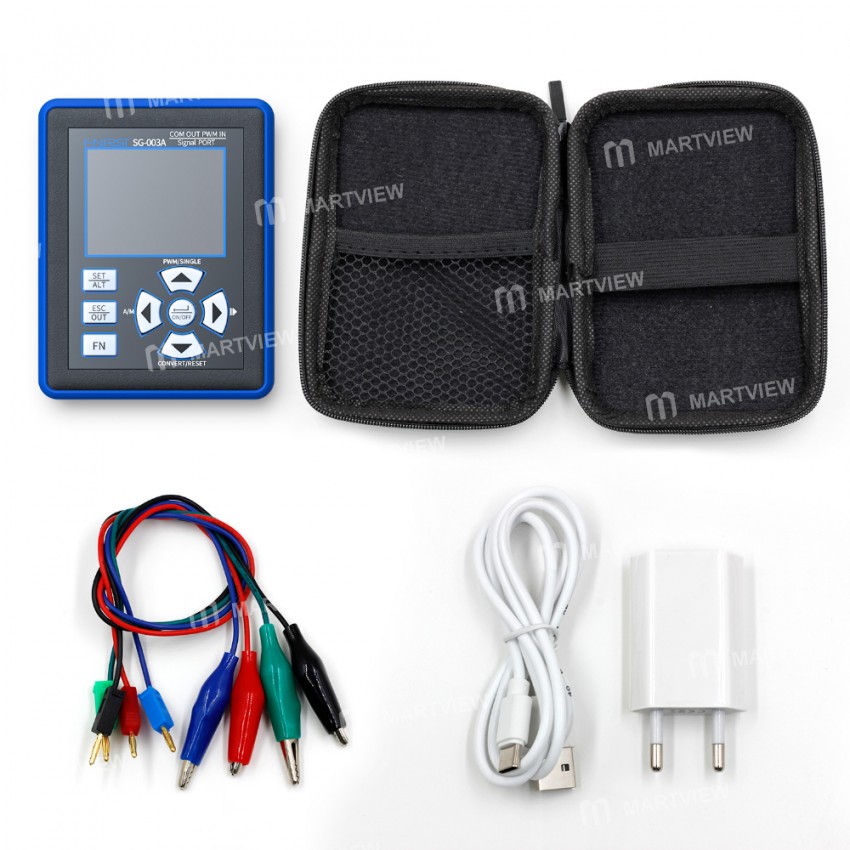

Package includes:

• 1 x Signal Generator

• 1 x Storage Bag

• 4 x Test Clip

• 1 x Silicone Protective Sleeve

• 1 x USB Cable

• 1 x User Manual
