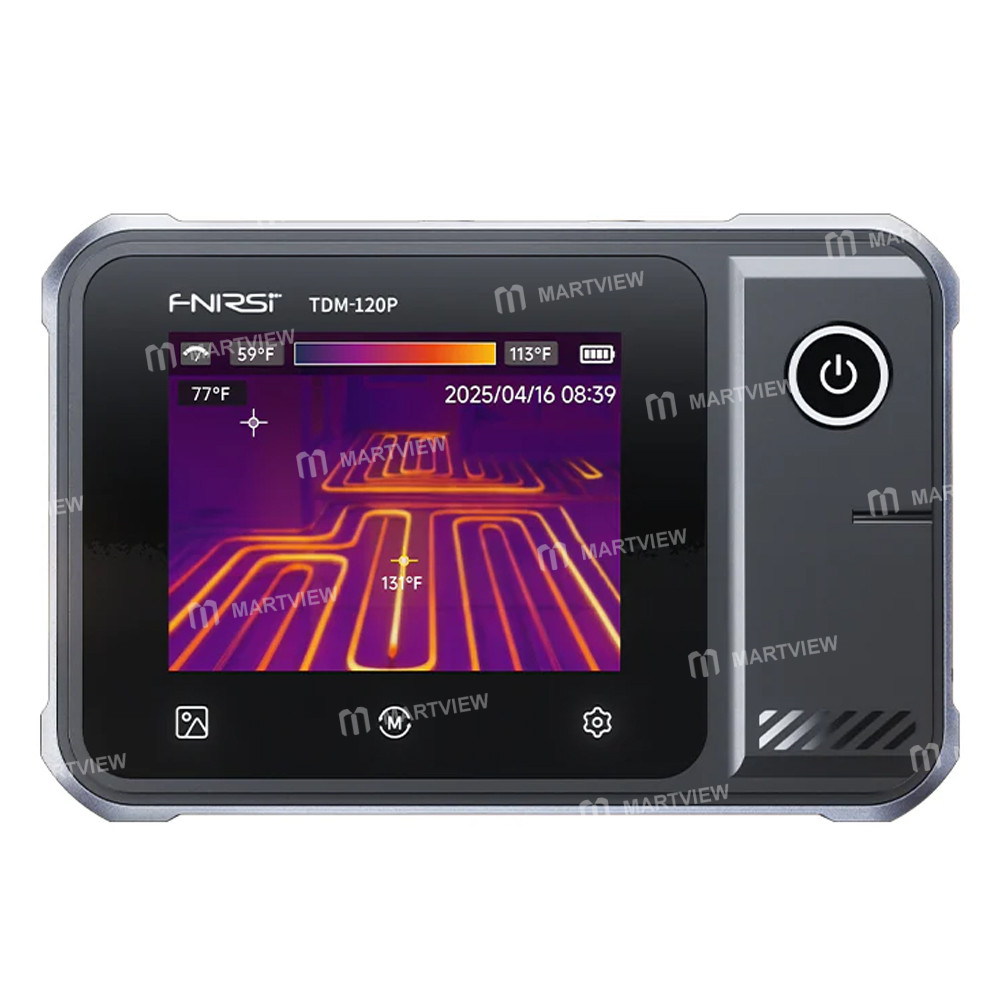

Fnirsi TDM-120P / TDM-120 2-in-1 Rechargeable Pocket-sized HD Infrared Thermal Imager Multimeter

Fnirsi TDM-120P / TDM-120 2-in-1 Rechargeable Pocket-sized HD Infrared Thermal Imager Multimeter

Features:

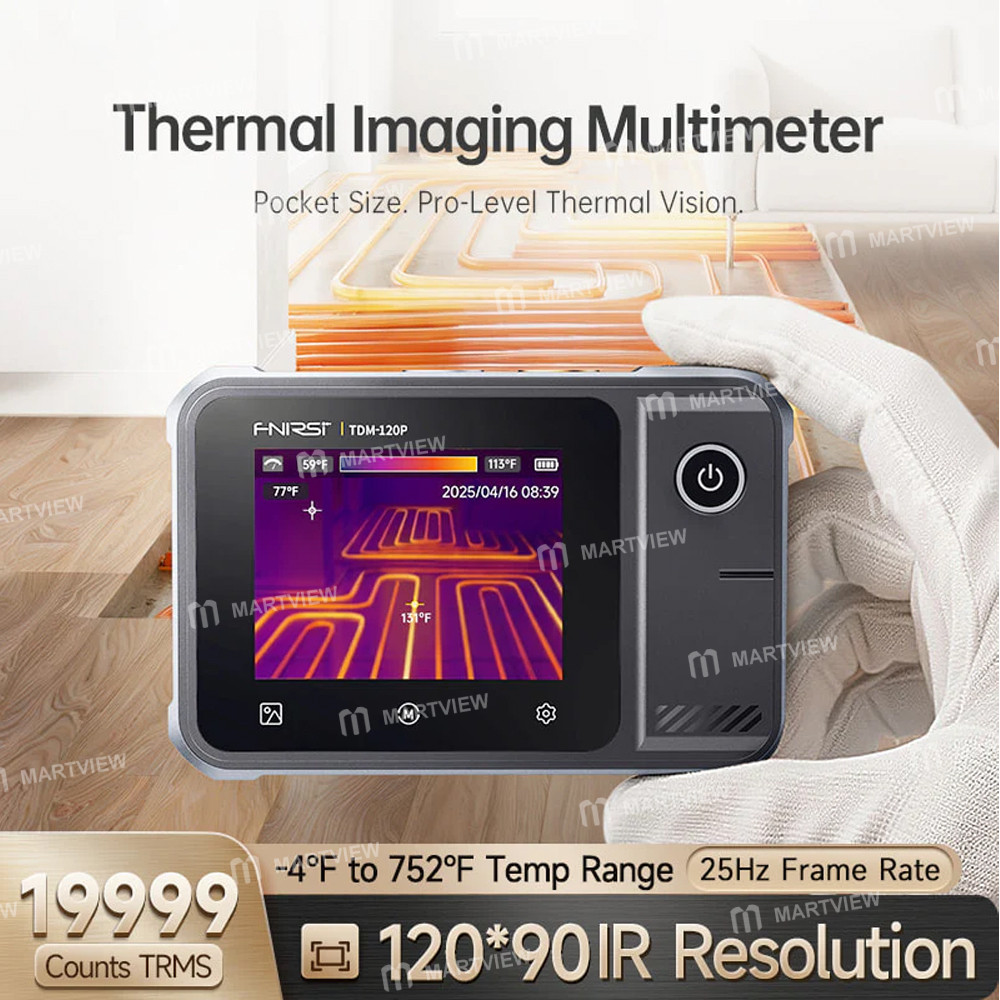

• HD Thermal Imaging Module: 120*90 infrared resolution with vanadium oxide detector; 25Hz refresh rate for smooth real-time thermal imaging, capturing temperature anomalies clearly and instantly.

• Superior Thermal Sensitivity & Adjustability: <60mK thermal sensitivity, paired with 0.01-1 adjustable emissivity and 0.5m-3m measuring distance, ensuring accurate temperature detection in diverse application scenarios.

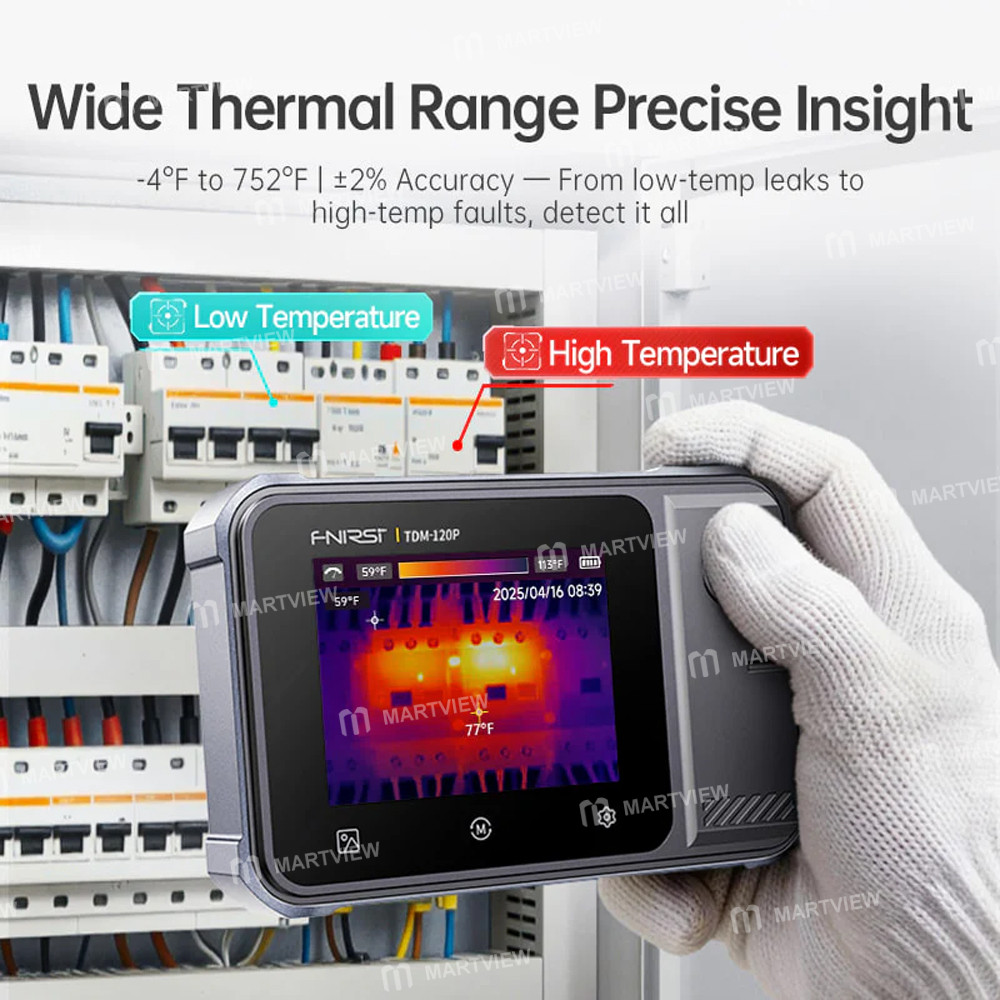

• Precise Wide-Range Temperature Measurement: Supports -4℉ to 752℉ (-20℃~400℃) full-range temperature testing with ±2℃ or ±2% (max value) accuracy; equipped with automatic hot/cold spot tracking and high/low temperature alarm for quick fault location.

• 19999-Count True RMS Multimeter with Full Functions: Delivers professional-grade precision for DC voltage (0~1000V, ±0.5%+3) and AC voltage (0~750V, ±1%+3); supports multi-range resistance, capacitance, continuity, and diode testing, with data hold function and real-time max/min value display for convenient data recording and analysis.

• 2.8-inch LCD Touch Screen Operation: Responsive LCD touch control with 7 switchable color palettes (Arctic/Hot Iron/Iron Red/Rainbow/Lava/Black Hot/White Hot) for clear visual distinction of temperature differences on thermal images.

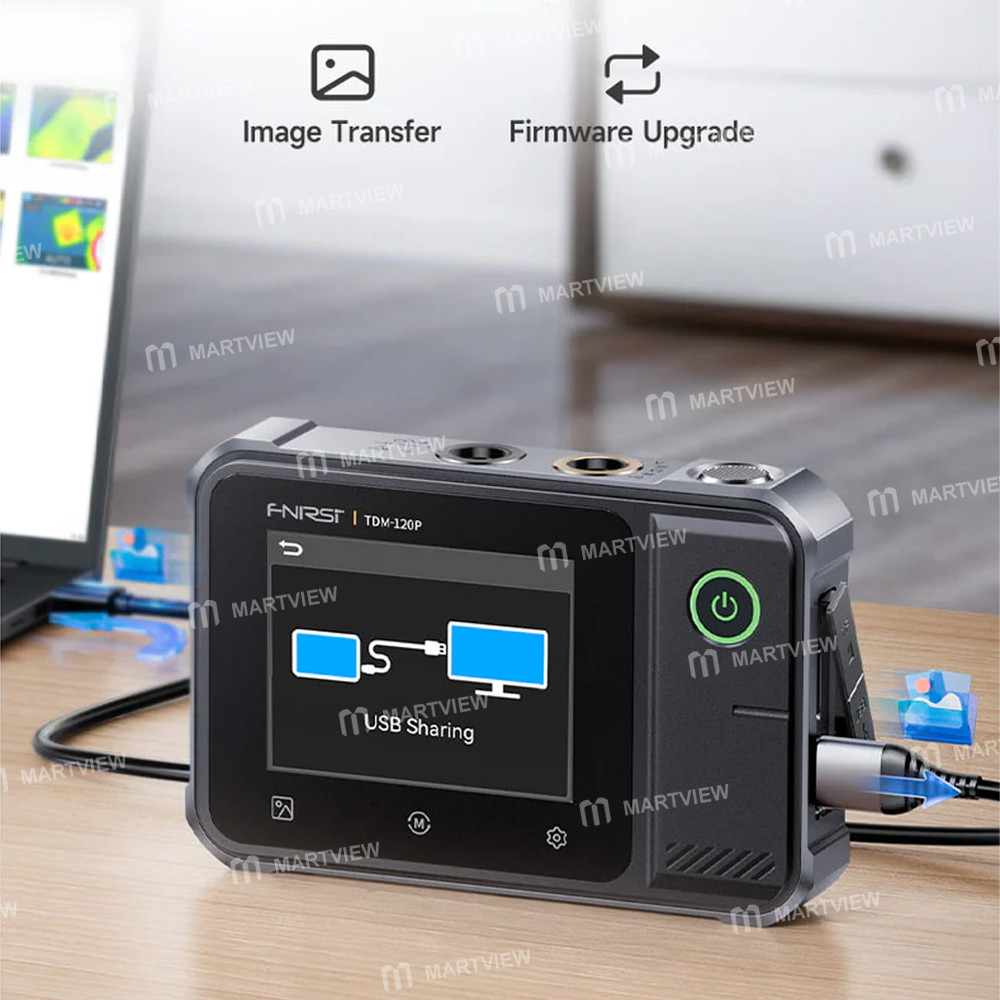

• Flexible Data Storage & Export: One-click thermal image save to plug-and-play SD card; USB one-key export of images and measurement data, facilitating test report sorting and team data sharing.

• Customizable Smart System Settings: Built-in Simplified Chinese and English language options; adjustable auto power-off (5/10/20min/OFF) and screen brightness, with ℃/℉ temperature unit switch to meet different usage habits.

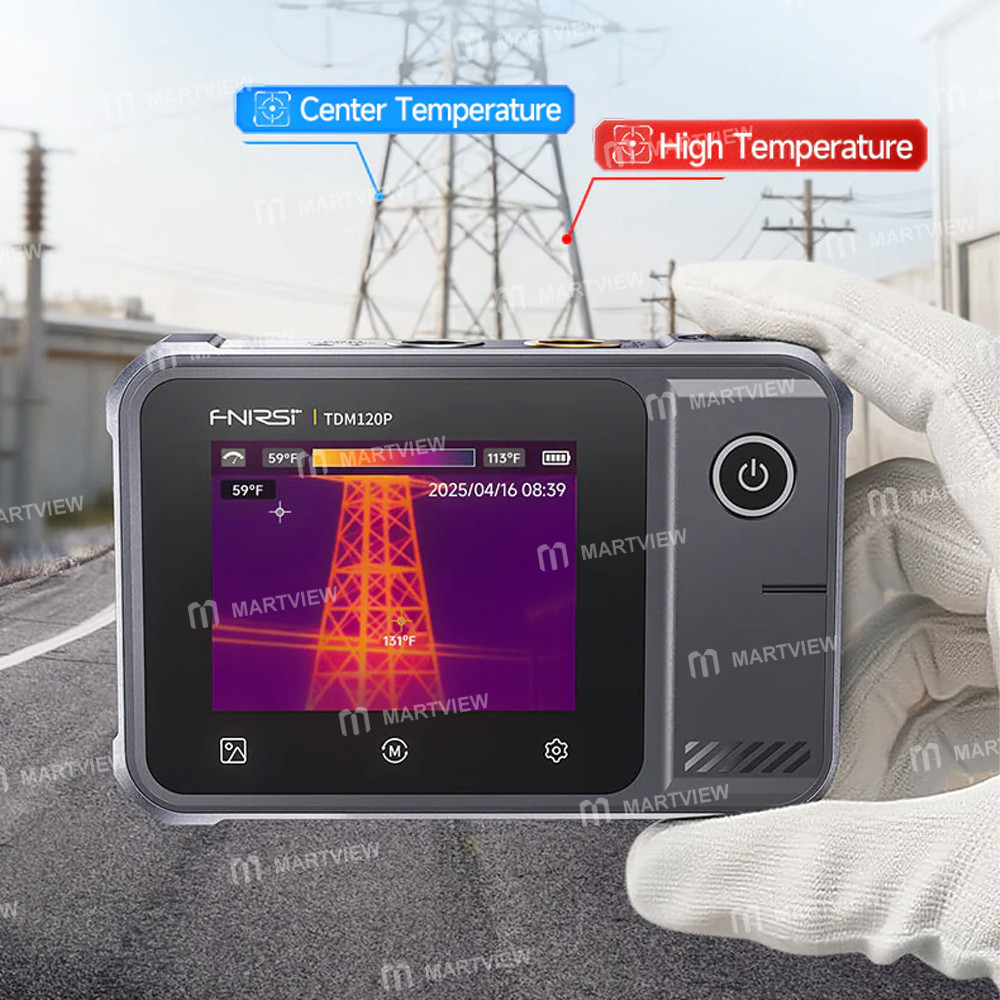

• Humanized Temperature Testing Design: Dual cursor measurement (center + floating) for flexible temperature point selection; fixed center temperature display and intelligent high-temperature area tracking for precise testing.

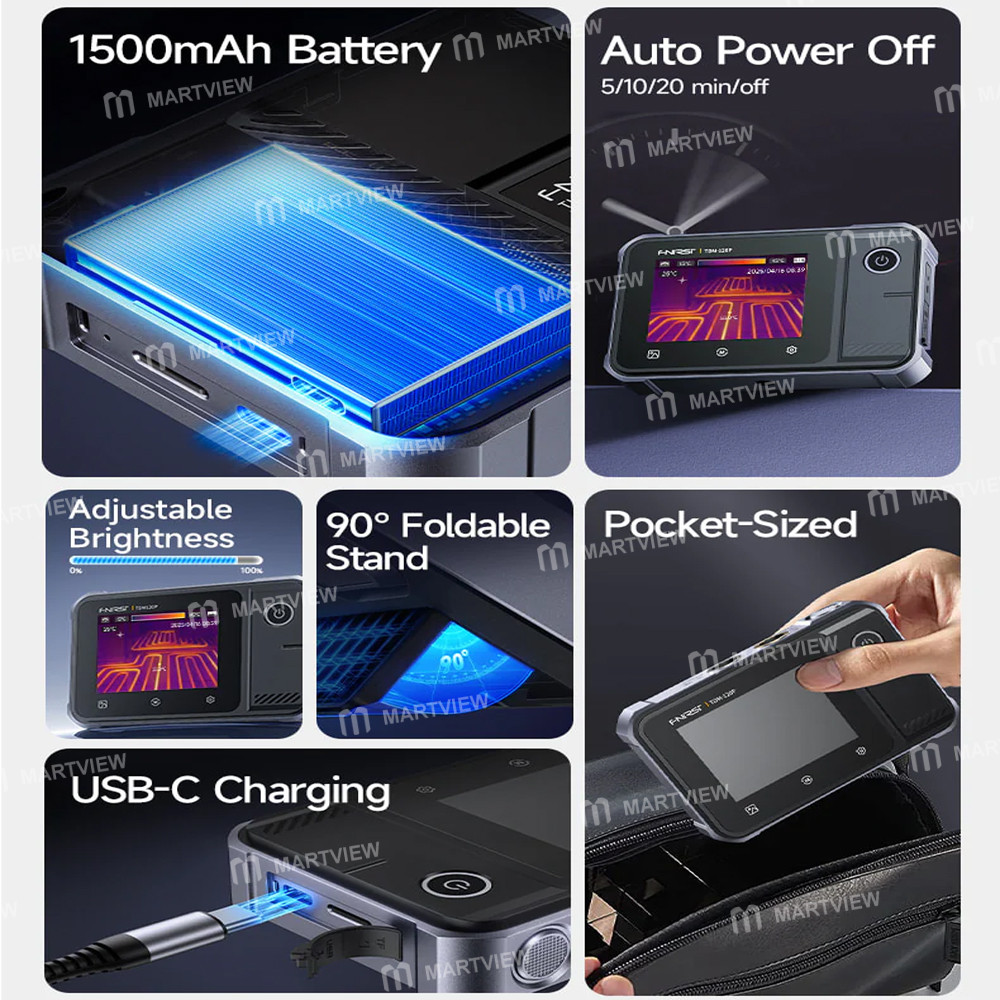

• Portable & Rechargeable On-Site Design: Compact pocket-sized body for easy carrying during field work; Type-C charging interface for fast and convenient power supply, ideal for long-time outdoor and on-site operations.

• Multi-Scenario Professional Adaptation: Perfectly suited for HVAC repair, water leakage detection, electrical circuit inspection, air conditioning maintenance, industrial equipment testing, and automotive fault diagnosis.

Specifications:
Thermal Imaging Parameters:

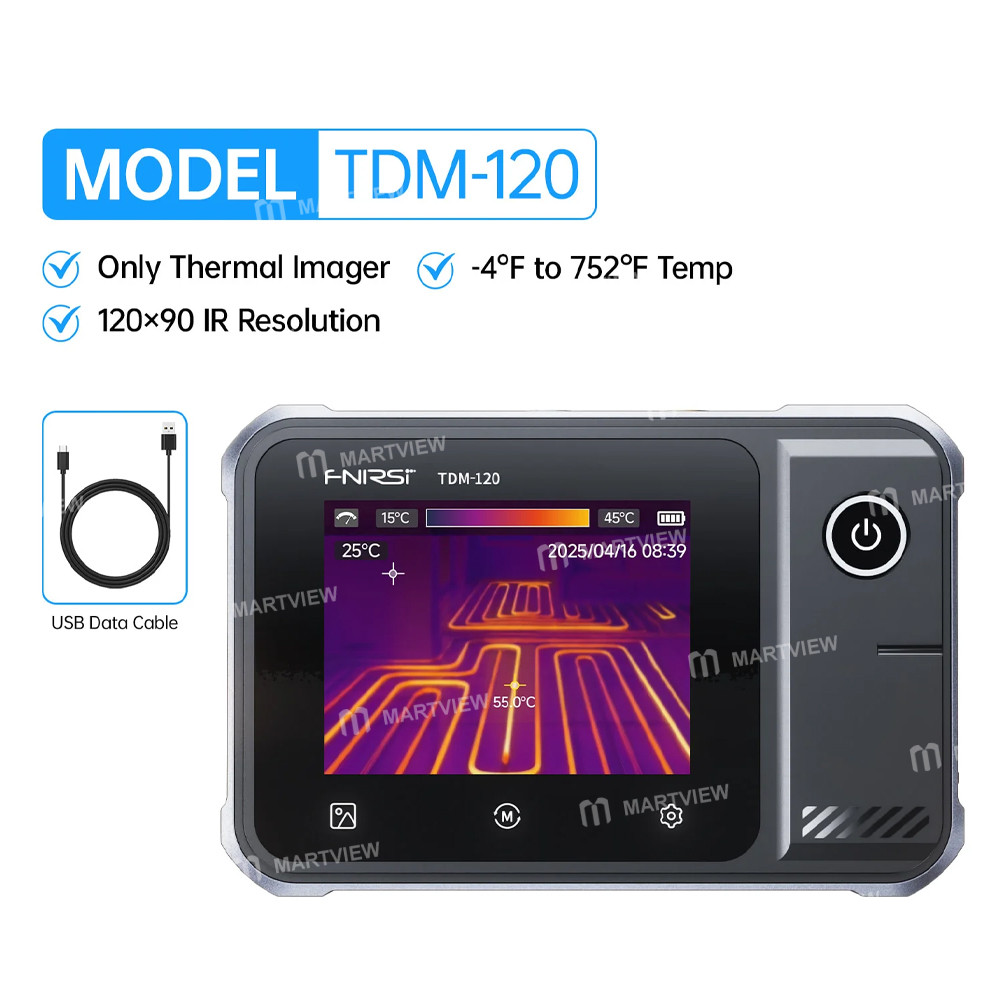

• Model: TDM-120 / TDM-120P

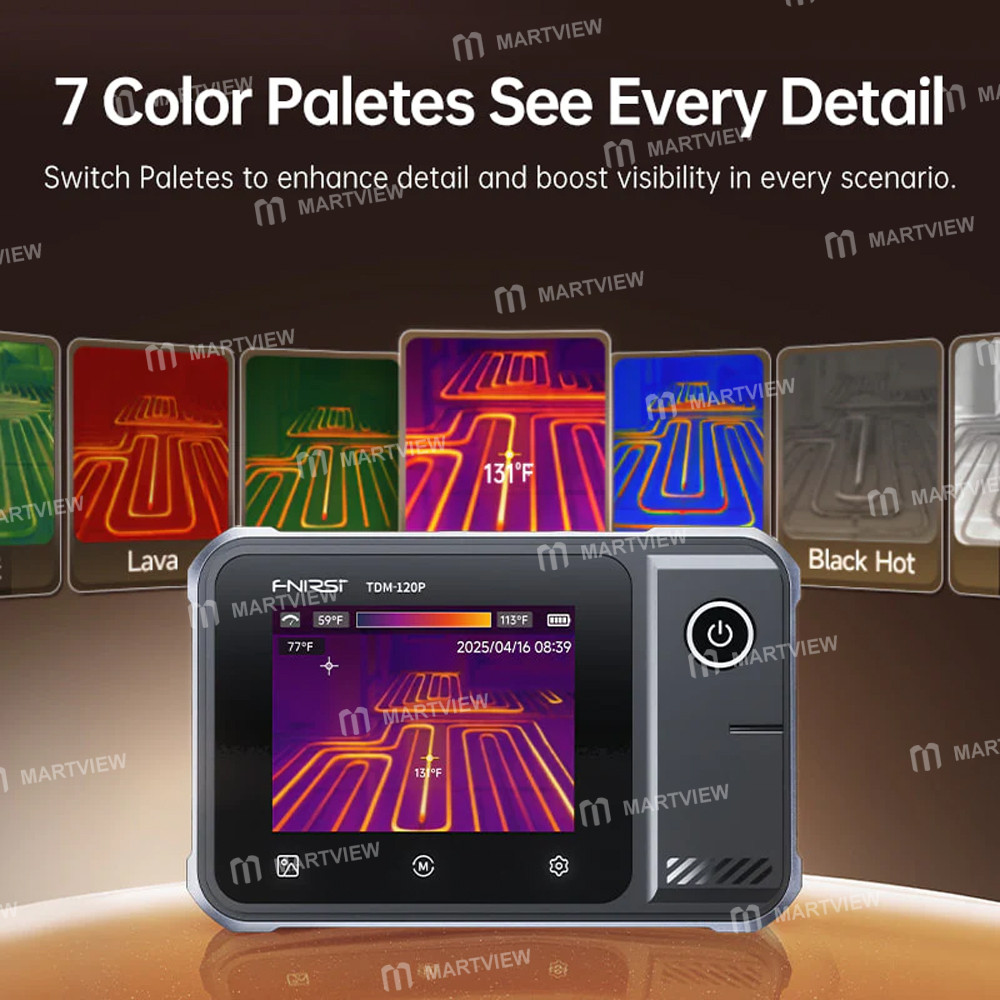

• 7-Color Palette: Arctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White Hot

• Detector Type: Vanadium oxide

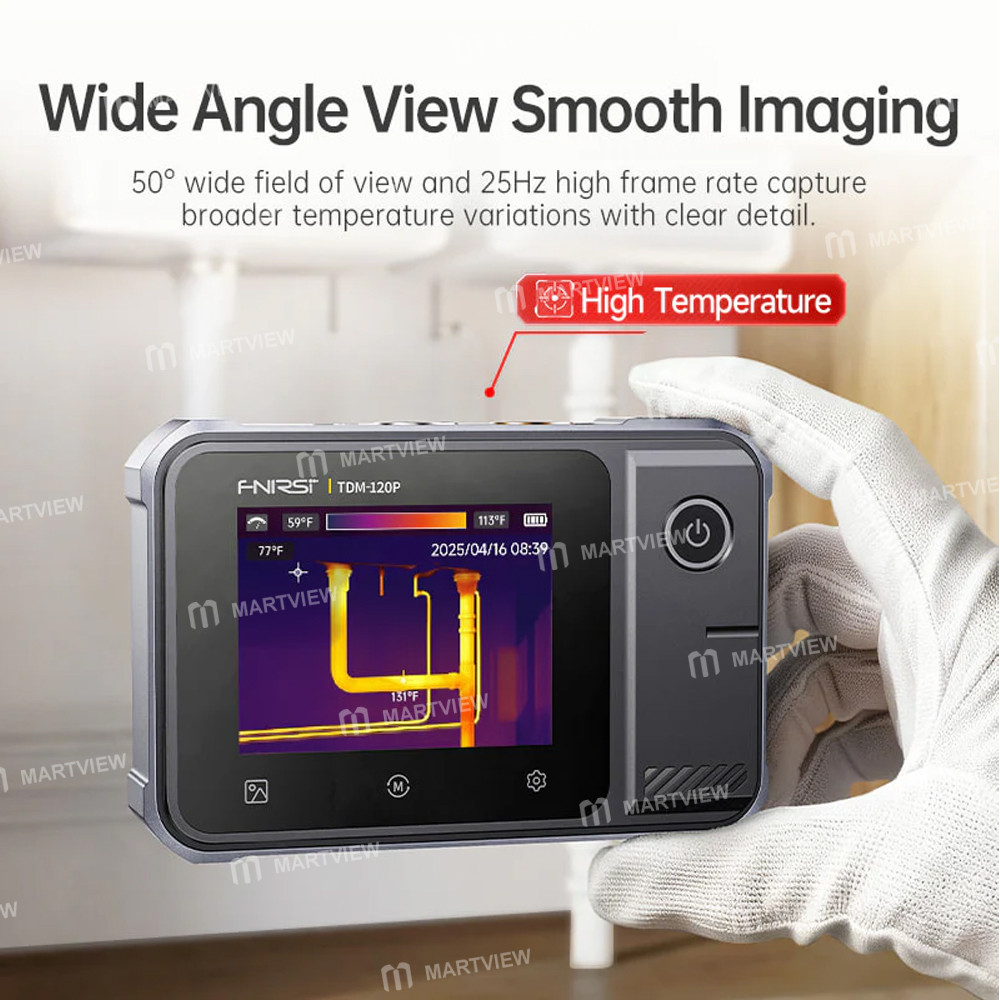

• Field of View: 50°

• Screen: 2.8-inch LCD touchscreen

• Frame Rate: ≤25Hz

• Infrared Resolution: 120*90

• Temperature Measurement Display: Center point, automatic high/low temperature tracking

• Temperature Range:  -20℃~400℃/-4℉~752℉

• Temperature Unit: ℃ / ℉

• Accuracy: ±2℃ or ±2% (maximum value measured)

• High/Low Temperature Alarm: Support

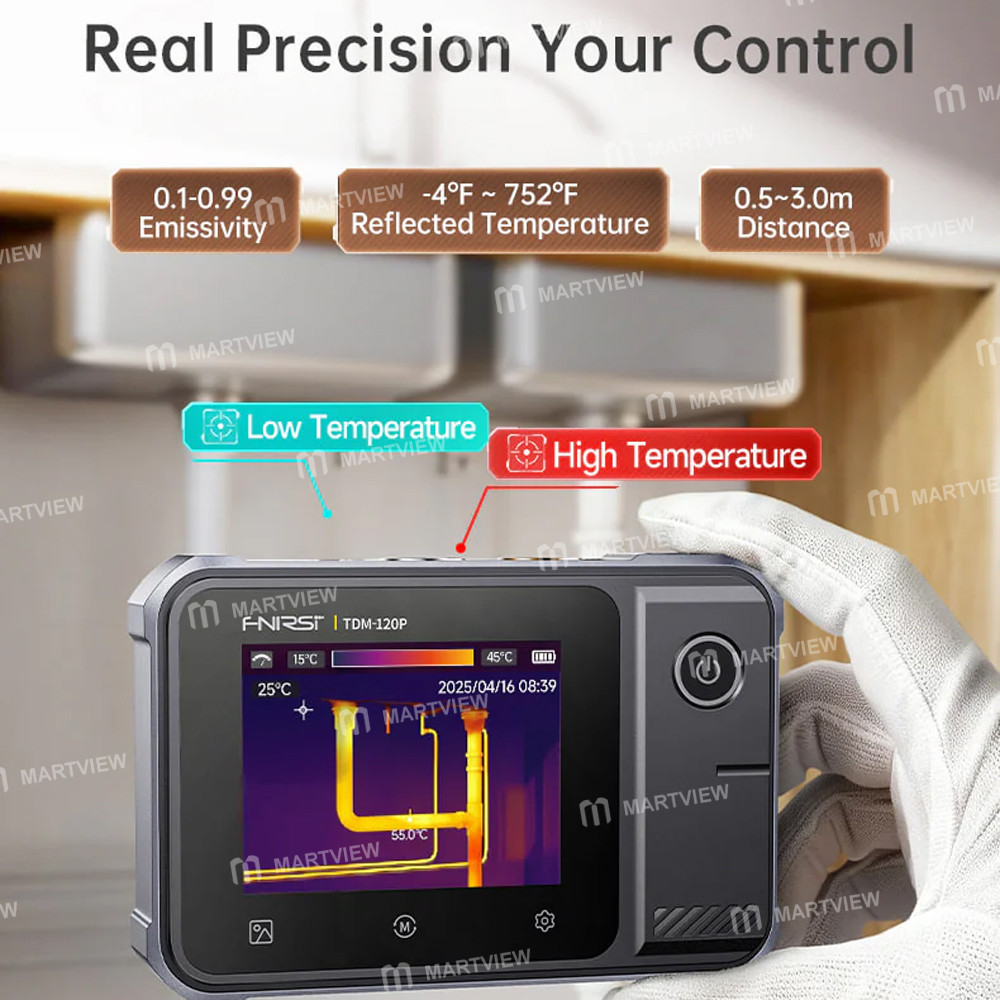

• Emissivity: 0.01~1 adjustable

• Languages: Chinese / English

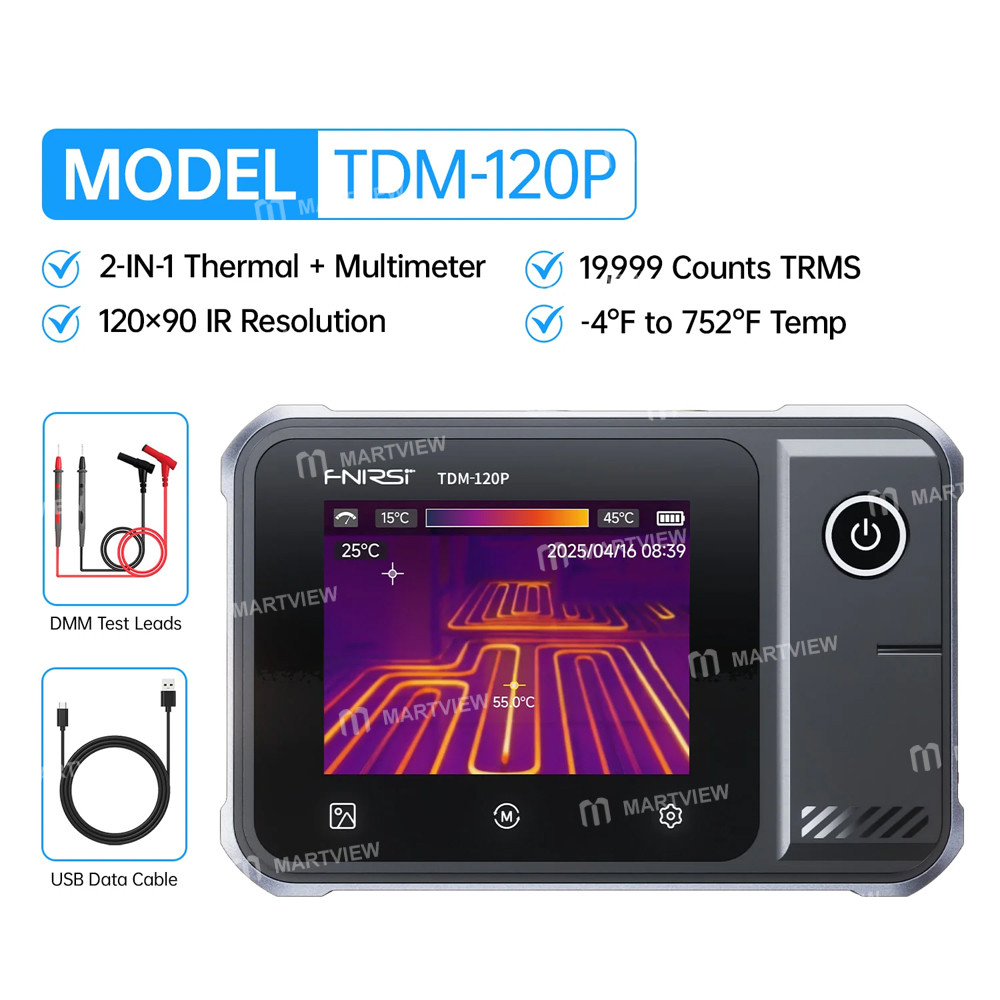

Multimeter Parameters (only TDM-120P support):

• DC Voltage Range: 1.9999V / 19.999V / 199.99V / 1000V; Accuracy: ±(0.5%+3)

• AC Voltage Range: 1.9999V / 19.999V / 199.99V / 750.0V; Accuracy: ±(1%+3)

• Resistance Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ; Accuracy: ±(0.5%+3); 1.9999KΩ / 199.99Ω Accuracy: ±(2.0%+3)

• Capacitance Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF; Accuracy: ±(2.0%+5); 9.999mF / 99.99mF; Accuracy: ±(5.0%+20)

• Diode: Support

• Continuity: Support

Package includes:

• According to your choice
