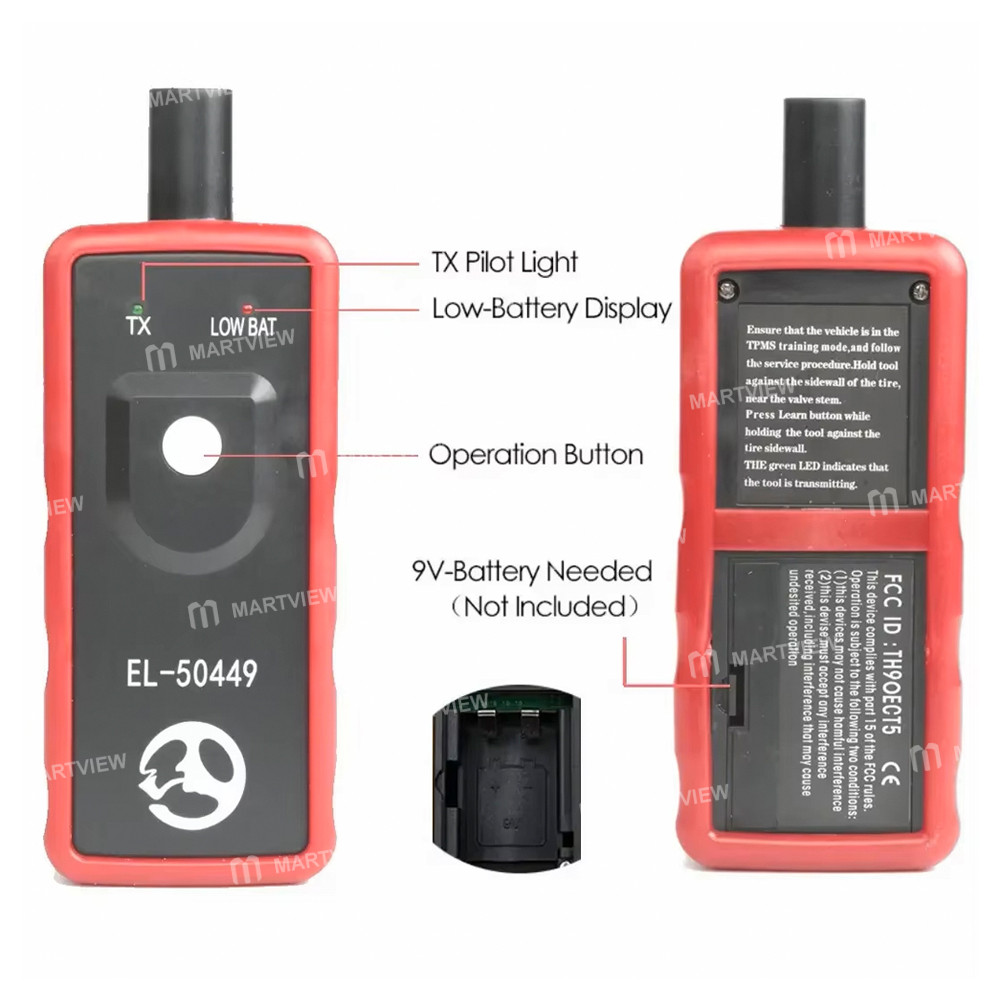

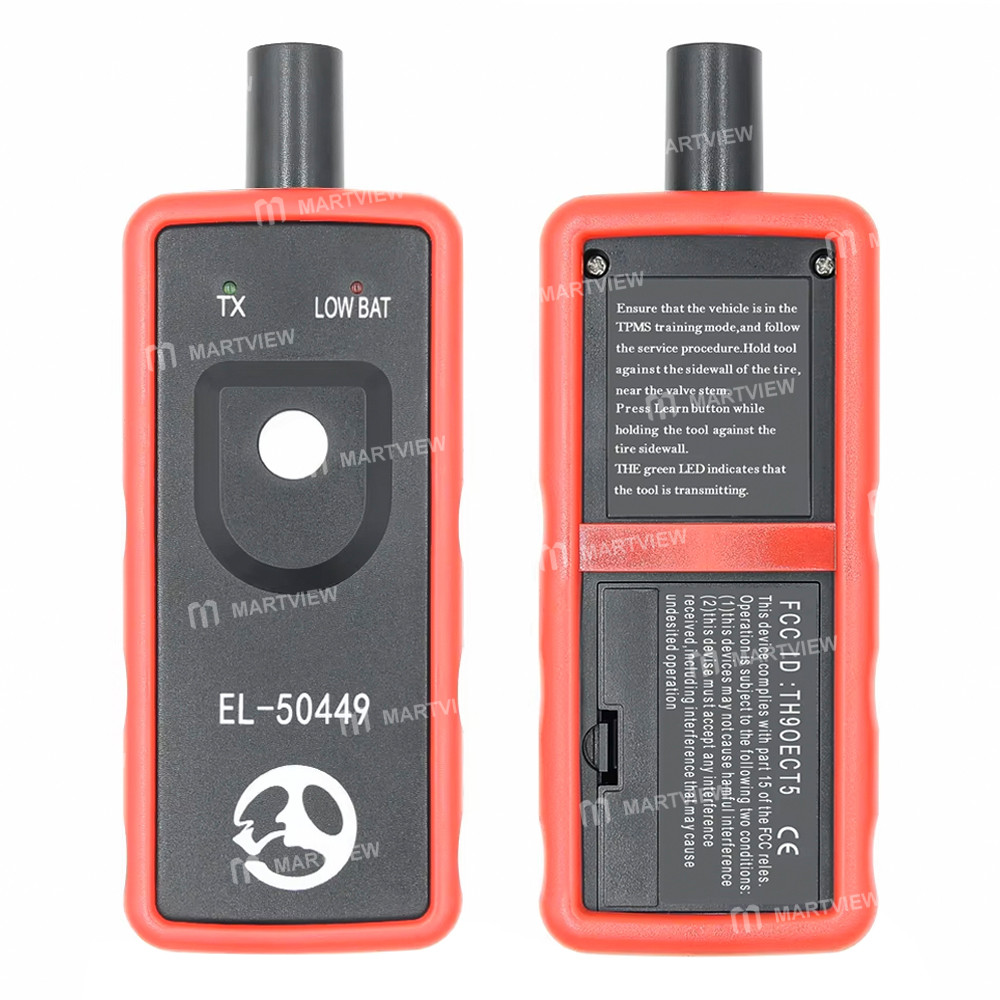

Ford EL-50449 Tire Pressure Monitoring System Resetter

Ford EL-50449 Tire Pressure Monitoring System Resetter

How to use EL-50449:

• Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; training mode for the vehicle to start the state of the three consecutive dangerous alarm), if you hear the speaker sounded that the training mode has been enabled;

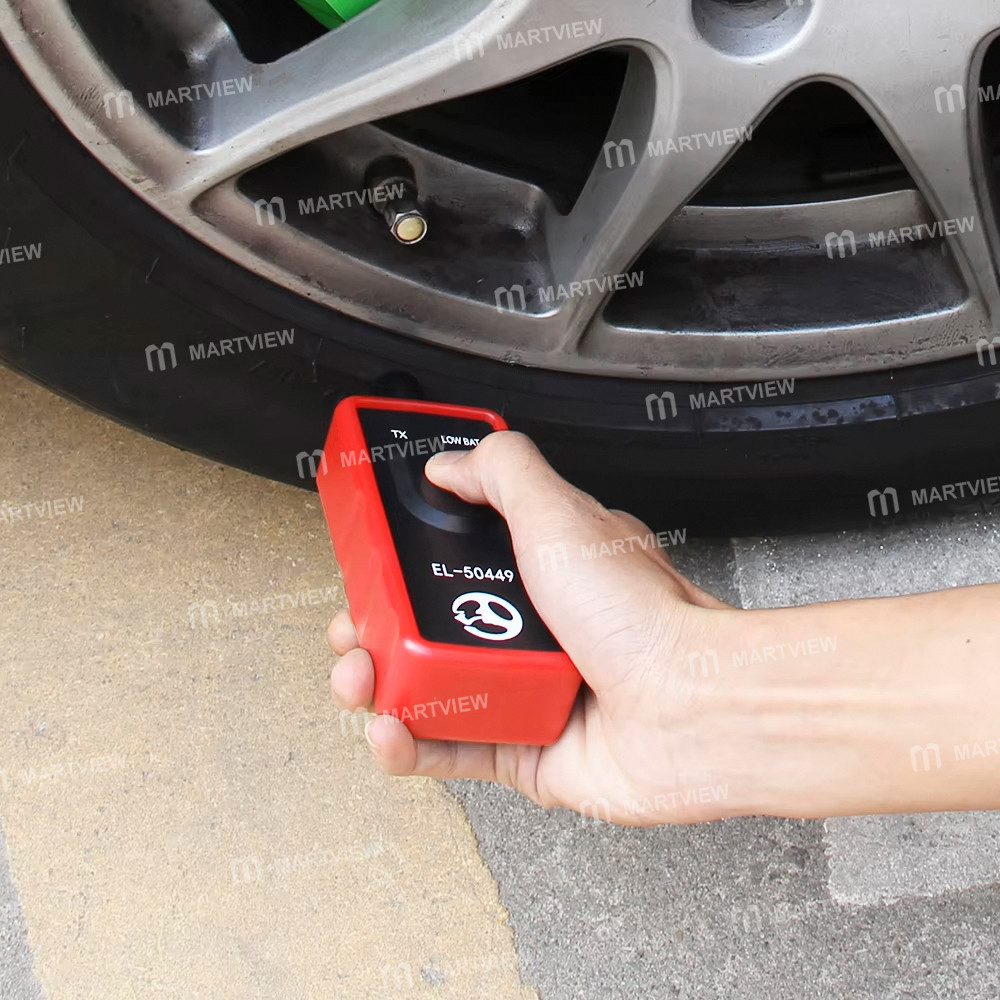

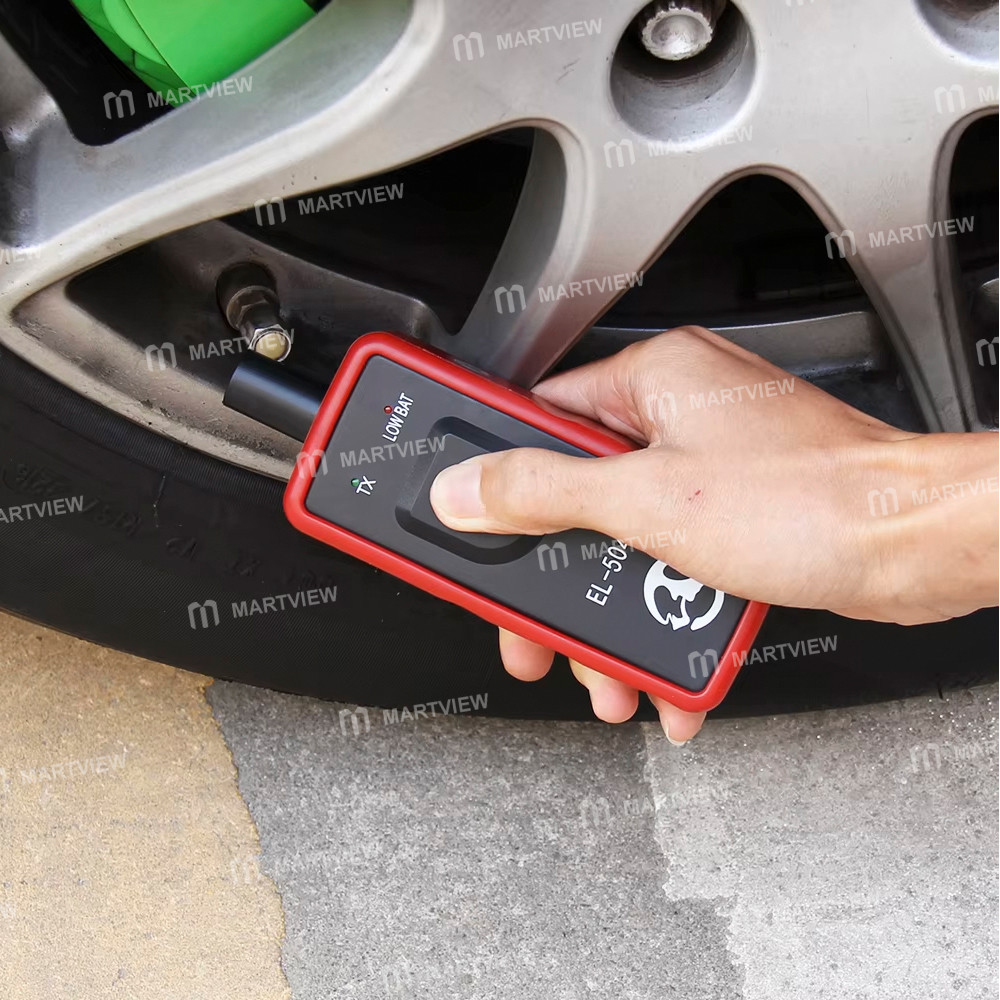

• Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read, and the turn signal to be read at the next position will light

• When the speaker is ringin,g and the right front turn signal light is on, the remaining three sensors repeat step in the following order: 1. Right before; 2. Right rear;3.Left rear;

• When the left rear sensor has been read and the speaker is also read twice, the read process is completed and the body control module also exits the read mode.

Applicable Models:

• 2007-2014 for Ford F-150

• 2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty

• 2007-2015 for Ford Mustang

• 2007-2014 for Ford Edge

• 2006-2015 for Ford Escape

• 2008-2015 for Ford Expedition

• 2006-2016 for Ford Explorer

• 2008-2015 for Ford Flex

• 2008-2015 for Ford Taurus

• 2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans

• 2008-2015 for Ford Fiesta

• 2008-2015 for Ford Focus

• 2008-2015 for Ford Fusion

• 2008-2011 for Ford Crown Victoria

• 2011-2015 for Ford Transit Connect

• 2006-2011 for Ford Ranger

• 2007-2015 for Lincoln MKX

• 2007-2015 for Lincoln MKT

• 2008-2015 for Lincoln MKZ

• 2008-2015 for Lincoln MKS

• 2008-2015 for Lincoln Navigator

• 2008-2011 for Lincoln Town Car

• 2007-2008 for Lincoln Mark LT

• 2006-2010 for Mercury Mountaineer

• 2006-2010 for Mercury Monterey

• 2006-2011 for Mercury Mariner

• 2006-2011 for Mercury Grand Marquis

• 2006-2011 for Mercury Milan

Package includes:

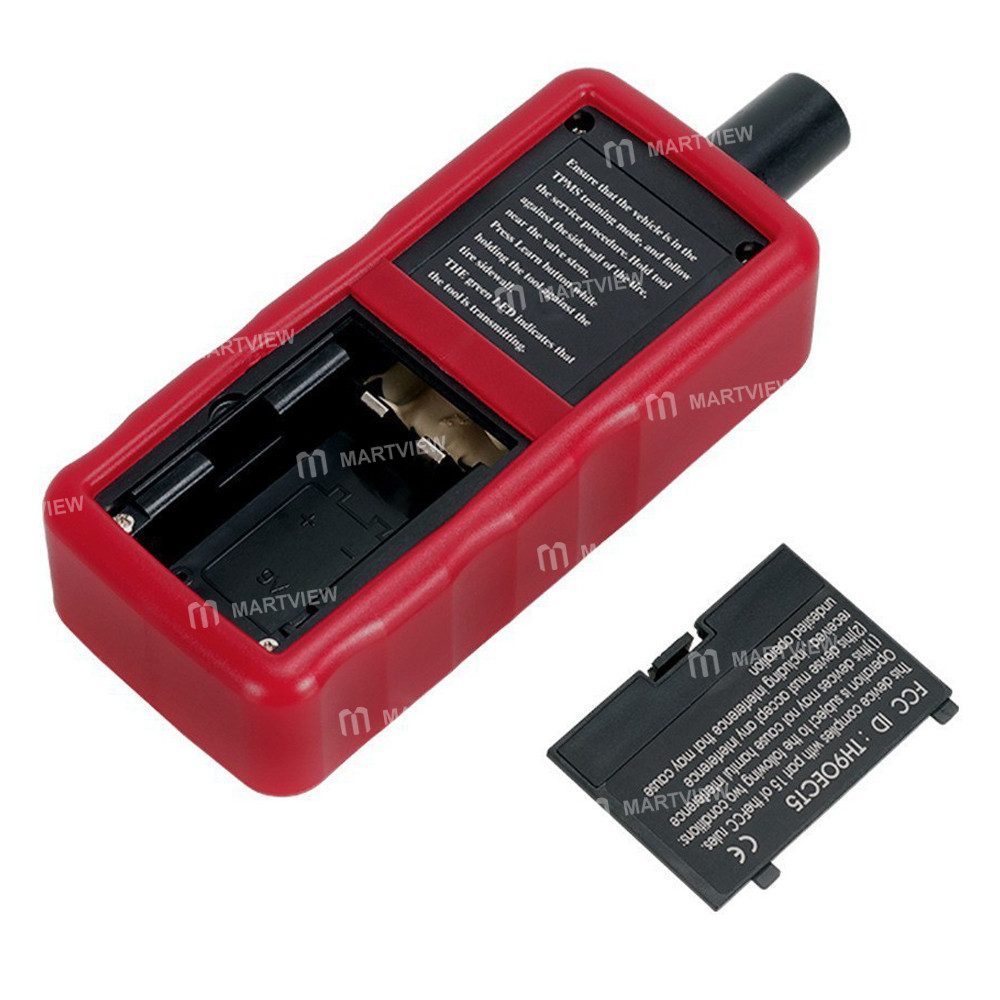

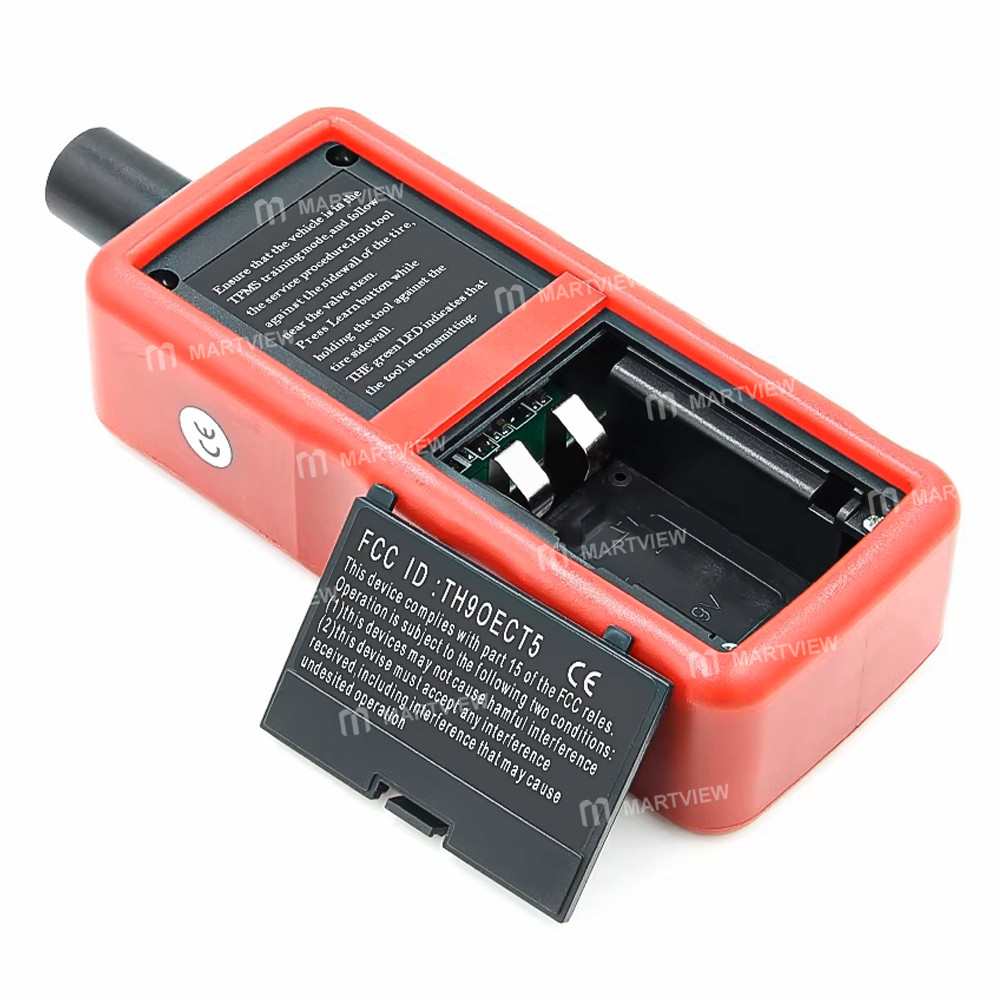

• 1 x Resetter (without Battery)
