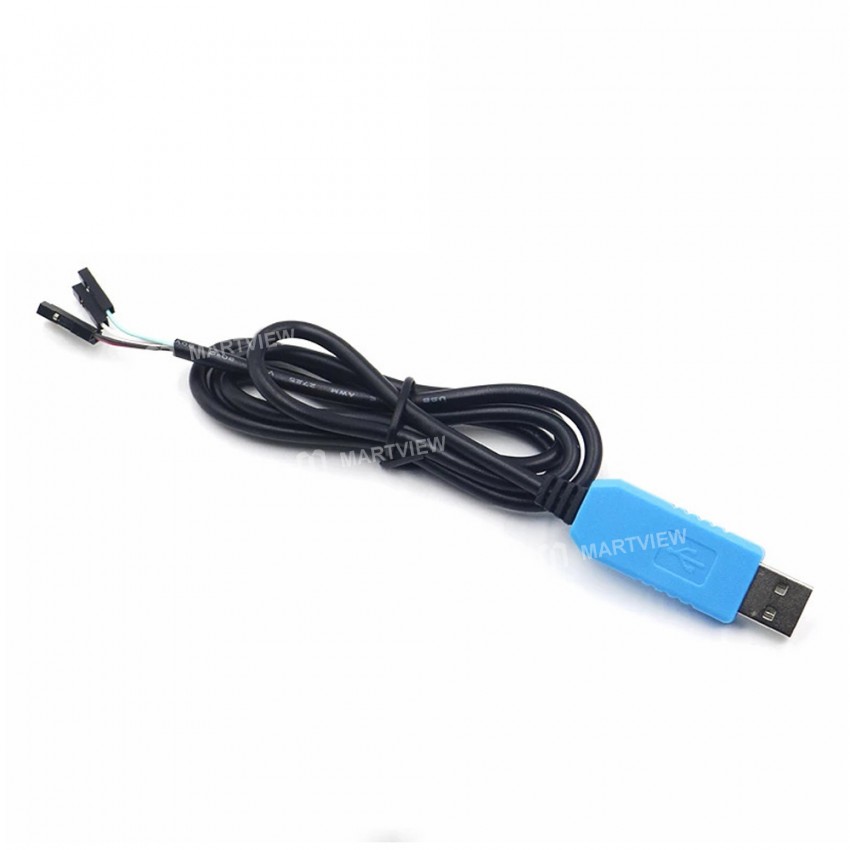

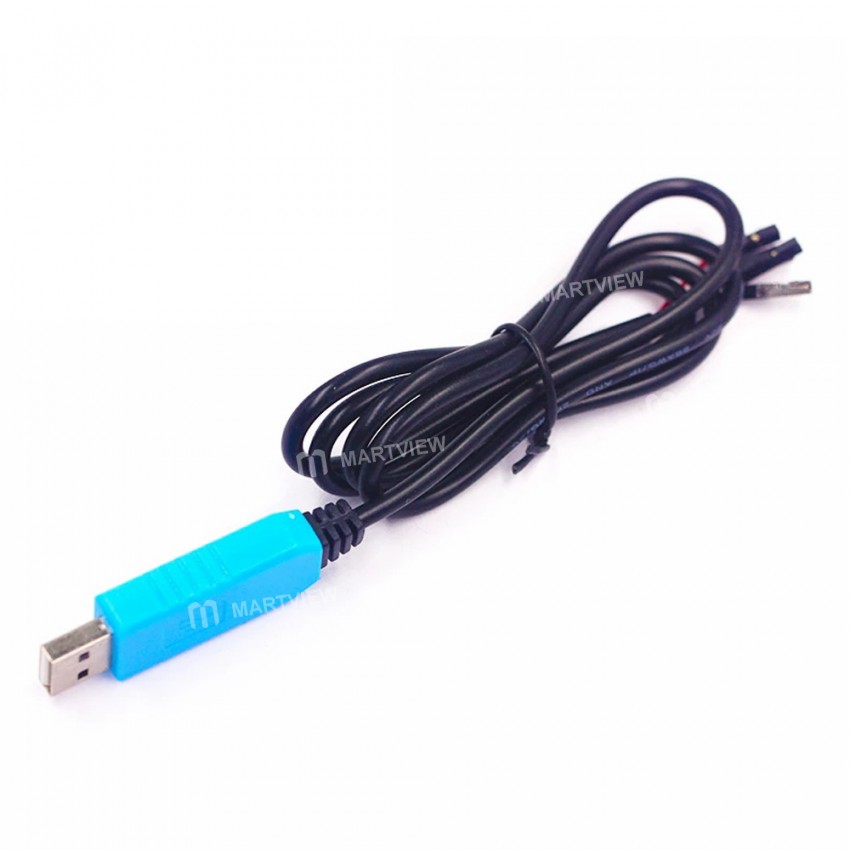

FT232BL Brush Cable USB to TTL Serial Port Module Download Cable

FT232BL Brush Cable USB to TTL Serial Port Module Download Cable

Features:

• FTDI based USB to TTL Serial Cable are designed using the standard FT232RL chipset

• The cables provide a fast, simple way to connect devices with a TTL level serial interface to a USB

• RX and TX LEDs indicator

• The cables are available with a 6-way SIL, 0.1" connector

• TTL levels are 3.3V

• The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial

• UART interface IC device which handles all the USB signaling and protocols

• The cables provide a fast, simple way to connect

• devices with a TTL level serial interface to a USB

• Each TTL-232R cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable

• The other end of the cable comes with a selection of different connectors supporting various applications

• Cables are FCC, CE, and RoHS compliant and are available

• Cables are available with either a 6-way SIL,0.1” pitch connector, a 3.5mmAudio Jack, or an 8 way, keyed 2mmpitch connector

• (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections

• The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1m long and supports a data transfer rate of up to 3 Mbaud

• Support system: Windows XP, Vista, Windows 7/8/10

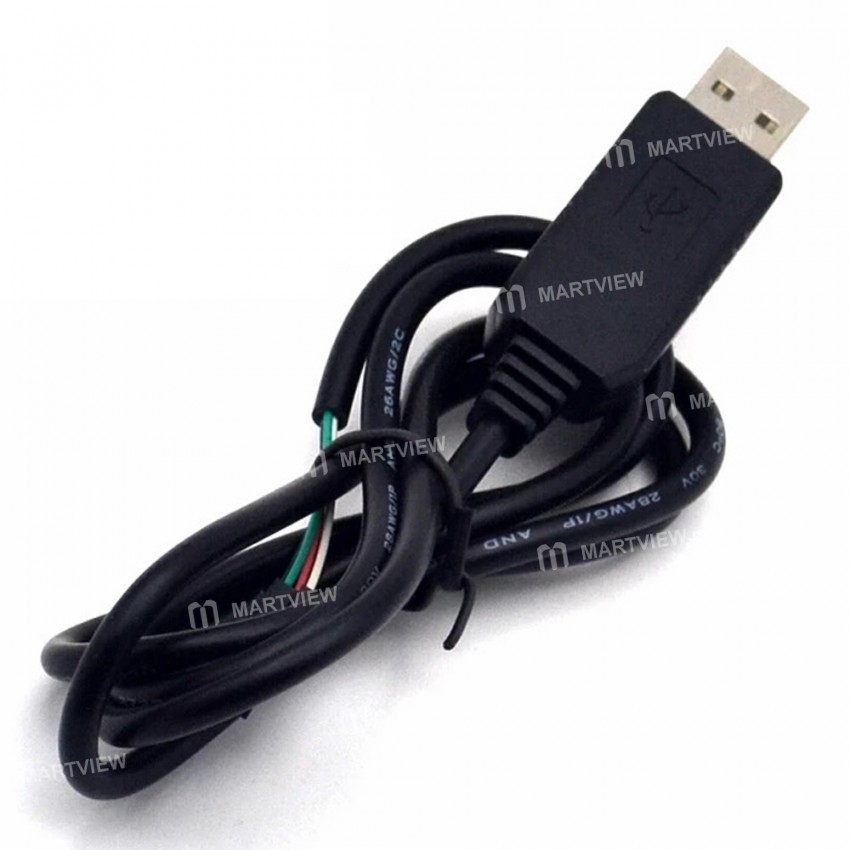

Line order definition:

• Red wire=VCC(5V)

• Black wire = GND

• White line = RXD

• Green wire = TXD

• Three pads of 3.3V, CTS, DTR are reserved on the PCB. If you need to use it, you can disassemble the shell and modify it

Application:

• The MCU communicates with the PC (using the UART protocol in the software and based on the USB interface in the hardware)

• Upgrade firmware programs, such as hard drives, satellite receivers, routers, and other devices that use serial ports to download programs

• Serial communication, communicate with all devices capable of TTL serial communication

• Download microcontroller programs, such as STC microcontrollers, etc.

• Download ARM programs, such as STM32 and other embedded chip programs

Package includes:

• 1 x Brush Cable(Random Color)
