Full HD 13MP 2K HDMI VGA Simultaneous Output Industry Video Microscope Camera for Phone PCB Repair

Full HD 13MP 2K HDMI VGA Simultaneous Output Industry Video Microscope Camera for Phone PCB Repair

Specification:

• Model: HDMI1660

• Image Sensor: Panasonic's original CMOS Sensor

• Sensitivity size: 1/2.3 inch

• Pixel size: 1.335μmx1.335μm

• Output Interface: HDMI(Type A), USB(Type B), TF Card

• Photo resolution: 16MegaPixel(16 million pixels)

• Video resolution: 2K@30fps, 1080p@60fps

• HDMI output: Progressive 1920*1080 60 frames Can be output simultaneously with USB

• HDMI output ratio: Support 4:3, 16:9, and 16:10 screens to ensure that the image is not deformed

• USB2.0 output (free drive): 1920*1080@30 frames, 1280*720@30 frames, 640*480@30 frames, can be output simultaneously with HDMI

• TF card storage capacity: Up to 128GB

• White balance: One-key white balance/auto/manual, R, G, and B are individually adjustable

• Exposure: Manual/automatic, the exposure value is adjustable

• Language: Chinese/English

• Remote control: Support, remote control camera, and video, the picture does not shake

• Input voltage: DC 12V (support 5-19V), 55-21 large interface

• Power consumption: Maximum 0.15W(12V,0.12A)

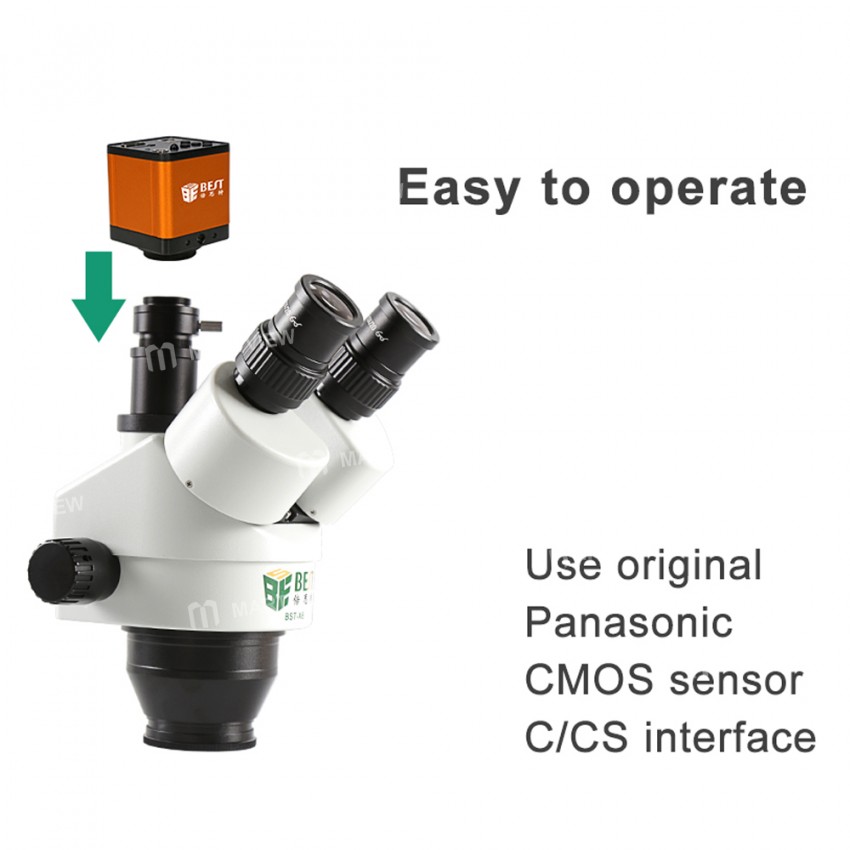

• Lens interface: C/CS port

• Mirroring: Horizontal and vertical mirroring

• Net weight: 150g

• Gross weight: 370g

• Product Size: 51*51*55mm

• Package Size: 160*100*80mm

Package includes:

• 1 x Camera

• 1 x Adapter

• 1 x Remote control

• 1 x B-type square port USB cable
