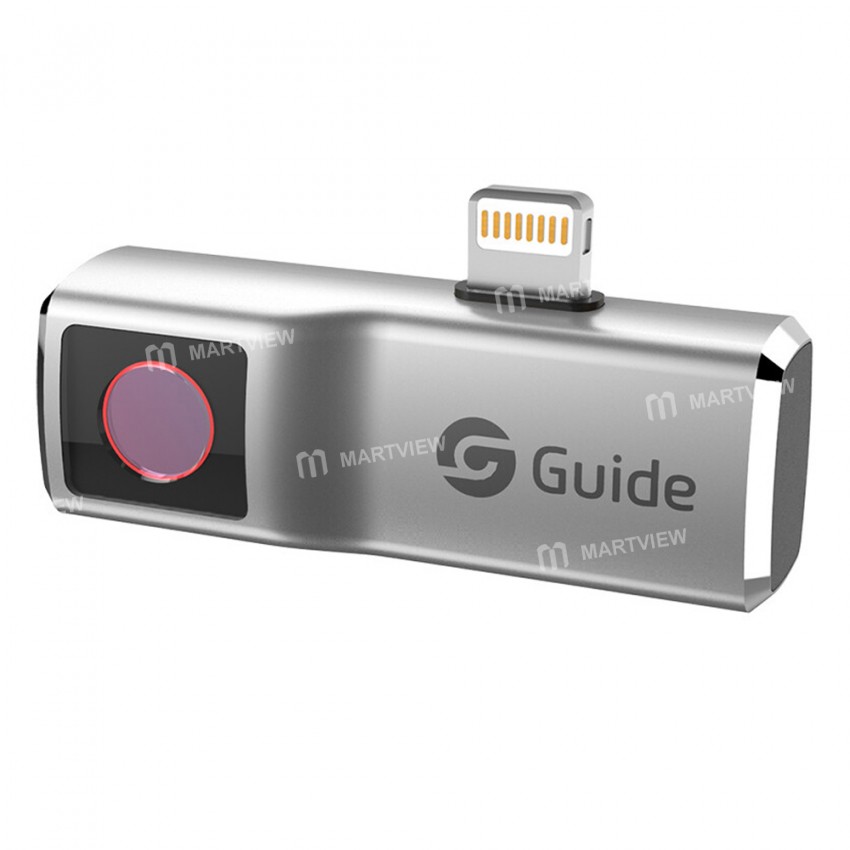

Guide Mobir Air Lightning / Type-C Infrared Thermal Imager for iPhone / Android Phones

Guide Mobir Air Lightning / Type-C Infrared Thermal Imager for iPhone / Android Phones

Features:

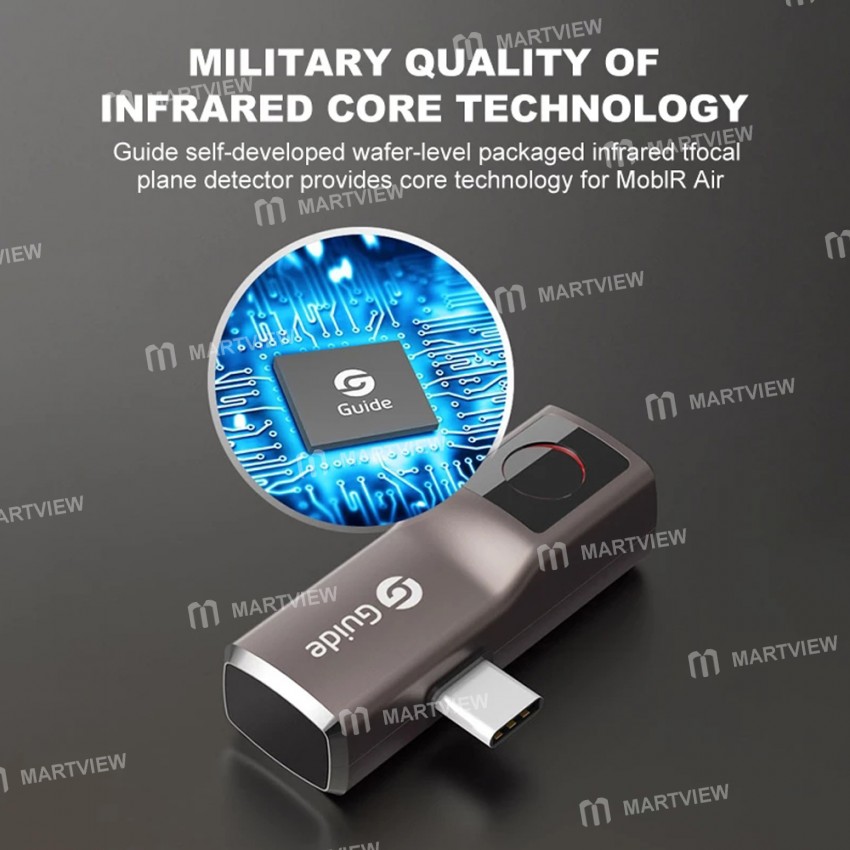

• The infrared core technology, high-quality Guide's self-developed WLP infrared focal plane detector provides the infrared core technology for MoblR Air

• Smooth image, 25Hz high frame frequency, perfectly captures dynamic moments, records the temperature of each frame

• Fast detection, 50° field of view, scan targets and pinpoint heat sources fast in large areas

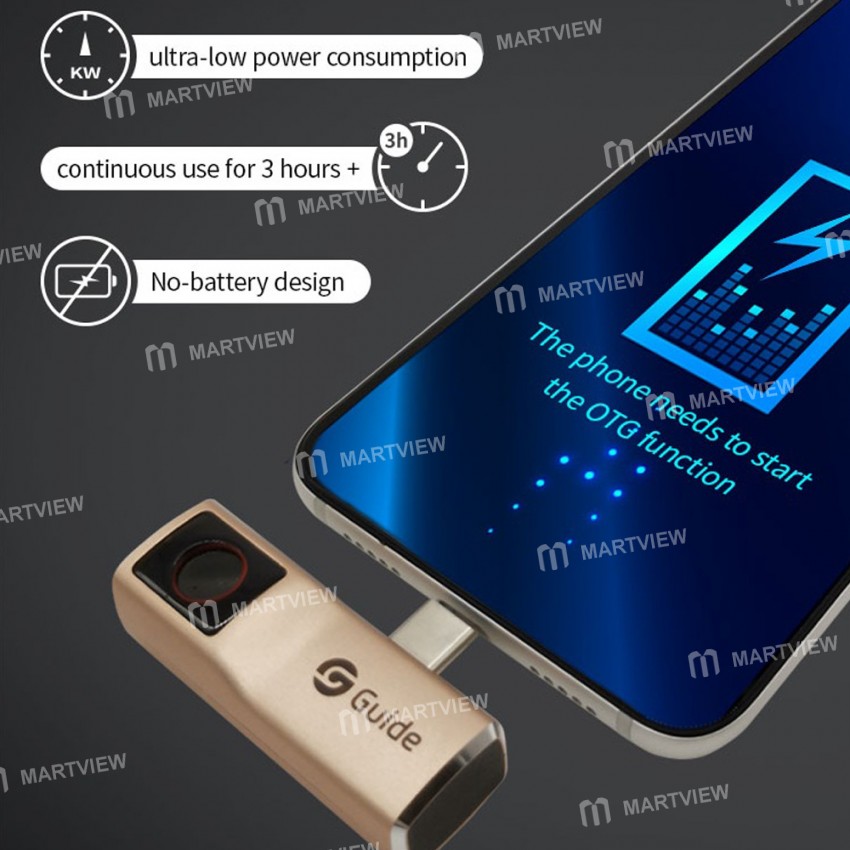

• Durable, no battery required, ultra-low power, consumption, continuous use for 3 hours, no-battery design

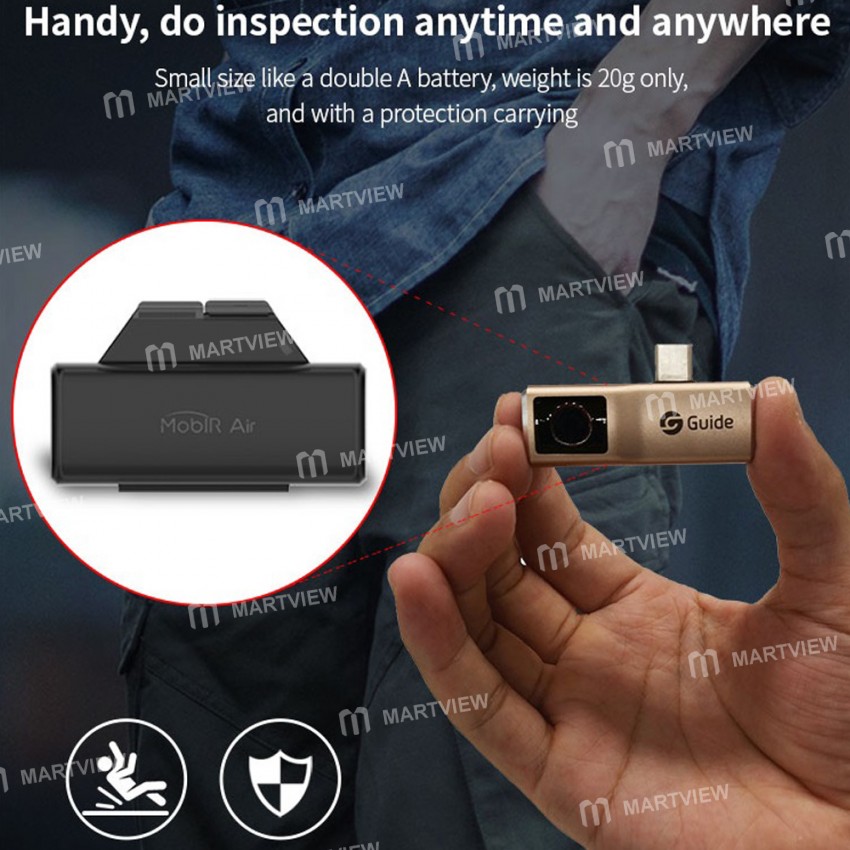

• Handy, do inspection anytime and anywhere, small size like a double battery, weight is 20g only, and with a protective carrying

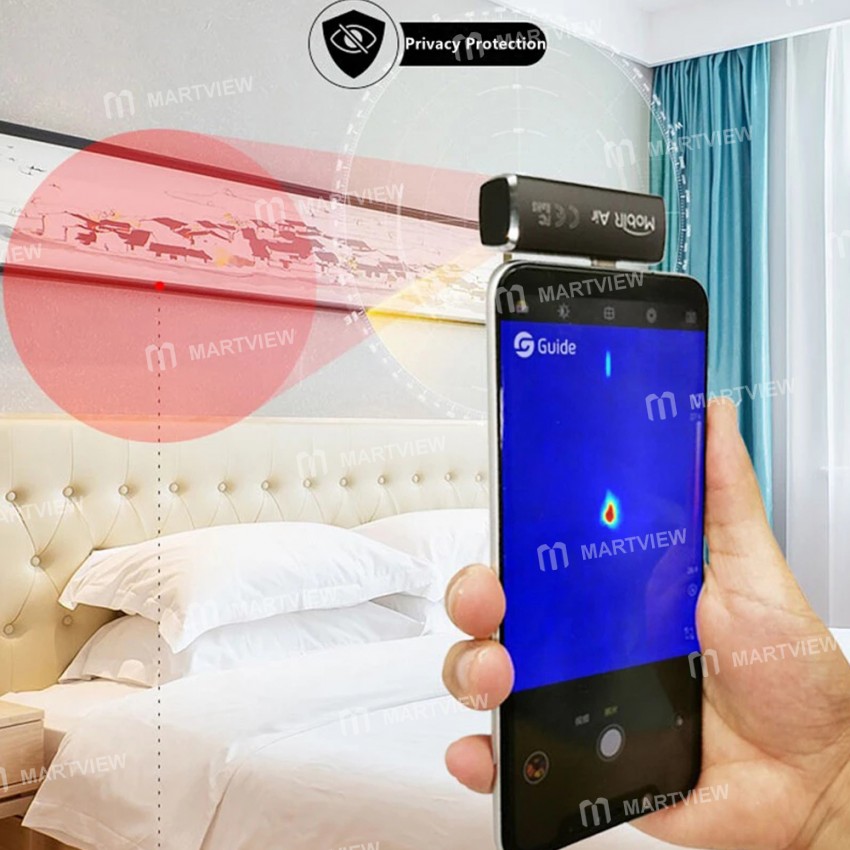

• Find hidden cameras, and protect your privacy, scan the entire room in 1 minute and quickly detect whether there is a hidden camera in the room

• Your must-have tool for HVAC inspections, scan and see, no professional training required, make your HVAC inspection easier

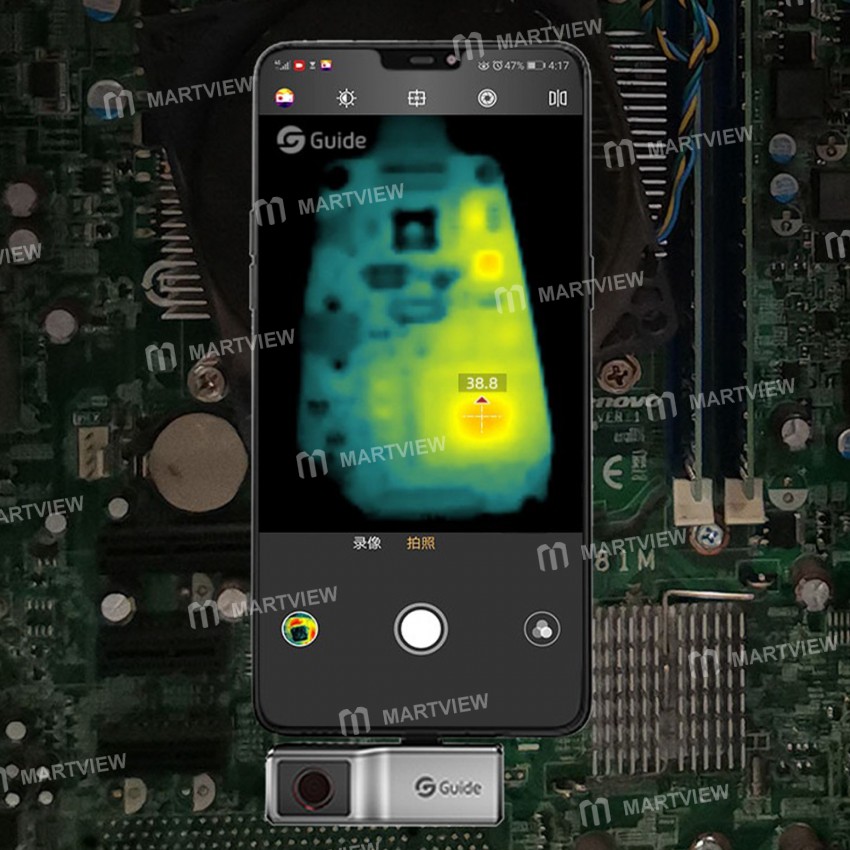

• Non-contact temperature measurement tool, higher working efficiency for R&D or DIY projects, fast assess hidden issues and reduce troubleshooting time

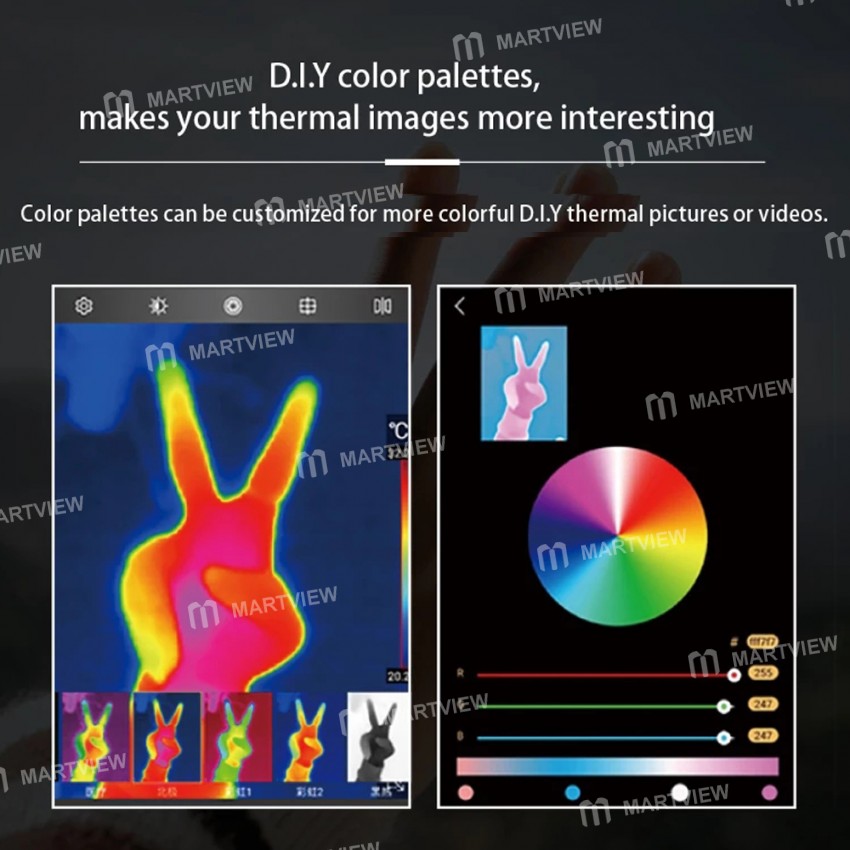

• D.I.Y color palettes, make your thermal images more interesting, color palettes can be customized for more colorful D.I.Y thermal pictures or videos

Specification:

• Name: MoblR Air Thermal Camera for Smartphone

• Resolution: 120 X 90

• Pixel size: 17μm

• Field: 50°

• Power consumption: <150mW

• Interface: iOS: Lightning; Android: USB Type-C

• Temperature measurement range: -20°C~120°C

• Normal working temperature: 0°C~35°C

• Optimum working temperature: 16°C~22°C

• Temperature measurement accuracy: ±3°C within 10~26°C environment

• Storage temperature: -10°C~55°C(the relative humidity is 5%~95%under noncondensing state)

• Working height: Up to 3000M (10,000ft)

• Weight: About 20g

• Dimension: 50*14*18mm

Package includes:

• 1 x Infrared Thermal Imager
