Hantek 2C42 2-in-1 Dual-Channels 40MHz Bandwidth Handheld Digital Oscilloscope + Multimeter

Hantek 2C42 2-in-1 Dual-Channels 40MHz Bandwidth Handheld Digital Oscilloscope + Multimeter

Features:

• This all-new handheld oscilloscope is a 2-in-1 multifunction tester: oscilloscope and multimeter. Its sampling rate is 250MSa/s and its bandwidth is 40MHz

• Support multi-angle adjustment, ultra-low-power, Type C charging interface, each 2-hour battery charge allows working one full day or standby for two months

• Output sine, square, triangle, trapezoidal, and other waveforms output.

• 5V/2A large current or USB port of the ordinary computer can be charged, easy to use, and convenient with the Auto one-key test.

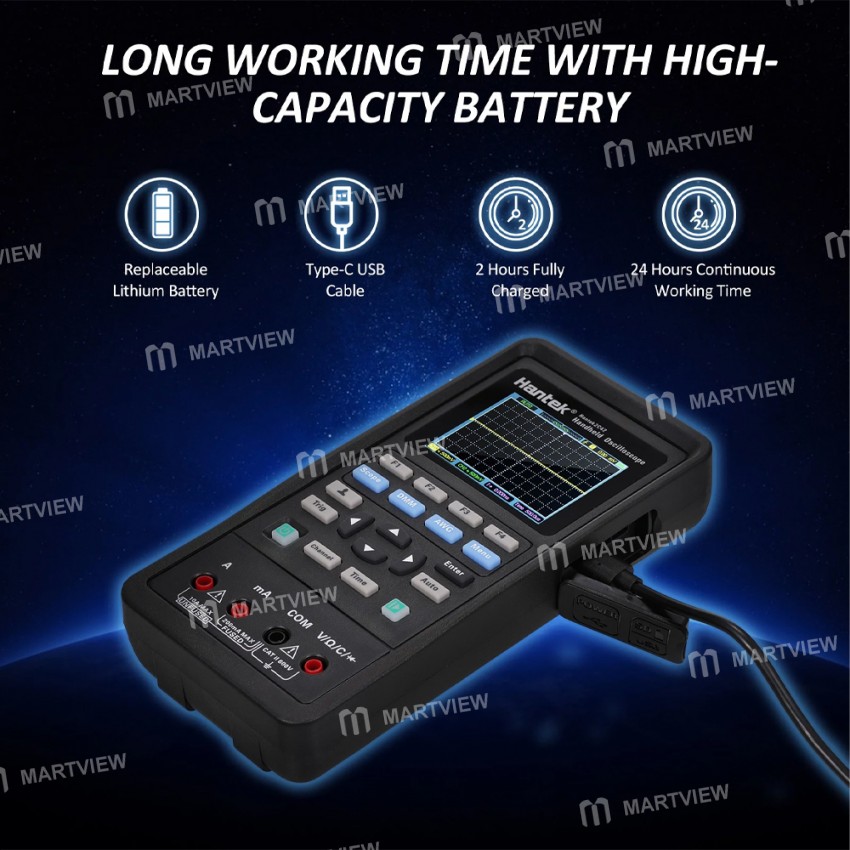

• Type-C charging interface, and standby for 2 months after every recharge of 2 hours with large capacity replaceable lithium batteries power supply

• Universal Multimeter Function: Test voltage, current, resistance, diode, capacitance, and continuity

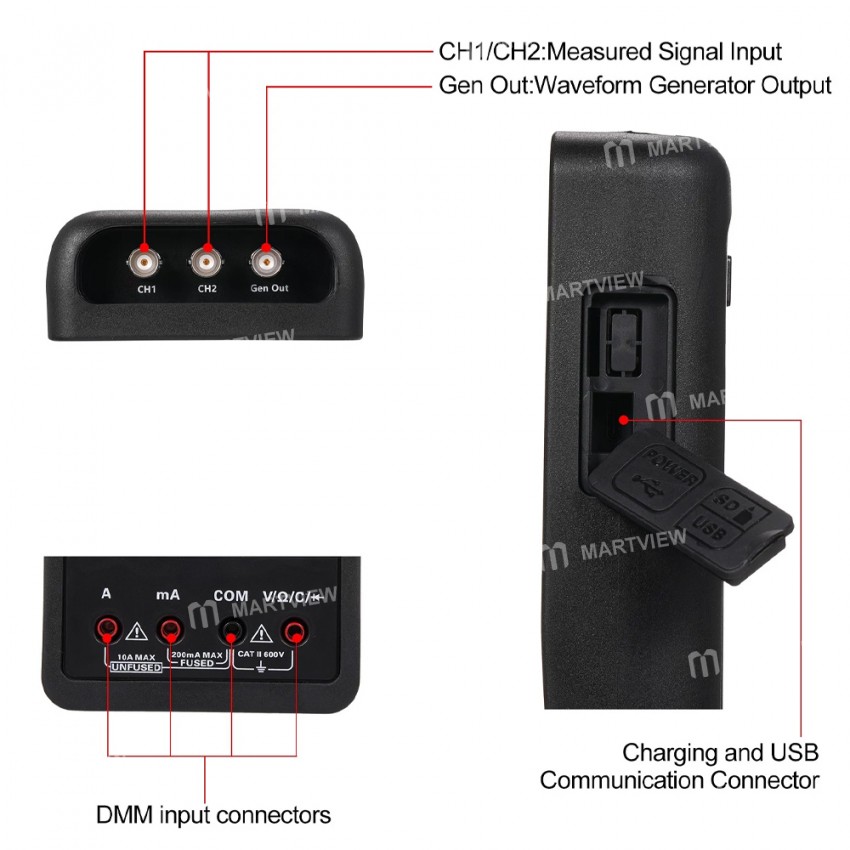

• Type C power + data transfer interface can share the charger and data cable with your mobile phone

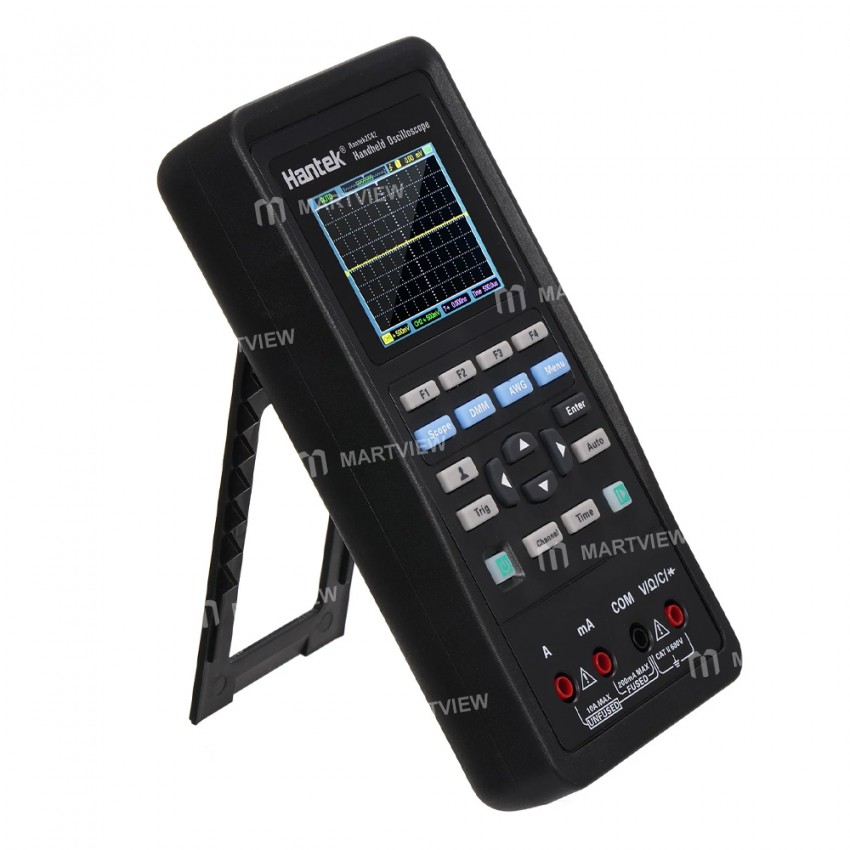

• Small In Size & Held In Single Hand: The 45-degree suspension bracket design provides you with a workstation anywhere anytime

• One Key Export Out & Quick Comparison: 2 groups of reference waveform + 6 groups of waveform storage, simple and effective

• Digital Voltmeter Function: Automatic frequency and amplitude measurement, convenient to use and it supports Chinese & English menu display

• With Cursor Measurement Function: Supports time and voltage manual measurement, and measures the required waveform accurately

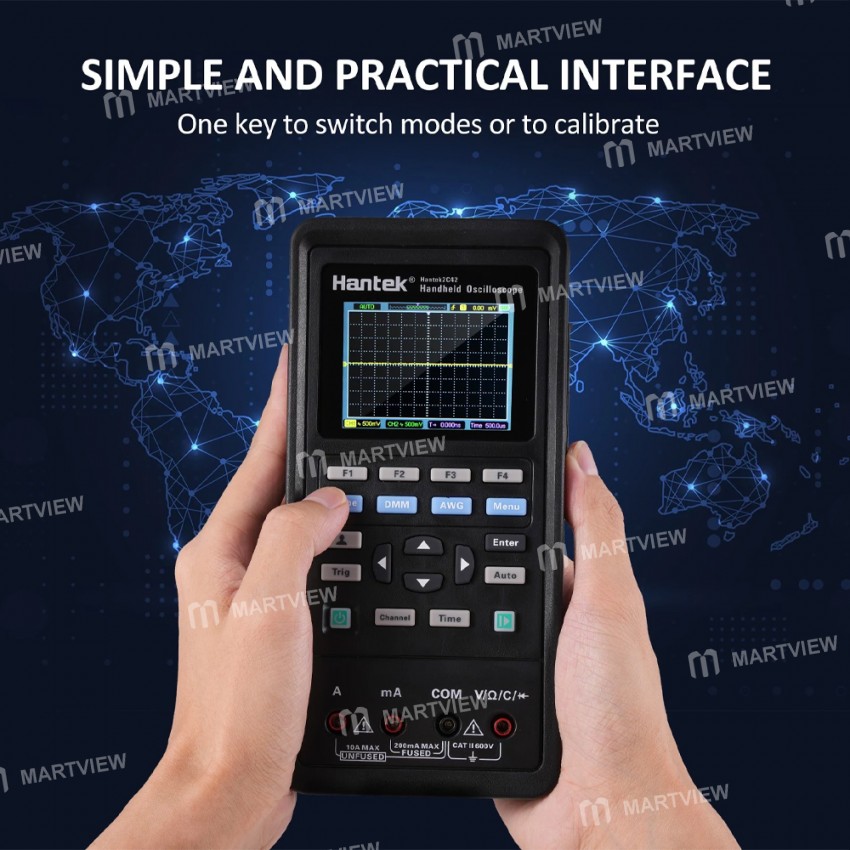

• Color LCD Screen: Exquisite and smooth lines make the waveform clear and undistorted when magnified with a minimalist keyboard design simplifying operation

• Unibody Casing: Fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble

• Self-Calibration Function: Free from level drift after a long time unused.

• Scan Code for Video Help Function: Scan code on the back of the machine to get the help of online video help

Specifications:

• Bandwidth: 40MHz

• Power Supply: AC 110~240V 50/60Hz

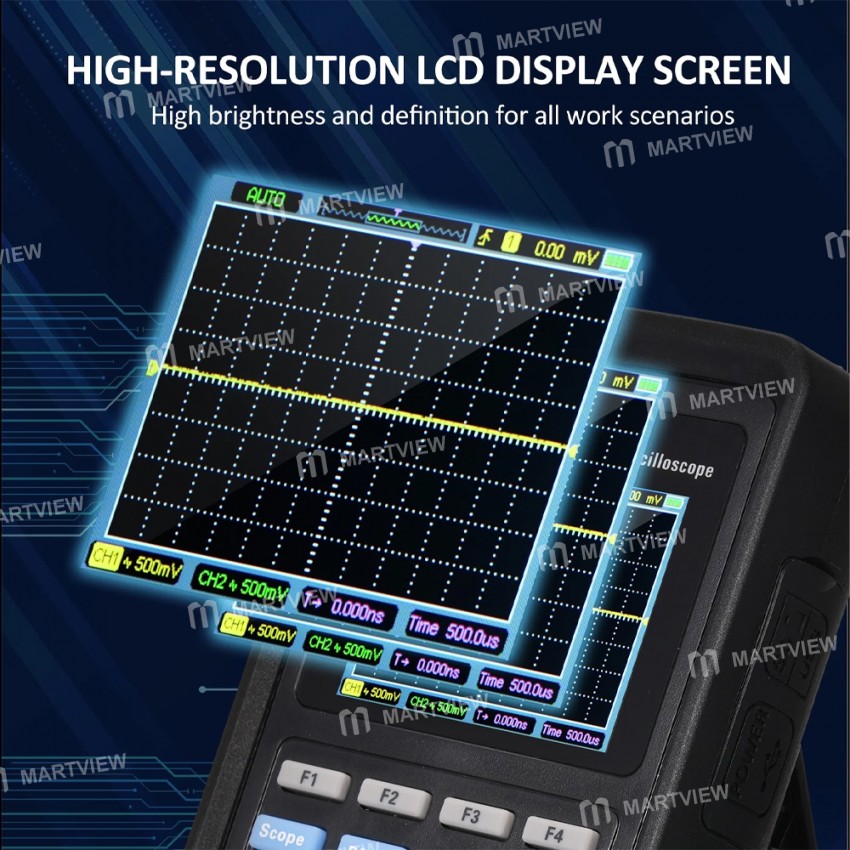

• Display: Full Color TFT LCD Display(320*240 pixels)

• Channel: 2CH + DMM

• Horizontal: Sampling Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)

• Waveform Interpolation: (sin x)/x

• Record Length: Max. 6K when single-channel, 3K each channel when dual-channel

• SEC/DIV Range: 5ns/div～500s/div 1, 2, 5 step-by-step

• Vertical: A/D Converter: 8-bit resolution, each channel sampled simultaneously; VOLTS/DIV Range 10mV/div～10V/divat input BNC; Bandwidth Limit, Typical: 20MHz

• Low Frequency Response (-3db): ≤10Hz at BNC

• Rise Time at BNC, Typical: ≤5ns

• Vertical Gain Accuracy: ±3% for Normal or Average acquisition mode

• Note: Bandwidth reduced to 6MHz when using a 1X probe.

• Power Supply: 2 * Built-in 3.7V 2600mAh Battery

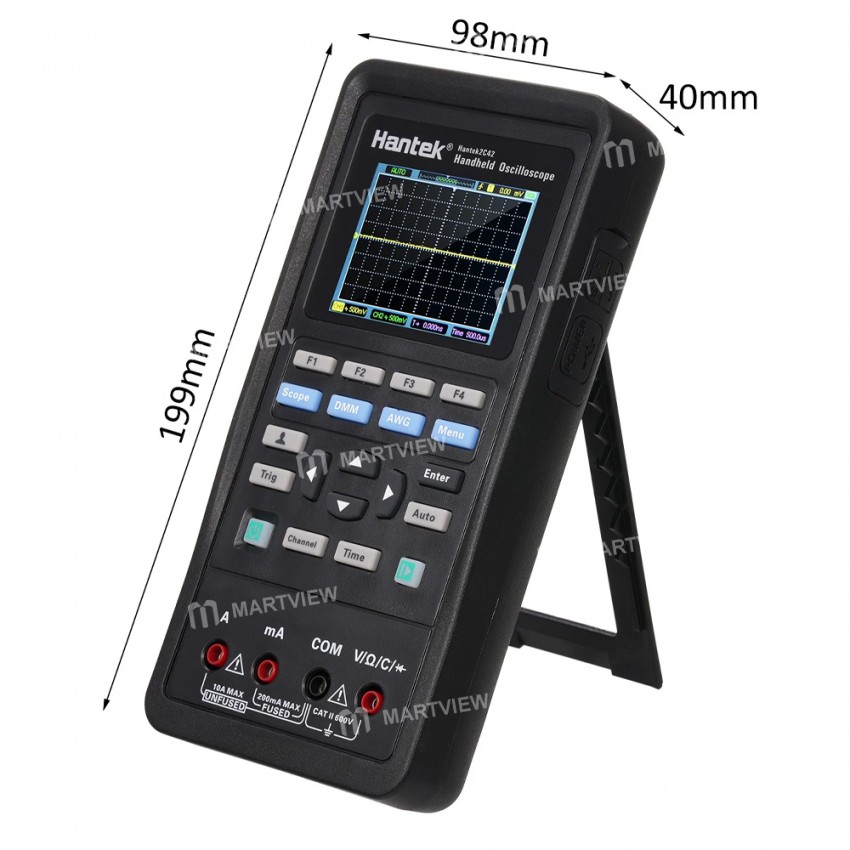

• Product Size: 199 * 98 * 40mm

• Product Weight: 640g

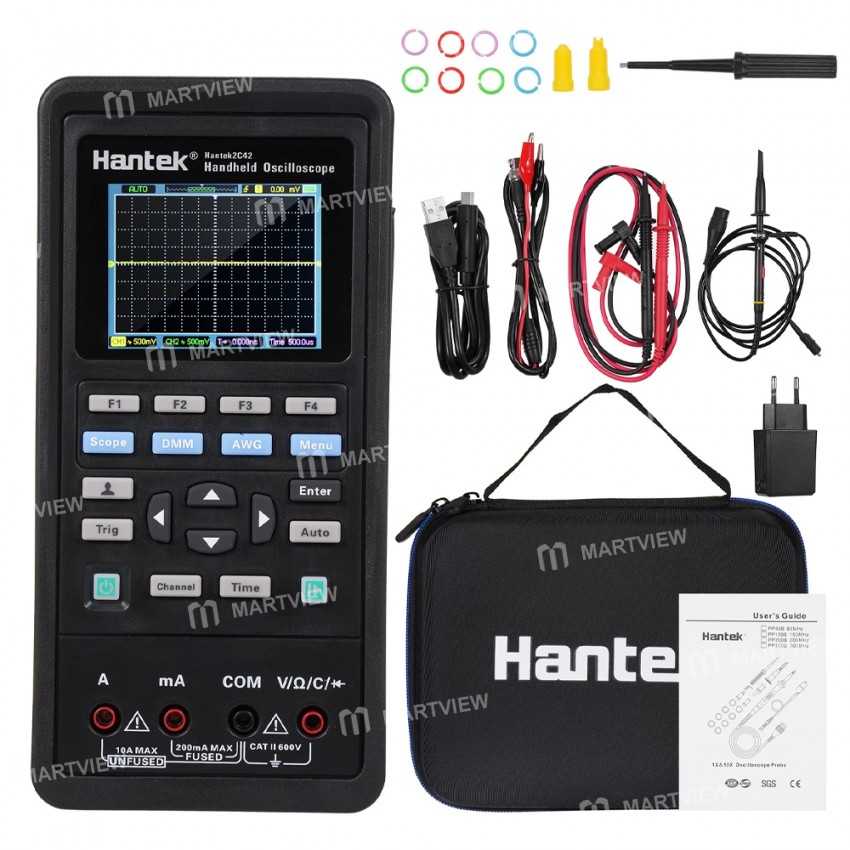

Package includes:

• 1 x 2-in-1 Oscilloscope

• 1 x Clip Probe

• 1 x Test Probe

• 1 x Power Adapter

• 1 x USB Charging Cable

• 1 x Multimeter Probe

• 1 x Storage Bag
