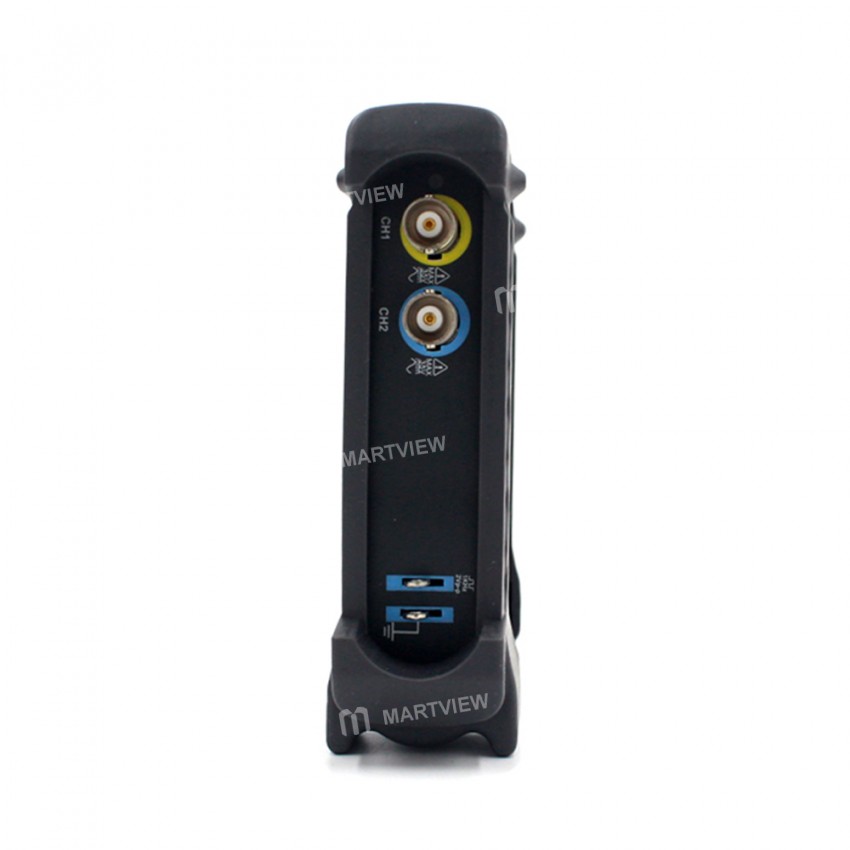

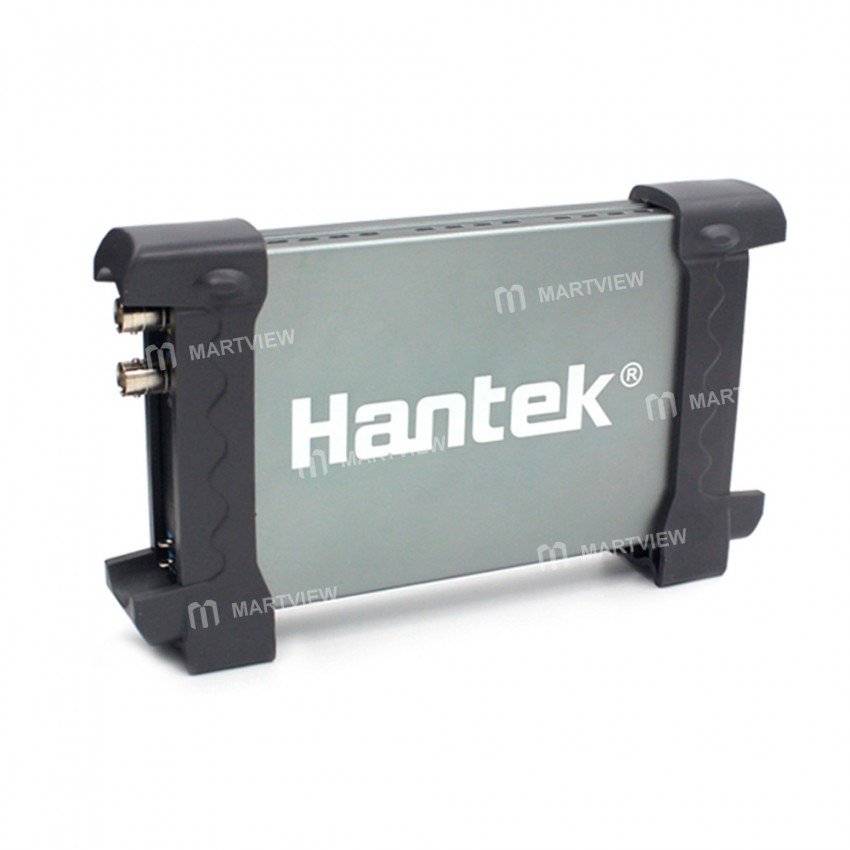

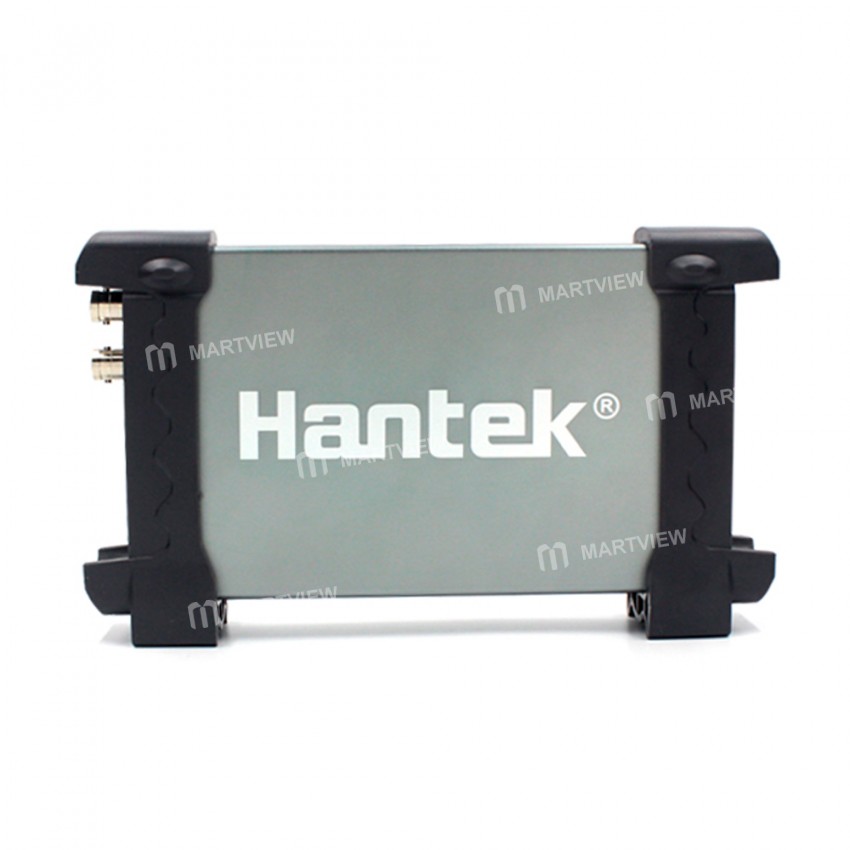

Hantek 6022BE Dual Channel 20Mhz Laptop PC USB Digital Storage Virtual Oscilloscope

Hantek 6022BE Dual Channel 20Mhz Laptop PC USB Digital Storage Virtual Oscilloscope

Features:

• Cost-effectiveness; Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has a good heat resistance and strong wearability.

• Standard USBXITM interface easily inserts into USBXITM housing to make up a combination instrument.

• USB2.0 interface, no external power source required, easy to use.

• Be suitable for notebook computer, product line maintenance, be used easily on business.

• Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

• High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

• Operating System: Windows 7, Windows 8, Windows 10,

• Windows NT, Windows 2000, Windows XP, VISTA.

• 23 measurement functions, PASS/FAIL Check, be suitable for technical application>

• Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

• Save waveform in the following: text file, jpg/BMP graphic file, MS excel/word file

• FFT

• One computer can connect many DSO, extend channels easily.

• LabviewVBVCDelphiC++Builder Second Design instance.

Specification:

• Channel:2 Channels

• Bandwidth:20MHz

• Input Impandence:1MΩ 25pF

• Max. Sample rate:48MS/s

• Vertical resolution:8Bit

• Gain range:20mV-5V, 8Steps

• DC accuracy:±3%

• Timebase range:1ns-9000s, 39 Steps

• Vertical adjustable: Yes

• Input protection: Diode clamping

• X-Y: Yes

• Trigger Mode: Auto, Normal and Single

• Trigger Slope:+/-

• Trigger level adjustable: Yes

• Trigger Type: Rising edge, falling edge

• Trigger Source: CH1, CH2

• Pre/Post trigger:0-100%

• Sampling selection: Yes

• Waveform Display: port/line, waveform average, persistence, intensity

• Network: Open/Close

• Vertical mode: CH1, CH2, Dual, ADD

• Cursor measurement: Yes

• Math: FFT, addition, subtraction, multiplication, division.

• Cursor: Frequency, Voltage

• Accessories: S/W CD, probes, manual, USB cord

• Operating system: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA

Package includes:

• 1 x Oscilloscope

• 1 x USB Cable

• 1 x CD

• 2 x Probes

• 1 x User Manual (in cd)
