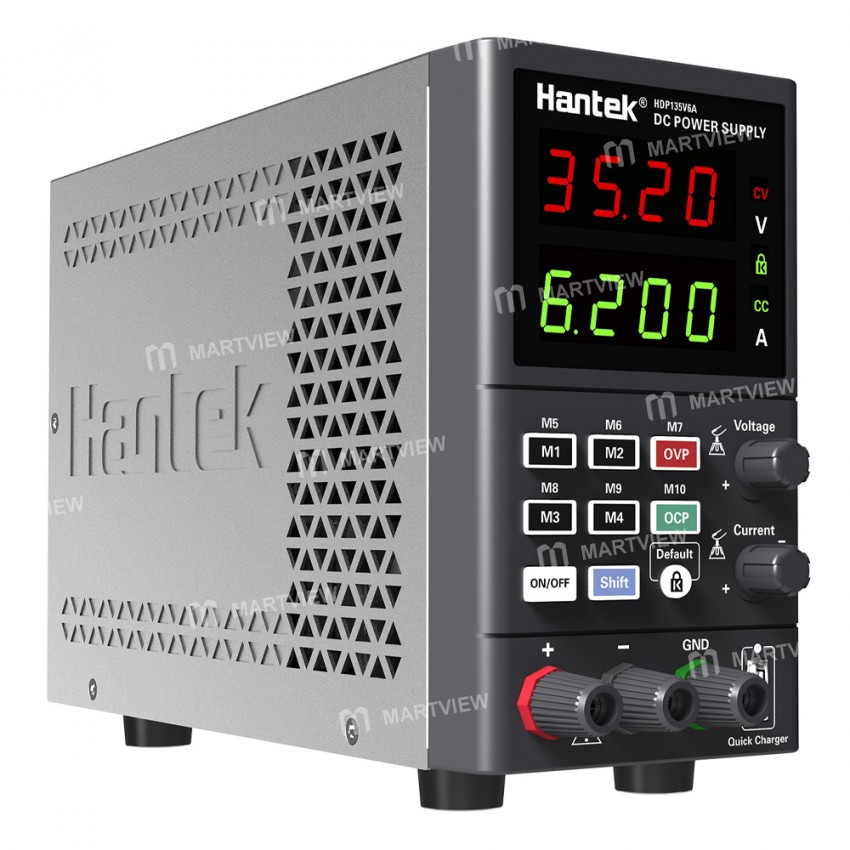

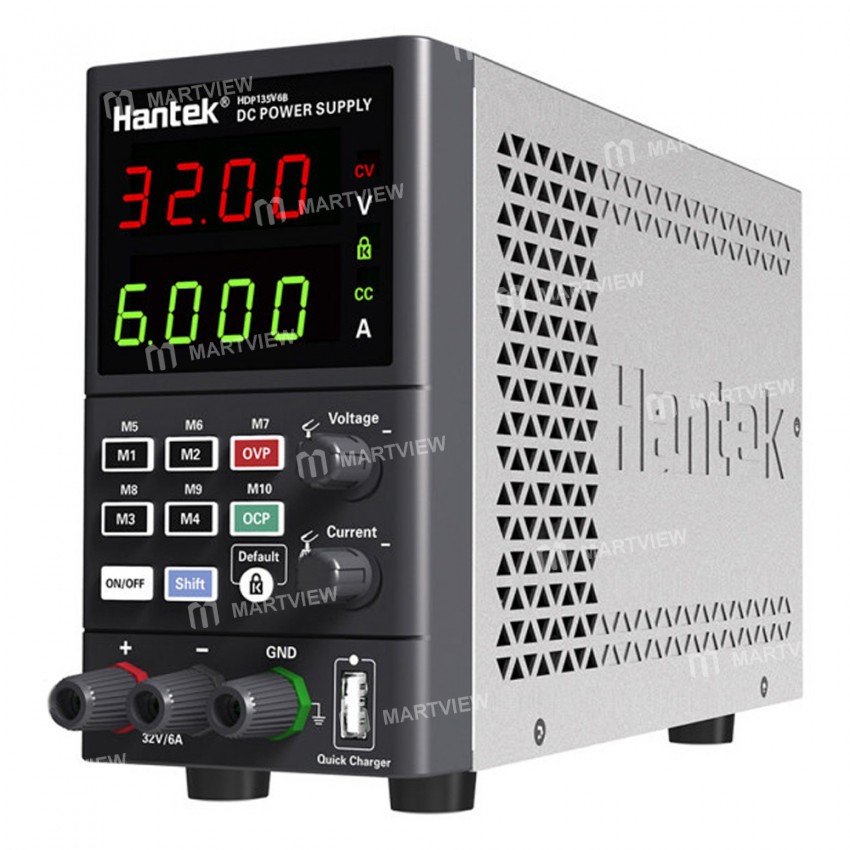

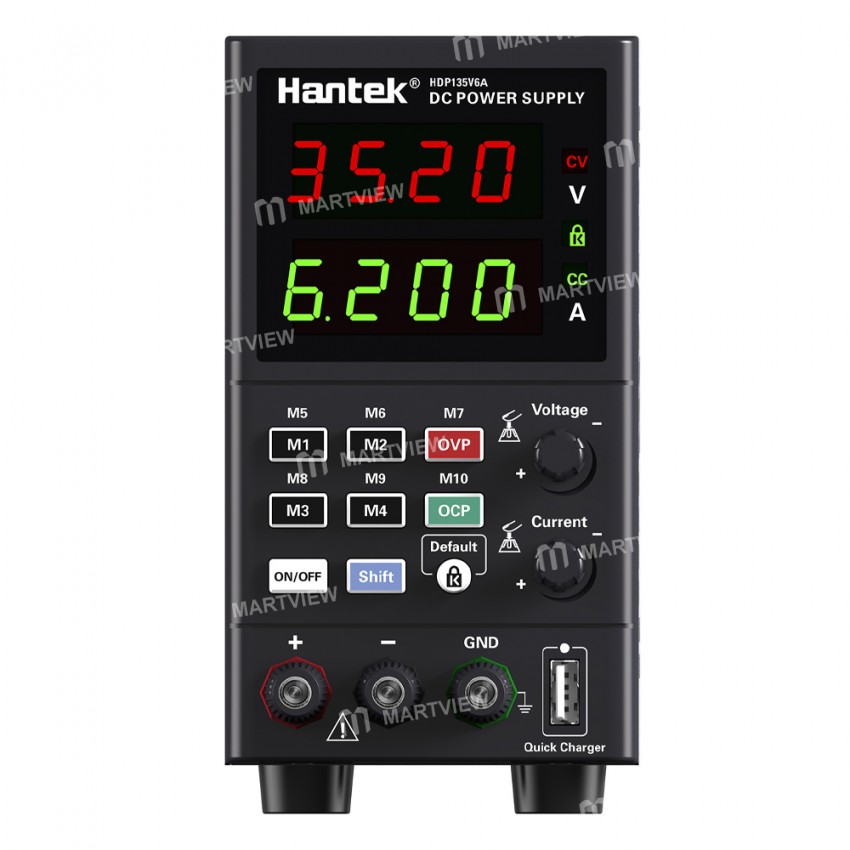

Hantek HDP135V6 A / B Digital Storage Programmable Switching DC Power Supply

Hantek HDP135V6 A/B Digital Storage Programmable Switching DC Power Supply

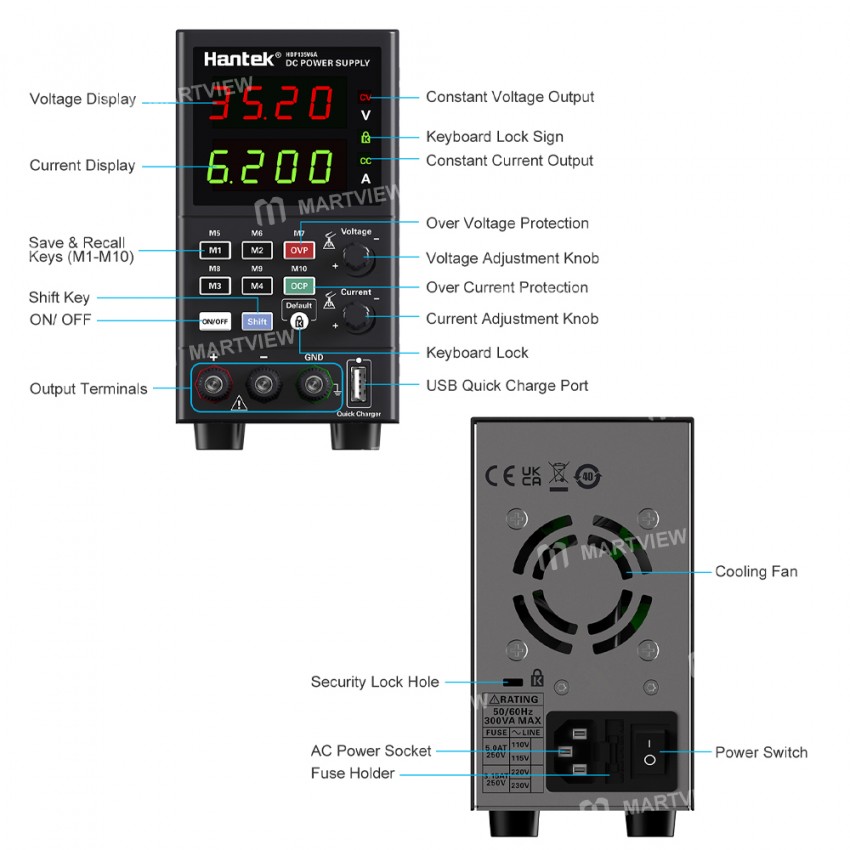

Features:

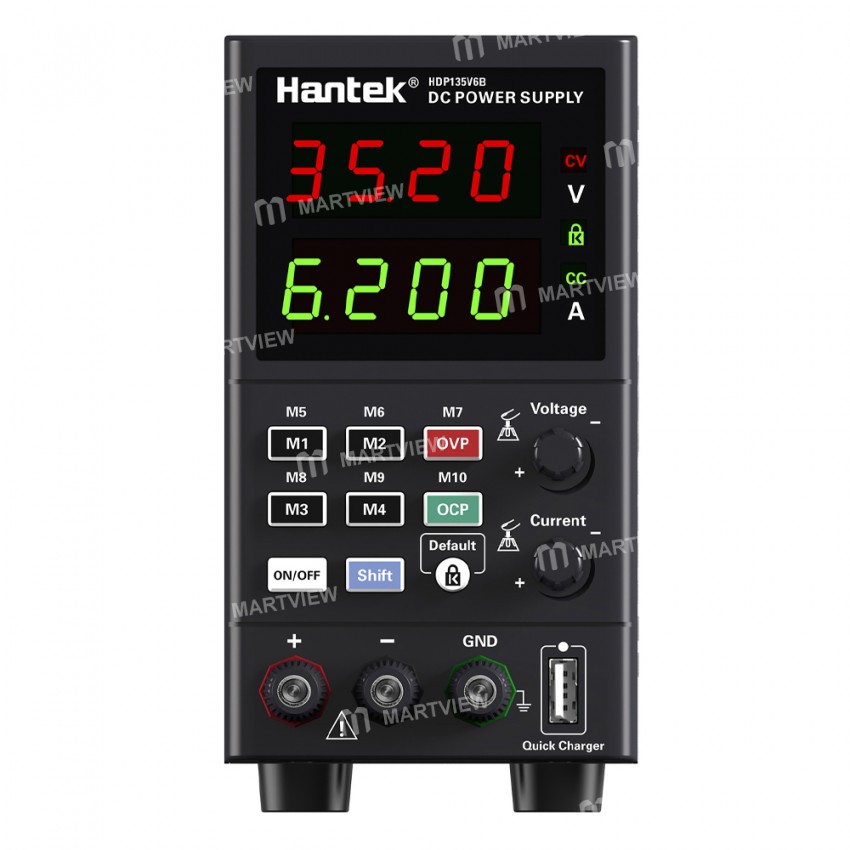

• Four-digit display of voltage and current, resolution up to 10mV/ 1mA

• Constant voltage and constant current switch automatically, and effectively protect the circuit

• 35V/ 6A output is stable and pure

• On/ Off output control, one-key panel lock function to prevent misoperation

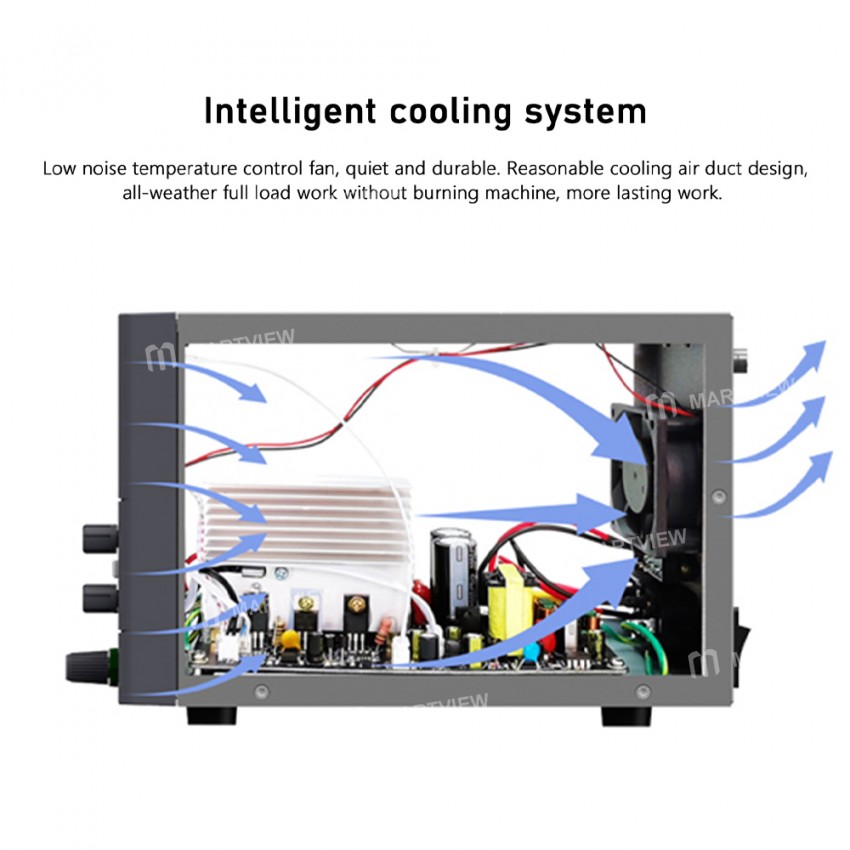

• Low noise temperature control fan, quiet and durable

• Over voltage, over current, overload, overheating, short circuit protection functions

• Two-stage adjustment topology, no impact on the load when the power is turned on

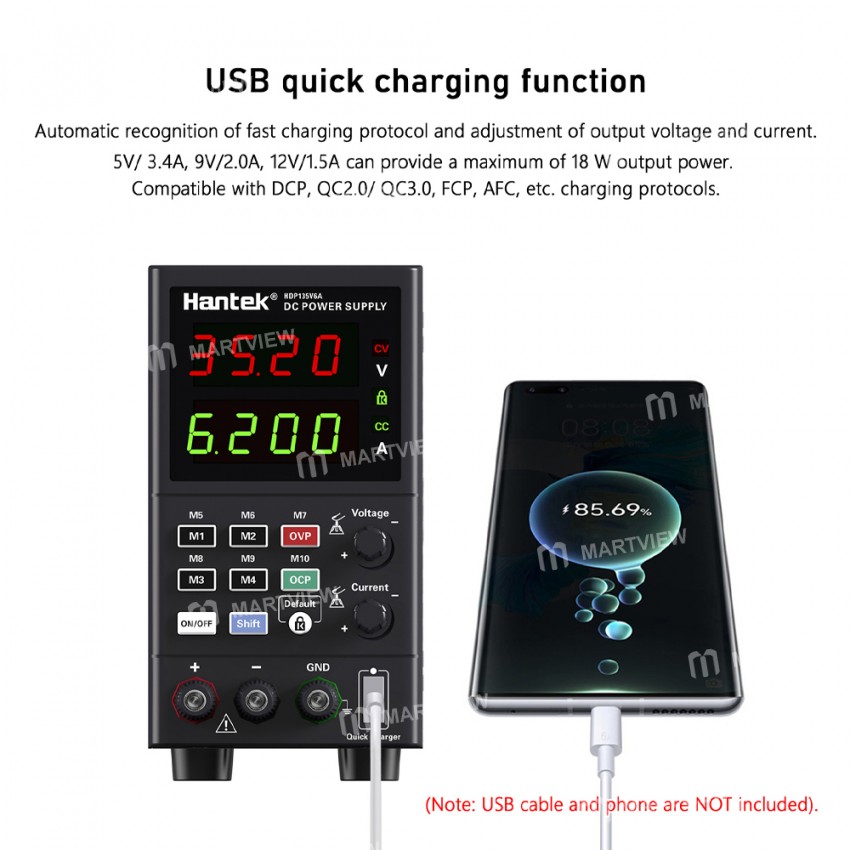

• Standard USB quick charging function, 5-12V output, automatic recognition of a variety of fast charging protocols, and adjustment of output voltage and current.

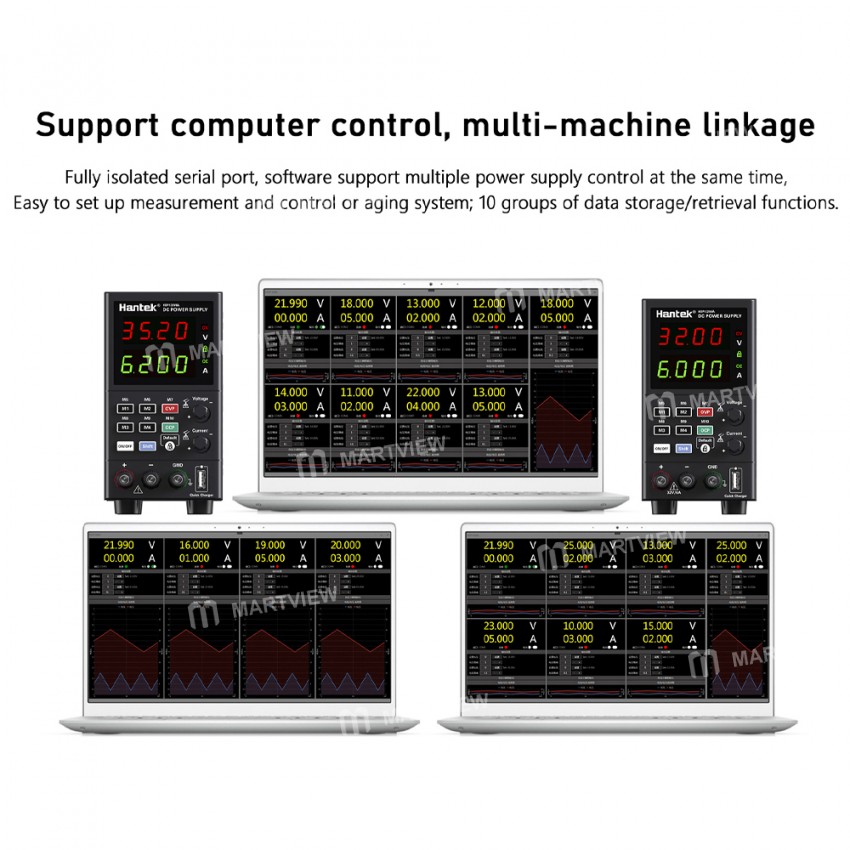

• Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system

• 10 groups of data storage/ retrieval functions

• A portable bench DC power supply is suitable for production line testing, repair of mobile phones/ computers/ electrical appliances, product aging and electroplating, battery charging, laboratory, scientific research, teaching, etc

Specification:

• Load Regulation: ≤0.1%+5mV

• Line Regulation: ≤0.01%+5mV

• Set Resolution: 10mV

• Set Accuracy: ≤0.1%+1 digits

• Readback Resolution: 10mV

• Readback Accuracy: ≤0.1%+1 digits

• Ripple: 10mVrms

• Load Regulation: ≤0.2%+3mA

• Line Regulation: ≤0.2%+3mA

• Set Resolution: 1mA

• Set Accuracy: ≤0.2%+3mA

• Readback: 1mA

• Resolution Readback Accuracy: ≤0.2%+3 digits

• Ripple: 5mArms

• OVP: 0~35.2V ±0.2%FS

• Maximum Voltage: 35.2V ±0.2%

• OCP: 0~6.2A ±0.2%FS

• Maximum Current: 6.2A ±0.2%

• Output Voltage Range: 5V~12V

• Output Power: Maximum:18W

• Supported Quick Charging Protocol: Compatible with DCP, QC2.0/QC3.0, FCP, AFC

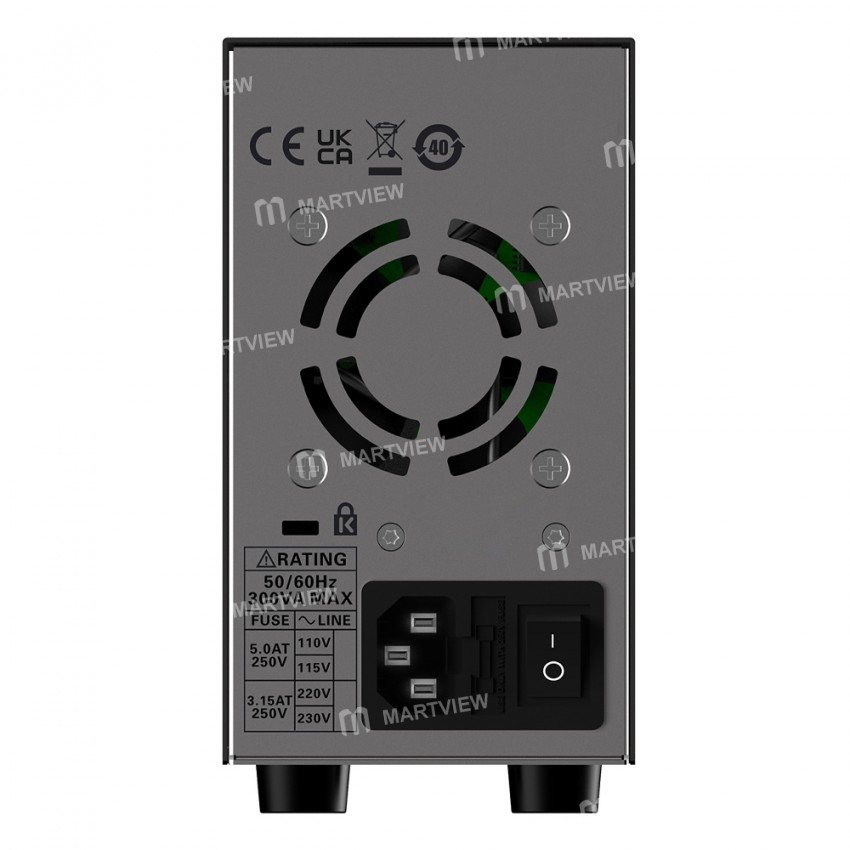

• Cooling: Air cooling

• Working Temperature: -10~40℃; Humidity: ≤80% RH

• Storage Temperature: -20~60℃; Humidity: ≤80% RH

• Item Size: 85*150*232mm

• Item Weight: 1594g

• Package Size: 28.5*21.5*14cm

• Package Weight: 2050g

Package includes:

• 1 x Power Supply

• 2 x Test Lines with Alligator Clip

• 1 x Power Cord
