HDMI USB 4K Ultra HD Measurement Microscope Camera for PCB Soldering Repair

HDMI USB 4K Ultra HD Measurement Microscope Camera for PCB Soldering Repair

Features:

• Adopt imported high-end Sony chip, HD output, high resolution, 3840*2160 image is 2 levels higher than 1080P

• 8 million effective pixel-resolution image of the chip

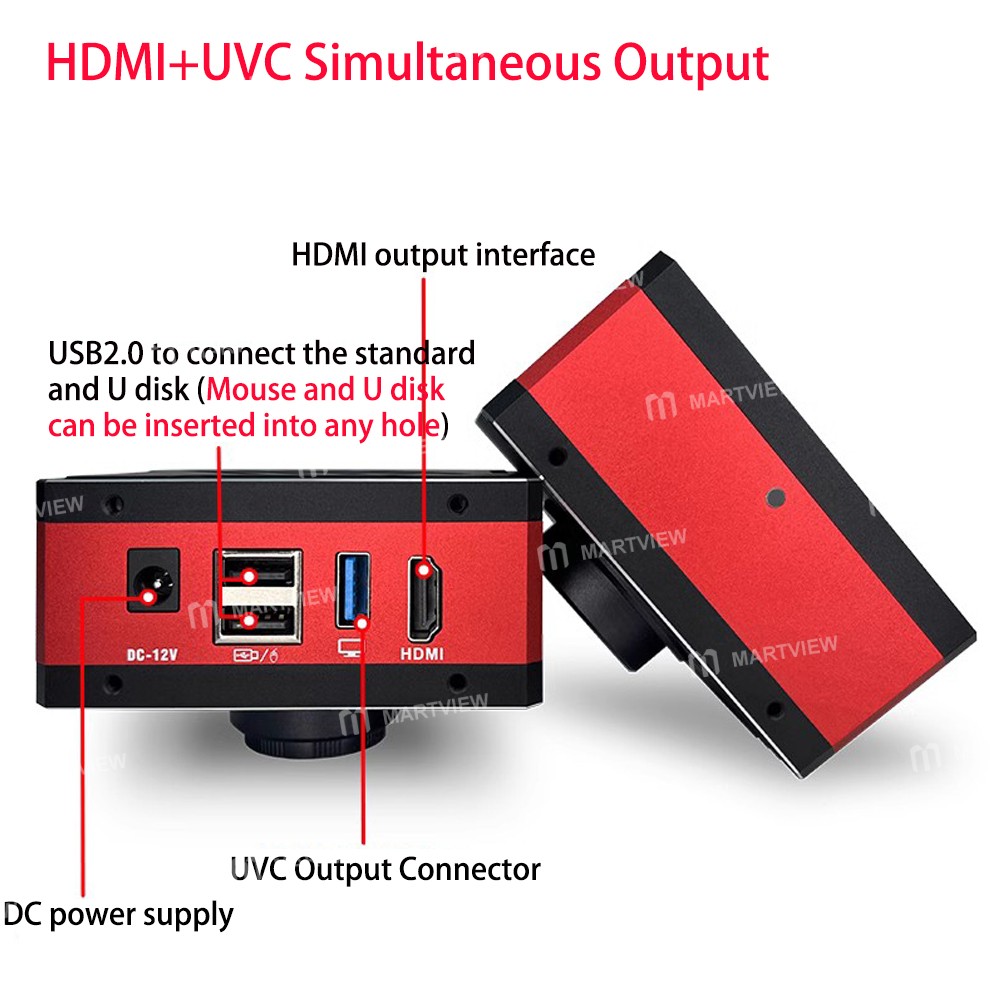

• Adopt a high-definition HDMI interface, better with a 4K display, compatible with the market with HDMI display

• HDMI real-time output connected to a high-definition HDMI monitor, through the embedded measurement system

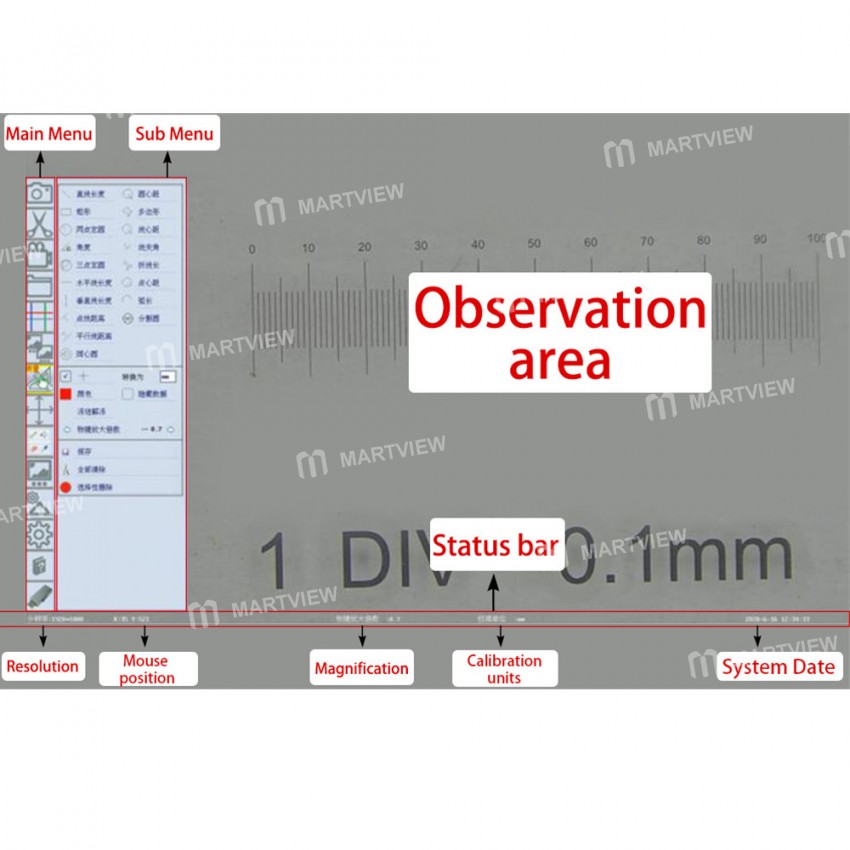

• Real-time measurement, photo, and video, export measurement data to U disk, image comparison, and other functions

• Support for Olympus microscopes, orthogonal metallographic microscopes, inverted metallographic microscopes, biological microscopes, trinocular stereomicroscopes, electron microscopes, etc.

Specification:

• Sensor target size: 1/2.8-inch

• Sensor Resolution: 4K@30fps

• Operation Mode: Mouse + Button

• Storage: USB flash drive, capacity <64GB

• Output Interface: HDMI 1920X1080/3840X2160(4K)

• Operating Voltage: DC 5V/12V

• Lens Type: Support C/CS interface

• Measurement: Straight line, circle, rectangle, parallel lines, concentric angle, etc;

• Photographing: 4K, JPG

• Video: 1920x1080avi

• Screenshot: 1080P, JPG

• Crosshairs: 12X12 groups

• Arbitrary line marking: Yes

• Character markers: On-screen soft keyboard input

• File Management: Yes

• Same-screen comparison: single, dual, four-screen freeze comparison

• Scale: Crosshair, concentric circles, arbitrary user shape scale

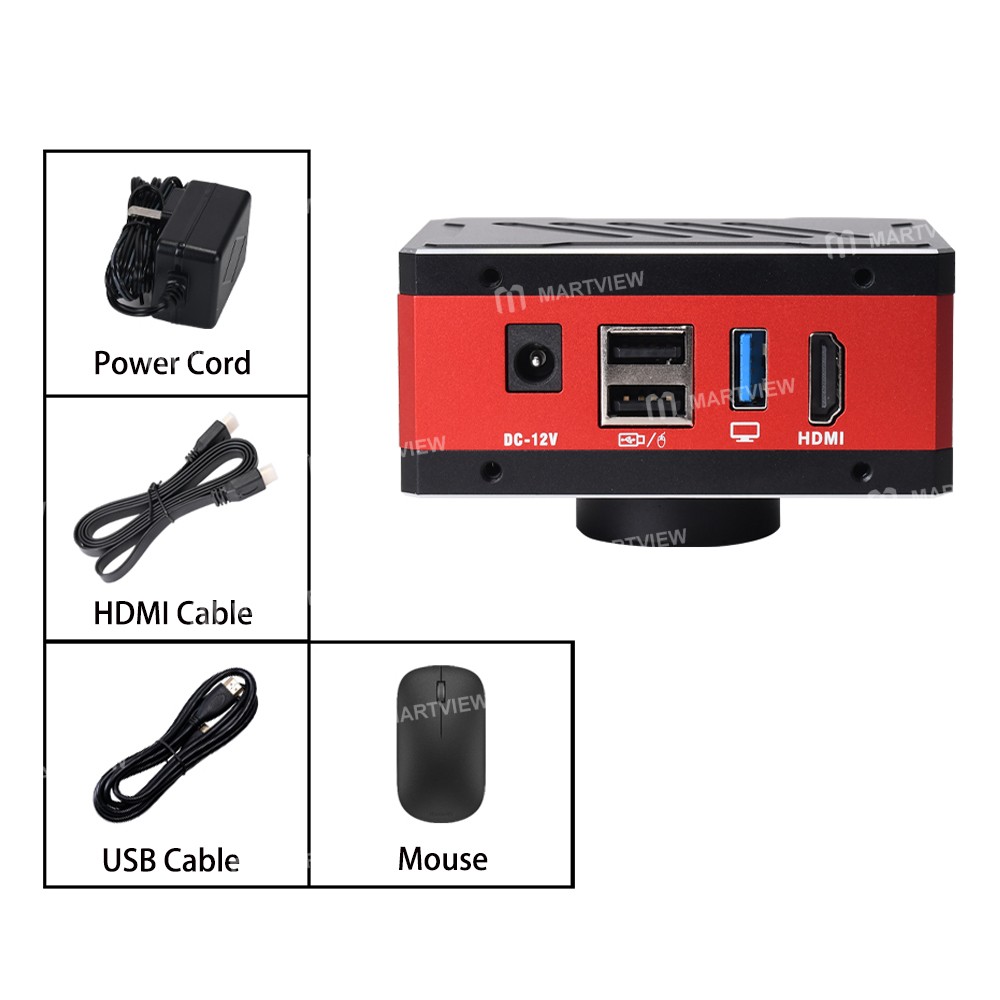

Package includes:

• 1 x 4K Camera

• 1 x Mouse

• 1 x HDMI Cable

• 1 x Power Cord
