Hikvision K20 Portable Thermometric Infrared Thermal Imager for Detection Motherboard Circuit

Hikvision K20 Portable Thermometric Infrared Thermal Imager for Detection Motherboard Circuit

Features:

• 256*192 pixel infrared detector, with an intelligent image processing algorithm accumulated by Hikvision for many years

• 49152 temperature measurement points are fully covered, high-temperature point, low-temperature point, and center point are automatically captured, breaking the hardware limit, the image is extremely clear

• Equipped with Hikvision's flagship dual-light fusion technology, the low-frequency information of visible light is optimized through intelligent image algorithms, so that the image fusion effect is full of details, clear, and sharp.

• Built-in one-key AGC intelligent image technology, automatic gain adjustment image technology, under complex temperature environment, select the measured object by touch, adjust the image layering with one key, and analyze the subtle temperature difference of the measured object

• 3.5-inch LCD touch screen, get rid of complex physical button operation, adopt the latest interactive design

• Click the shutter button to take a thermal image, and long press to record a thermal imaging video

• Lightweight appearance, sturdy design, carry it with you, excellent ergonomic design, excellent hand experience

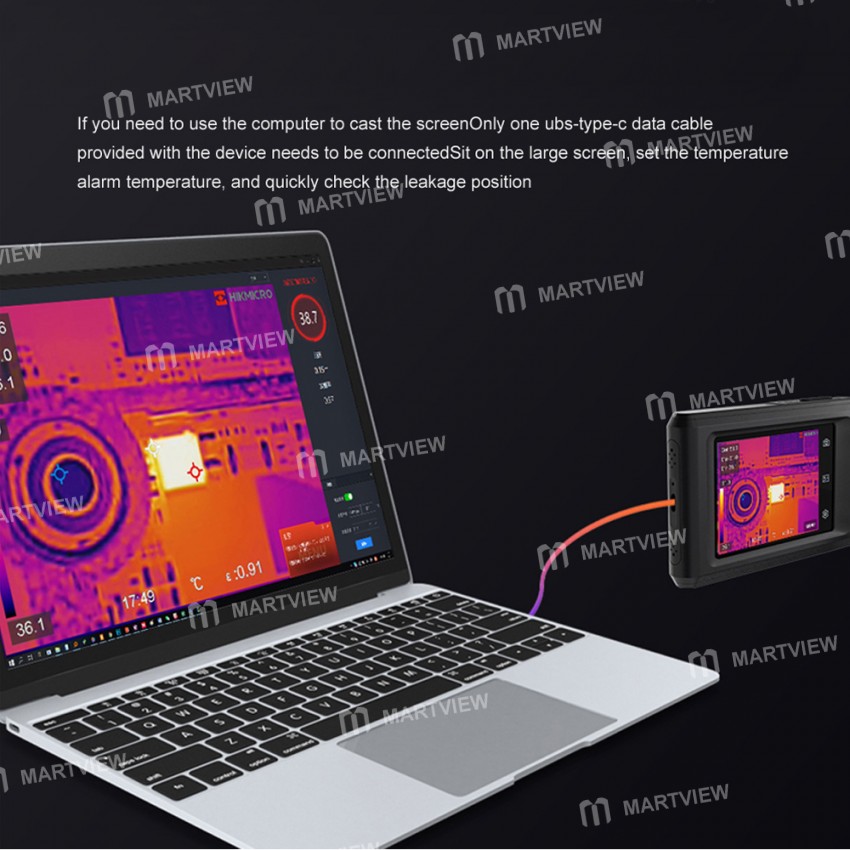

• Wireless real-time screen projection, mobile phone remote control, one-key export report

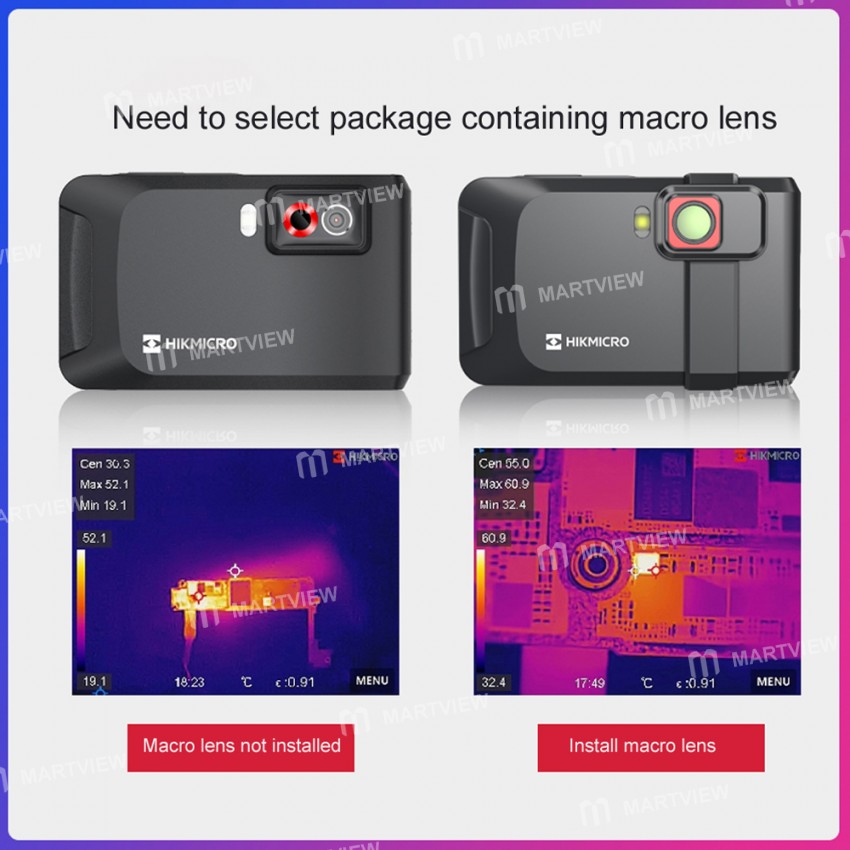

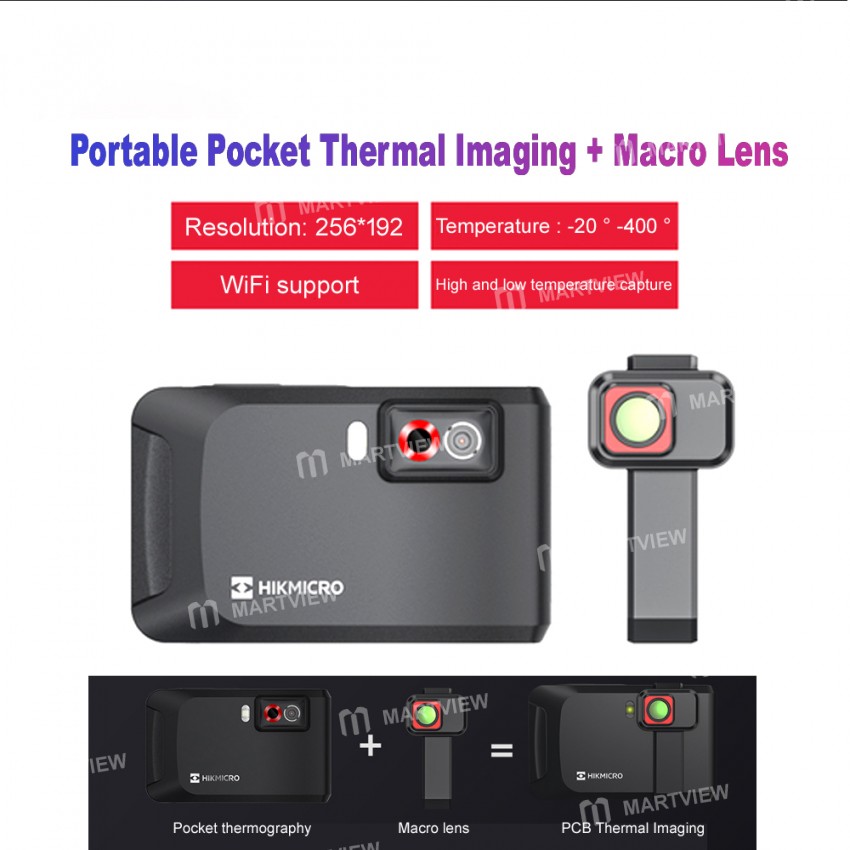

• Optional macro lens, excellent microscopic

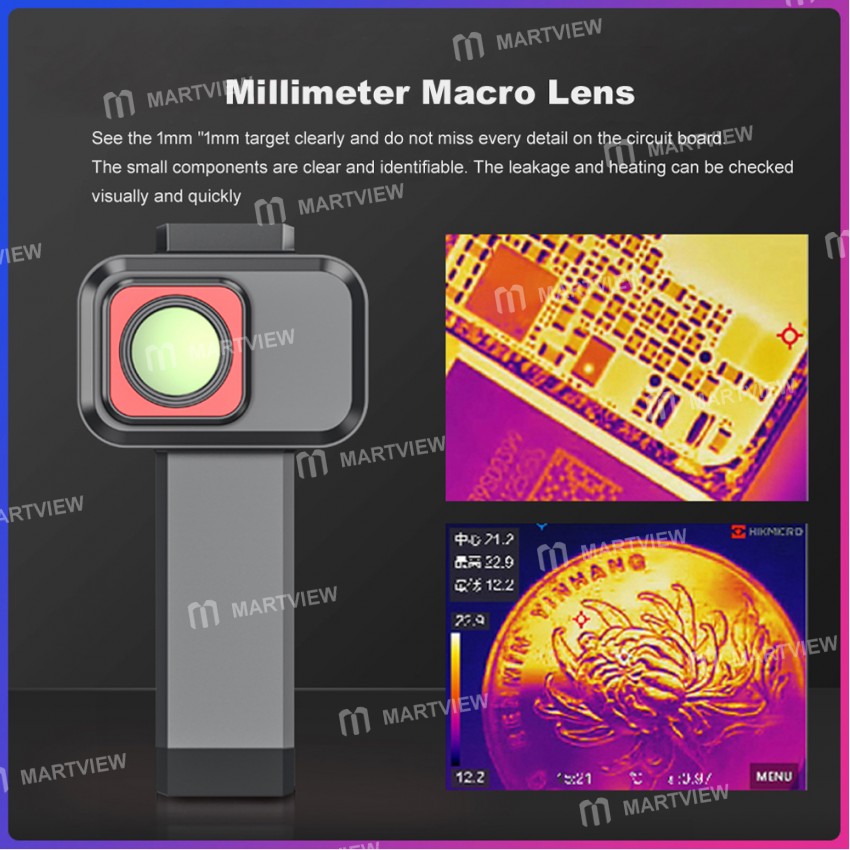

• The millimeter-level macro lens does not miss every detail on the circuit board, the tiny components are clearly identifiable, and the leakage and heat generation can be quickly checked

Specification:

• Resolution: 256×192(49152 pixels) NETD<50mK(@25C,F#=1.0)

• Temperature measurement range: -20°C~400°C

• Temperature measurement accuracy: ±2°C or ±2% (take the maximum value)

• Function: Support 1.X~4.X continuous digital zoom, support automatic AGC, manual AGC, one-key AGC

• Frame rate: 25Hz

• Camera: 8MP visible light

• Battery life: 4 hours

Package includes:

• 1 x Thermal imager

• 1 x Macro lens
