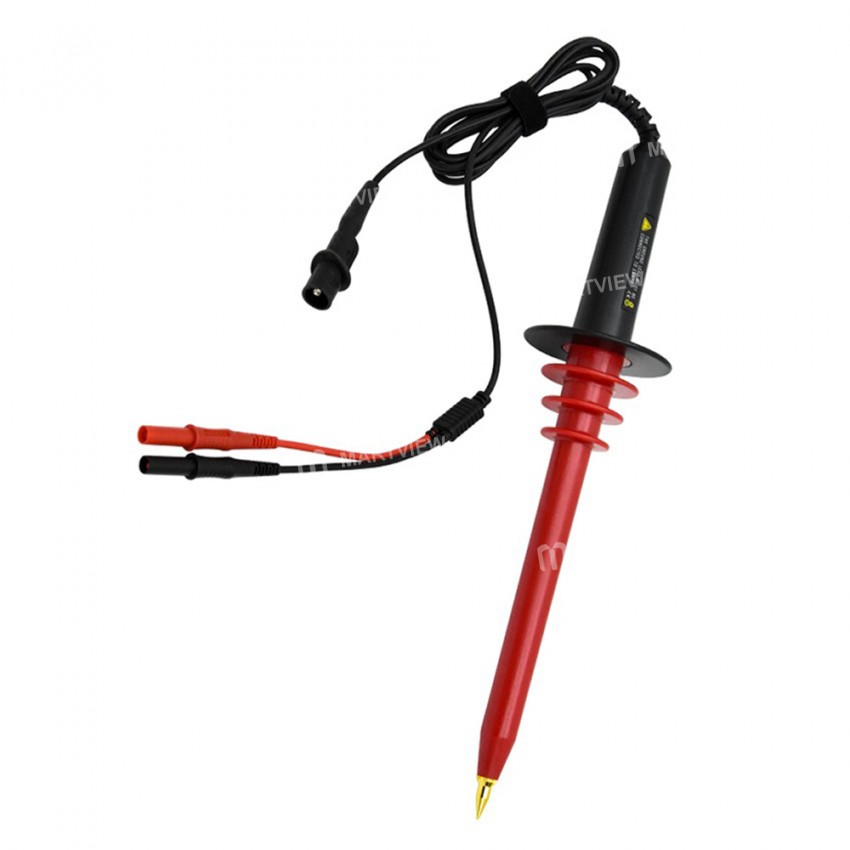

HPV-40 40KV 1000X Attenuation Bandwidth High Voltage Multimeter Probe

HPV-40 40KV 1000X Attenuation Bandwidth High Voltage Multimeter Probe

Specification:

• Name: High Voltage Probe

• Model: HVP40

• Input impedance: 1000MΩ

• Attenuation ratio: 1000:1

• Maximum test voltage: DC 0-40KV, AC 0-28KV (50/60Hz)

• Safety certification: EN61010, UL3111-1, TUV-GS IEC1010 CAT II Pollution 2

• Polarity: Both positive and negative can be measured

• Accuracy: DC: ±1% to 20KV, ±2% to 40KV/AC: -5% to -10% at 5O-60Hz

• Coefficient: 10-5OPF variable

• Size: about 1.4 meters

• Temperature coefficient: ≤200PPM/℃

• Maximum load current: ≤40μA (at 40KV DC)

• Maximum power consumption (heating): ≤1.6 watt

• Working temperature: 0℃~+50℃

• Storage temperature: -20 ℃~+70 ℃

• Ground wire length: 90 cm (3ft)

• Cable length connected to the meter: 100cm (3.3ft)

• Designated connection: digital multimeter with 10MQ input impedance

• Meter output indication: 1000 digits ×, that is, 1V → 1000V

• Meter output indication: 1000 digits ×, that is, 1V → 1000V / 10V → 10KV"

• Size: 340mm(L), 80φ(mm)

Package includes:

• 1 x High Voltage Probe
