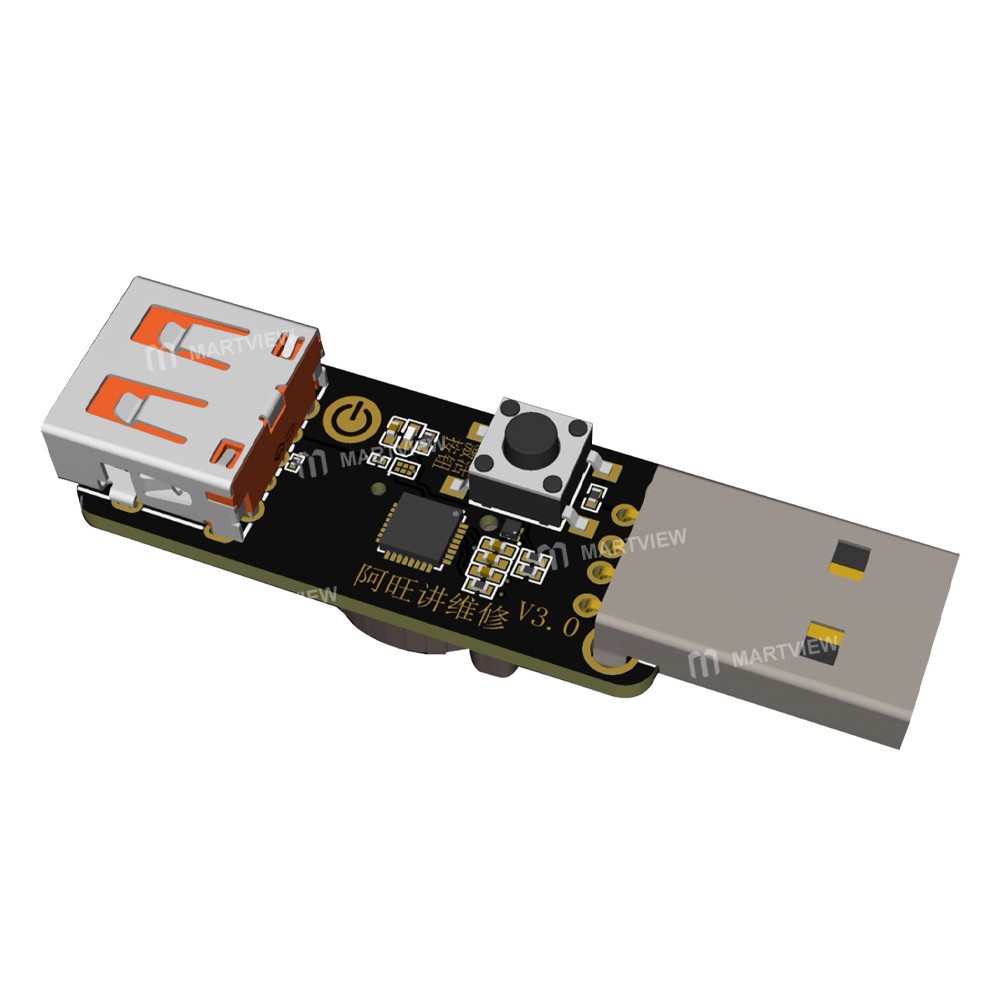

HW Battery Decryption Board for Huawei Boot into the System

HW Battery Decryption Board for Huawei Boot into the System

Features:

• No original IO chip, never lock the IO chip

• Microcontroller using three-volt button battery power supply, plug the power meter without self-consumption of power

• Outputs simultaneously support USB-A and Type-C interfaces, compatible with the market IO cable

• Later support for software upgrades

Usage:

• The first kind: Plug the device into the box with USB interface ammeter or boot line, the output of the device inserted into the 3-wire power cord, directly to the power cord of the battery buckle buckle on the motherboard to be repaired

• The second kind: In the case of the device battery is charged, the need to repair the motherboard boot, using 2-wire boot line normal buckle on the motherboard (the device does not need to be plugged in), the device GND flywire to the motherboard GND, the IO output corner fly to the motherboard battery holder IO corner

Package includes:

• 1 x Decryption Board
