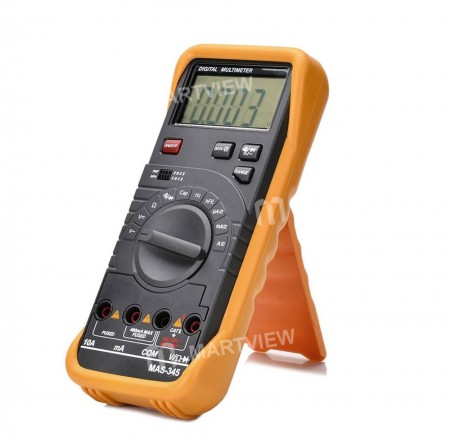

HYELEC MAS345 Digital Multimeter – AC / DC Voltage, Current, Resistance, Capacitance & Frequency Tester
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.1% |
| 5 | NaN | -4.7% |
| 10 | NaN | -7.0% |
Product details
Description
Description
Product details of MAS345 Digital Multimeter AC / DC Voltage / Current / Resistance / Capacitance / Frequency Multitester
Overview:
MAS345 Digital Multimeter is a professional auto‑ranging instrument with a 3 ¾‑digit LCD. It measures DC/AC voltage, DC/AC current, resistance, capacitance, frequency and provides diode, transistor and audible continuity testing. Ideal for electrical repair, appliance service, home wiring, automotive/boat electrical systems, hobby projects, and more.
Features:
Key Highlights: Auto‑ranging, 2000 Counts, 3 ¾‑digit LCD, overload & low‑battery protection, backlight, temperature & capacitance measurement.
- Auto‑ranging Digital Multimeter
- DC 1000 V / 10 A, frequency, capacitance up to 200 µF, 40 MΩ resistance, transistor hFE test, diode test
- Overload indication & protection, low‑battery indicator, backlight
- 3 ¾‑digit LCD display with temperature and capacitance measurement
- High sensitivity, resolution, and accuracy
Function Buttons and Jacks

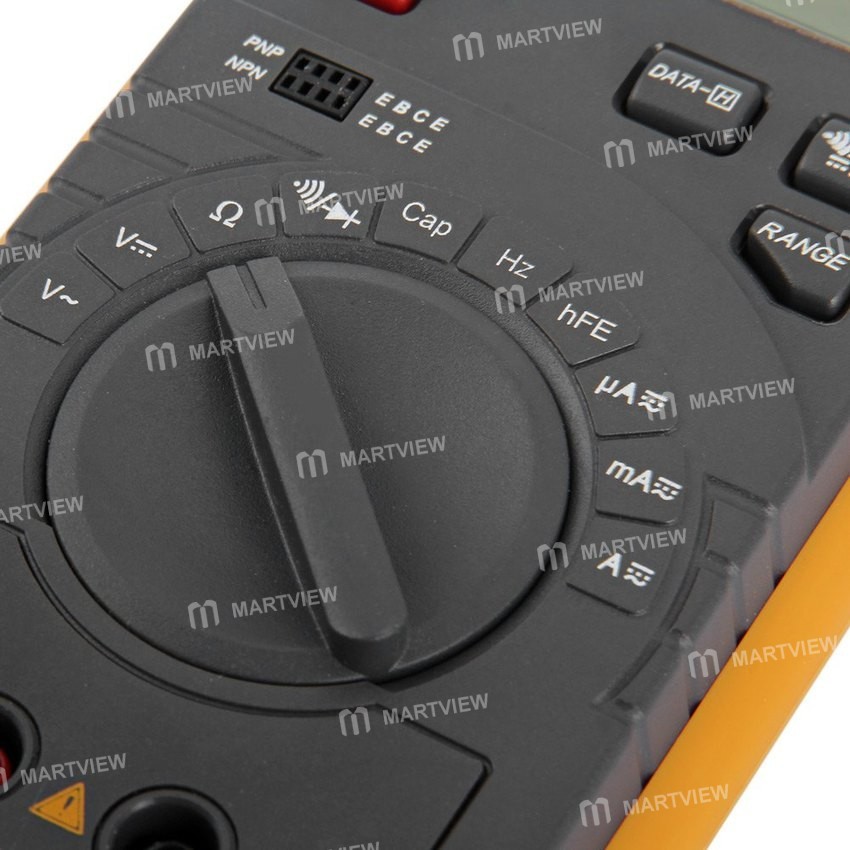

- Range control button: Manually select or let the meter auto‑range AC/DC voltage, AC/DC current (µA & mA only), resistance and frequency.
- Data‑hold button: Locks the current reading on the display; the D‑H symbol appears until pressed again.
- AC‑DC current / measurement mode button: Switches between AC and DC current when the function selector is set to µA, mA or A. Also selects AC/DC voltage mode when the selector is in the voltage position.
- Input jacks: Four protected input jacks (uA/mA/A ranges are fuse‑protected).
Features:
Key Highlights: Auto‑ranging, 2000 Counts, 3 ¾‑digit LCD, overload & low‑battery protection, backlight, temperature & capacitance measurement.
- Auto‑ranging Digital Multimeter
- DC 1000 V / 10 A, frequency, capacitance up to 200 µF, 40 MΩ resistance, transistor hFE test, diode test
- Overload indication & protection, low‑battery indicator, backlight
- 3 ¾‑digit LCD display with temperature and capacitance measurement
- High sensitivity, resolution, and accuracy
Function Buttons and Jacks
- Range control button: Manually select or let the meter auto‑range AC/DC voltage, AC/DC current (µA & mA only), resistance and frequency.
- Data‑hold button: Locks the current reading on the display; the D‑H symbol appears until pressed again.
- AC‑DC current / measurement mode button: Switches between AC and DC current when the function selector is set to µA, mA or A. Also selects AC/DC voltage mode when the selector is in the voltage position.
- Input jacks: Four protected input jacks (uA/mA/A ranges are fuse‑protected).
- Model: MAS345
- Material: ABS
- Type: Measuring instrument
- Certificate: RoHS
- Safety Level: CAT II 1000 V
- Professional instrument: Multimeter
- Primary functions: DC/AC voltage & current, resistance, capacitance, frequency measurement
- Features: 2000 Counts, low‑battery display, auto power‑off
- Scope of application: Home appliance, agricultural, education, industrial, office environments
- Package weight: 0.692 kg
- Product Size: 18.90 × 9.10 × 3.15 cm (7.43 × 3.58 × 1.24 in)
- Package Size: 25.00 × 13.50 × 6.70 cm (9.83 × 5.31 × 2.63 in)

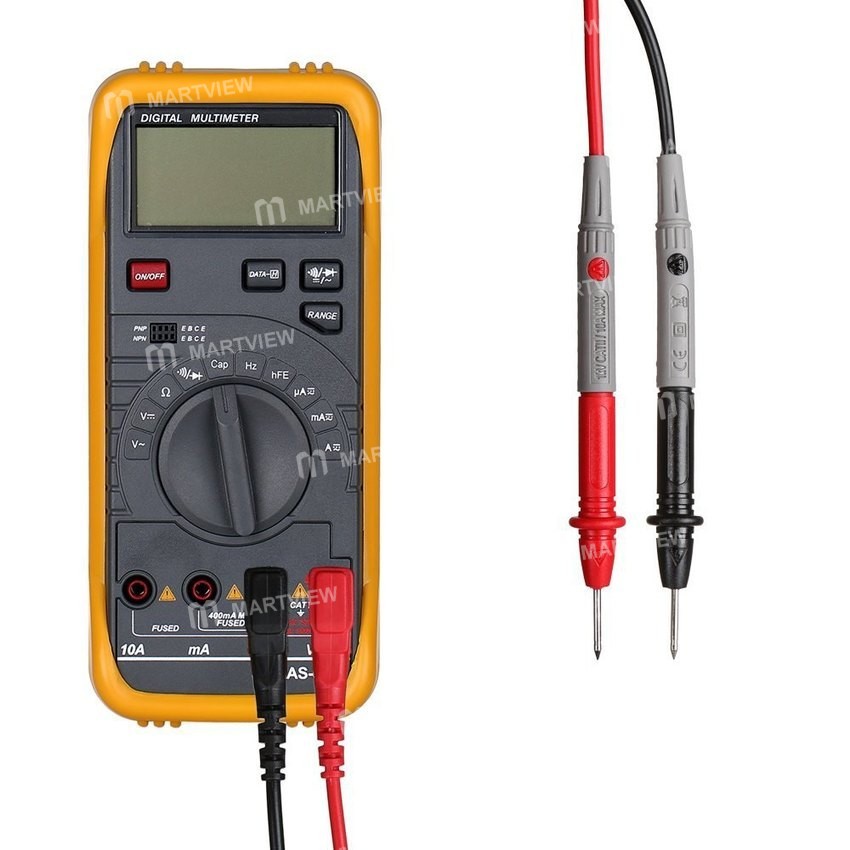

- Package Contents: 1 × MAS345 Multimeter with built‑in 9 V 6F22 battery, 2 × test leads, 1 × English user manual
