HYELEC MAS830B Multifunction Mini Digital Multimeter

The instrument of this series is a small hand-held 3 1/2 digital multimeter featuring stable,highly reliable and anti-drop performance.It is provided with an LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit,making it a superior and handy instrument.It can be used to measure DC and AC voltge,DC current,resistance,diodes.

Specifications:
DC Voltage: 200mV/2V/20V/200V±(0.5%+2)/600V±(0.8%+2)
AC Voltage: 200V/600V±(1.2%+10)
DC Current: 20μA±(1.0%+2)/200μA/2mA/20mA±(1.0%+2)/200mA±(1.5%+2)/10A±(3.0%+2)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ±(0.8%+2)/2MΩ±(1.0%+2)
Display: 2000 Counts
Data hold: √
Diode test: √
Power supply|:  9V6F22 Battery
Safety Rating: CE CAT.II600V RoHS
Package size: 16 * 11 * 5cm / 6.3 * 4.3 * 2.0in
Package weight: 300g / 10.3 oz

Package list

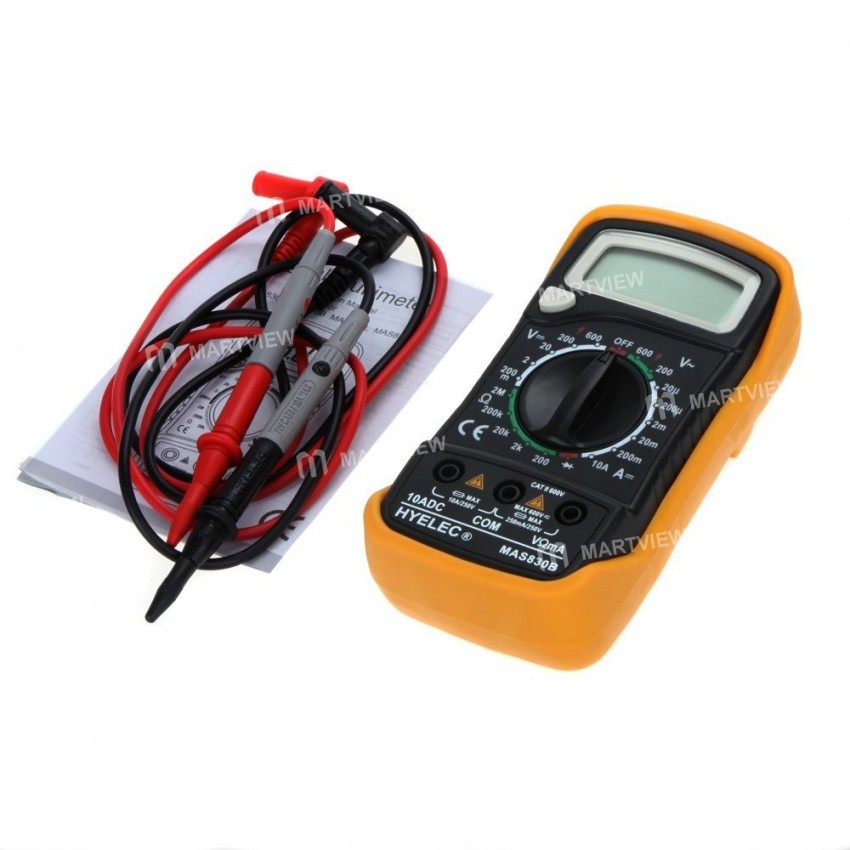

1 * HYELEC MAS830B Multifunction Mini Digital Multimeter
1 * Test Cable
1 * English Instructions
