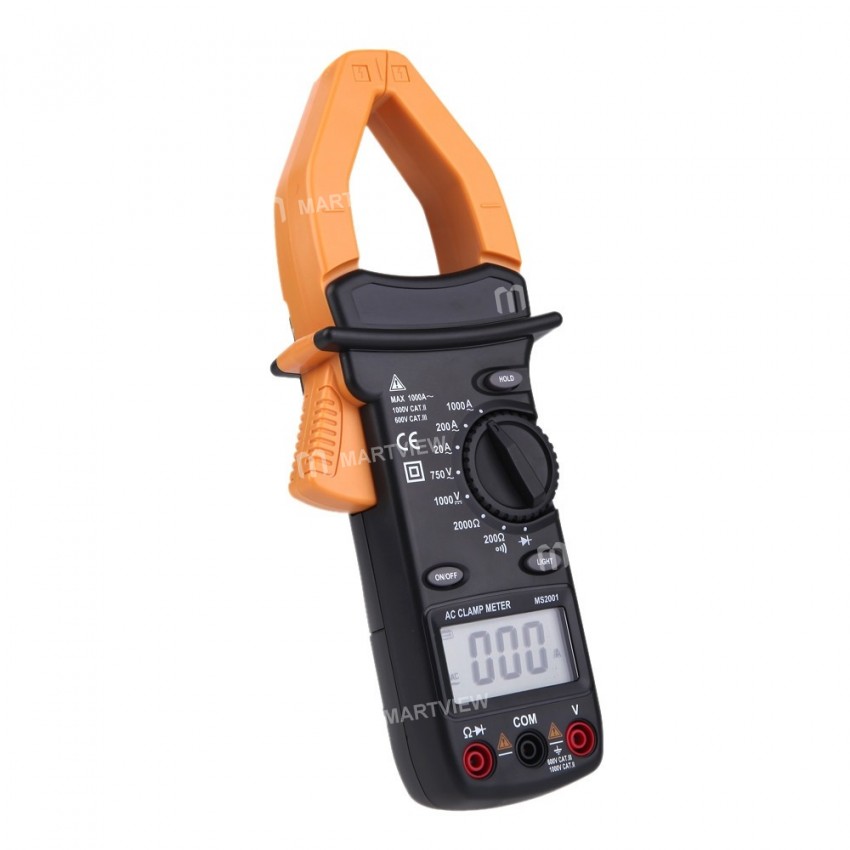

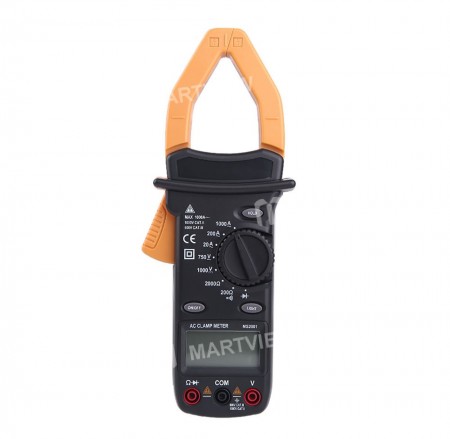

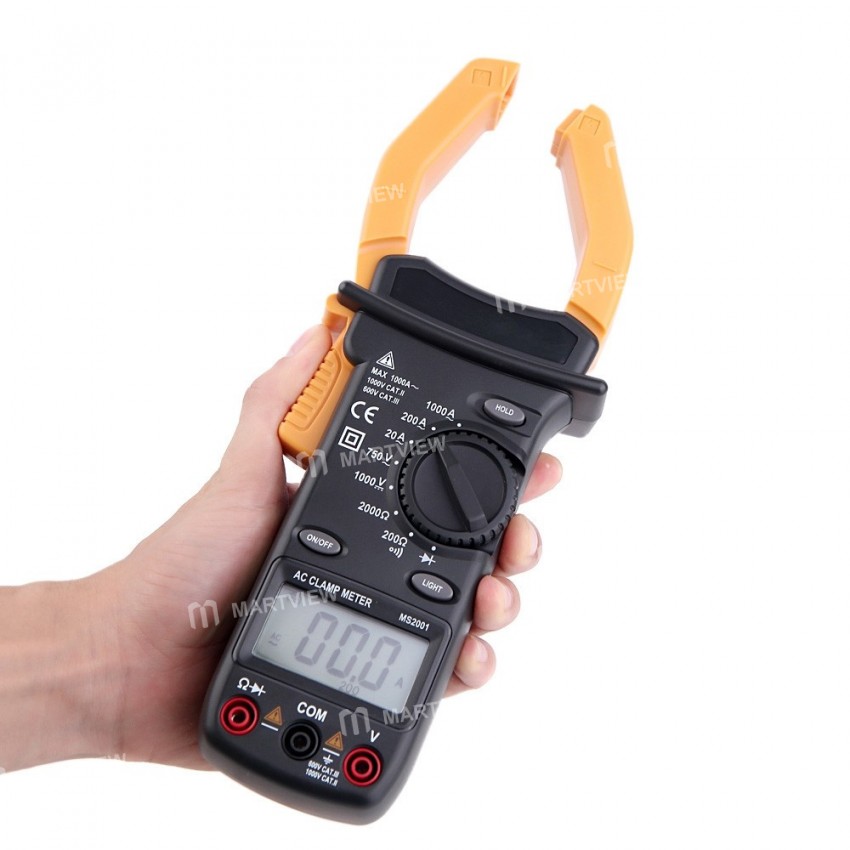

HYELEC MS2001 Digital AC Clamp Meter – Precision handheld device for measuring AC current, voltage, resistance, continuity and diode testing

Description

This handheld, battery‑operated Digital Multimeter (DMM) offers multifunction measurement capabilities. Designed to meet IEC61010‑1 & CAT II 600V standards with double insulation, it includes a sturdy holster that protects the downsized main body from shock drops. Ideal for schools, laboratories, factories, and various professional settings.

Key Features:
Display: 2000 counts
Auto‑range: Yes
Data hold: Yes
Backlight: Yes
Diode test: Yes
Continuity: Yes
Maximum value hold: Yes
Power supply: 9V 6F22 battery
Weight: Approx. 110 g
Size: 140 mm × 67 mm × 30 mm
Safety rating: CE, CAT II 600V, RoHS

Product Specification:
DC Voltage: 200 mV/2 V/20 V/200 V ±(0.5%+2) 600 V ±(0.8%+2)
AC Voltage: 2 V/20 V/200 V/600 V ±(1.0%+3)
DC Current: 200 µA/2 mA/20 mA/200 mA ±(1.0%+3) 10 A ±(3.0%+3)
AC Current: 200 µA/2 mA/20 mA/200 mA ±(1.2%+3) 10 A ±(3.0%+5)
Resistance: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ ±(0.8%+2) 20 MΩ ±(1.0%+2)
Temperature (°C): –20 °C ~ 1000 °C ±(3.0%+3)
Temperature (°F): –4 °F ~ 1832 °F ±(3.0%+3)
Packing weight: 340 g
Packing size: 155 × 111 × 53 mm

Package includes:
1 × MS8233E digital multimeter
1 × User manual
1 × Pen probe

Kindly notice:
The product is branded under both PEAKMETER (new) and HYELEC (legacy). Rest assured, the two logos represent the same high‑quality device.
