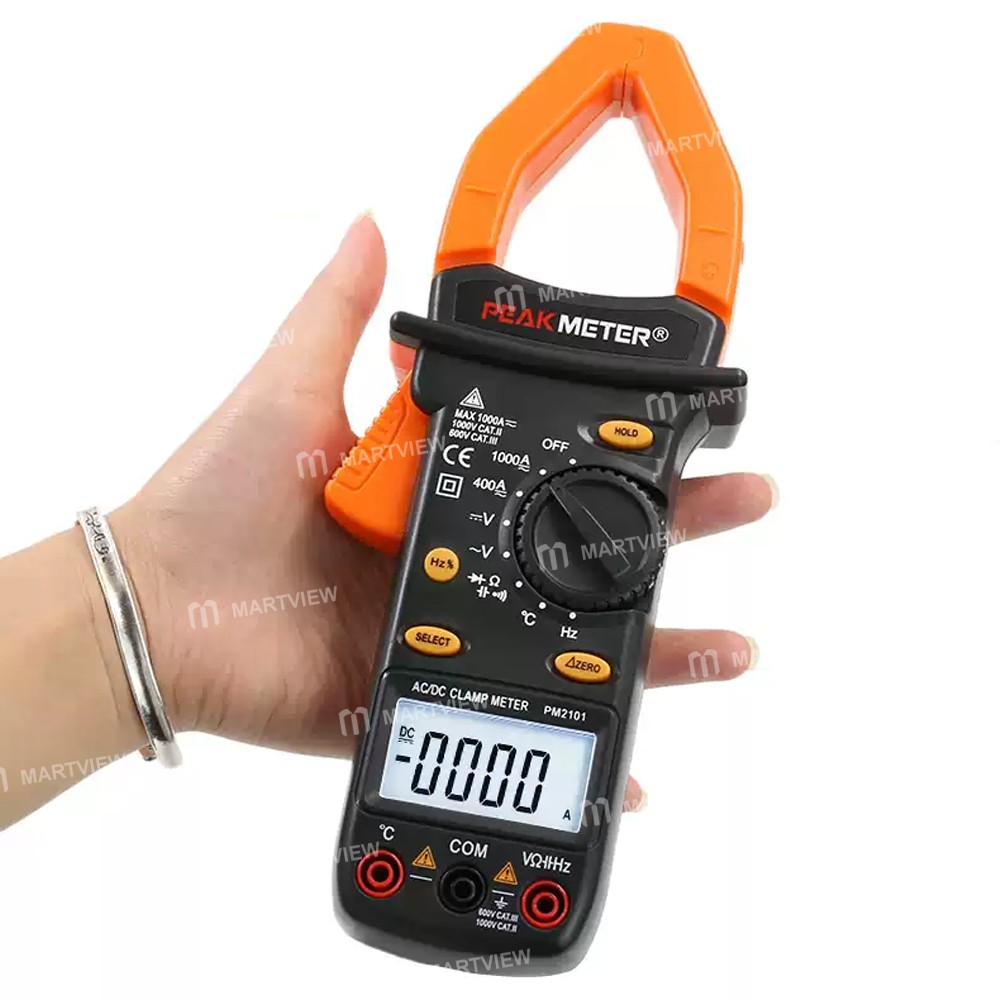

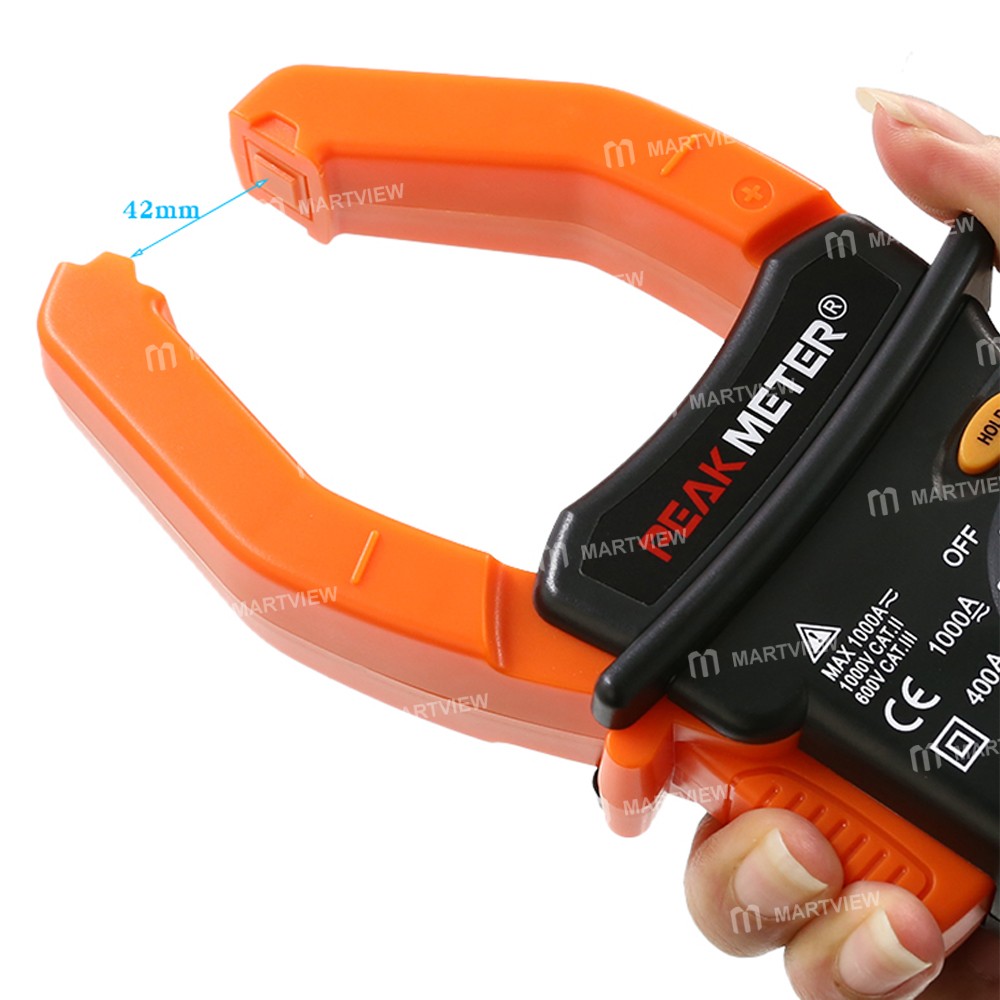

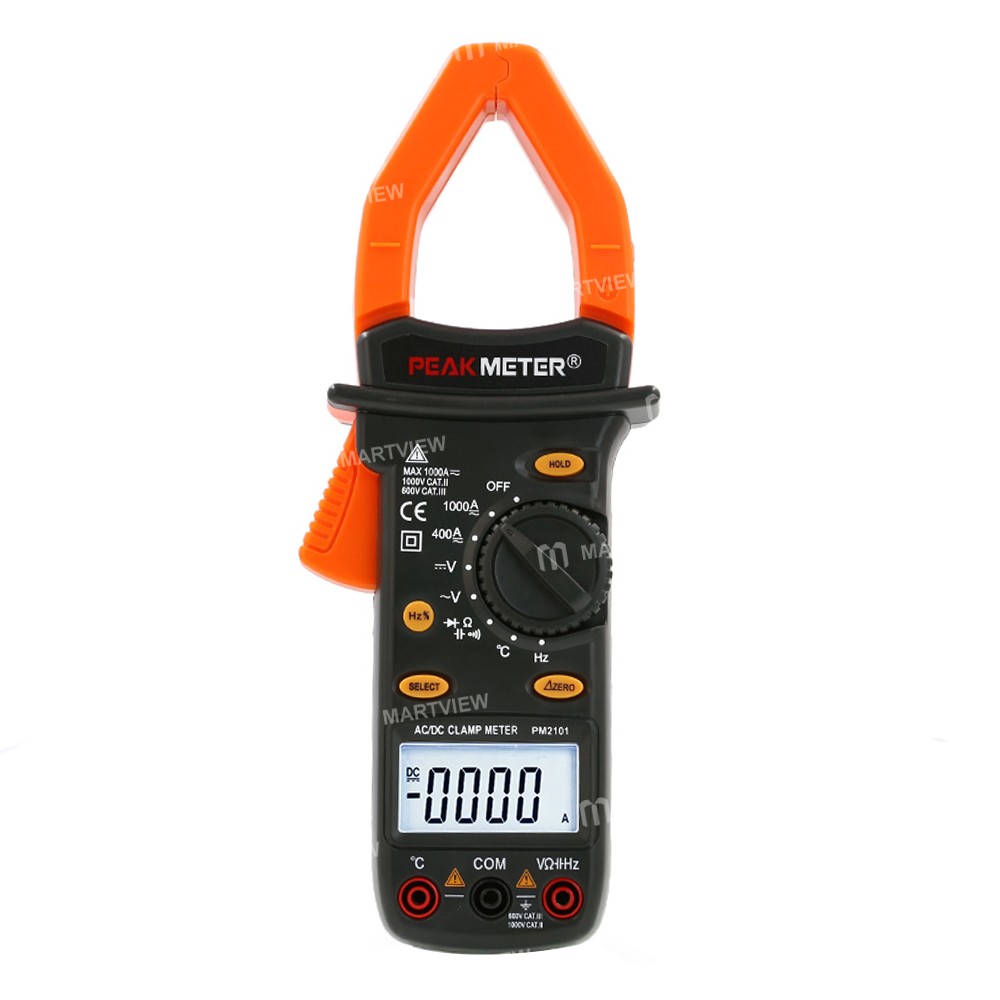

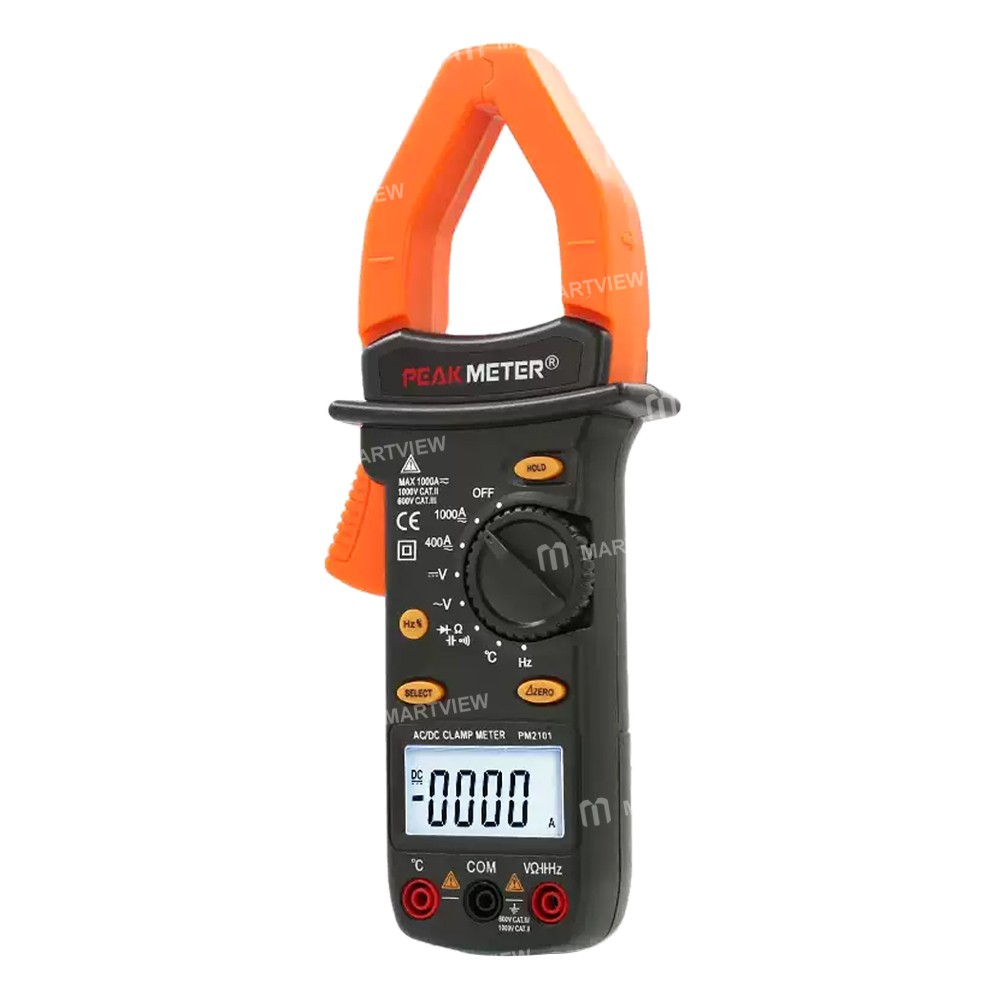

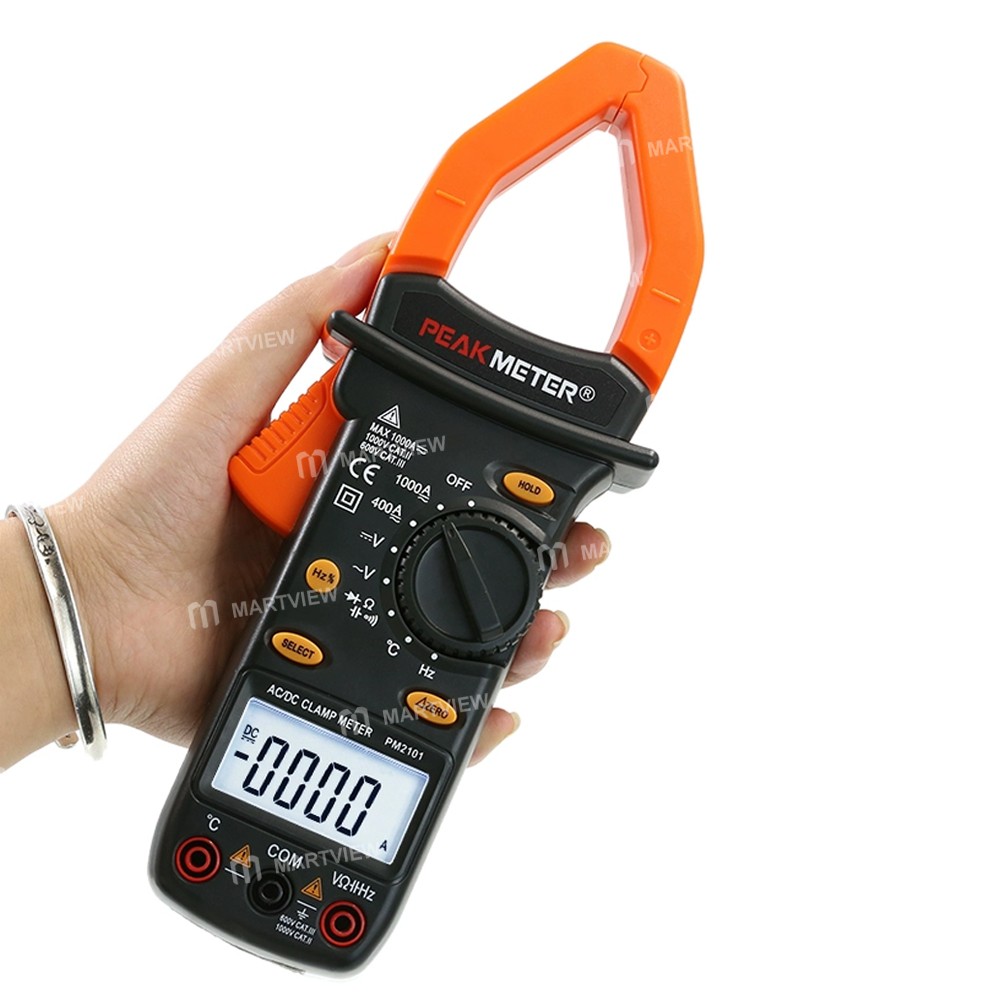

PEAKMETER PM2101 – Auto‑Range Digital AC / DC Clamp Meter for Current, Voltage & Temperature Testing

Description

The meter is an auto‑ and manual‑range professional AC/DC clamp meter with a 3999‑count display. It measures DC/AC voltage, DC/AC current, resistance, capacitance, temperature, frequency, duty cycle, diode and continuity, and is battery operated.

Features:
Summary: 3999‑count display, data hold, relative mode, auto power‑off, low‑battery alert, polarity and over‑range indicators.
Display: 3999 Counts.
Data hold and relative measurement mode.
Auto power off and low battery indication.
Polarity indication and over‑range indication.

Specifications:
DC Voltage: 0.4 V / 4 V / 40 V / 400 V / 1000 V ±(0.7% ± 3)  600 V ±(0.8% ± 5)
AC Voltage: 4 V / 40 V / 400 V ±(0.8% ± 5)  700 V ±(1.0% ± 10)
AC Current: 400 A / 1000 A ±(3.0% ± 3)
DC Current: 400 A / 1000 A ±(3.0% ± 3)
Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ ±(1.2% ± 1)  40 MΩ ±(2% ± 3)
Capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF ±(4.0% ± 10)
Frequency: 40 Hz / 400 Hz / 4 kHz / 40 kHz / 100 kHz ±(2.0% ± 1)
Temperature: 400 ℃~750 ℃ ±1.0% ± 5, 0 ℃~400 ℃ ±1.0% ± 3, ‑40 ℃~0 ℃ ±1.0% ± 6
Item weight: 393 g (without battery)
Power supply: 1 × 9 V 6F22 battery (not included)

Package Information:
Package size: 27 × 14 × 6 cm / 10.6 × 5.5 × 2.4 in
Package weight: 663 g / 1.5 lb
Black gift box

Package List:
1 × Digital AC/DC Clamp Meter (without battery)
1 × Pair of test probes
1 × Temperature test probe
1 × Storage bag
