PEAKMETER PM2108 Digital Clamp Meter – True RMS, Auto‑Range, Non‑Contact Voltage Detection, Data Hold, Low‑Battery Indicator, LED Backlight, Compact Handheld Design

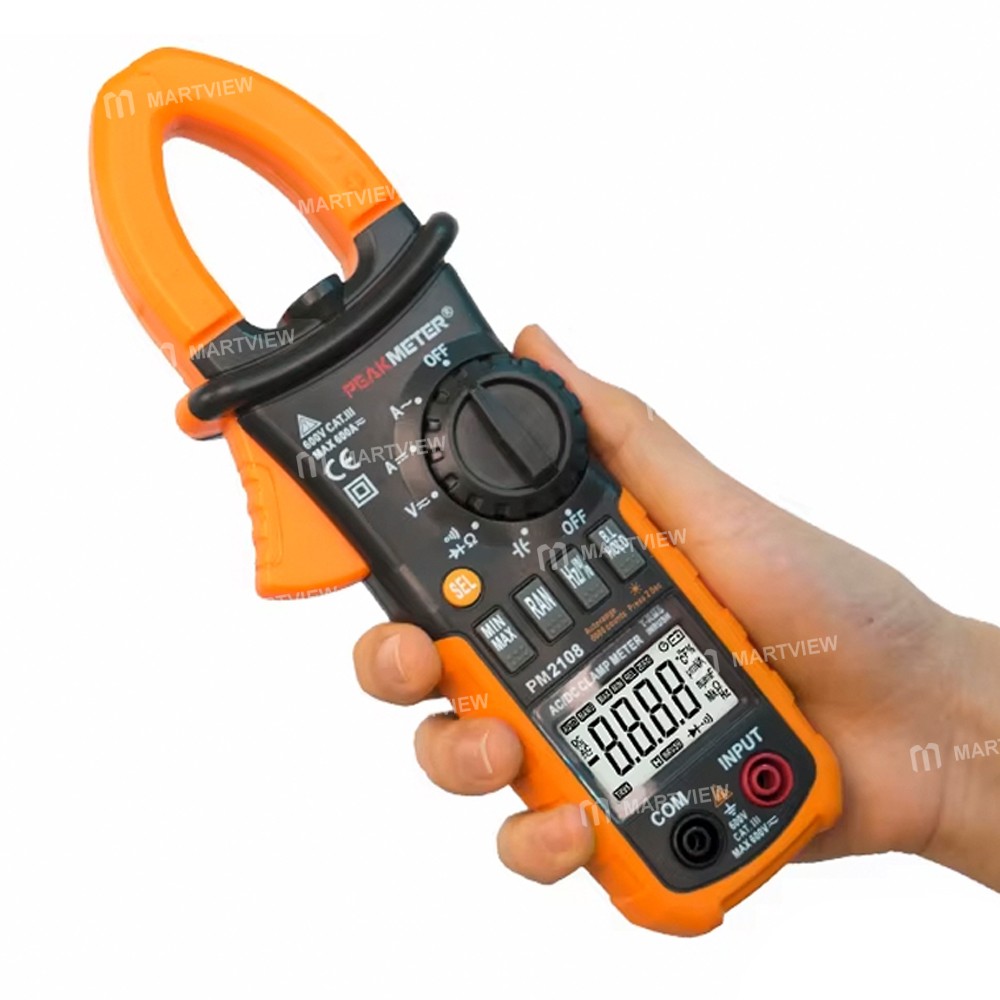

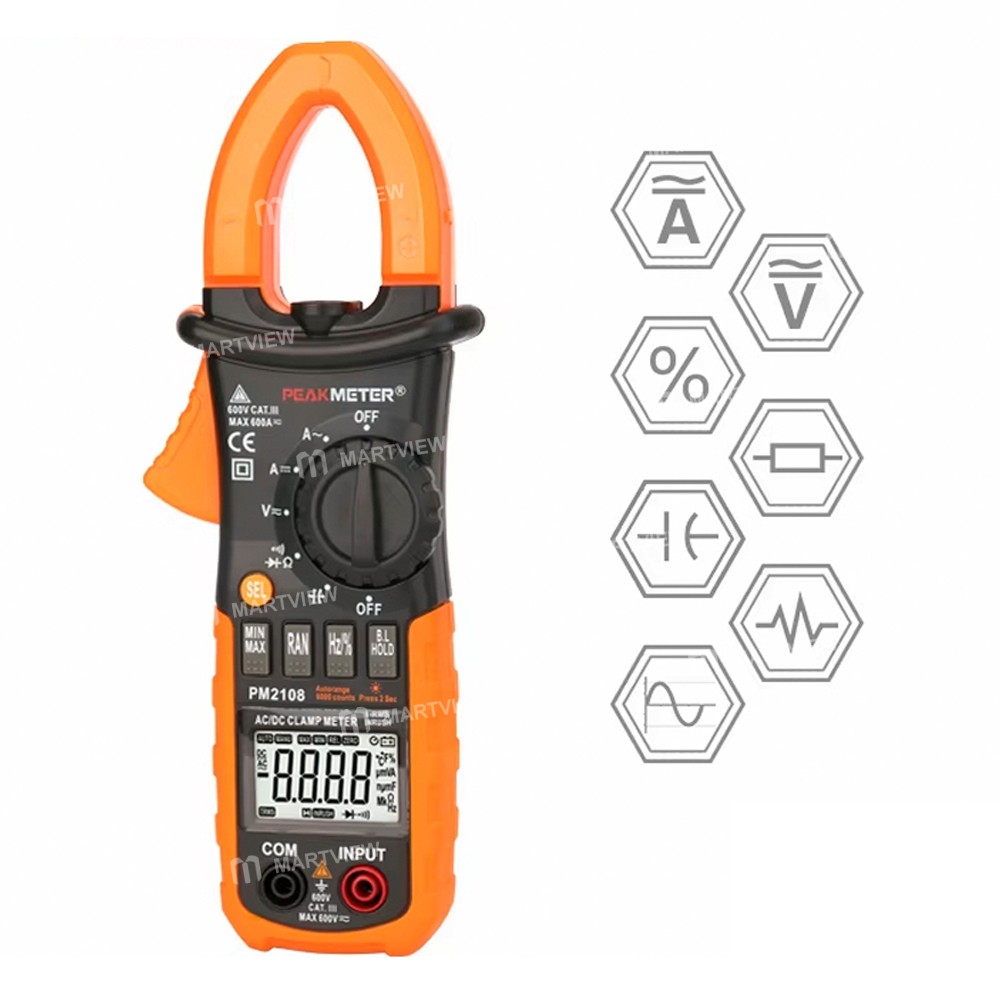

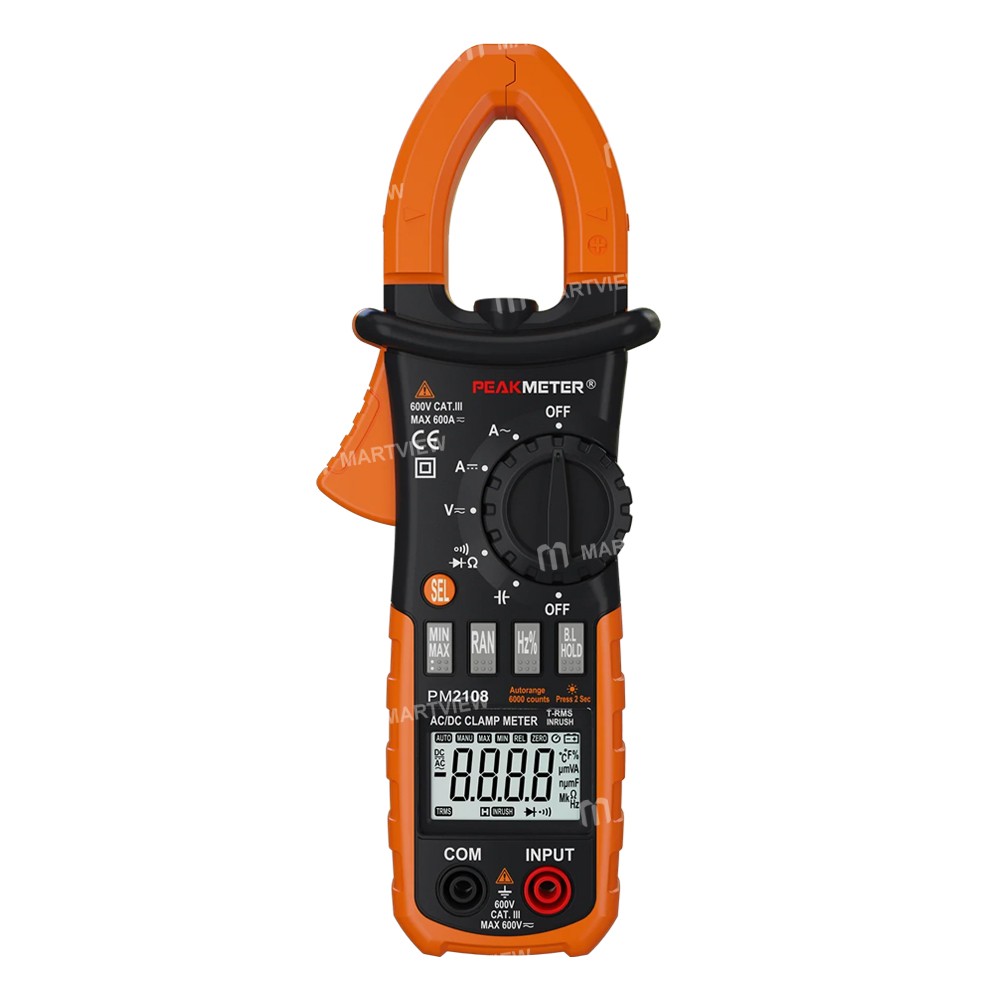

PEAKMETER PM2108 Digital Clamp Meter

Summary: Compact, high‑precision digital clamp meter featuring True RMS, in‑rush current detection, data‑hold, max/min value hold, continuity test, diode test, and a bright back‑lit display.

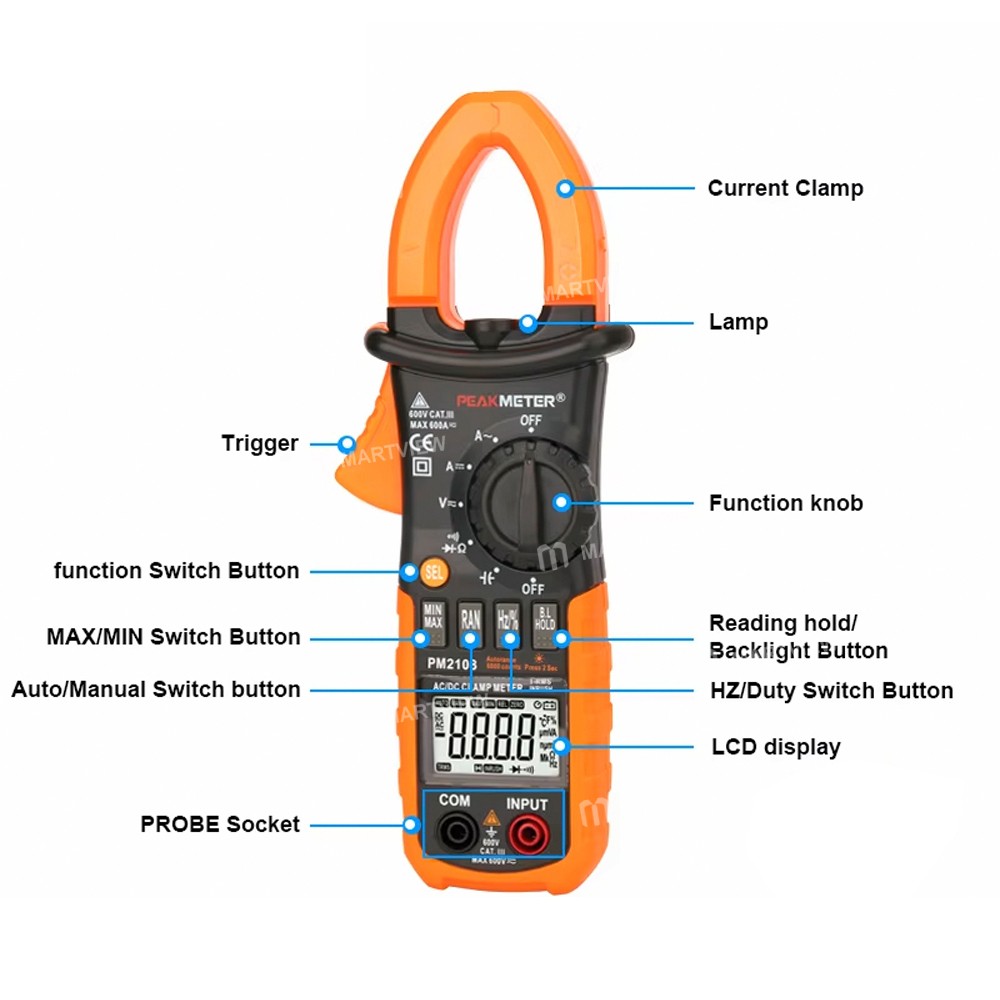

Key Features
Display: 6600 Counts
Auto and manual range: ✔
Inrush current measurement: ✔
True RMS: ✔
Data hold: ✔

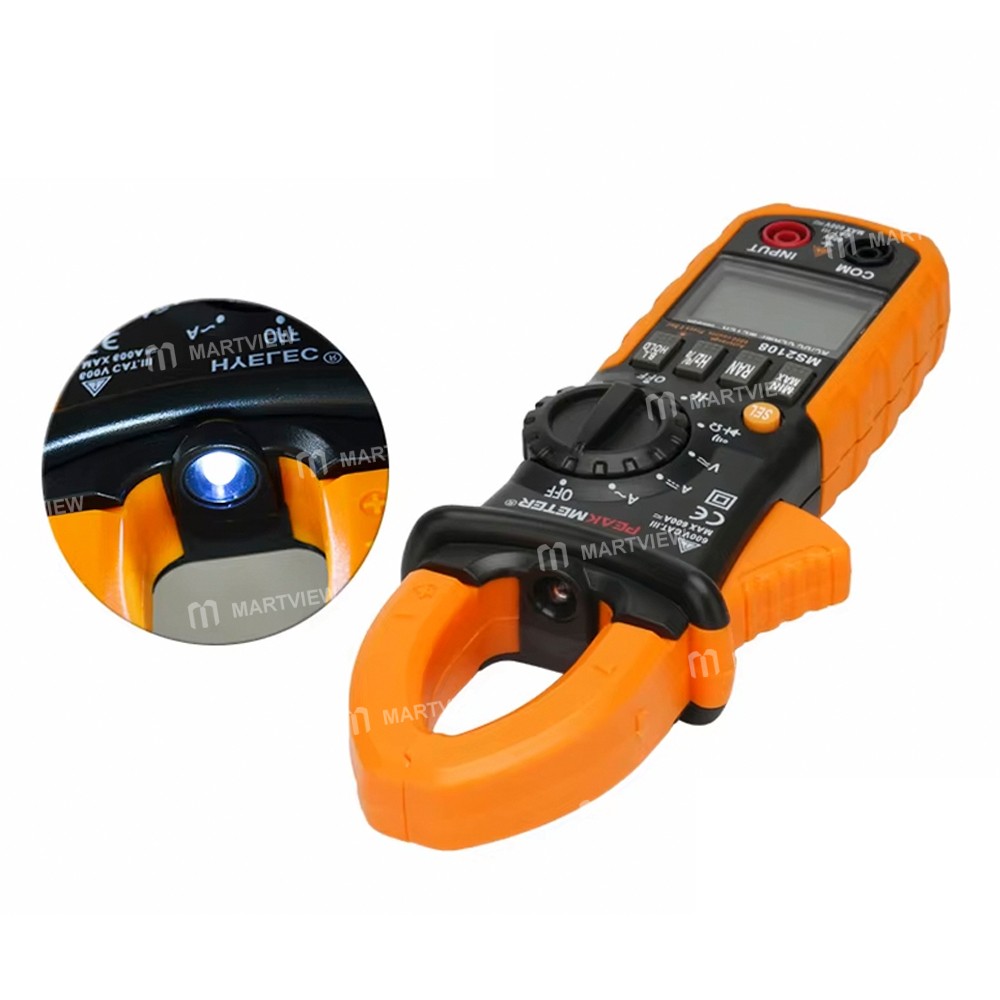

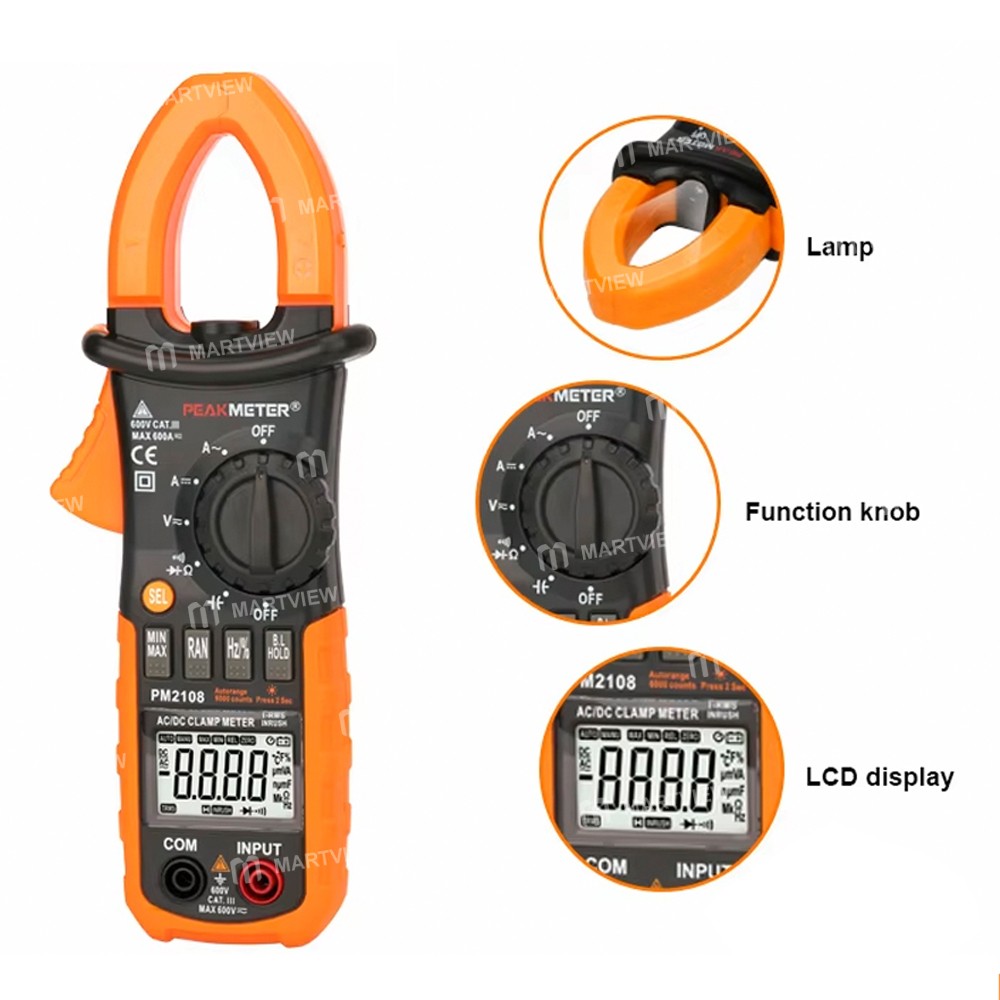

Work light: ✔
Diode test: ✔
Max/Min value hold: ✔
Continuity test: ✔
Back light: ✔
Power supply: 1.5 V (AAA) × 3 Batteries (not included)
Safety Rating: CE, CAT III 600 V, RoHS

Specifications
DC Voltage: 660 mV / 6.6 V / 66 V ± (0.8 % + 3) / 660 V ± (1.0 % + 5)
AC Voltage: 660 mV / 6.6 V / 66 V / 660 V ± (1.5 % + 5)
AC Current: 66 A / 600 A ± (3.0 % + 10)
DC Current: 66 A / 600 A ± (3.0 % + 10)
Inrush Current (100 ms): 66 A / 600 A ± (10.0 % + 60)
Resistance: 660 Ω / 6.6 kΩ / 66 kΩ / 660 kΩ / 6.6 MΩ / 66 MΩ ± (1.2 % + 2) / 66 MΩ ± (2.0 % + 5)
Capacitance: 6.6 µF / 66 µF / 660 µF / 6.6 mF / 66 mF ± (4.0 % + 3)
Frequency: 10 kHz ± (1.5 % + 5)
Duty Cycle: 10 % ~ 95 % ± (3.0 % + 2)
Package size: 23 × 11 × 6 cm (9.2 × 4.4 × 2.4 in)
Package weight: 465 g (1 lb)

Package List
1 × Digital Clamp Meter
2 × Test Cable
